Setting Limits on GMSB Models
: Search for Heavy Long-Lived Neutralinos in gg+Met final state with 2 fb^-1

08/20/09

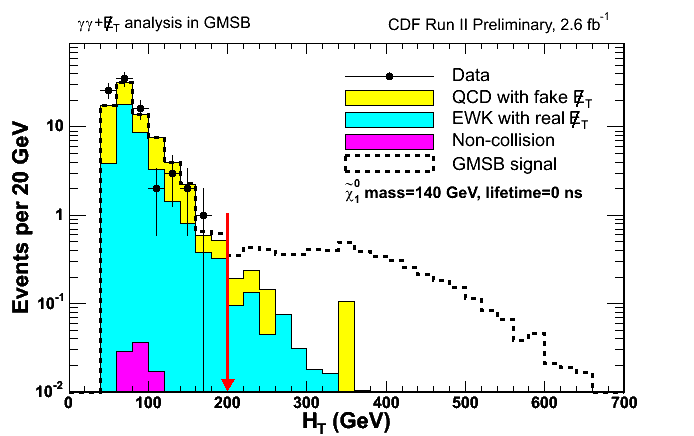

N-1 Plot for HT distributions with different EWK scale factors

Default (EWK global scale factor=0.7) / smaller y-axis

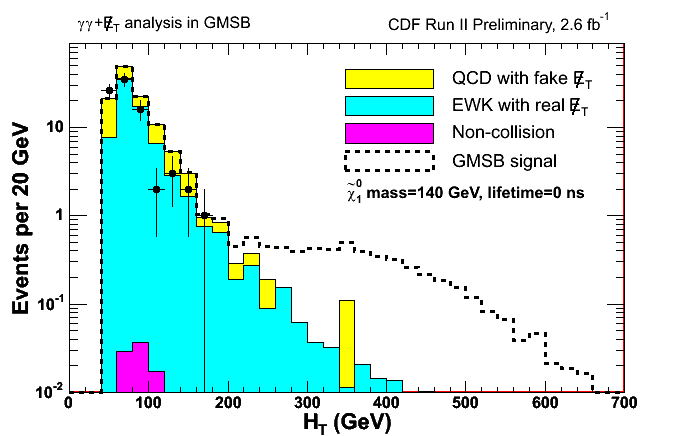

EWK global scale factor=1.4 / smaller y-axis
EWK global scale factor=bin-by-bin (For above 300 GeV SF=1.5 is applied since there are no e&gamma data in it)

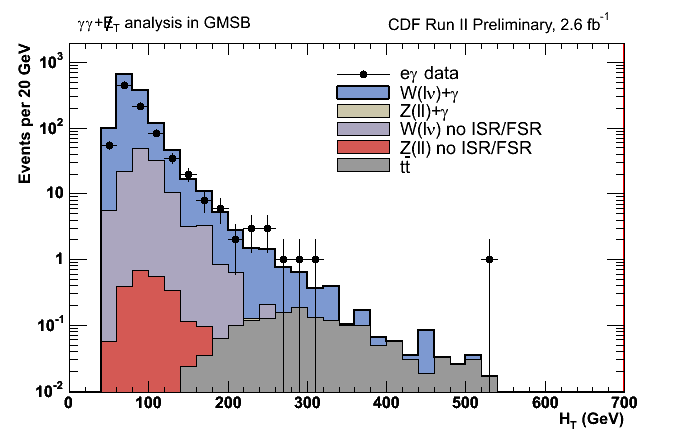

N-1 HT plot for e&gamma data and MC

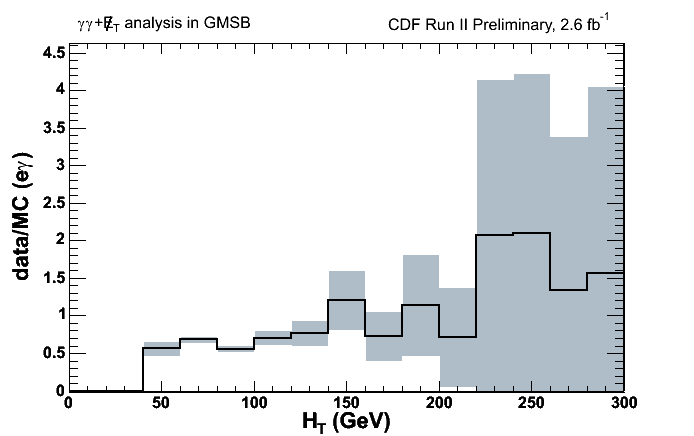

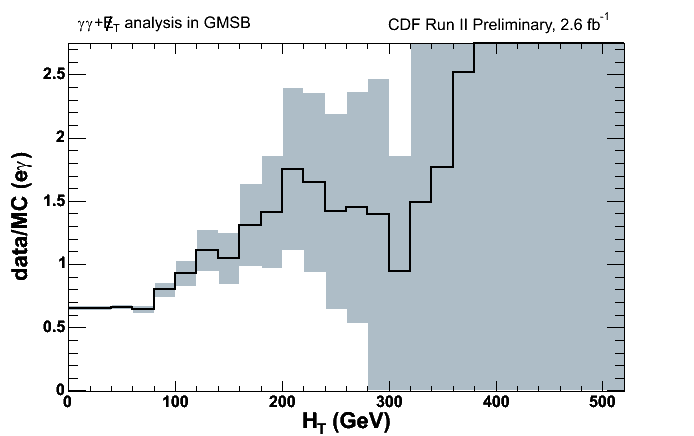

EWK scale factor (data/MC, bin-by-bin) as a function of HT / integrated above HT cuts

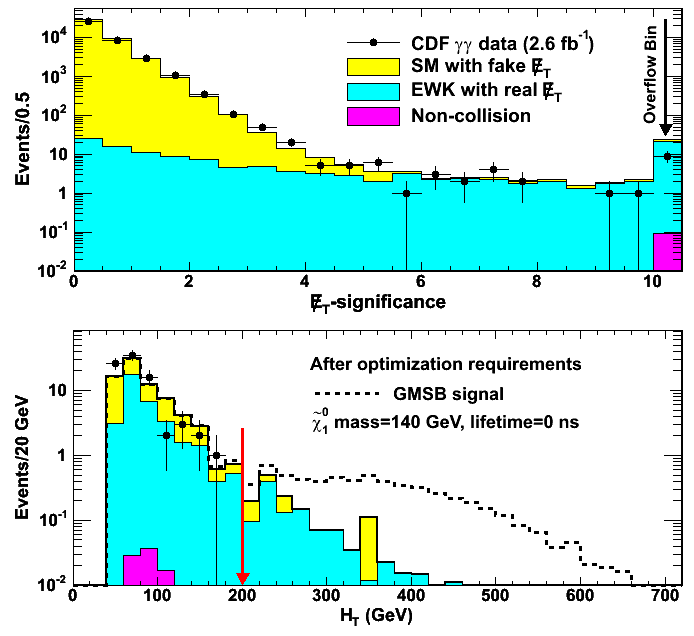

PRL figure 1 (default) / bin-by-bin EWK scaling

05/12/08
Preliminary Talk (Aug 2009)

Search for GMSB models in the &gamma &gamma + MET final state with 2.6 fb^-1 Preliminary Talk

06/09/09
HT prediction from MetModel for an event

HT (prediction)

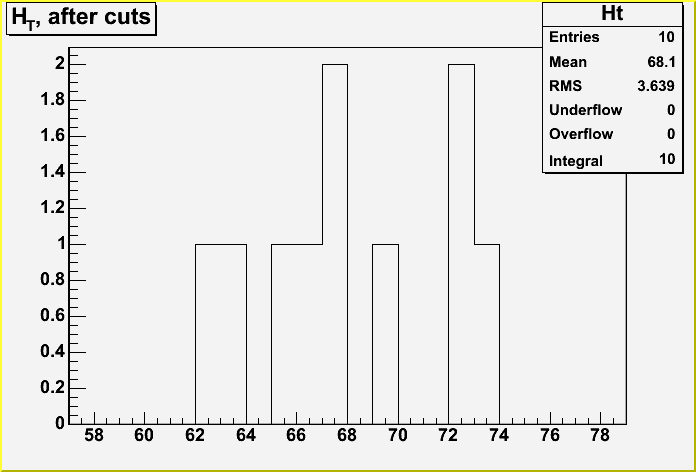

HT (default)
HT (jet1)
HT (ue1)

05/12/08
New Perspectives and Collaboration Meeting Talks (June 2009)

Setting limits on GMSB models in the &gamma &gamma + MET final state with 2.6 fb^-1 (NP/(CM)

05/19/09
New background distributions with uncertainty band for PRL

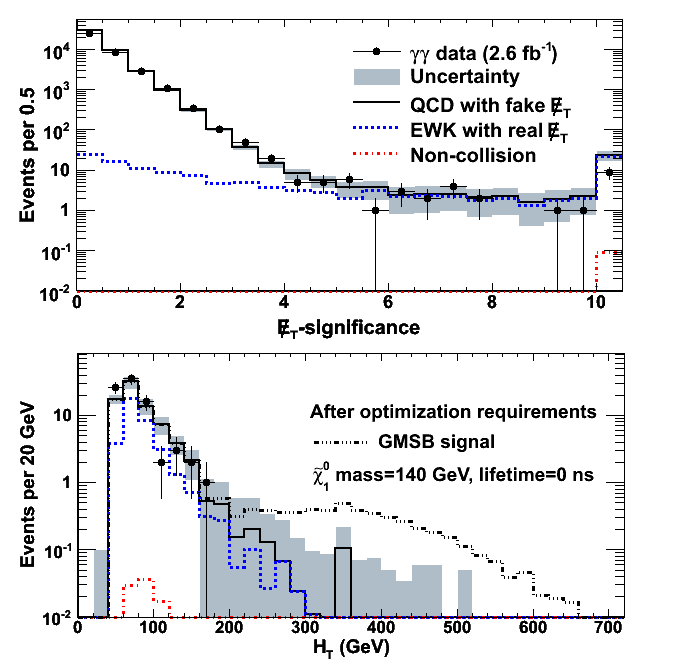

Figure 1 (blessed)
Figure 1 (ver. 1)
Figure 1 (ver. 2)

05/12/08
CDF Weekly Meeting Talk (May 2009)

Setting limits on GMSB models in the &gamma &gamma + MET final state with 2.6 fb^-1 (pdf/ppt)

04/29/09

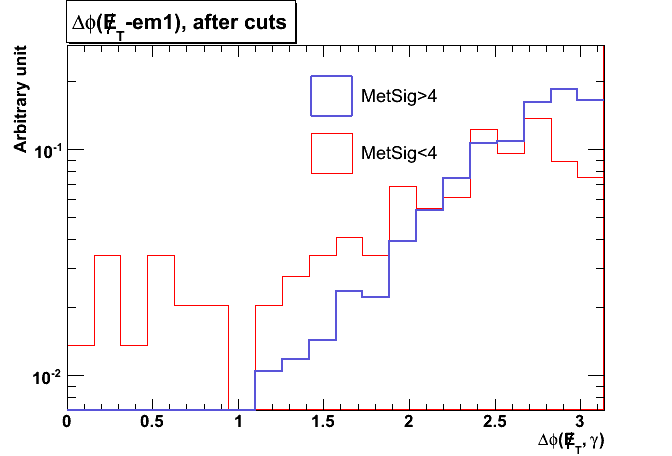

Studies for two different MetSig regions for GMSB signal: MetSig<7 and MetSig>7

MetSig after optimal cuts

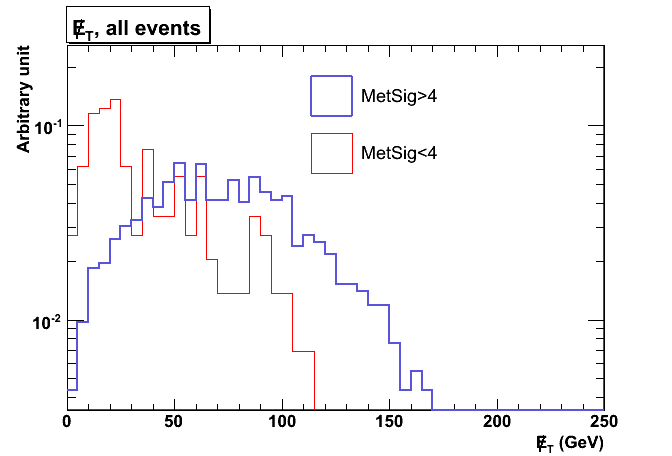

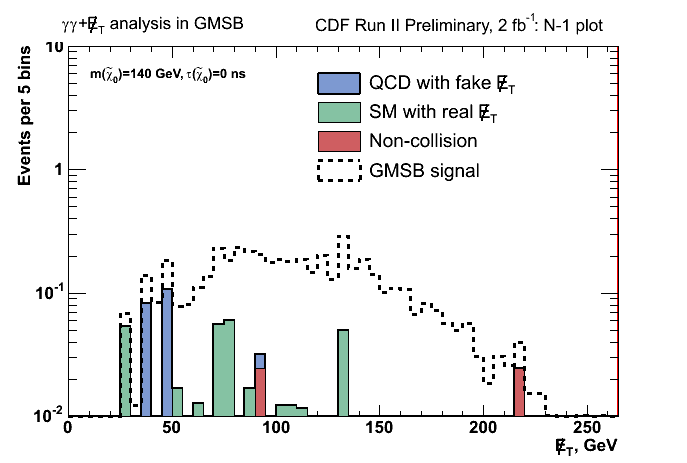

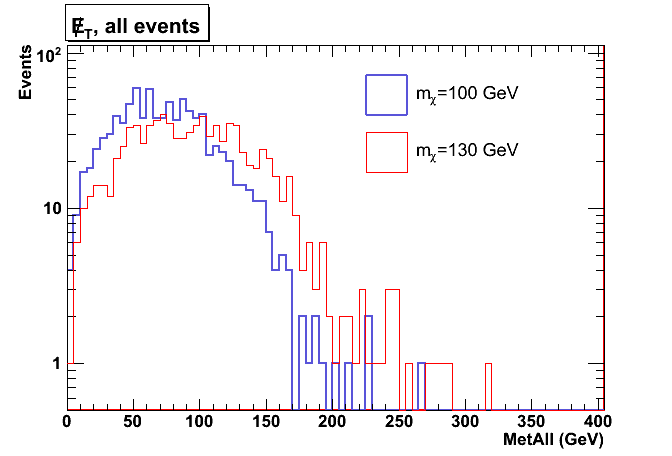

Met comparison for two regions

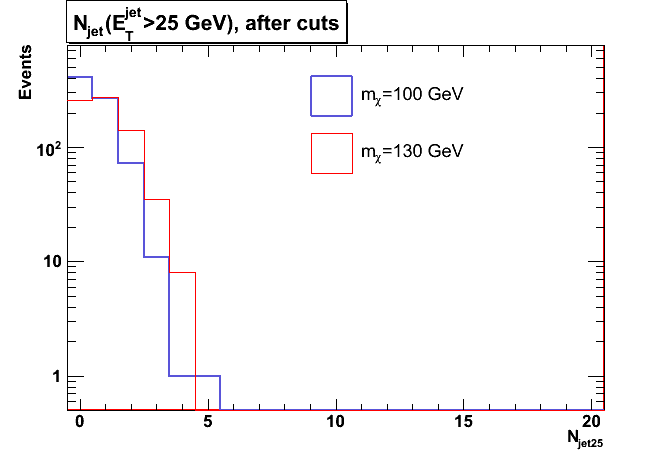

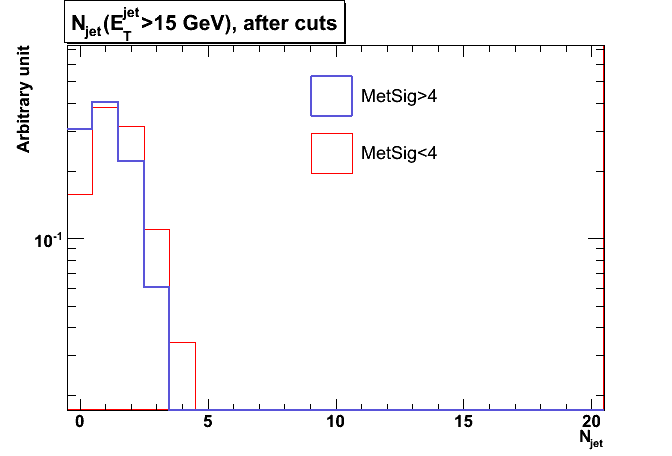

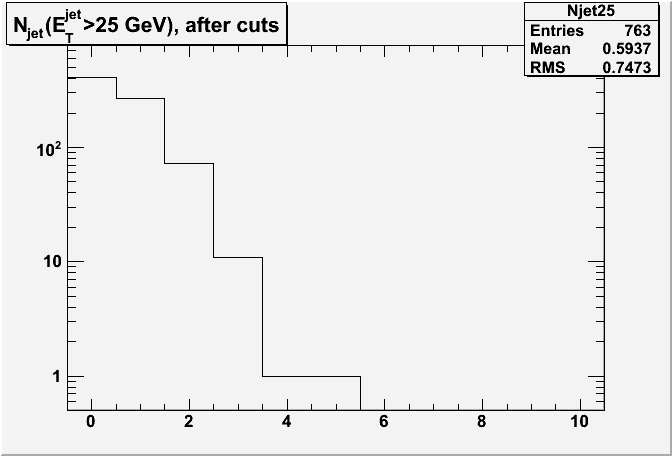

Njets comparison for two regions

04/28/09
Reblessing Talk (April 2009)

Setting limits on GMSB models in the &gamma &gamma + MET final state with 2.6 fb^-1

04/27/09
QCD Pathologies

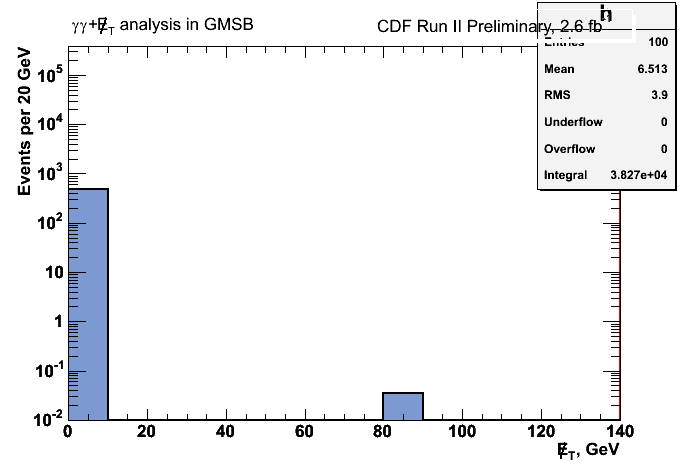

MET

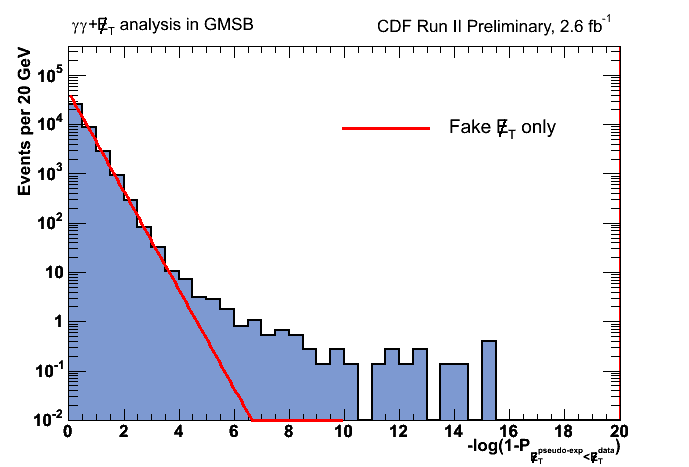

METSIG(QCD path+met model) METSIG(QCD path) METSIG(path only norm to all) METSIG(path only norm to 2.5)

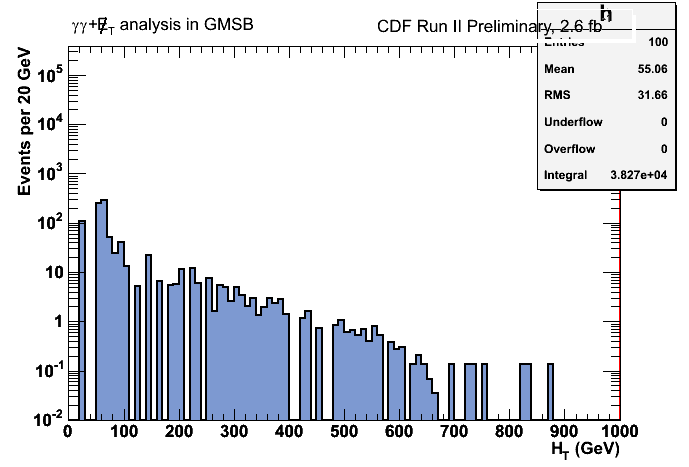

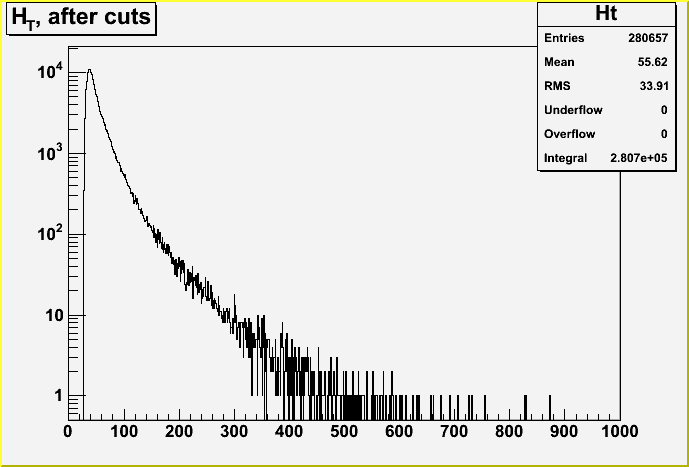

HT

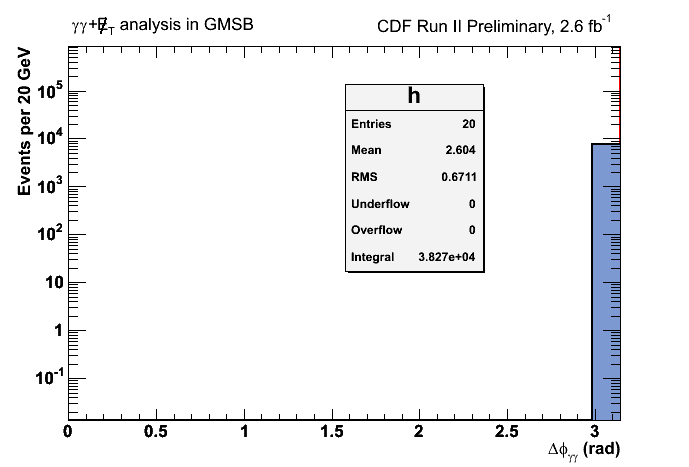

DPHI

04/23/09
Studies on trigger efficiency and acceptance dependence on luminosity

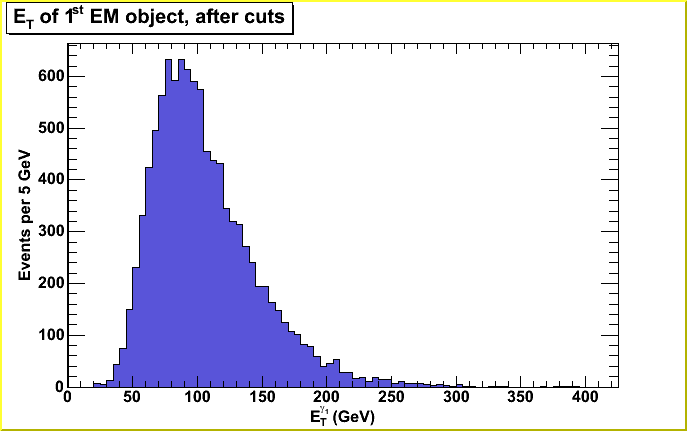

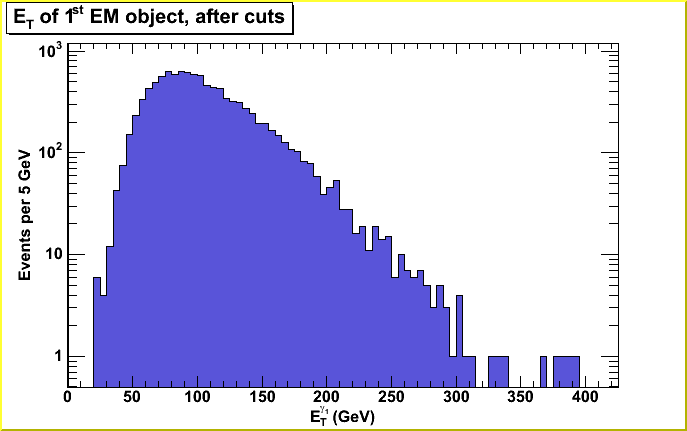

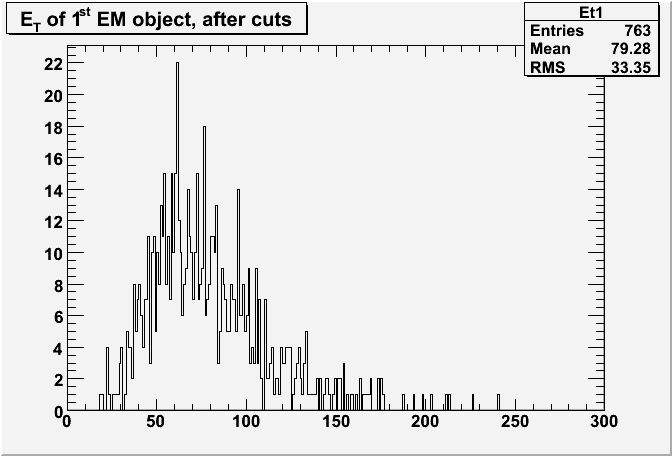

1st photon ET (log scale) after the final kinematic cuts

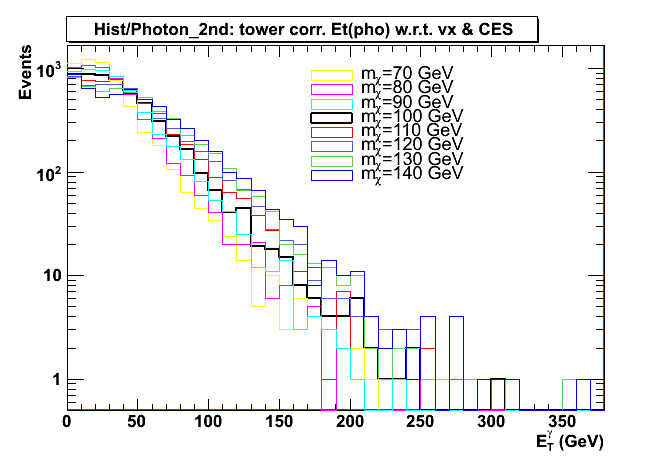

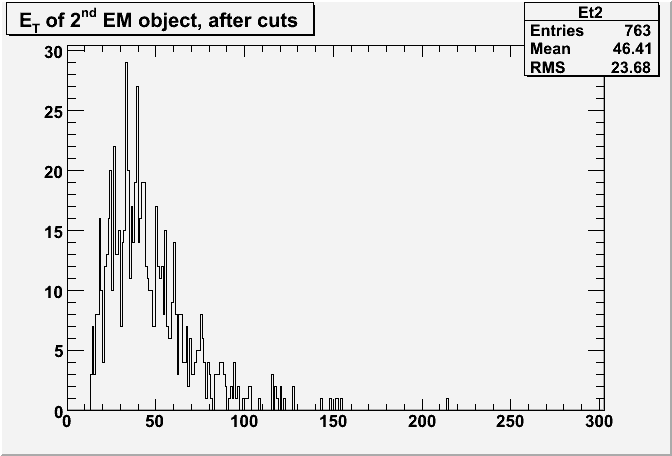

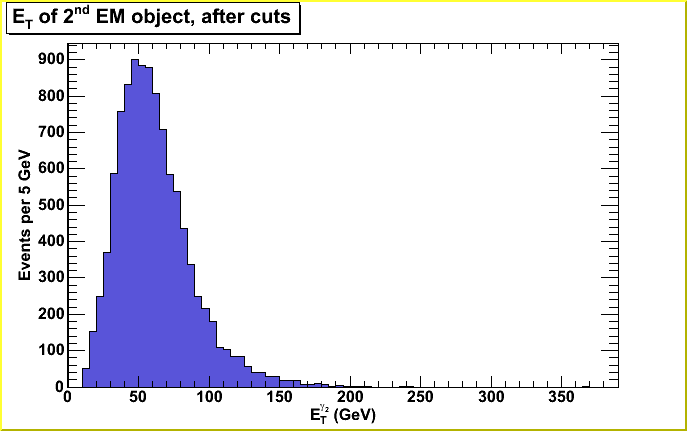

2nd photon ET (log scale) after the final kinematic cuts
Acceptance VS Luminosity (p1 - p13)

04/17/09
APS Talk (May 2009)

APS talk (May 2009)

04/14/09
Pre-Reblessing Talk (Mar 2009)

Setting limits on GMSB models in the &gamma &gamma + MET final state with 2.6 fb^-1

03/10/09

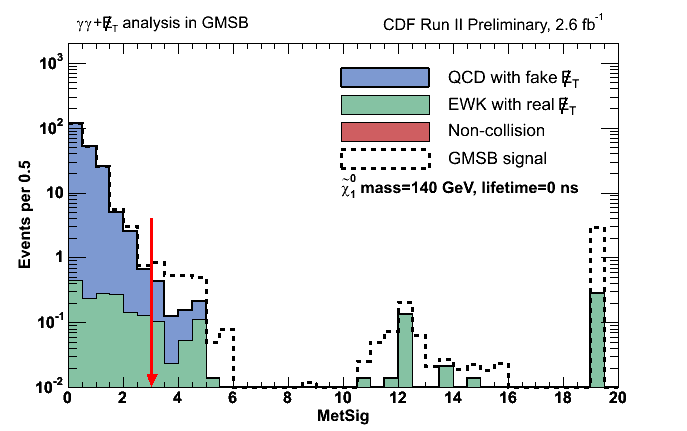

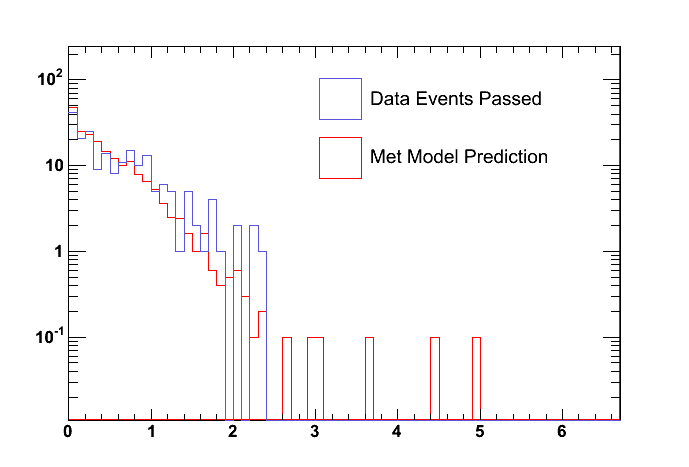

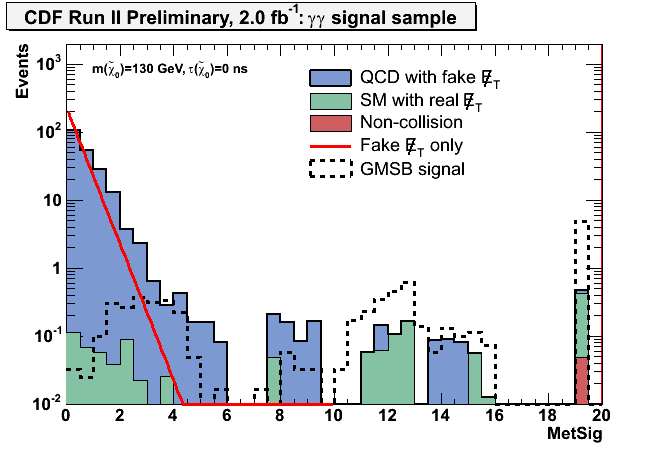

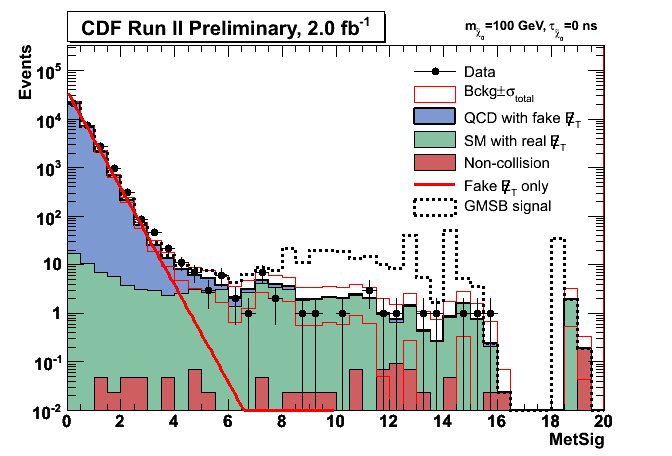

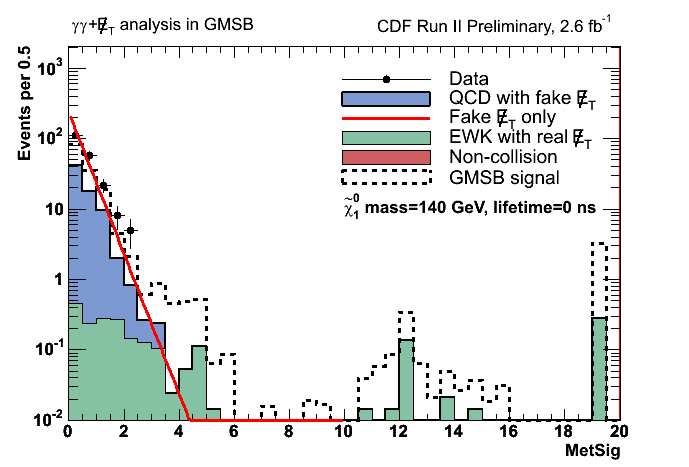

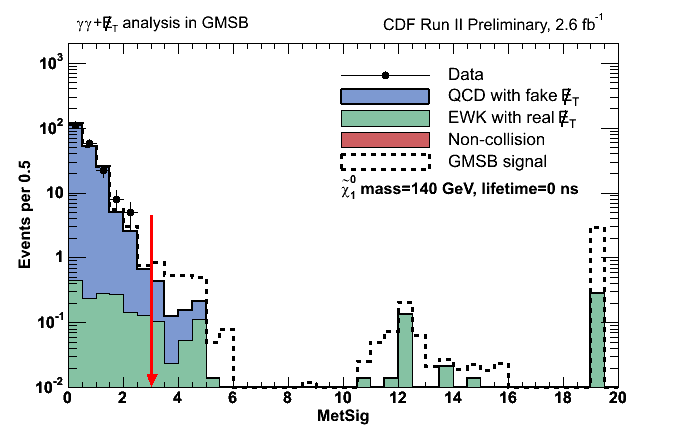

N-1 MetSig Plots

Before bin-by-bin correction
After bin-by-bin correction

03/03/09
2.6 fb^-1 Analysis Summary and Changes since Last blessing

Add p12-p17 data (high lumi) and drop p0 data (low lumi). This change has the following consequences:

^-1

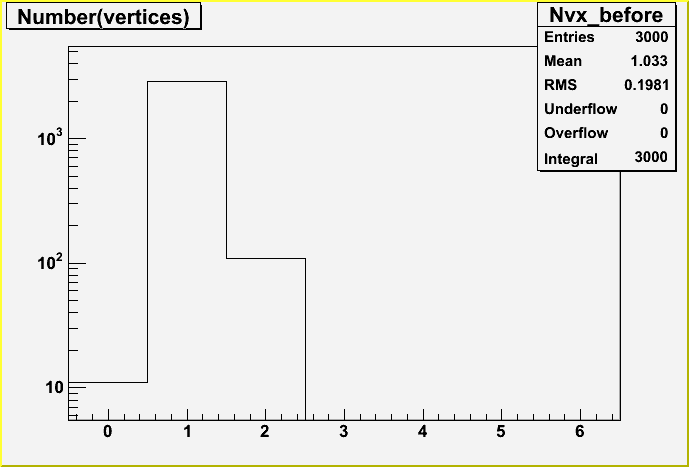

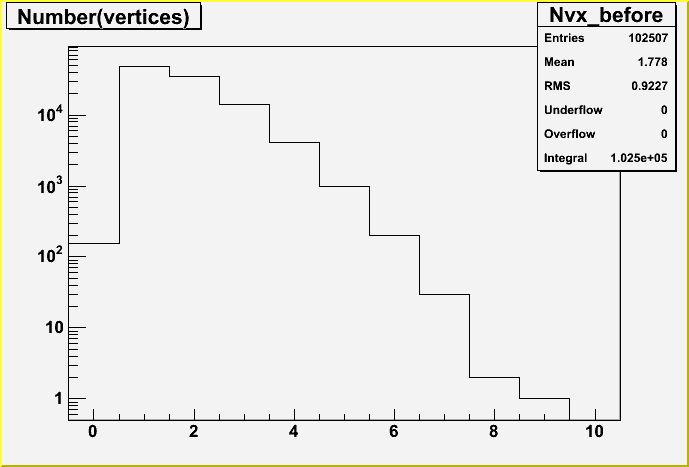

b) Higher instantaneous luminosity means that the number of vertices per event will increase---> larger contribution due to "wrong vertex" ("wrong vertex" depends ~linearly on Inst. lumi)

c) Add Pho50,70 triggers to recover loss in efficiency at high Et(pho)---> due to our Ht cut, this will lead to larger number of ele-pho data events passing the analysis cut and, as a consequence, larger electroweak (EWK) scale factor---> larger EWK bckg

Switch back on vertex swap procedure to remove wrong vertex and met cleanup cut to remove tri-pho events. Use ignal MC based on Pythia Tune-A plus Min Bias---> smaller, but more realistic, which also fixes the bug where we estimated the background using the vertex swap and Met cleaunup cut, but couldn't put these cuts on the GMSB signal MC
We re-optimized after these changes and found that only the &Delta&phi cut needed to change and confirmed that vertex swap and Met cleanup cut improve the sensitivity and are needed.

Background Estimation for Optimal point : Ht>200 GeV, MetSig > 3.0, &Delta&phi (&gamma₁, &gamma₂)<&pi - 0.35

Sample	prediction ± stat. ± sys.
Baur W(e)+pho	0.064 ± 0.064 (1)
Baur W(mu)+pho	0.00 ± 0.060 (0)
Baur W(tau)+pho	0.061 ± 0.061 (1)
Baur Z(e)+pho	0.012 ± 0.007 (3)
Baur Z(mu)+pho	0.138 ± 0.023 (35)
Baur Z(tau)+pho	0.099 ± 0.020 (25)
Pythia W(e) no ISR/FSR	0.00 ± 0.035 (0)
Pythia W(mu) no ISR/FSR	0.00 ± 0.051 (0)
Pythia W(tau) no ISR/FSR	0.00 ± 0.049 (0)
Pythia Z(e) no ISR/FSR	0.00 ± 0.056 (0)
Pythia Z(mu) no ISR/FSR	0.00 ± 0.088 (0)
Pythia Z(tau) no ISR/FSR	0.039 ± 0.039 (1)
Pythia ttbar(incl)	0.058 ± 0.012 (25)
Combined EWK before global scaling	0.47 ± 0.15
Beam Halo	0.0 ± 0.008 ± 0.0 (0)
Cosmic	0.001 ± 0.001 ± 0.001 (2)
QCD from Met Model	0.4 ± 0.20 ± 0.1
Pythia tri-pho	0.00 ± 0.13 ± 0.00
Wrong Vertex	0.00 ± 0.13 ± 0.00

Mini Table for EWK background Estimations

Backgrounds scaled prediction ± stat. ± sys.
Global SFewk=1.41 ± 0.47

Baur W(l)+pho 0.176 ± 0.149 ± 0.059

Baur Z(l)+pho 0.351 ± 0.044 ± 0.117

Pythia W(l) no ISR/FSR 0.00 ± 0.111 ± 0.00

Pythia Z(l) no ISR/FSR 0.055 ± 0.096 ± 0.018

Pythia ttbar(incl) 0.082 ± 0.017 ± 0.027

Combined EWK 0.66 ± 0.21 ± 0.22

Background Estimation Combined

Backgrounds prediction ± stat. ± sys.

Electroweak 0.66 ± 0.21 ± 0.22

Non-Collision (CR,BH) 0.001 ± 0.008 ± 0.001

QCD from Met Model 0.4 ± 0.20 ± 0.1

Pythia tri-pho and Wrong Vertex 0.00 ± 0.13 ± 0.00

Data 0

TOTAL 1.06 ± 0.32 ± 0.24

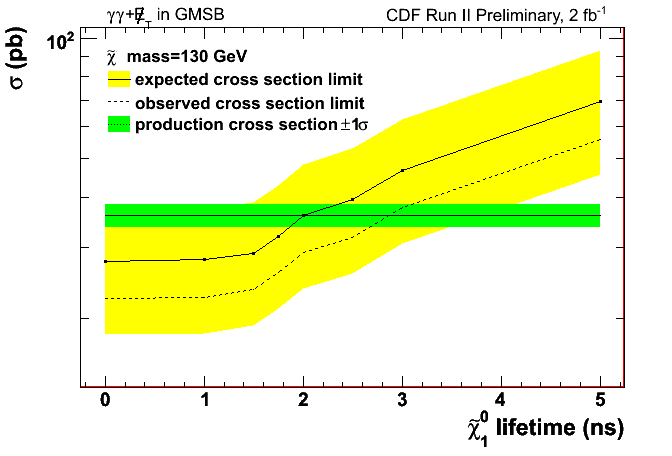

95% Confidence Level Expected Cross Section Limit( m_&chi=140 GeV, &tau_&chi=0 ns)

Default MetSig Acceptance (%) Background Estimation &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.35
Ht>200 GeV, MetSig>3 7.80 ± 0.83 1.06 ± 0.40 21.64 15.11 22.97

N-1 Plots, Exclusion Region, and Cross Section Limits VS Optimal Cuts: Ht>200 GeV, MetSig > 3.0, &Delta&phi (&gamma₁, &gamma₂)<&pi - 0.35

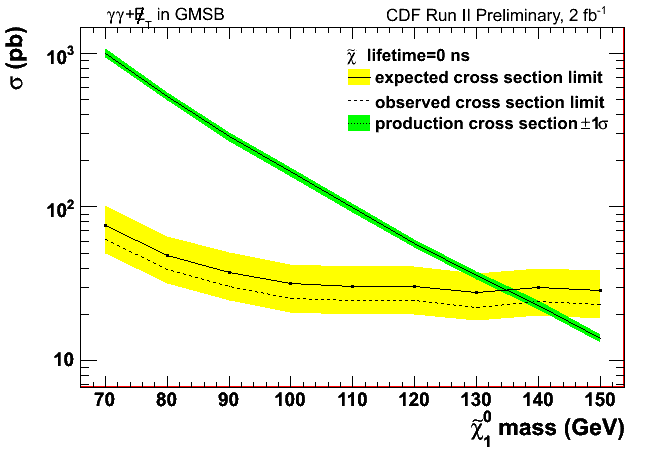

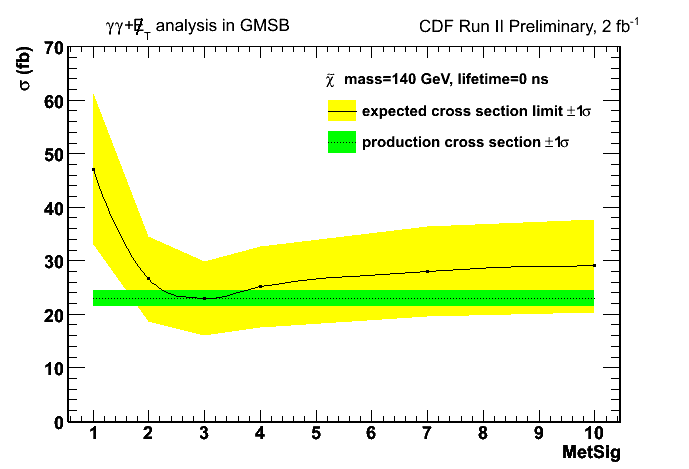

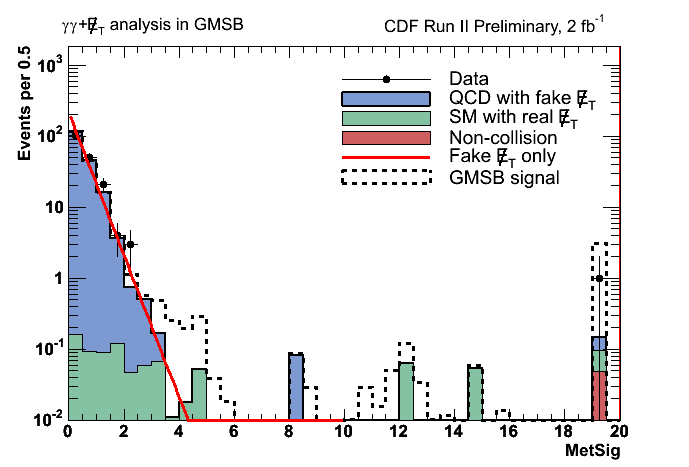

MetSig(no data) MetSig(with data) MetSig(QCD, WrongVx, Tripho) Cross Section Limit vs Metsig

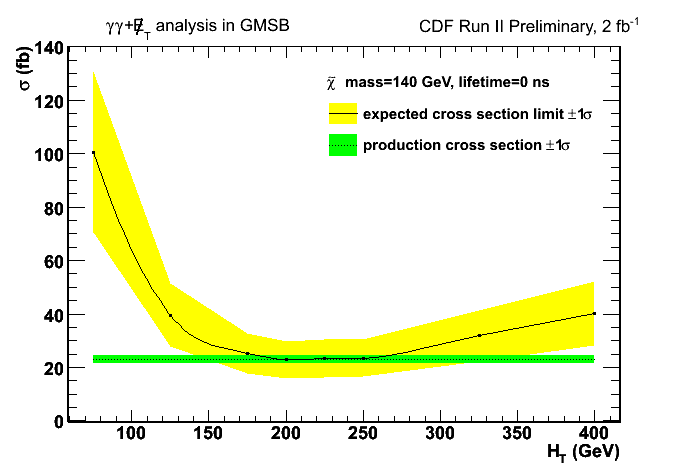

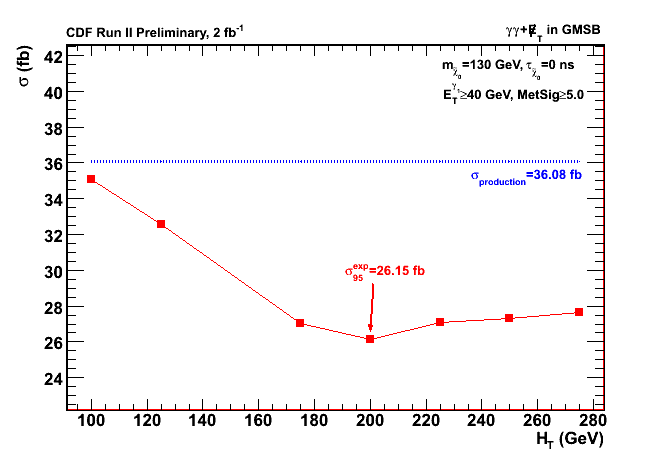

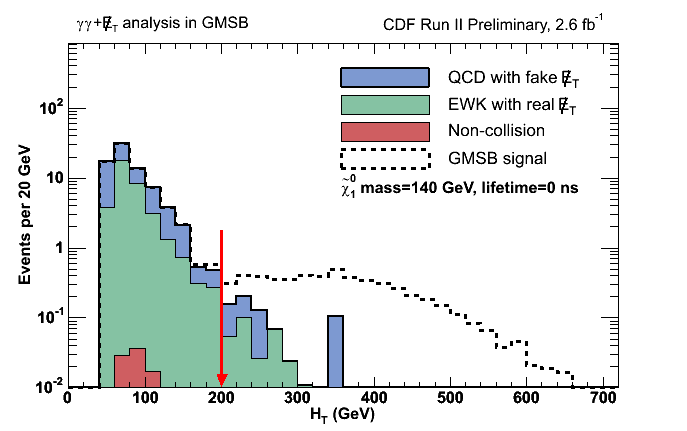

Ht(no data) Ht(with data) Cross Section Limit vs Ht

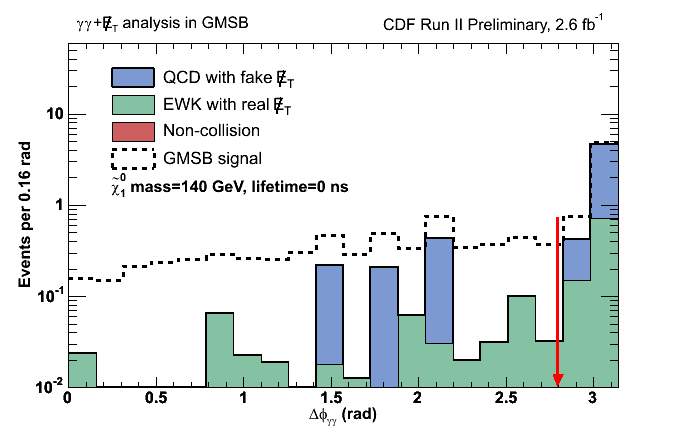

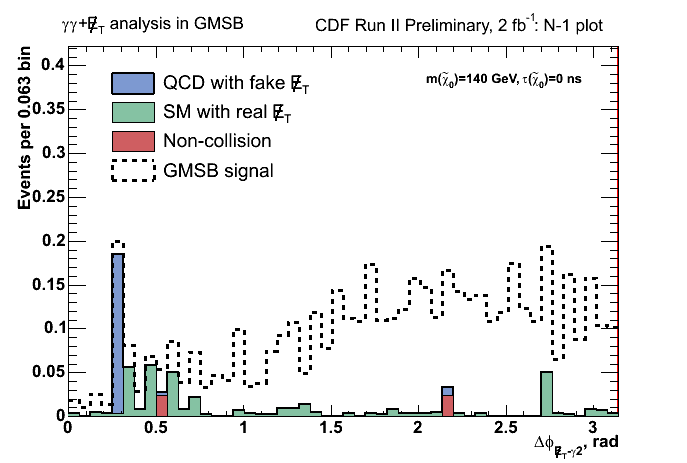

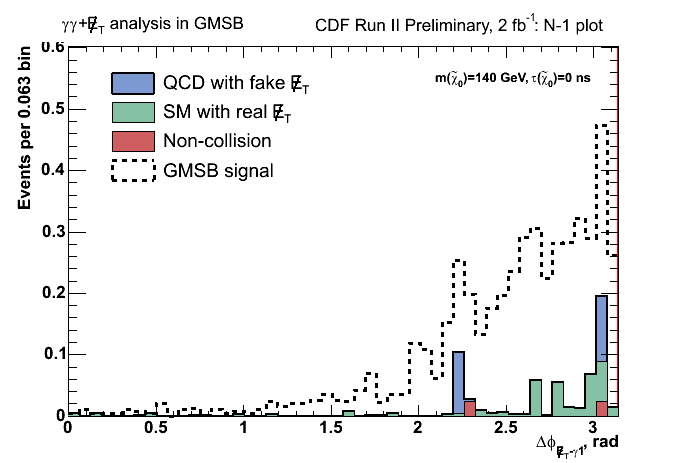

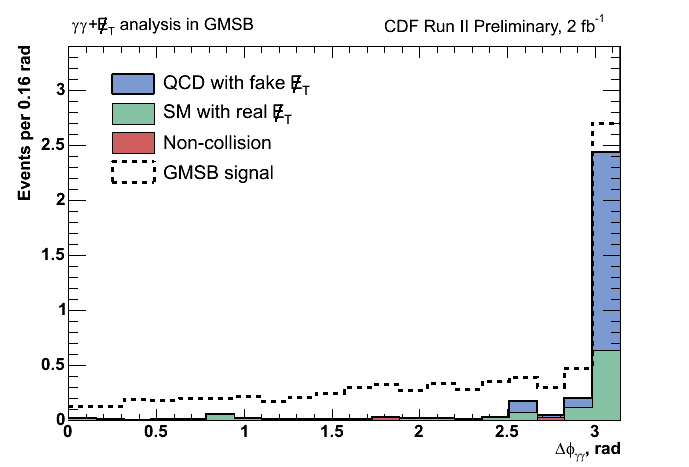

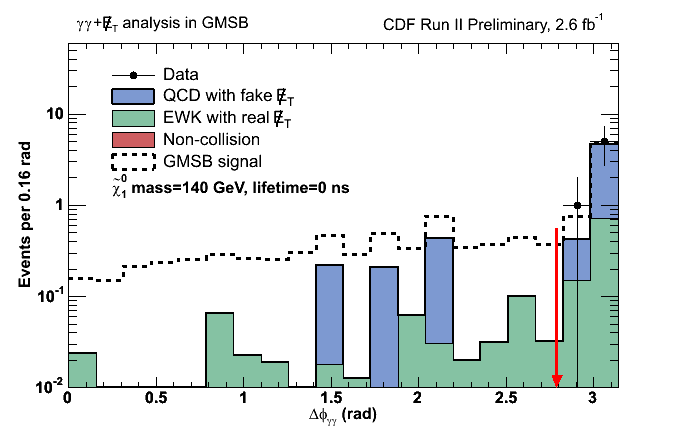

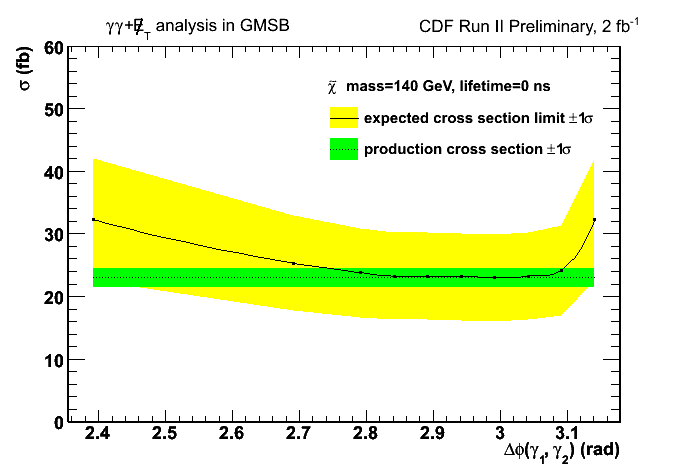

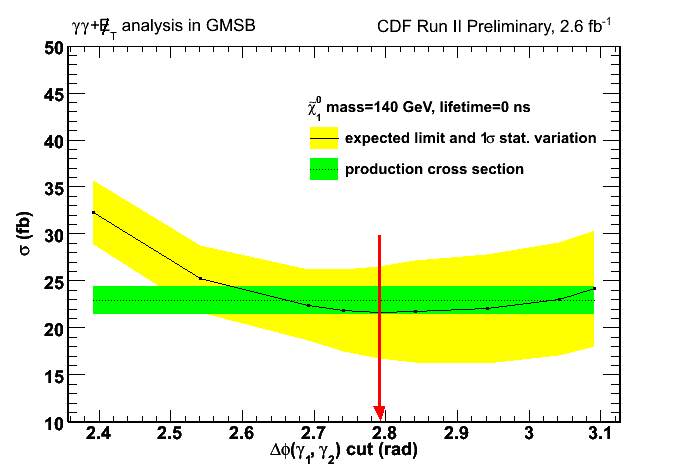

&Delta&phi(no data) &Delta&phi(with data) Cross Section Limit vs &Delta&phi

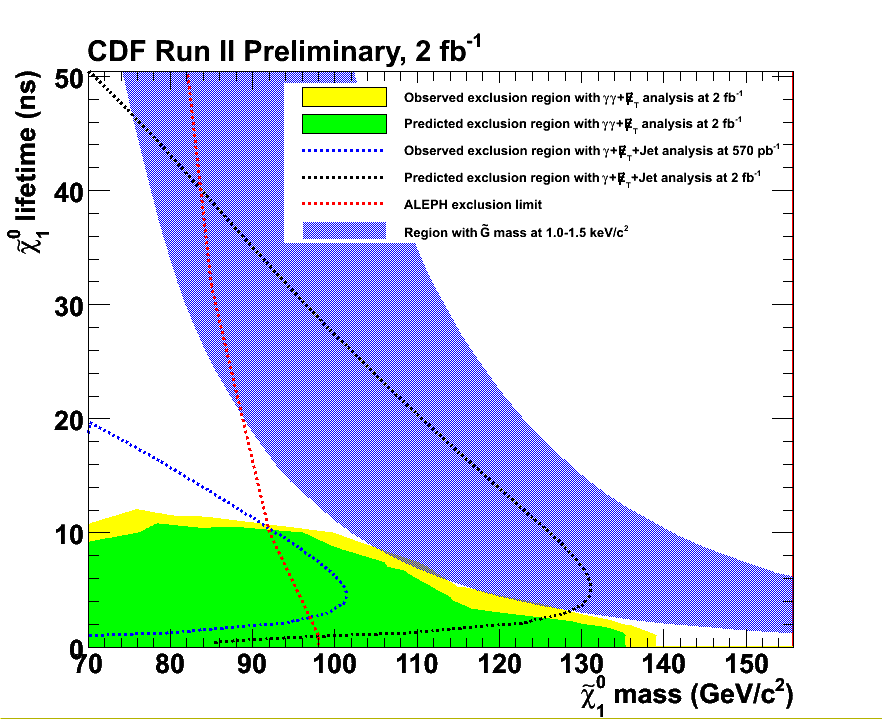

Exclusion Region Propective Exclusion Region

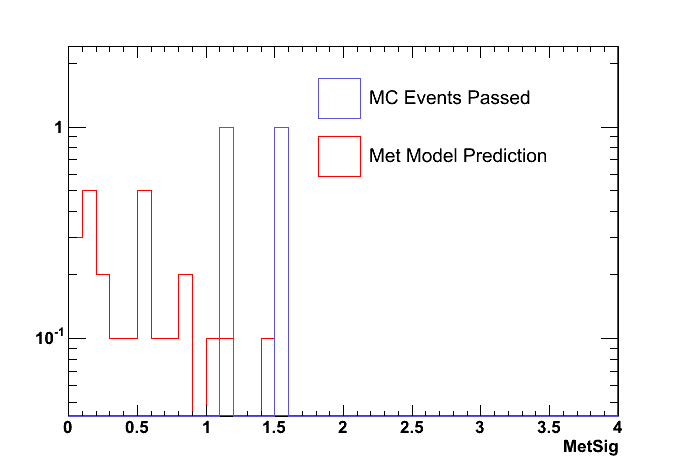

Tri-Pho (N-1 MetSig) Wrong_Vertex (N-1 MetSig) QCD (N-1 MetSig)
02/25/09
Background Estimation using data-based Met Model

Sample MetSig>3
H_T>000 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys) MetSig>3
H_T>125 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys) MetSig>3
H_T>175 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys) MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys) MetSig>3
H_T>225 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys) MetSig>3
H_T>275 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys)

EWK Combined 66.20 ± 2.24 ± 2.08
(50.67 ± 1.72) 3.87 ± 0.44 ± 1.27
(3.52 ± 0.40) 0.96 ± 0.22 ± 0.31
(0.87 ± 0.20) 0.66 ± 0.21 ± 0.22
(0.47 ± 0.15) 0.62 ± 0.24 ± 0.25
(0.38 ± 0.15) 0.21 ± 0.24 ± 0.08
(0.13 ± 0.15)

Non-Collision (CR,BH) 0.092 ± 0.027 ± 0.090 0.009 ± 0.008 ± 0.008 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001

QCD from dipho MC (for x-check) 36.77 ± 2.22 ± 14.36 (274) 0.94 ± 0.36 ± 0.14 (7) 0.13 ± 0.13 ± 0.13 (1) 0.13 ± 0.13 ± 0.19 (1) 0.13 ± 0.13 ± 0.19 (1) 0.13 ± 0.13 ± 0.13 (1)

QCD from Met Model (data) 13.8 ± 1.17 ± 0.0 2.0 ± 0.45 ± 0.24 0.7 ± 0.26 ± 0.0 0.4 ± 0.20 ± 0.0 0.2 ± 0.14 ± 0.0 0.1 ± 0.1 ± 0.0

Pythia tri-pho 2.36 ± 0.57 ± 0.48 0.39 ± 0.23 ± 0.13 0.00 ± 0.13 ± 0.00 0.00 ± 0.13 ± 0.00 0.00 ± 0.13 ± 0.00 0.00 ± 0.13 ± 0.00

Wrong Vertex 1.92 ± 0.56 ± 0.95 0.00 ± 0.13 ± 0.00 0.00 ± 0.13 ± 0.00 0.00 ± 0.13 ± 0.00 0.00 ± 0.13 ± 0.00 0.00 ± 0.13 ± 0.00

Data 85 6 0 0 0 0

TOTAL 84.37 ± 2.65 ± 2.34 6.27 ± 0.68 ± 1.30 1.66 ± 0.37 ± 0.31 1.06 ± 0.31 ± 0.22 0.82 ± 0.30 ± 0.25 0.31 ± 0.29 ± 0.08

Sample MetSig>0
H_T>200 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys) MetSig>2
H_T>200 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys) MetSig>4
H_T>200 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys) MetSig>7
H_T>200 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys)

EWK Combined 2.92 ± 0.32 ± 0.36
(1.64 ± 0.18) 1.15 ± 0.28 ± 0.30
(0.62 ± 0.15) 0.66 ± 0.22 ± 0.25
(0.44 ± 0.15) 0.54 ± 0.22 ± 0.20
(0.36 ± 0.15)

Non-Collision (CR,BH) 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001

QCD from dipho MC (for x-check) 70.72 ± 3.08 ± 5.63 (527) 0.94 ± 0.36 ± 0.00 (7) 0.00 ± 0.13 ± 0.00 (0) 0.00 ± 0.13 ± 0.00 (0)

QCD from Met Model (data) 198.4 ± 4.45 ± 1.90 1.8 ± 0.42 ± 0.0 0.2 ± 0.14 ± 0.0 0.0 ± 0.13 ± 0.0

Pythia tri-pho 4.96 ± 0.82 ± 0.27 0.13 ± 0.13 ± 0.13 0.00 ± 0.13 ± 0.00 0.00 ± 0.13 ± 0.00

Wrong Vertex 0.27 ± 0.19 ± 0.13 0.00 ± 0.13 ± 0.00 0.00 ± 0.13 ± 0.00 0.00 ± 0.13 ± 0.00

Data 203 5 0 0

TOTAL 206.5 ± 4.54 ± 1.96 3.08 ± 0.54 ± 0.33 0.86 ± 0.29 ± 0.25 0.54 ± 0.28 ± 0.20

Sample MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.00
(pred ± stat ± sys) MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.20
(pred ± stat ± sys) MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.30
(pred ± stat ± sys) MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.40
(pred ± stat ± sys) MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.45
(pred ± stat ± sys)

EWK Combined 1.50 ± 0.29 ± 0.55
(1.34 ± 0.26) 0.92 ± 0.25 ± 0.28
(0.71 ± 0.19) 0.81 ± 0.23 ± 0.24
(0.62 ± 0.18) 0.69 ± 0.22 ± 0.22
(0.48 ± 0.15) 0.63 ± 0.21 ± 0.22
(0.46 ± 0.15) 0.60 ± 0.21 ± 0.22
(0.44 ± 0.15)

Non-Collision (CR,BH) 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001

QCD from dipho MC (for x-check) 6.04 ± 0.90 ± 0.88 (45) 1.21 ± 0.40 ± 0.20 (9) 0.67 ± 0.30 ± 0.14 (5) 0.27 ± 0.19 ± 0.19 (2) 0.13 ± 0.13 ± 0.19 (1) 0.13 ± 0.13 ± 0.19 (1)

QCD from Met Model (data) 0.4 ± 0.2 ± 0.0 0.4 ± 0.2 ± 0.0 0.4 ± 0.2 ± 0.0 0.4 ± 0.2 ± 0.0 0.4 ± 0.2 ± 0.0 0.4 ± 0.2 ± 0.0

Pythia tri-pho 0.00 ± 0.13 ± 0.00 0.00 ± 0.13 ± 0.00 0.00 ± 0.13 ± 0.00 0.00 ± 0.13 ± 0.00 0.00 ± 0.13 ± 0.00 0.00 ± 0.13 ± 0.00

Wrong Vertex 4.11 ± 0.75 ± 0.19 0.40 ± 0.23 ± 0.00 0.27 ± 0.19 ± 0.13 0.00 ± 0.13 ± 0.00 0.00 ± 0.13 ± 0.00 0.00 ± 0.13 ± 0.00

Data 6 2 1 0 0 0

TOTAL 6.01 ± 0.84 ± 0.58 1.72 ± 0.42 ± 0.28 1.48 ± 0.38 ± 0.27 1.09 ± 0.32 ± 0.22 1.03 ± 0.31 ± 0.22 1.00 ± 0.31 ± 0.22

95% Confidence Level Expected Cross Section Limit( m_&chi=140 GeV, &tau_&chi=0 ns)

Default MetSig Acceptance (%) Background Estimation &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.35
Ht>000 GeV, MetSig>3 8.22 ± 0.87 84.37 ± 3.54 107.6 106.9 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.35
Ht>125 GeV, MetSig>3 8.19 ± 0.87 6.27 ± 1.47 37.13 34.85 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.35
Ht>175 GeV, MetSig>3 8.00 ± 0.85 1.66 ± 0.48 23.61 14.73 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.35
Ht>225 GeV, MetSig>3 7.46 ± 0.79 0.82 ± 0.39 22.37 15.78 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.35
Ht>275 GeV, MetSig>3 6.40 ± 0.68 0.31 ± 0.30 22.58 18.40 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.35
Ht>200 GeV, MetSig>0 10.22 ± 1.08 206.5 ± 4.94 129.4 115.6 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.35
Ht>200 GeV, MetSig>2 8.78 ± 0.93 3.08 ± 0.63 26.26 35.29 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.35
Ht>200 GeV, MetSig>4 6.42 ± 0.68 0.86 ± 0.38 25.10 18.36 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.35
Ht>200 GeV, MetSig>7 5.11 ± 0.54 0.54 ± 0.34 28.84 23.04 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.00
Ht>200 GeV, MetSig>3 8.93 ± 0.95 6.01 ± 1.02 40.53 40.51 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.10
Ht>200 GeV, MetSig>3 8.64 ± 0.92 1.72 ± 0.50 22.07 23.68 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.20
Ht>200 GeV, MetSig>3 8.32 ± 0.88 1.48 ± 0.47 22.06 19.30 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.30
Ht>200 GeV, MetSig>3 7.85 ± 0.83 1.09 ± 0.39 21.66 15.02 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.35
Ht>200 GeV, MetSig>3 7.80 ± 0.83 1.06 ± 0.39 21.64 15.11 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.40
Ht>200 GeV, MetSig>3 7.60 ± 0.80 1.03 ± 0.38 22.06 15.51 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.45
Ht>200 GeV, MetSig>3 7.42 ± 0.79 1.00 ± 0.38 22.44 15.89 22.97

02/19/09
Comparison of MC based and Data based for QCD estimations

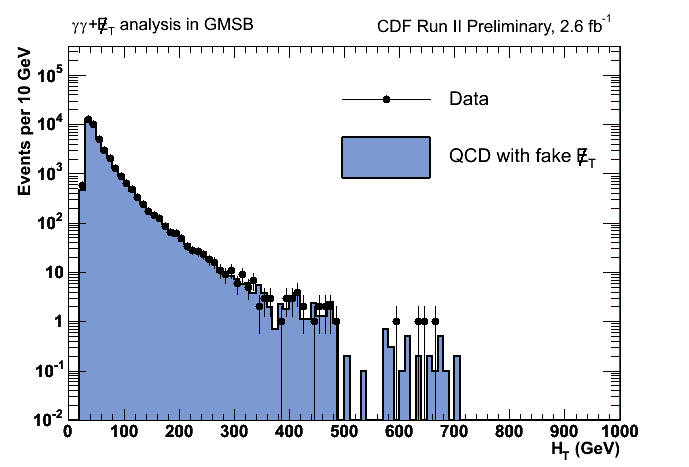

Ht with Dphi<1.5 for pre-sample (data) Ht with Dphi<1.5 for pre-sample (mc)
Ht with Dphi>1.5 for pre-sample (data) Ht with Dphi>1.5 for pre-sample (mc)

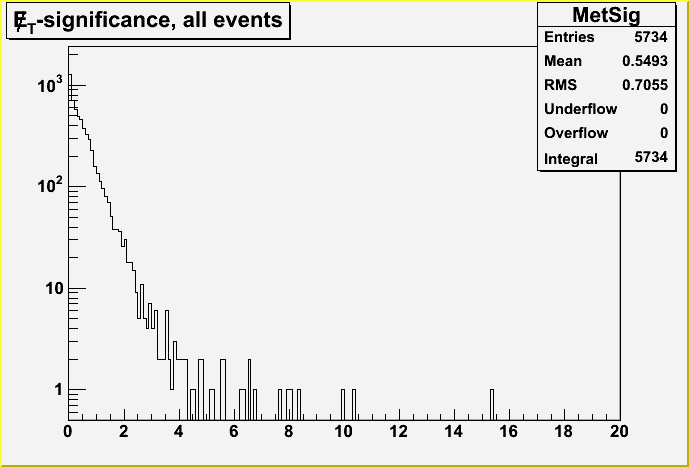

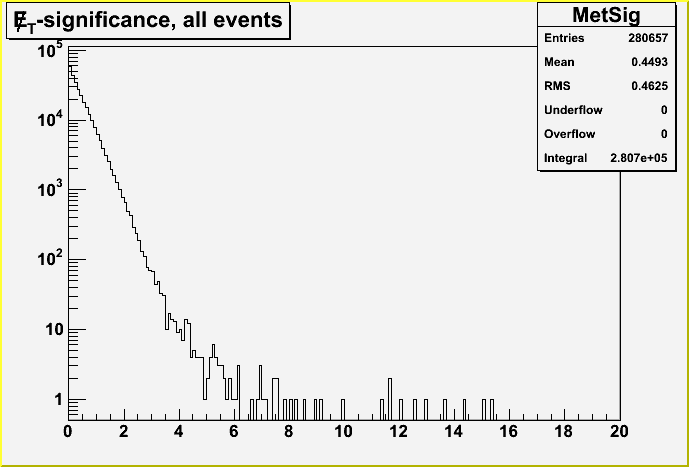

MetSig with Dphi<1.5 for pre-sample (data) Metsig with Dphi<1.5 for pre-sample (mc)
MetSig with Dphi>1.5 for pre-sample (data) MetSig with Dphi>1.5 for pre-sample (mc)

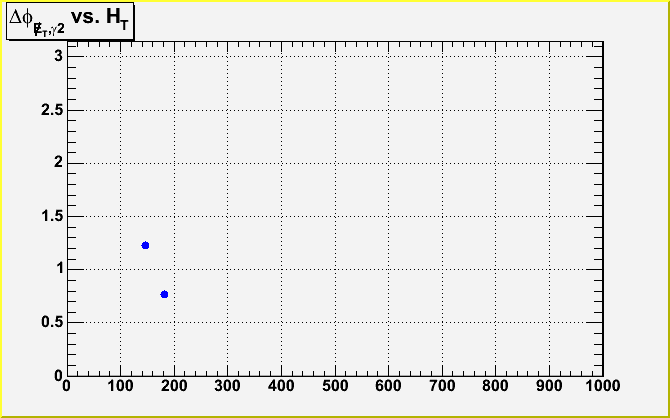

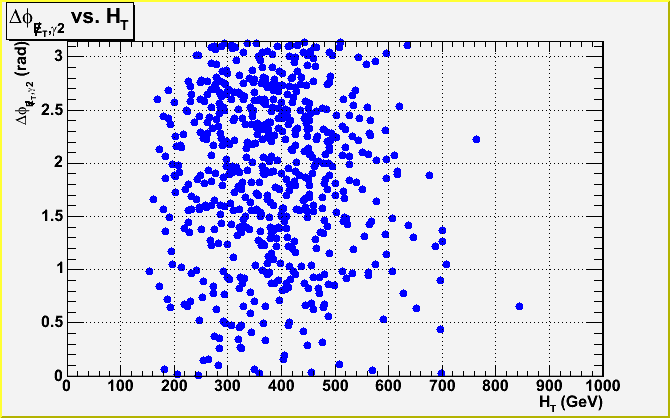

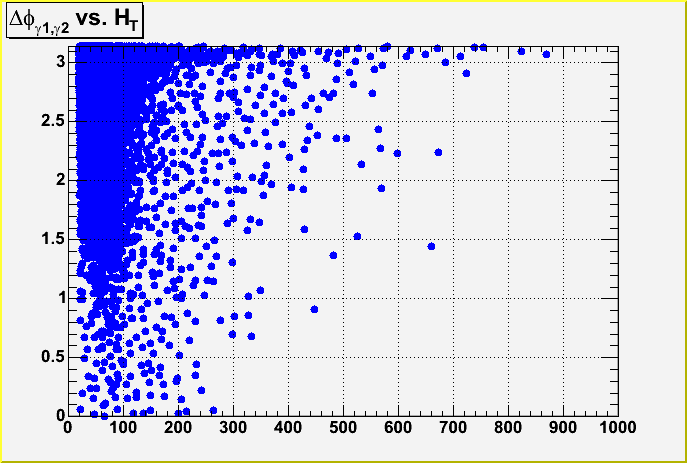

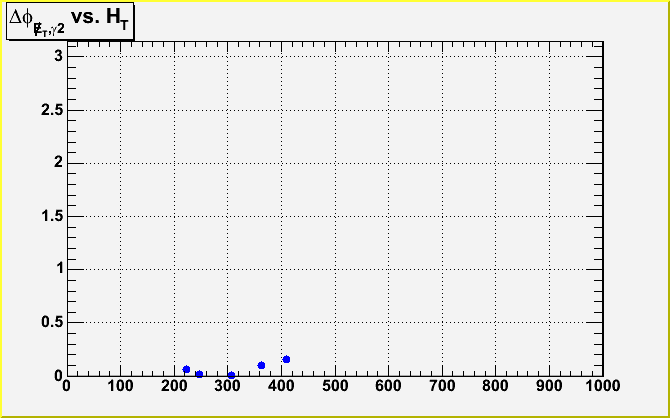

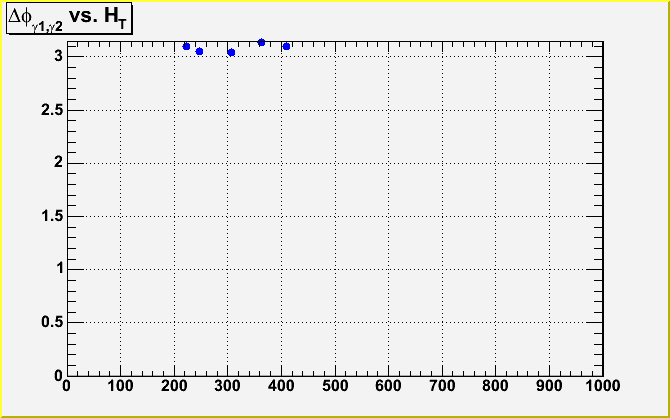

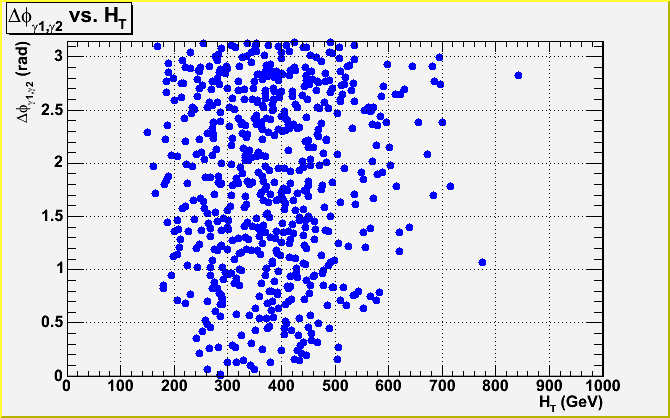

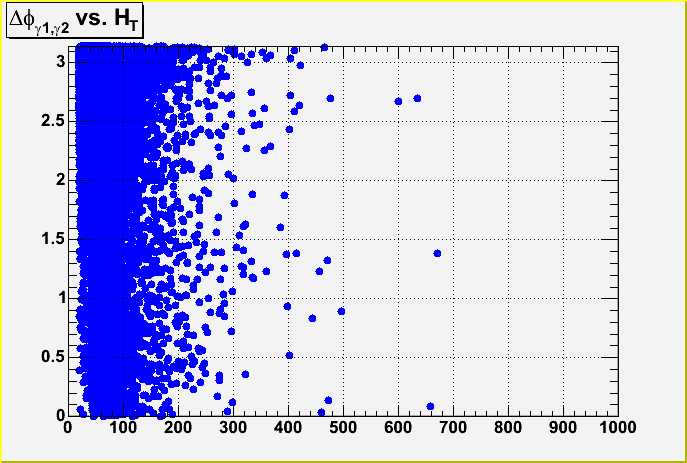

Dphi VS Ht for pre-sample (data) Dphi VS Ht for pre-sample (mc)
Dphi VS MetSig for pre-sample (data) Dphi VS MetSig for pre-sample (mc)

02/18/09
Comparison of MC based and Data based for QCD estimations

N-1 MetSig (MC based) N-1 MetSig (data based)

N-1 MetSig plot based on MC QCD diphoton sample shows that QCD prediction doesn't agree with data very well while The data based prediction agrees better (Here we need to add tripho and wrong vertex template for data based QCD prediction).
The reason is dphi wasn't well modeled in Pythia QCD diphoton MC sample for dphi < 1.5 since it has no fragmentaion contributions, which is known issue. See below plots, which shows QCD predictions based on both data and MC for pre-selection sample (before optimal cuts). The dphi prediction based on MC is very different. Overall data based predictions agree with data better.

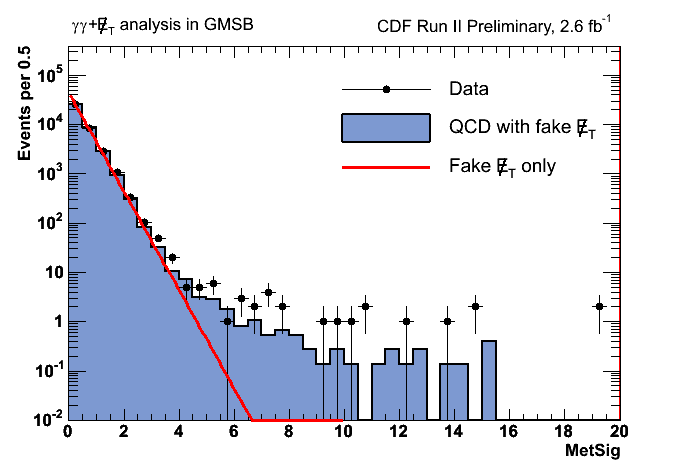

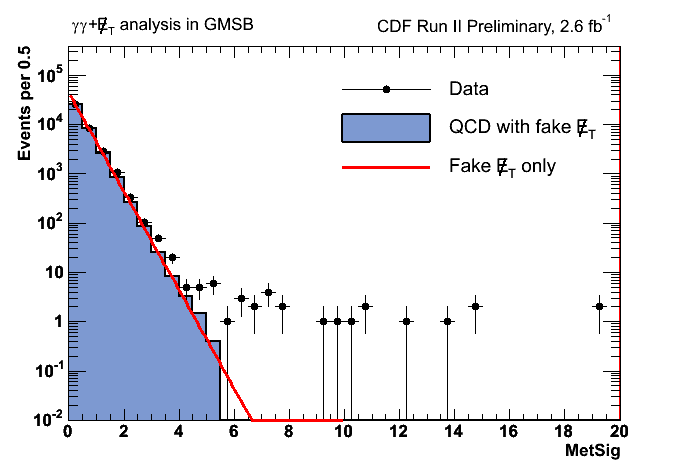

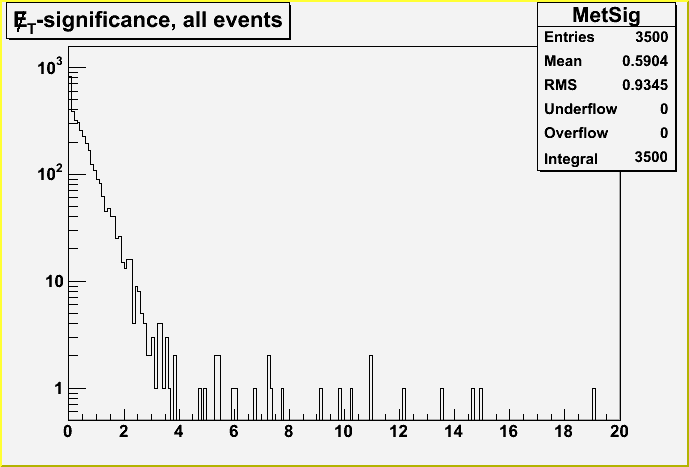

MetSig for pre-sample (MC based) MetSig for pre-sample (data based)

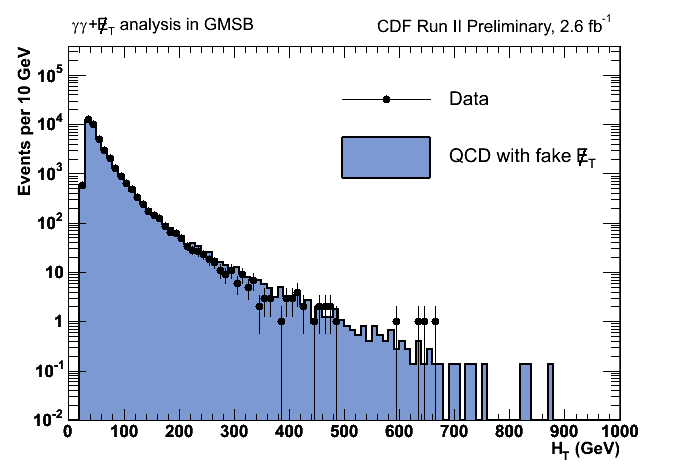

Ht for pre-sample (MC based) Ht for pre-sample (data based)

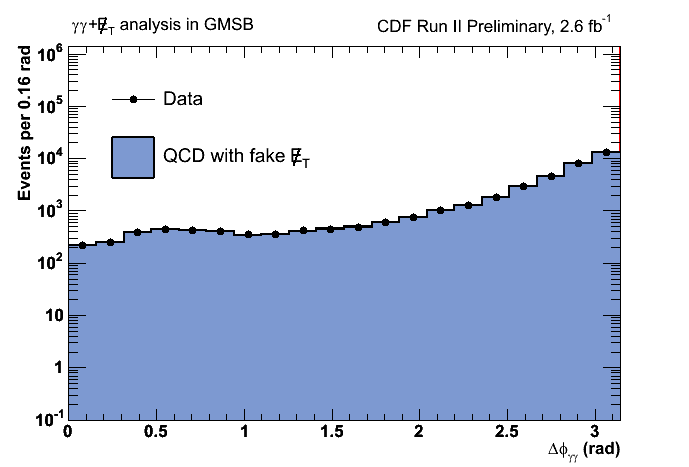

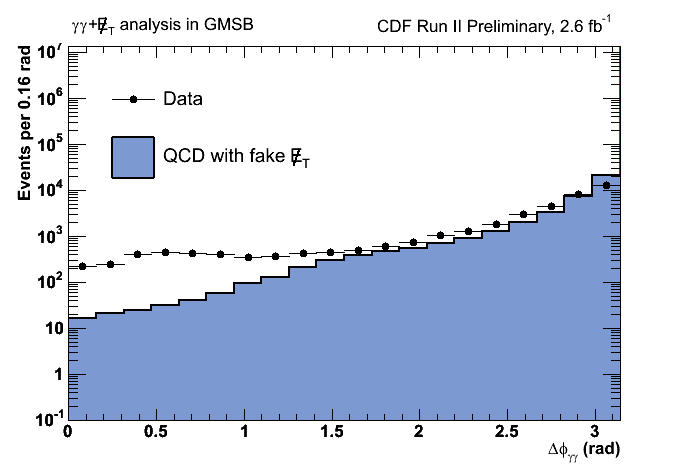

&Delta&phi for pre-sample (MC based) &Delta&phi for pre-sample (data based)

I suggest that we should switch back to the method of QCD prediction based on data as we did for the blessing and add triphoton and wrong vertex estimation separately.

02/12/09
QCD N-1 plot for Ht : MetSig > 3.0, &Delta&phi (&gamma₁, &gamma₂)<&pi - 0.35

QCD
On the event at Ht~450 GeV: MC dipho event with two jets
Ht=443.2 GeV
Et(pho1)=194.7 GeV
Et(pho2)=95.35 GeV
Et(jet1)=56.48 GeV
Et(jet2)=54.35 GeV
Met=42.32 GeV
MetSig=3.22
This event might be a fluctuation of MetSig or need more statistics (~100 times)?

02/11/09
The Prioritized to-do list

i) Finalize public note on 2 fb-1 results.
ii) Update the analysis note for 2.6 fb-1.
iii) Write PRL draft.
iv) Write Fermi News of the week article.

02/10/09
2.6 fb^-1 Analysis Summary and Changes since Last blessing

Add p12-p17 data (high lumi) and drop p0 data (low lumi). This change has the following consequences:

a) In 2.6 fb^-1 (1.0 fb^-1 added to and 0.4 fb^-1 removed from 2 fb^-1 data for the last blessing) analysis, all data has EM timing---> more simple and efficient cosmics and BH rejection.

b) Higher instantaneous luminosity means that the number of vertices per event will increase---> larger contribution due to "wrong vertex" ("wrong vertex" depends ~linearly on Inst. lumi)

c) Add Pho50,70 triggers to recover loss in efficiency at high Et(pho)---> due to our Ht cut, this will lead to larger number of ele-pho data events passing the analysis cut and, as a consequence, larger electroweak (EWK) scale factor---> larger EWK bckg

Switch back on vertex swap procedure to remove wrong vertex and met cleanup cut to remove tri-pho events. Use ignal MC based on Pythia Tune-A plus Min Bias---> smaller, but more realistic, which also fixes the bug where we estimated the background using the vertex swap and Met cleaunup cut, but couldn't put these cuts on the GMSB signal MC

Use MC based estimate of the total QCD background (data-based QCD estimates before)

We re-optimized after these changes and found that only the &Delta&phi cut needed to change and confirmed that vertex swap and Met cleanup cut improve the sensitivity and are needed.

Background Estimation for Optimal point : Ht>200 GeV, MetSig > 3.0, &Delta&phi (&gamma₁, &gamma₂)<&pi - 0.35

Sample prediction ± stat. ± sys.

Baur W(e)+pho 0.064 ± 0.064 (1)

Baur W(mu)+pho 0.00 ± 0.060 (0)

Baur W(tau)+pho 0.061 ± 0.061 (1)

Baur Z(e)+pho 0.012 ± 0.007 (3)

Baur Z(mu)+pho 0.138 ± 0.023 (35)

Baur Z(tau)+pho 0.099 ± 0.020 (25)

Pythia W(e) no ISR/FSR 0.00 ± 0.035 (0)

Pythia W(mu) no ISR/FSR 0.00 ± 0.051 (0)

Pythia W(tau) no ISR/FSR 0.00 ± 0.049 (0)

Pythia Z(e) no ISR/FSR 0.00 ± 0.056 (0)

Pythia Z(mu) no ISR/FSR 0.00 ± 0.088 (0)

Pythia Z(tau) no ISR/FSR 0.039 ± 0.039 (1)

Pythia ttbar(incl) 0.058 ± 0.012 (25)

Combined EWK before global scaling 0.47 ± 0.15

Beam Halo 0.0 ± 0.008 ± 0.0 (0)

Cosmic 0.001 ± 0.001 ± 0.001 (2)

QCD from dipho MC (default) 0.13 ± 0.13 ± 0.19 (1)

QCD from Met Model (data) only for cross check 0.4 ± 0.20 ± 0.0

Mini Table for EWK background Estimations

Backgrounds scaled prediction ± stat. ± sys.
Global SFewk=1.41 ± 0.47

Baur W(l)+pho 0.176 ± 0.149 ± 0.059

Baur Z(l)+pho 0.351 ± 0.044 ± 0.117

Pythia W(l) no ISR/FSR 0.00 ± 0.111 ± 0.00

Pythia Z(l) no ISR/FSR 0.055 ± 0.096 ± 0.018

Pythia ttbar(incl) 0.082 ± 0.017 ± 0.027

Combined EWK 0.66 ± 0.21 ± 0.22

Background Estimation Combined

Backgrounds prediction ± stat. ± sys.

Electroweak 0.66 ± 0.21 ± 0.22

Non-Collision (CR,BH) 0.001 ± 0.008 ± 0.001

QCD from dipho MC (default) 0.13 ± 0.13 ± 0.19

Data 0

TOTAL 0.79 ± 0.25 ± 0.29

95% Confidence Level Expected Cross Section Limit( m_&chi=140 GeV, &tau_&chi=0 ns)

Default MetSig Acceptance (%) Background Estimation &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.35
Ht>200 GeV, MetSig>3 7.80 ± 0.78 0.79 ± 0.38 20.25 15.08 22.97

02/09/09
N-1 Plots, Exclusion Region, and Cross Section Limits VS Optimal Cuts: Ht>200 GeV, MetSig > 3.0, &Delta&phi (&gamma₁, &gamma₂)<&pi - 0.35

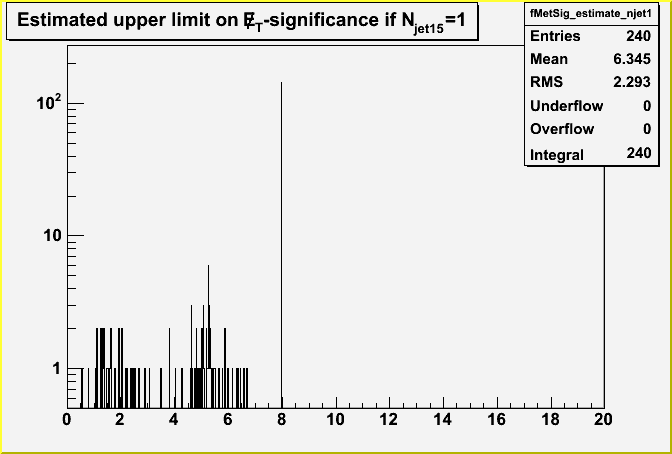

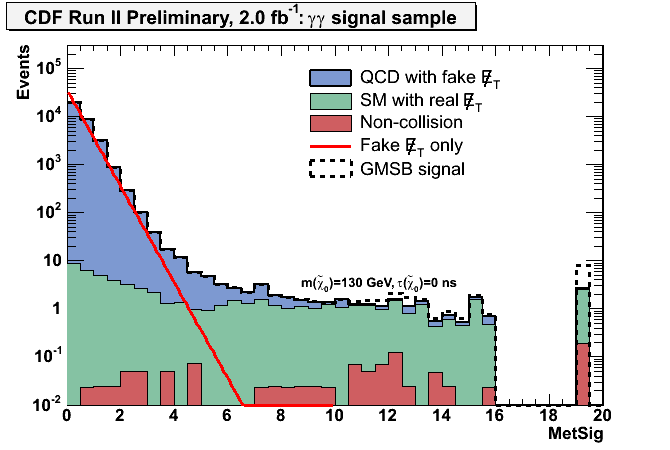

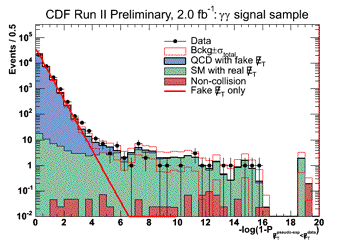

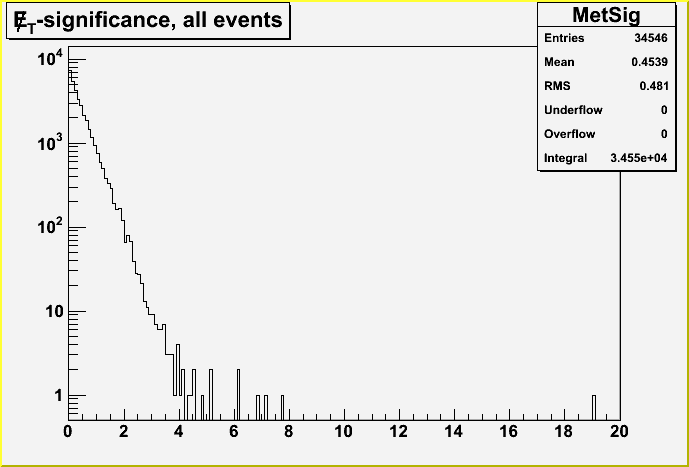

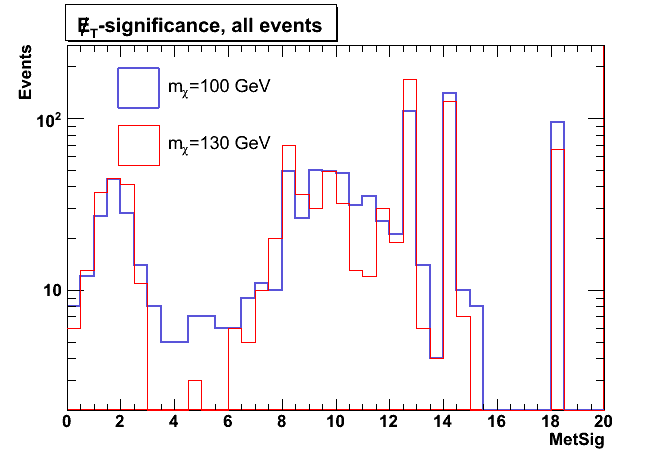

MetSig(no data) MetSig(with data) Cross Section Limit vs Metsig

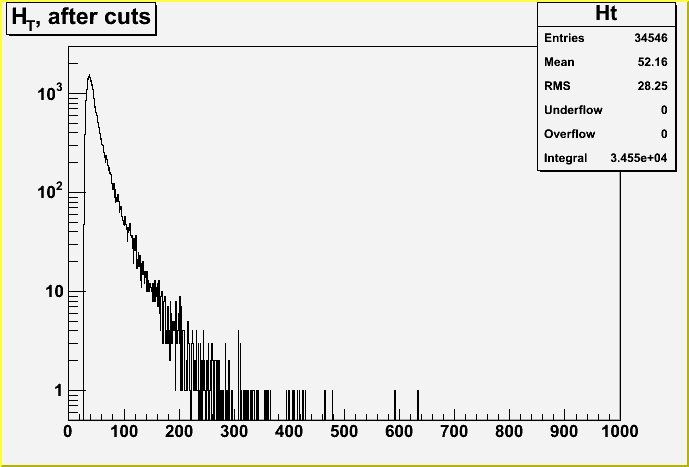

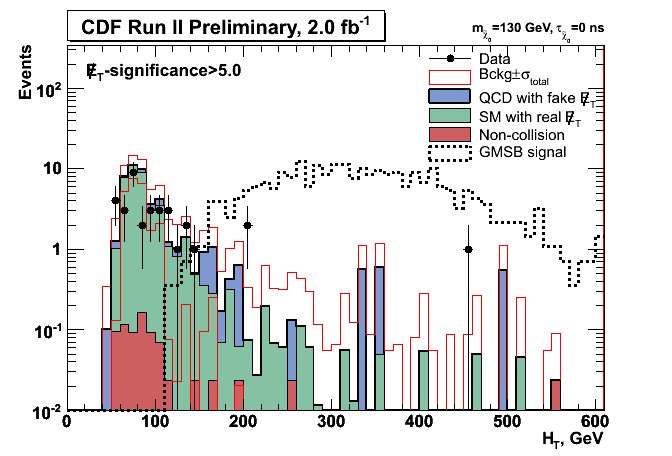

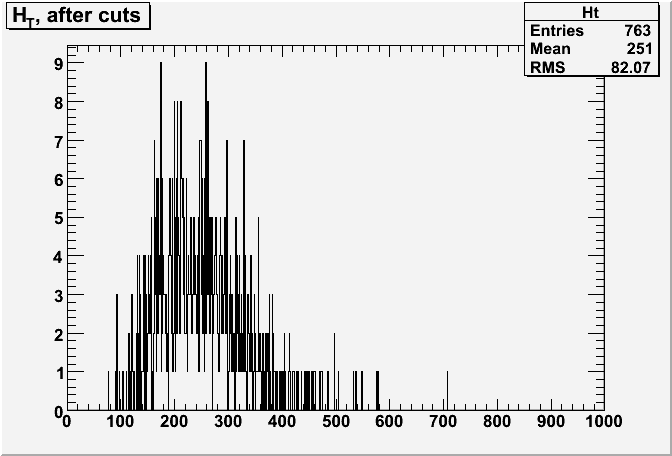

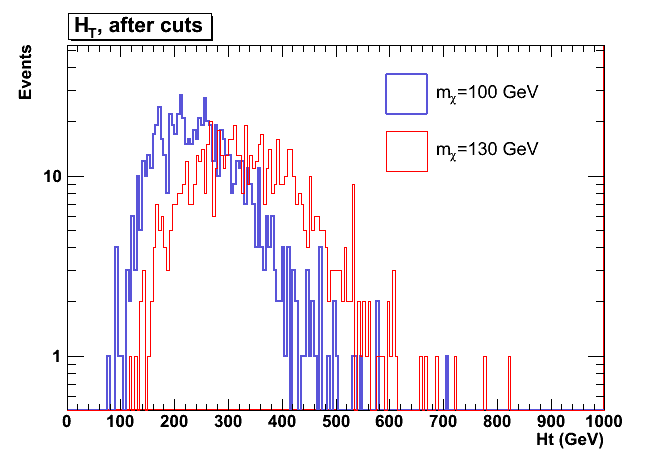

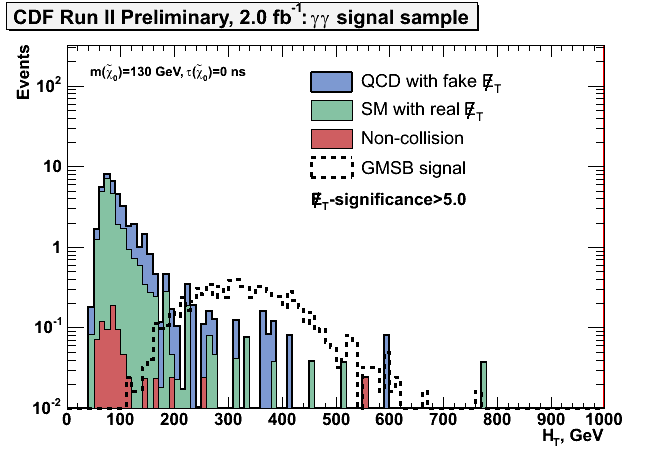

Ht(no data) Ht(with data) Cross Section Limit vs Ht

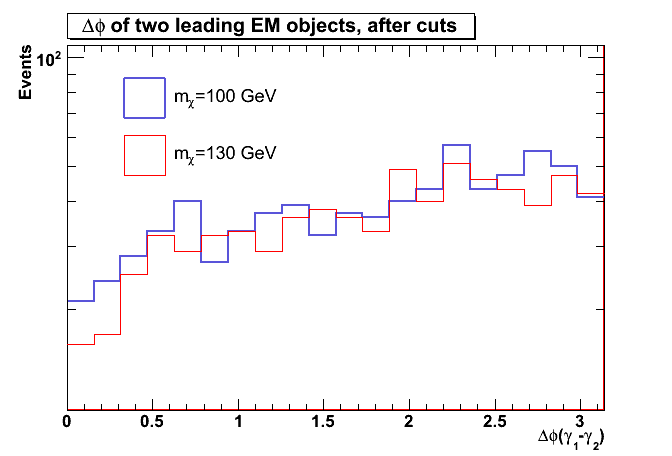

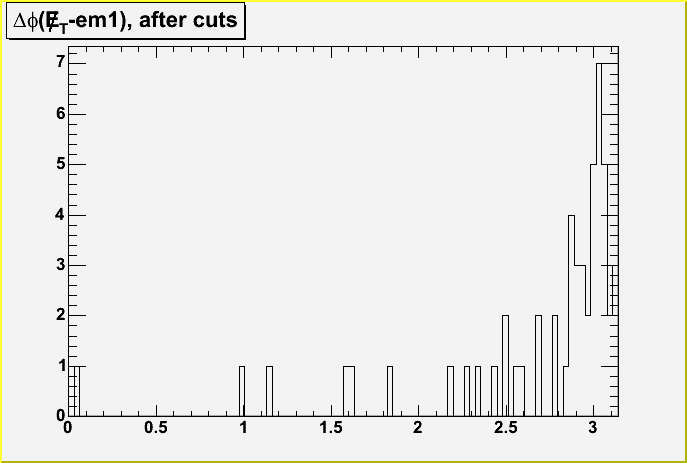

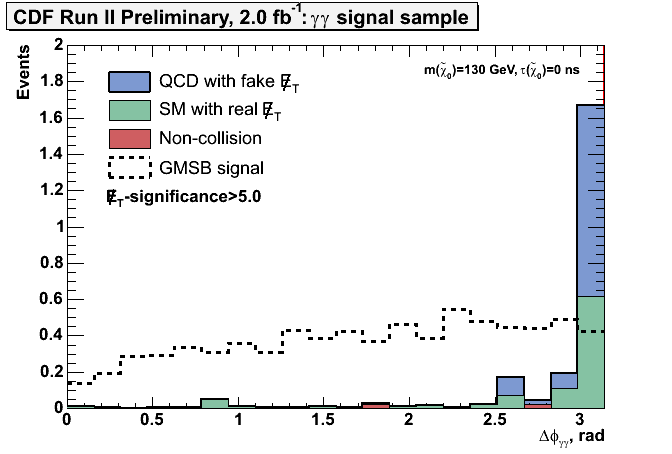

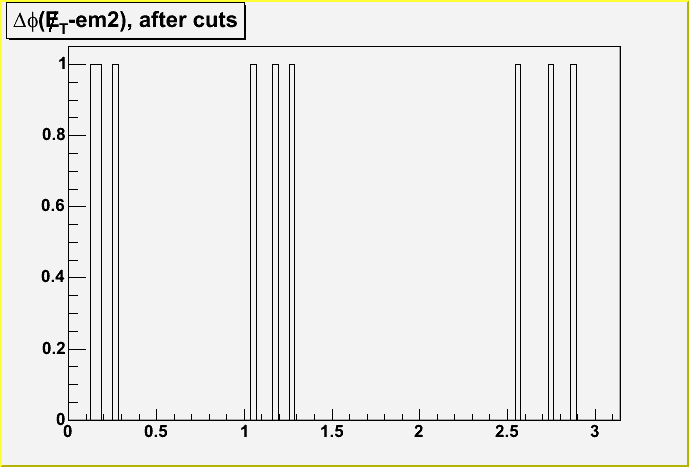

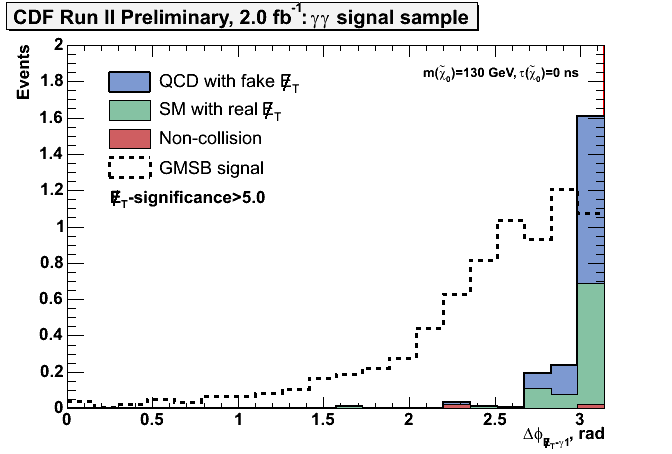

&Delta&phi(no data) &Delta&phi(with data) Cross Section Limit vs &Delta&phi
Exclusion Region Propective Exclusion Region

02/07/09
Background Estimation for New Data (p1:190851 - p17) with Vertex Swapping and Met Cleanup Cuts

Sample MetSig>3
H_T>000 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys) MetSig>3
H_T>125 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys) MetSig>3
H_T>175 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys) MetSig>3
H_T>225 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys) MetSig>3
H_T>275 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys) MetSig>0
H_T>200 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys) MetSig>2
H_T>200 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys) MetSig>4
H_T>200 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys) MetSig>7
H_T>200 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys)

Baur W(e)+pho 27.18 ± 1.314 (428) 1.270 ± 0.284 (20) 0.254 ± 0.127 (4) 0.064 ± 0.064 (1) 0.00 ± 0.064 (0) 0.127 ± 0.090 (2) 0.064 ± 0.064 (1) 0.064 ± 0.064 (1) 0.00 ± 0.064 (0)

Baur W(mu)+pho 2.964 ± 0.424 (49) 0.242 ± 0.121 (4) 0.060 ± 0.060 (1) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.060 ± 0.060 (1) 0.060 ± 0.060 (1) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0)

Baur W(tau)+pho 8.770 ± 0.731 (144) 0.792 ± 0.220 (13) 0.122 ± 0.086 (2) 0.061 ± 0.061 (1) 0.00 ± 0.061 (0) 0.061 ± 0.061 (1) 0.061 ± 0.061 (1) 0.061 ± 0.061 (1) 0.061 ± 0.061 (1)

Baur Z(e)+pho 0.334 ± 0.036 (85) 0.063 ± 0.016 (16) 0.020 ± 0.009 (5) 0.004 ± 0.004 (1) 0.00 ± 0.004 (0) 0.723 ± 0.053 (184) 0.035 ± 0.012 (9) 0.004 ± 0.004 (1) 0.004 ± 0.004 (1)

Baur Z(mu)+pho 4.523 ± 0.134 (1145) 0.514 ± 0.045 (130) 0.174 ± 0.026 (44) 0.103 ± 0.020 (26) 0.047 ± 0.014 (12) 0.146 ± 0.024 (37) 0.138 ± 0.023 (35) 0.134 ± 0.023 (34) 0.114 ± 0.021 (29)

Baur Z(tau)+pho 4.443 ± 0.133 (1122) 0.507 ± 0.045 (128) 0.142 ± 0.024 (36) 0.063 ± 0.016 (16) 0.032 ± 0.011 (8) 0.324 ± 0.036 (82) 0.150 ± 0.024 (38) 0.091 ± 0.019 (23) 0.071 ± 0.017 (18)

Pythia W(e) no ISR/FSR 2.100 ± 0.664 (10) 0.035 ± 0.035 (1) 0.00 ± 0.035 (0) 0.00 ± 0.035 (0) 0.00 ± 0.035 (0) 0.00 ± 0.035 (0) 0.00 ± 0.035 (0) 0.00 ± 0.035 (0) 0.00 ± 0.035 (0)

Pythia W(mu) no ISR/FSR 0.051 ± 0.051 (1) 0.00 ± 0.051 (0) 0.00 ± 0.051 (0) 0.00 ± 0.051 (0) 0.00 ± 0.051 (0) 0.00 ± 0.051 (0) 0.00 ± 0.051 (0) 0.00 ± 0.051 (0) 0.00 ± 0.051 (0)

Pythia W(tau) no ISR/FSR 0.049 ± 0.049 (1) 0.00 ± 0.049 (0) 0.00 ± 0.049 (0) 0.00 ± 0.049 (0) 0.00 ± 0.049 (0) 0.00 ± 0.049 (0) 0.00 ± 0.049 (0) 0.00 ± 0.049 (0) 0.00 ± 0.049 (0)

Pythia Z(e) no ISR/FSR 0.00 ± 0.056 (0) 0.00 ± 0.056 (0) 0.00 ± 0.056 (0) 0.00 ± 0.056 (0) 0.00 ± 0.056 (0) 0.00 ± 0.056 (0) 0.00 ± 0.056 (0) 0.00 ± 0.056 (0) 0.00 ± 0.056 (0)

Pythia Z(mu) no ISR/FSR 0.00 ± 0.088 (0) 0.00 ± 0.088 (0) 0.00 ± 0.088 (0) 0.00 ± 0.088 (0) 0.00 ± 0.088 (0) 0.00 ± 0.088 (0) 0.00 ± 0.088 (0) 0.00 ± 0.088 (0) 0.00 ± 0.088 (0)

Pythia Z(tau) no ISR/FSR 0.194 ± 0.086 (5) 0.039 ± 0.039 (1) 0.039 ± 0.039 (1) 0.039 ± 0.039 (1) 0.00 ± 0.039 (0) 0.039 ± 0.039 (1) 0.039 ± 0.039 (1) 0.00 ± 0.039 (0) 0.00 ± 0.039 (0)

Pythia ttbar(incl) 0.061 ± 0.012 (26) 0.058 ± 0.012 (25) 0.058 ± 0.012 (25) 0.051 ± 0.011 (22) 0.049 ± 0.011 (21) 0.159 ± 0.019 (68) 0.077 ± 0.013 (33) 0.044 ± 0.010 (19) 0.042 ± 0.010 (18)

Beam Halo 0.090 ± 0.027 ± 0.090 (11) 0.008 ± 0.008 ± 0.008 (1) 0.0 ± 0.008 ± 0.0 (0) 0.0 ± 0.008 ± 0.0 (0) 0.0 ± 0.008 ± 0.0 (0) 0.0 ± 0.008 ± 0.0 (0) 0.0 ± 0.008 ± 0.0 (0) 0.0 ± 0.008 ± 0.0 (0) 0.0 ± 0.008 ± 0.0 (0)

Cosmic 0.002 ± 0.001 ± 0.002 (20) 0.001 ± 0.001 ± 0.001 (5) 0.001 ± 0.001 ± 0.001 (3) 0.001 ± 0.001 ± 0.001 (2) 0.001 ± 0.001 ± 0.001 (1) 0.001 ± 0.001 ± 0.001 (2) 0.001 ± 0.001 ± 0.001 (2) 0.001 ± 0.001 ± 0.001 (2) 0.001 ± 0.001 ± 0.001 (2)

QCD from dipho MC (default) 36.77 ± 2.22 ± 14.36 (274) 0.94 ± 0.36 ± 0.14 (7) 0.13 ± 0.13 ± 0.13 (1) 0.13 ± 0.13 ± 0.19 (1) 0.13 ± 0.13 ± 0.13 (1) 70.72 ± 3.08 ± 5.63 (527) 0.94 ± 0.36 ± 0.00 (7) 0.00 ± 0.13 ± 0.00 (0) 0.00 ± 0.13 ± 0.00 (0)

QCD from Met Model (data) 13.8 ± 1.17 ± 0.0 2.0 ± 0.45 ± 0.24 0.7 ± 0.26 ± 0.0 0.2 ± 0.14 ± 0.0 0.1 ± 0.1 ± 0.0 198.4 ± 4.45 ± 1.90 1.8 ± 0.42 ± 0.0 0.2 ± 0.14 ± 0.0 0.0 ± 0.13 ± 0.0

Data 85 6 0 0 0 203 5 0 0

Background Estimation Combined

Sample MetSig>3
H_T>000 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys) MetSig>3
H_T>125 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys) MetSig>3
H_T>175 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys) MetSig>3
H_T>225 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys) MetSig>3
H_T>275 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys) MetSig>0
H_T>200 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys) MetSig>2
H_T>200 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys) MetSig>4
H_T>200 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys) MetSig>7
H_T>200 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys)

EWK Combined 33.44 ± 1.14 ± 1.01
(50.67 ± 1.72) 3.87 ± 0.44 ± 1.27
(3.52 ± 0.40) 0.96 ± 0.22 ± 0.31
(0.87 ± 0.20) 0.62 ± 0.24 ± 0.25
(0.38 ± 0.15) 0.21 ± 0.24 ± 0.08
(0.13 ± 0.15) 2.92 ± 0.32 ± 0.36
(1.64 ± 0.18) 1.15 ± 0.28 ± 0.30
(0.62 ± 0.15) 0.66 ± 0.22 ± 0.25
(0.44 ± 0.15) 0.54 ± 0.22 ± 0.20
(0.36 ± 0.15)

Non-Collision (CR,BH) 0.092 ± 0.027 ± 0.090 0.009 ± 0.008 ± 0.008 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001

QCD from dipho MC (default) 36.77 ± 2.22 ± 14.36 (274) 0.94 ± 0.36 ± 0.14 (7) 0.13 ± 0.13 ± 0.13 (1) 0.13 ± 0.13 ± 0.19 (1) 0.13 ± 0.13 ± 0.13 (1) 198.4 ± 4.45 ± 1.90 0.94 ± 0.36 ± 0.00 (7) 0.00 ± 0.13 ± 0.00 (0) 0.00 ± 0.13 ± 0.00 (0)

Data 85 6 0 0 0 203 5 0 0

TOTAL 70.32 ± 2.50 ± 14.40 4.82 ± 0.57 ± 1.28 1.09 ± 0.26 ± 0.34 0.75 ± 0.27 ± 0.31 0.34 ± 0.27 ± 0.15 201.3 ± 4.46 ± 1.93 2.09 ± 0.46 ± 0.30 0.66 ± 0.26 ± 0.25 0.54 ± 0.26 ± 0.20

95% Confidence Level Expected Cross Section Limit( m_&chi=140 GeV, &tau_&chi=0 ns)

Default MetSig Acceptance (%) Background Estimation &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.35
Ht>000 GeV, MetSig>3 8.22 ± 0.82 70.32 ± 14.62 160.32 219.6 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.35
Ht>125 GeV, MetSig>3 8.19 ± 0.82 4.82 ± 1.40 33.94 38.68 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.35
Ht>175 GeV, MetSig>3 8.00 ± 0.80 1.09 ± 0.43 21.21 14.70 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.35
Ht>225 GeV, MetSig>3 7.46 ± 0.75 0.75 ± 0.41 20.94 15.74 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.35
Ht>275 GeV, MetSig>3 6.40 ± 0.64 0.34 ± 0.31 21.48 18.37 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.35
Ht>200 GeV, MetSig>0 10.22 ± 1.02 201.3 ± 4.86 127.4 128.0 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.35
Ht>200 GeV, MetSig>2 8.78 ± 0.88 2.09 ± 0.55 23.39 38.53 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.35
Ht>200 GeV, MetSig>4 6.42 ± 0.64 0.66 ± 0.36 23.75 18.32 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.35
Ht>200 GeV, MetSig>7 5.11 ± 0.51 0.54 ± 0.33 28.81 23.03 22.97

02/04/09
Background Estimation for New Data (p1:190851 - p17) with Vertex Swapping and Met Cleanup Cuts

Sample MetSig>3
H_T>175 GeV
&Delta&phi<&pi - 0.40
(pred ± stat ± sys) MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.40
(pred ± stat ± sys) MetSig>3
H_T>225 GeV
&Delta&phi<&pi - 0.40
(pred ± stat ± sys) MetSig>2
H_T>200 GeV
&Delta&phi<&pi - 0.40
(pred ± stat ± sys) MetSig>4
H_T>200 GeV
&Delta&phi<&pi - 0.40
(pred ± stat ± sys) MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.30
(pred ± stat ± sys) MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys) MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.45
(pred ± stat ± sys)

Baur W(e)+pho 0.254 ± 0.127 (4) 0.064 ± 0.064 (1) 0.064 ± 0.064 (1) 0.064 ± 0.064 (1) 0.064 ± 0.064 (1) 0.064 ± 0.064 (1) 0.064 ± 0.064 (1) 0.064 ± 0.064 (1)

Baur W(mu)+pho 0.060 ± 0.060 (1) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.060 ± 0.060 (1) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0)

Baur W(tau)+pho 0.122 ± 0.086 (2) 0.061 ± 0.061 (1) 0.061 ± 0.061 (1) 0.061 ± 0.061 (1) 0.061 ± 0.061 (1) 0.061 ± 0.061 (1) 0.061 ± 0.061 (1) 0.061 ± 0.061 (1)

Baur Z(e)+pho 0.020 ± 0.009 (5) 0.012 ± 0.007 (3) 0.004 ± 0.004 (1) 0.035 ± 0.012 (9) 0.004 ± 0.004 (1) 0.012 ± 0.007 (3) 0.012 ± 0.007 (3) 0.012 ± 0.007 (3)

Baur Z(mu)+pho 0.158 ± 0.025 (40) 0.130 ± 0.023 (33) 0.095 ± 0.019 (24) 0.130 ± 0.023 (33) 0.126 ± 0.022 (32) 0.142 ± 0.024 (36) 0.138 ± 0.023 (35) 0.118 ± 0.022 (30)

Baur Z(tau)+pho 0.139 ± 0.023 (35) 0.095 ± 0.019 (24) 0.059 ± 0.015 (15) 0.142 ± 0.024 (36) 0.087 ± 0.018 (22) 0.099 ± 0.020 (25) 0.099 ± 0.020 (25) 0.095 ± 0.019 (24)

Pythia W(e) no ISR/FSR 0.00 ± 0.035 (0) 0.00 ± 0.035 (0) 0.00 ± 0.035 (0) 0.00 ± 0.035 (0) 0.00 ± 0.035 (0) 0.00 ± 0.035 (0) 0.00 ± 0.035 (0) 0.00 ± 0.035 (0)

Pythia W(mu) no ISR/FSR 0.00 ± 0.051 (0) 0.00 ± 0.051 (0) 0.00 ± 0.051 (0) 0.00 ± 0.051 (0) 0.00 ± 0.051 (0) 0.00 ± 0.051 (0) 0.00 ± 0.051 (0) 0.00 ± 0.051 (0)

Pythia W(tau) no ISR/FSR 0.00 ± 0.049 (0) 0.00 ± 0.049 (0) 0.00 ± 0.049 (0) 0.00 ± 0.049 (0) 0.00 ± 0.049 (0) 0.00 ± 0.049 (0) 0.00 ± 0.049 (0) 0.00 ± 0.049 (0)

Pythia Z(e) no ISR/FSR 0.00 ± 0.056 (0) 0.00 ± 0.056 (0) 0.00 ± 0.056 (0) 0.00 ± 0.056 (0) 0.00 ± 0.056 (0) 0.00 ± 0.056 (0) 0.00 ± 0.056 (0) 0.00 ± 0.056 (0)

Pythia Z(mu) no ISR/FSR 0.00 ± 0.088 (0) 0.00 ± 0.088 (0) 0.00 ± 0.088 (0) 0.00 ± 0.088 (0) 0.00 ± 0.088 (0) 0.00 ± 0.088 (0) 0.00 ± 0.088 (0) 0.00 ± 0.088 (0)

Pythia Z(tau) no ISR/FSR 0.039 ± 0.039 (1) 0.039 ± 0.039 (1) 0.039 ± 0.039 (1) 0.039 ± 0.039 (1) 0.00 ± 0.039 (0) 0.039 ± 0.039 (1) 0.039 ± 0.039 (1) 0.039 ± 0.039 (1)

Pythia ttbar(incl) 0.056 ± 0.011 (24) 0.056 ± 0.011 (24) 0.049 ± 0.011 (21) 0.075 ± 0.013 (32) 0.042 ± 0.010 (18) 0.058 ± 0.012 (25) 0.058 ± 0.012 (25) 0.054 ± 0.011 (23)

Beam Halo 0.0 ± 0.008 ± 0.0 (0) 0.0 ± 0.008 ± 0.0 (0) 0.0 ± 0.008 ± 0.0 (0) 0.0 ± 0.008 ± 0.0 (0) 0.0 ± 0.008 ± 0.0 (0) 0.0 ± 0.008 ± 0.0 (0) 0.0 ± 0.008 ± 0.0 (0) 0.0 ± 0.008 ± 0.0 (0)

Cosmic 0.002 ± 0.001 ± 0.002 (3) 0.001 ± 0.001 ± 0.001 (2) 0.001 ± 0.001 ± 0.001 (2) 0.001 ± 0.001 ± 0.001 (2) 0.001 ± 0.001 ± 0.001 (2) 0.001 ± 0.001 ± 0.001 (2) 0.001 ± 0.001 ± 0.001 (2) 0.001 ± 0.001 ± 0.001 (2)

QCD from dipho MC (default) 0.13 ± 0.13 ± 0.19 (1) 0.13 ± 0.13 ± 0.19 (1) 0.13 ± 0.13 ± 0.19 (1) 0.80 ± 0.33 ± 0.14 (6) 0.00 ± 0.13 ± 0.00 (0) 0.27 ± 0.19 ± 0.19 (2) 0.13 ± 0.13 ± 0.19 (1) 0.13 ± 0.13 ± 0.19 (1)

QCD from Met Model (data) 0.7 ± 0.26 ± 0.0 0.4 ± 0.2 ± 0.0 0.2 ± 0.14 ± 0.0 1.7 ± 0.41 ± 0.0 0.2 ± 0.14 ± 0.0 0.4 ± 0.20 ± 0.0 0.4 ± 0.20 ± 0.0 0.4 ± 0.20 ± 0.0

Data 0 0 0 5 0 0 0 0

Background Estimation Combined

Sample MetSig>3
H_T>175 GeV
&Delta&phi<&pi - 0.40
(pred ± stat ± sys) MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.40
(pred ± stat ± sys) MetSig>3
H_T>225 GeV
&Delta&phi<&pi - 0.40
(pred ± stat ± sys) MetSig>2
H_T>200 GeV
&Delta&phi<&pi - 0.40
(pred ± stat ± sys) MetSig>4
H_T>200 GeV
&Delta&phi<&pi - 0.40
(pred ± stat ± sys) MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.30
(pred ± stat ± sys) MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys) MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.45
(pred ± stat ± sys)

EWK Combined 0.93 ± 0.22 ± 0.31
(0.85 ± 0.20) 0.63 ± 0.21 ± 0.22
(0.46 ± 0.15) 0.60 ± 0.24 ± 0.24
(0.37 ± 0.15) 1.13 ± 0.28 ± 0.29
(0.61 ± 0.15) 0.57 ± 0.22 ± 0.22
(0.38 ± 0.15) 0.69 ± 0.22 ± 0.22
(0.48 ± 0.15) 0.66 ± 0.21 ± 0.22
(0.47 ± 0.15) 0.66 ± 0.22 ± 0.23
(0.44 ± 0.15)

Non-Collision (CR,BH) 0.002 ± 0.008 ± 0.002 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001

QCD from dipho MC (default) 0.13 ± 0.13 ± 0.19 (1) 0.13 ± 0.13 ± 0.19 (1) 0.13 ± 0.13 ± 0.19 (1) 0.80 ± 0.33 ± 0.14 (6) 0.00 ± 0.13 ± 0.00 (0) 0.27 ± 0.19 ± 0.19 (2) 0.13 ± 0.13 ± 0.19 (1) 0.13 ± 0.13 ± 0.19 (1)

Data 0 0 0 5 0 0 0 0

TOTAL 1.06 ± 0.25 ± 0.36 0.76 ± 0.25 ± 0.29 0.73 ± 0.27 ± 0.31 1.93 ± 0.43 ± 0.32 0.57 ± 0.26 ± 0.22 0.96 ± 0.29 ± 0.29 0.79 ± 0.25 ± 0.29 0.79 ± 0.26 ± 0.30

95% Confidence Level Expected Cross Section Limit( m_&chi=140 GeV, &tau_&chi=0 ns)

Default MetSig Acceptance (%) Background Estimation &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.40
Ht>175 GeV, MetSig>3 7.82 ± 0.78 1.06 ± 0.44 21.58 15.05 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.40
Ht>200 GeV, MetSig>3 7.60 ± 0.76 0.76 ± 0.38 20.62 15.48 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.40
Ht>225 GeV, MetSig>3 7.28 ± 0.73 0.73 ± 0.41 21.34 16.13 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.40
Ht>200 GeV, MetSig>2 8.55 ± 0.86 1.93 ± 0.54 22.91. 40.88 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.40
Ht>200 GeV, MetSig>4 6.26 ± 0.63 0.57 ± 0.34 23.70 18.77 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.30
Ht>200 GeV, MetSig>3 7.97 ± 0.80 0.96 ± 0.41 20.65 14.74 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.35
Ht>200 GeV, MetSig>3 7.80 ± 0.78 0.79 ± 0.38 20.25 15.08 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.45
Ht>200 GeV, MetSig>3 7.42 ± 0.74 0.79 ± 0.40 21.28 15.84 22.97

02/02/09
Final QCD Scale Factors with Systematics

Cuts Default Unclustered Met
Parameterization - Level 6 Jet
Energy Scale + Level 6 Jet
Energy Scale Final QCD Estimation

MetSig>3, H_T>000 GeV, &Delta&phi<&pi - 0.15 336 202 367 299 45.09 ± 2.46 ± 18.91

MetSig>3, H_T>125 GeV, &Delta&phi<&pi - 0.15 20 17 20 19 2.68 ± 0.60 ± 0.44

MetSig>3, H_T>175 GeV, &Delta&phi<&pi - 0.15 10 8 10 10 1.34 ± 0.42 ± 0.28

MetSig>3, H_T>200 GeV, &Delta&phi<&pi - 0.15 7 7 7 8 0.94 ± 0.36 ± 0.14

MetSig>3, H_T>225 GeV, &Delta&phi<&pi - 0.15 7 7 6 8 0.94 ± 0.36 ± 0.14

MetSig>3, H_T>275 GeV, &Delta&phi<&pi - 0.15 4 3 3 3 0.54 ± 0.27 ± 0.19

MetSig>0, H_T>200 GeV, &Delta&phi<&pi - 0.15 882 882 850 943 118.4 ± 3.98 ± 8.85

MetSig>2, H_T>200 GeV, &Delta&phi<&pi - 0.15 27 22 30 30 3.62 ± 0.70 ± 0.80

MetSig>4, H_T>200 GeV, &Delta&phi<&pi - 0.15 3 2 2 3 0.40 ± 0.23 ± 0.19

MetSig>7, H_T>200 GeV, &Delta&phi<&pi - 0.15 1 1 1 1 0.13 ± 0.13 ± 0.00

MetSig>3, H_T>200 GeV, &Delta&phi<&pi - 0.00 45 39 43 44 6.04 ± 0.90 ± 0.88

MetSig>3, H_T>200 GeV, &Delta&phi<&pi - 0.10 9 8 9 10 1.21 ± 0.40 ± 0.20

MetSig>3, H_T>200 GeV, &Delta&phi<&pi - 0.20 5 5 4 6 0.67 ± 0.30 ± 0.14

MetSig>3, H_T>200 GeV, &Delta&phi<&pi - 0.40 1 2 1 0 0.13 ± 0.13 ± 0.19

MetSig>3, H_T>175 GeV, &Delta&phi<&pi - 0.40 1 2 1 0 0.13 ± 0.13 ± 0.19

MetSig>3, H_T>225 GeV, &Delta&phi<&pi - 0.40 1 2 1 0 0.13 ± 0.13 ± 0.19

MetSig>2, H_T>200 GeV, &Delta&phi<&pi - 0.40 6 6 6 5 0.80 ± 0.33 ± 0.14

MetSig>4, H_T>200 GeV, &Delta&phi<&pi - 0.40 0 0 0 0 0.00 ± 0.13 ± 0.00

MetSig>3, H_T>200 GeV, &Delta&phi<&pi - 0.30 2 3 1 2 0.27 ± 0.19 ± 0.19

MetSig>3, H_T>200 GeV, &Delta&phi<&pi - 0.35 1 2 1 0 0.13 ± 0.13 ± 0.19

MetSig>3, H_T>200 GeV, &Delta&phi<&pi - 0.45 1 2 1 0 0.13 ± 0.13 ± 0.19

MetSig>3, H_T>000 GeV, &Delta&phi<&pi - 0.35 274 172 300 247 36.77 ± 2.22 ± 14.36

MetSig>3, H_T>125 GeV, &Delta&phi<&pi - 0.35 7 7 7 8 0.94 ± 0.36 ± 0.14

MetSig>3, H_T>175 GeV, &Delta&phi<&pi - 0.35 1 2 1 1 0.13 ± 0.13 ± 0.13

MetSig>3, H_T>225 GeV, &Delta&phi<&pi - 0.35 1 2 1 0 0.13 ± 0.13 ± 0.19

MetSig>3, H_T>275 GeV, &Delta&phi<&pi - 0.35 1 1 1 0 0.13 ± 0.13 ± 0.13

MetSig>0, H_T>200 GeV, &Delta&phi<&pi - 0.35 527 527 504 566 70.72 ± 3.08 ± 5.63

MetSig>2, H_T>200 GeV, &Delta&phi<&pi - 0.35 7 7 7 7 0.94 ± 0.36 ± 0.00

MetSig>4, H_T>200 GeV, &Delta&phi<&pi - 0.35 0 0 0 0 0.00 ± 0.13 ± 0.00

MetSig>7, H_T>200 GeV, &Delta&phi<&pi - 0.35 0 0 0 0 0.00 ± 0.13 ± 0.00

01/29/09
Global Electroweak Scale Factors

Sample MetSig>3 H_T>200 GeV &Delta&phi<&pi - 0.15 MetSig>3 H_T>000 GeV &Delta&phi<&pi - 0.15 MetSig>0 H_T>200 GeV &Delta&phi<&pi - 0.15 MetSig>3 H_T>200 GeV &Delta&phi<&pi - 0.00 MetSig>3 H_T>200 GeV &Delta&phi<&pi - 0.30 MetSig>3 H_T>200 GeV &Delta&phi<&pi - 0.40

0.8 < E/p < 1.2 0.0 < E/p < 2.0 0.8 < E/p < 1.2 0.0 < E/p < 2.0 0.8 < E/p < 1.2 0.0 < E/p < 2.0 0.8 < E/p < 1.2 0.0 < E/p < 2.0 0.8 < E/p < 1.2 0.0 < E/p < 2.0 0.8 < E/p < 1.2 0.0 < E/p < 2.0

Baur W(e)+pho 6.668 ± 0.651 (105) 7.684 ± 0.698 (121) 1169.0 ± 8.616 (18410) 1377.0 ± 9.351 (21685) 10.86 ± 0.830 (171) 12.45 ± 0.889 (196) 7.493 ± 0.690 (118) 8.509 ± 0.735 (134) 5.715 ± 0.602 (90) 6.731 ± 0.654 (106) 4.890 ± 0.557 (77) 5.842 ± 0.609 (92)

Baur W(mu)+pho 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0)

Baur W(tau)+pho 0.487 ± 0.172 (8) 0.548 ± 0.183 (9) 42.93 ± 1.617 (705) 52.62 ± 1.790 (864) 0.609 ± 0.192 (10) 0.792 ± 0.220 (13) 0.670 ± 0.202 (11) 0.731 ± 0.211 (12) 0.183 ± 0.105 (3) 0.244 ± 0.122 (4) 0.183 ± 0.105 (3) 0.183 ± 0.105 (3)

Baur Z(e)+pho 0.318 ± 0.035 (81) 0.365 ± 0.038 (93) 14.15 ± 0.236 (3601) 17.88 ± 0.265 (4549) 16.64 ± 0.256 (4234) 18.66 ± 0.271 (4748) 0.362 ± 0.038 (92) 0.413 ± 0.040 (105) 0.259 ± 0.032 (66) 0.306 ± 0.035 (78) 0.224 ± 0.030 (57) 0.271 ± 0.033 (69)

Baur Z(mu)+pho 0.036 ± 0.012 (9) 0.051 ± 0.014 (13) 0.241 ± 0.031 (61) 0.561 ± 0.047 (142) 0.051 ± 0.014 (13) 0.071 ± 0.017 (18) 0.043 ± 0.013 (11) 0.059 ± 0.015 (15) 0.020 ± 0.009 (5) 0.032 ± 0.011 (8) 0.020 ± 0.009 (5) 0.032 ± 0.011 (8)

Baur Z(tau)+pho 0.578 ± 0.048 (146) 0.756 ± 0.055 (191) 13.27 ± 0.229 (3351) 16.16 ± 0.253 (4081) 1.208 ± 0.069 (305) 1.477 ± 0.076 (373) 0.744 ± 0.054 (188) 0.986 ± 0.062 (249) 0.408 ± 0.040 (103) 0.562 ± 0.047 (142) 0.329 ± 0.036 (83) 0.451 ± 0.042 (114)

Pythia W(e) no ISR/FSR 1.050 ± 0.470 (5) 1.260 ± 0.514 (6) 131.25 ± 5.250 (625) 162.54 ± 5.842 (774) 3.150 ± 0.813 (15) 3.570 ± 0.866 (17) 1.470 ± 0.556 (7) 1.680 ± 0.594 (8) 0.840 ± 0.420 (4) 1.050 ± 0.470 (5) 0.840 ± 0.420 (4) 1.050 ± 0.470 (5)

Pythia W(mu) no ISR/FSR 0.00 ± 0.699 (0) 0.00 ± 0.699 (0) 0.00 ± 0.699 (0) 0.00 ± 0.699 (0) 0.00 ± 0.699 (0) 0.00 ± 0.699 (0) 0.00 ± 0.699 (0) 0.00 ± 0.699 (0) 0.00 ± 0.699 (0) 0.00 ± 0.699 (0) 0.00 ± 0.699 (0) 0.00 ± 0.699 (0)

Pythia W(tau) no ISR/FSR 0.00 ± 0.296 (0) 0.00 ± 0.296 (0) 7.696 ± 1.509 (26) 10.66 ± 1.776 (36) 0.00 ± 0.296 (0) 0.00 ± 0.296 (0) 0.00 ± 0.296 (0) 0.00 ± 0.296 (0) 0.00 ± 0.296 (0) 0.00 ± 0.296 (0) 0.00 ± 0.296 (0) 0.00 ± 0.296 (0)

Pythia Z(e) no ISR/FSR 0.056 ± 0.056 (1) 0.056 ± 0.056 (1) 1.064 ± 0.244 (19) 1.344 ± 0.274 (24) 6.720 ± 0.613 (120) 7.056 ± 0.628 (126) 0.056 ± 0.056 (1) 0.056 ± 0.056 (1) 0.056 ± 0.056 (1) 0.056 ± 0.056 (1) 0.056 ± 0.056 (1) 0.056 ± 0.056 (1)

Pythia Z(mu) no ISR/FSR 0.00 ± 0.126 (0) 0.00 ± 0.126 (0) 0.00 ± 0.126 (0) 0.00 ± 0.126 (0) 0.00 ± 0.126 (0) 0.00 ± 0.126 (0) 0.00 ± 0.126 (0) 0.00 ± 0.126 (0) 0.00 ± 0.126 (0) 0.00 ± 0.126 (0) 0.00 ± 0.126 (0) 0.00 ± 0.126 (0)

Pythia Z(tau) no ISR/FSR 0.039 ± 0.039 (1) 0.039 ± 0.039 (1) 3.019 ± 0.342 (78) 3.715 ± 0.379 (96) 0.310 ± 0.109 (8) 0.348 ± 0.116 (9) 0.039 ± 0.039 (1) 0.039 ± 0.039 (1) 0.039 ± 0.039 (1) 0.039 ± 0.039 (1) 0.039 ± 0.039 (1) 0.039 ± 0.039 (1)

Pythia ttbar(incl) 1.563 ± 0.060 (668) 1.863 ± 0.066 (796) 1.710 ± 0.063 (731) 2.045 ± 0.069 (874) 4.652 ± 0.104 (1988) 5.492 ± 0.113 (2347) 1.654 ± 0.062 (707) 1.975 ± 0.068 (844) 1.479 ± 0.059 (632) 1.764 ± 0.064 (754) 1.418 ± 0.058 (606) 1.689 ± 0.063 (722)

ele+pho MC (Nmc) 10.79 ± 1.13 12.62 ± 1.18 1384.33 ± 10.37 1644.52 ± 11.35 44.20 ± 1.56 49.92 ± 1.64 12.53 ± 1.20 14.45 ± 1.24 9.00 ± 1.08 10.78 ± 1.13 8.00 ± 1.05 9.61 ± 1.10

ele+pho Data (Ndt) 14 18 913 1093 79 93 14 20 13 17 11 15

SFewk (Ndt/Nmc) 1.30 ± 0.37 1.43 ± 0.36 0.66 ± 0.02 0.66 ± 0.02 1.78 ± 0.21 1.86 ± 0.20 1.12 ± 0.32 1.38 ± 0.33 1.44 ± 0.44 1.58 ± 0.42 1.38 ± 0.45 1.56 ± 0.44

Final Global SFewk 1.30 ± 0.39 0.66 ± 0.02 1.78 ± 0.22 1.12 ± 0.41 1.44 ± 0.46 1.38 ± 0.48

Sample MetSig>3 H_T>175 GeV &Delta&phi<&pi - 0.40 MetSig>3 H_T>225 GeV &Delta&phi<&pi - 0.40 MetSig>2 H_T>200 GeV &Delta&phi<&pi - 0.40 MetSig>4 H_T>200 GeV &Delta&phi<&pi - 0.40 MetSig>3 H_T>200 GeV &Delta&phi<&pi - 0.35 MetSig>3 H_T>200 GeV &Delta&phi<&pi - 0.45

0.8 < E/p < 1.2 0.0 < E/p < 2.0 0.8 < E/p < 1.2 0.0 < E/p < 2.0 0.8 < E/p < 1.2 0.0 < E/p < 2.0 0.8 < E/p < 1.2 0.0 < E/p < 2.0 0.8 < E/p < 1.2 0.0 < E/p < 2.0 0.8 < E/p < 1.2 0.0 < E/p < 2.0

Baur W(e)+pho 9.779 ± 0.788 (154) 11.75 ± 0.876 (180) 2.858 ± 0.426 (45) 3.556 ± 0.475 (56) 5.778 ± 0.606 (91) 6.858 ± 0.660 (108) 4.318 ± 0.524 (68) 5.144 ± 0.572 (81) 5.270 ± 0.578 (83) 6.286 ± 0.632 (99) 4.572 ± 0.539 (72) 5.398 ± 0.585 (85)

Baur W(mu)+pho 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0)

Baur W(tau)+pho 0.548 ± 0.183 (9) 0.609 ± 0.192 (10) 0.183 ± 0.105 (3) 0.183 ± 0.105 (3) 0.183 ± 0.105 (3) 0.183 ± 0.105 (3) 0.183 ± 0.105 (3) 0.183 ± 0.105 (3) 0.183 ± 0.105 (3) 0.183 ± 0.105 (3) 0.183 ± 0.105 (3) 0.183 ± 0.105 (3)

Baur Z(e)+pho 0.397 ± 0.039 (101) 0.468 ± 0.043 (119) 0.130 ± 0.022 (33) 0.145 ± 0.024 (37) 0.586 ± 0.048 (149) 0.700 ± 0.052 (178) 0.169 ± 0.026 (43) 0.204 ± 0.028 (52) 0.252 ± 0.031 (64) 0.299 ± 0.034 (76) 0.208 ± 0.029 (53) 0.255 ± 0.032 (65)

Baur Z(mu)+pho 0.024 ± 0.010 (6) 0.036 ± 0.012 (9) 0.012 ± 0.007 (3) 0.012 ± 0.007 (3) 0.028 ± 0.010 (7) 0.028 ± 0.010 (7) 0.016 ± 0.008 (4) 0.028 ± 0.010 (7) 0.020 ± 0.009 (5) 0.032 ± 0.011 (8) 0.020 ± 0.009 (5) 0.032 ± 0.011 (8)

Baur Z(tau)+pho 0.519 ± 0.045 (131) 0.677 ± 0.052 (171) 0.202 ± 0.028 (51) 0.265 ± 0.032 (67) 0.451 ± 0.042 (114) 0.594 ± 0.048 (150) 0.293 ± 0.034 (74) 0.388 ± 0.039 (98) 0.368 ± 0.038 (93) 0.511 ± 0.045 (129) 0.285 ± 0.034 (72) 0.400 ± 0.040 (101)

Pythia W(e) no ISR/FSR 2.520 ± 0.727 (12) 3.570 ± 0.866 (17) 0.210 ± 0.210 (1) 0.210 ± 0.210 (1) 1.050 ± 0.470 (5) 1.260 ± 0.514 (6) 0.630 ± 0.362 (3) 0.840 ± 0.420 (4) 0.840 ± 0.420 (4) 1.050 ± 0.470 (5) 0.630 ± 0.362 (3) 0.840 ± 0.420 (4)

Pythia W(mu) no ISR/FSR 0.00 ± 0.699 (0) 0.00 ± 0.699 (0) 0.00 ± 0.699 (0) 0.00 ± 0.699 (0) 0.00 ± 0.699 (0) 0.00 ± 0.699 (0) 0.00 ± 0.699 (0) 0.00 ± 0.699 (0) 0.00 ± 0.699 (0) 0.00 ± 0.699 (0) 0.00 ± 0.699 (0) 0.00 ± 0.699 (0)

Pythia W(tau) no ISR/FSR 0.00 ± 0.296 (0) 0.00 ± 0.296 (0) 0.00 ± 0.296 (0) 0.00 ± 0.296 (0) 0.00 ± 0.296 (0) 0.00 ± 0.296 (0) 0.00 ± 0.296 (0) 0.00 ± 0.296 (0) 0.00 ± 0.296 (0) 0.00 ± 0.296 (0) 0.00 ± 0.296 (0) 0.00 ± 0.296 (0)

Pythia Z(e) no ISR/FSR 0.112 ± 0.079 (2) 0.112 ± 0.079 (2) 0.00 ± 0.056 (0) 0.00 ± 0.056 (0) 0.056 ± 0.056 (1) 0.056 ± 0.056 (1) 0.056 ± 0.056 (1) 0.056 ± 0.056 (1) 0.056 ± 0.056 (1) 0.056 ± 0.056 (1) 0.056 ± 0.056 (1) 0.056 ± 0.056 (1)

Pythia Z(mu) no ISR/FSR 0.00 ± 0.126 (0) 0.00 ± 0.126 (0) 0.00 ± 0.126 (0) 0.00 ± 0.126 (0) 0.00 ± 0.126 (0) 0.00 ± 0.126 (0) 0.00 ± 0.126 (0) 0.00 ± 0.126 (0) 0.00 ± 0.126 (0) 0.00 ± 0.126 (0) 0.00 ± 0.126 (0) 0.00 ± 0.126 (0)

Pythia Z(tau) no ISR/FSR 0.039 ± 0.039 (1) 0.077 ± 0.055 (2) 0.039 ± 0.039 (1) 0.039 ± 0.039 (1) 0.194 ± 0.086 (5) 0.232 ± 0.095 (6) 0.039 ± 0.039 (1) 0.039 ± 0.039 (1) 0.039 ± 0.039 (1) 0.039 ± 0.039 (1) 0.039 ± 0.039 (1) 0.039 ± 0.039 (1)

Pythia ttbar(incl) 1.498 ± 0.059 (640) 1.788 ± 0.065 (764) 1.285 ± 0.055 (549) 1.528 ± 0.060 (653) 1.865 ± 0.066 (797) 2.230 ± 0.072 (953) 0.978 ± 0.048 (418) 1.182 ± 0.052 (505) 1.453 ± 0.058 (621) 1.729 ± 0.064 (739) 1.397 ± 0.057 (597) 1.664 ± 0.062 (711)

ele+pho MC (Nmc) 15.44 ± 1.34 19.09 ± 1.47 4.92 ± 0.92 5.94 ± 0.94 10.19 ± 1.10 12.14 ± 1.15 6.68 ± 1.01 8.06 ± 1.06 8.49 ± 1.06 10.18 ± 1.11 7.39 ± 1.02 8.87 ± 1.07

ele+pho Data (Ndt) 17 25 8 10 19 24 10 14 12 16 11 15

SFewk (Ndt/Nmc) 1.10 ± 0.28 1.32 ± 0.28 1.63 ± 0.65 1.68 ± 0.60 1.86 ± 0.47 1.98 ± 0.44 1.50 ± 0.52 1.74 ± 0.52 1.41 ± 0.44 1.57 ± 0.43 1.49 ± 0.49 1.69 ± 0.48

Final Global SFewk 1.10 ± 0.36 1.63 ± 0.65 1.86 ± 0.48 1.50 ± 0.57 1.41 ± 0.47 1.49 ± 0.53

01/28/09
Background Estimation for New Data (p1:190851 - p17) with Vertex Swapping and Met Cleanup Cuts

Sample MetSig>3
H_T>000 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>3
H_T>125 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>3
H_T>175 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>3
H_T>225 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>3
H_T>275 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys)

Baur W(e)+pho 27.69 ± 1.32 (436) 1.460 ± 0.304 (23) 0.254 ± 0.127 (4) 0.064 ± 0.064 (1) 0.064 ± 0.064 (1) 0.00 ± 0.064 (0)

Baur W(mu)+pho 3.267 ± 0.444 (54) 0.302 ± 0.135 (5) 0.121 ± 0.086 (2) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0)

Baur W(tau)+pho 9.379 ± 0.756 (154) 0.974 ± 0.244 (16) 0.244 ± 0.122 (4) 0.183 ± 0.105 (3) 0.122 ± 0.086 (2) 0.00 ± 0.061 (0)

Baur Z(e)+pho 0.385 ± 0.039 (98) 0.071 ± 0.017 (18) 0.024 ± 0.010 (6) 0.016 ± 0.008 (4) 0.004 ± 0.004 (1) 0.00 ± 0.004 (0)

Baur Z(mu)+pho 4.831 ± 0.138 (1223) 0.581 ± 0.048 (147) 0.205 ± 0.028 (52) 0.158 ± 0.025 (40) 0.107 ± 0.020 (27) 0.051 ± 0.014 (13)

Baur Z(tau)+pho 4.898 ± 0.139 (1237) 0.590 ± 0.048 (149) 0.166 ± 0.026 (42) 0.107 ± 0.020 (27) 0.071 ± 0.017 (18) 0.036 ± 0.012 (9)

Pythia W(e) no ISR/FSR 2.10 ± 0.664 (10) 0.21 ± 0.210 (1) 0.00 ± 0.035 (0) 0.00 ± 0.035 (0) 0.00 ± 0.035 (0) 0.00 ± 0.035 (0)

Pythia W(mu) no ISR/FSR 0.308 ± 0.308 (1) 0.00 ± 0.051 (0) 0.00 ± 0.051 (0) 0.00 ± 0.051 (0) 0.00 ± 0.051 (0) 0.00 ± 0.051 (0)

Pythia W(tau) no ISR/FSR 0.296 ± 0.296 (1) 0.00 ± 0.049 (0) 0.00 ± 0.049 (0) 0.00 ± 0.049 (0) 0.00 ± 0.049 (0) 0.00 ± 0.049 (0)

Pythia Z(e) no ISR/FSR 0.00 ± 0.056 (0) 0.00 ± 0.056 (0) 0.00 ± 0.056 (0) 0.00 ± 0.056 (0) 0.00 ± 0.056 (0) 0.00 ± 0.056 (0)

Pythia Z(mu) no ISR/FSR 0.00 ± 0.088 (0) 0.00 ± 0.088 (0) 0.00 ± 0.088 (0) 0.00 ± 0.088 (0) 0.00 ± 0.088 (0) 0.00 ± 0.088 (0)

Pythia Z(tau) no ISR/FSR 0.348 ± 0.116 (9) 0.077 ± 0.055 (2) 0.077 ± 0.055 (2) 0.039 ± 0.039 (1) 0.039 ± 0.039 (1) 0.00 ± 0.039 (0)

Pythia ttbar(incl) 0.063 ± 0.012 (27) 0.061 ± 0.012 (26) 0.061 ± 0.012 (26) 0.061 ± 0.012 (26) 0.054 ± 0.011 (23) 0.051 ± 0.011 (22)

Beam Halo 0.09 ± 0.027 ± 0.09 (11) 0.008 ± 0.008 ± 0.008 (1) 0.0 ± 0.008 ± 0.0 (0) 0.0 ± 0.008 ± 0.0 (0) 0.0 ± 0.008 ± 0.0 (0) 0.0 ± 0.008 ± 0.0 (0)

Cosmic 0.014 ± 0.003 ± 0.014 (22) 0.003 ± 0.001 ± 0.003 (5) 0.002 ± 0.001 ± 0.002 (3) 0.001 ± 0.001 ± 0.001 (2) 0.001 ± 0.001 ± 0.001 (2) 0.001 ± 0.001 ± 0.001 (1)

QCD from dipho MC (default) 45.09 ± 2.46 ± 18.91 (336) 2.68 ± 0.60 ± 0.44 (20) 1.34 ± 0.42 ± 0.28 (10) 0.94 ± 0.36 ± 0.14 (7) 0.94 ± 0.36 ± 0.14 (7) 0.54 ± 0.27 ± 0.19 (4)

QCD from Met Model (data) 24.6 ± 1.57 ± 0.0 2.1 ± 0.46 ± 0.24 0.8 ± 0.28 ± 0.0 0.4 ± 0.20 ± 0.0 0.2 ± 0.14 ± 0.0 0.1 ± 0.10 ± 0.0

Data 93 8 1 1 0 0

Sample MetSig>0
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>2
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>4
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>7
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys)

Baur W(e)+pho 0.127 ± 0.090 (2) 0.064 ± 0.064 (1) 0.064 ± 0.064 (1) 0.00 ± 0.064 (0)

Baur W(mu)+pho 0.060 ± 0.060 (1) 0.060 ± 0.060 (1) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0)

Baur W(tau)+pho 0.183 ± 0.105 (3) 0.183 ± 0.105 (3) 0.122 ± 0.086 (2) 0.122 ± 0.086 (2)

Baur Z(e)+pho 0.468 ± 0.043 (119) 0.039 ± 0.012 (10) 0.008 ± 0.006 (2) 0.004 ± 0.004 (1)

Baur Z(mu)+pho 0.170 ± 0.026 (43) 0.162 ± 0.025 (41) 0.154 ± 0.025 (39) 0.130 ± 0.023 (33)

Baur Z(tau)+pho 0.364 ± 0.038 (92) 0.162 ± 0.025 (41) 0.099 ± 0.020 (25) 0.079 ± 0.018 (20)

Pythia W(e) no ISR/FSR 0.00 ± 0.035 (0) 0.00 ± 0.035 (0) 0.00 ± 0.035 (0) 0.00 ± 0.035 (0)

Pythia W(mu) no ISR/FSR 0.00 ± 0.051 (0) 0.00 ± 0.051 (0) 0.00 ± 0.051 (0) 0.00 ± 0.051 (0)

Pythia W(tau) no ISR/FSR 0.00 ± 0.049 (0) 0.00 ± 0.049 (0) 0.00 ± 0.049 (0) 0.00 ± 0.049 (0)

Pythia Z(e) no ISR/FSR 0.00 ± 0.056 (0) 0.00 ± 0.056 (0) 0.00 ± 0.056 (0) 0.00 ± 0.056 (0)

Pythia Z(mu) no ISR/FSR 0.00 ± 0.088 (0) 0.00 ± 0.088 (0) 0.00 ± 0.088 (0) 0.00 ± 0.088 (0)

Pythia Z(tau) no ISR/FSR 0.039 ± 0.039 (1) 0.039 ± 0.039 (1) 0.00 ± 0.039 (0) 0.00 ± 0.039 (0)

Pythia ttbar(incl) 0.166 ± 0.020 (71) 0.080 ± 0.014 (34) 0.047 ± 0.010 (20) 0.044 ± 0.010 (19)

Beam Halo 0.0 ± 0.0082 ± 0.0 (0) 0.0 ± 0.0082 ± 0.0 (0) 0.0 ± 0.0082 ± 0.0 (0) 0.0 ± 0.0082 ± 0.0 (0)

Cosmic 0.001 ± 0.001 ± 0.001 (2) 0.001 ± 0.001 ± 0.001 (2) 0.001 ± 0.001 ± 0.001 (2) 0.001 ± 0.001 ± 0.001 (2)

QCD from dipho MC (default) 118.4 ± 3.98 ± 8.85 (882) 3.62 ± 0.70 ± 0.80 (27) 0.40 ± 0.23 ± 0.19 (3) 0.13 ± 0.13 ± 0.00 (1)

QCD from Met Model (data) 229 ± 4.78 ± 2.44 1.9 ± 0.44 ± 0.17 0.2 ± 0.14 ± 0.0 0.0 ± 0.10 ± 0.0

Data 237 7 1 1

Sample MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.00
(pred ± stat ± sys) MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.20
(pred ± stat ± sys) MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.40
(pred ± stat ± sys)

Baur W(e)+pho 0.318 ± 0.142 (5) 0.127 ± 0.090 (2) 0.064 ± 0.064 (1) 0.064 ± 0.064 (1)

Baur W(mu)+pho 0.242 ± 0.121 (4) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0)

Baur W(tau)+pho 0.365 ± 0.149 (6) 0.183 ± 0.105 (3) 0.183 ± 0.105 (3) 0.061 ± 0.061 (1)

Baur Z(e)+pho 0.016 ± 0.008 (4) 0.016 ± 0.008 (4) 0.016 ± 0.008 (4) 0.012 ± 0.007 (3)

Baur Z(mu)+pho 0.174 ± 0.026 (44) 0.166 ± 0.026 (42) 0.158 ± 0.025 (40) 0.130 ± 0.023 (33)

Baur Z(tau)+pho 0.123 ± 0.022 (31) 0.115 ± 0.021 (29) 0.103 ± 0.020 (26) 0.095 ± 0.019 (24)

Pythia W(e) no ISR/FSR 0.00 ± 0.035 (0) 0.00 ± 0.035 (0) 0.00 ± 0.035 (0) 0.00 ± 0.035 (0)

Pythia W(mu) no ISR/FSR 0.00 ± 0.051 (0) 0.00 ± 0.051 (0) 0.00 ± 0.051 (0) 0.00 ± 0.051 (0)

Pythia W(tau) no ISR/FSR 0.00 ± 0.049 (0) 0.00 ± 0.049 (0) 0.00 ± 0.049 (0) 0.00 ± 0.049 (0)

Pythia Z(e) no ISR/FSR 0.00 ± 0.056 (0) 0.00 ± 0.056 (0) 0.00 ± 0.056 (0) 0.00 ± 0.056 (0)

Pythia Z(mu) no ISR/FSR 0.00 ± 0.088 (0) 0.00 ± 0.088 (0) 0.00 ± 0.088 (0) 0.00 ± 0.088 (0)

Pythia Z(tau) no ISR/FSR 0.039 ± 0.039 (1) 0.039 ± 0.039 (1) 0.039 ± 0.039 (1) 0.039 ± 0.039 (1)

Pythia ttbar(incl) 0.063 ± 0.012 (27) 0.061 ± 0.012 (26) 0.061 ± 0.012 (26) 0.056 ± 0.011 (24)

Beam Halo 0.0 ± 0.0082 ± 0.0 (0) 0.0 ± 0.0082 ± 0.0 (0) 0.0 ± 0.0082 ± 0.0 (0) 0.0 ± 0.0082 ± 0.0 (0)

Cosmic 0.001 ± 0.001 ± 0.001 (2) 0.001 ± 0.001 ± 0.001 (2) 0.001 ± 0.001 ± 0.001 (2) 0.001 ± 0.001 ± 0.001 (2)

QCD from dipho MC (default) 6.04 ± 0.90 ± 0.88 (45) 1.21 ± 0.40 ± 0.20 (9) 0.67 ± 0.30 ± 0.14 (5) 0.13 ± 0.13 ± 0.19 (1)

QCD from Met Model (data) 0.4 ± 0.2 ± 0.0 0.4 ± 0.2 ± 0.0 0.4 ± 0.2 ± 0.0 0.4 ± 0.2 ± 0.0

Data 6 2 1 0

Background Estimation Combined

Sample MetSig>3
H_T>000 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>3
H_T>125 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>3
H_T>175 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>3
H_T>225 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>3
H_T>275 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys)

EWK Combined 35.35 ± 1.18 ± 1.07
(53.56 ± 1.79) 5.63 ± 0.62 ± 1.60
(4.33 ± 0.48) 1.50 ± 0.30 ± 0.42
(1.15 ± 0.23) 0.52 ± 0.23 ± 0.15
(0.40 ± 0.18) 0.51 ± 0.21 ± 0.14
(0.39 ± 0.16) 0.18 ± 0.20 ± 0.05
(0.14 ± 0.15)

Non-Collision (CR,BH) 0.104 ± 0.027 ± 0.091 0.011 ± 0.008 ± 0.009 0.002 ± 0.008 ± 0.002 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001

QCD from dipho MC (default) 45.09 ± 2.46 ± 18.91 (336) 2.68 ± 0.60 ± 0.44 (20) 1.34 ± 0.42 ± 0.28 (10) 0.94 ± 0.36 ± 0.14 (7) 0.94 ± 0.36 ± 0.14 (7) 0.54 ± 0.27 ± 0.19 (4)

Data 93 8 1 1 0 0

TOTAL 80.54 ± 2.73 ± 18.94 8.32 ± 0.86 ± 1.66 2.84 ± 0.52 ± 0.50 1.46 ± 0.43 ± 0.20 1.45 ± 0.42 ± 0.20 0.72 ± 0.34 ± 0.20

Sample MetSig>0
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>2
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>4
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>7
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys)

EWK Combined 2.81 ± 0.34 ± 0.35
(1.58 ± 0.19) 1.41 ± 0.32 ± 0.17
(0.79 ± 0.18) 0.64 ± 0.21 ± 0.19
(0.49 ± 0.16) 0.49 ± 0.21 ± 0.14
(0.38 ± 0.16)

Non-Collision (CR,BH) 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001

QCD from dipho MC (default) 118.4 ± 3.98 ± 8.85 (882) 3.62 ± 0.70 ± 0.80 (27) 0.40 ± 0.23 ± 0.19 (3) 0.13 ± 0.13 ± 0.00 (1)

Data 237 7 1 1

TOTAL 121.2 ± 3.99 ± 8.86 5.03 ± 0.77 ± 0.82 1.04 ± 0.31 ± 0.27 0.62 ± 0.25 ± 0.14

Sample MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.00
(pred ± stat ± sys) MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.20
(pred ± stat ± sys) MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.40
(pred ± stat ± sys)

EWK Combined 1.50 ± 0.29 ± 0.55
(1.34 ± 0.26) 0.92 ± 0.25 ± 0.28
(0.71 ± 0.19) 0.81 ± 0.23 ± 0.24
(0.62 ± 0.18) 0.63 ± 0.21 ± 0.22
(0.46 ± 0.15)

Non-Collision (CR,BH) 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001

QCD from dipho MC (default) 6.04 ± 0.90 ± 0.88 (45) 1.21 ± 0.40 ± 0.20 (9) 0.67 ± 0.30 ± 0.14 (5) 0.13 ± 0.13 ± 0.19 (1)

Data 6 2 1 0

TOTAL 7.54 ± 0.94 ± 1.04 2.13 ± 0.47 ± 0.34 1.48 ± 0.38 ± 0.28 0.76 ± 0.25 ± 0.29

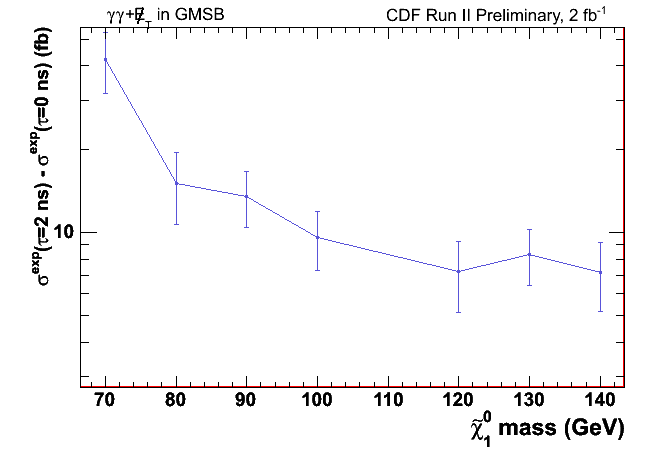

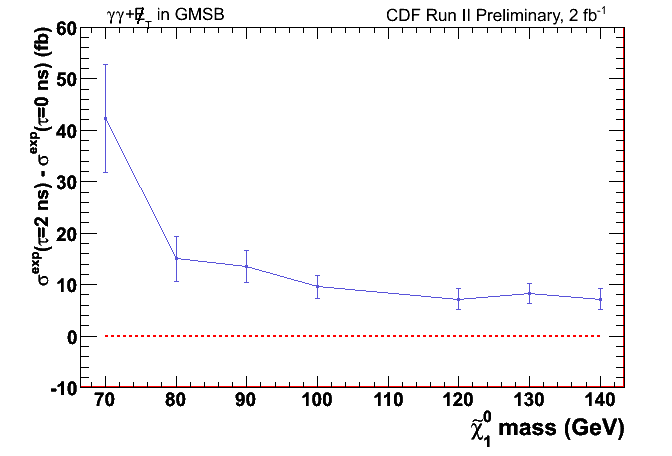

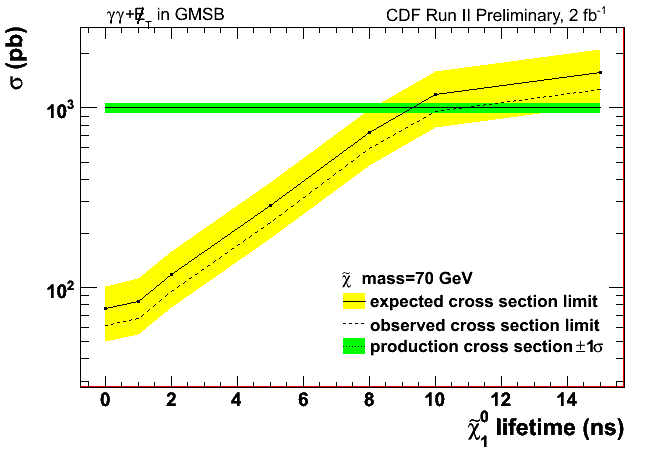

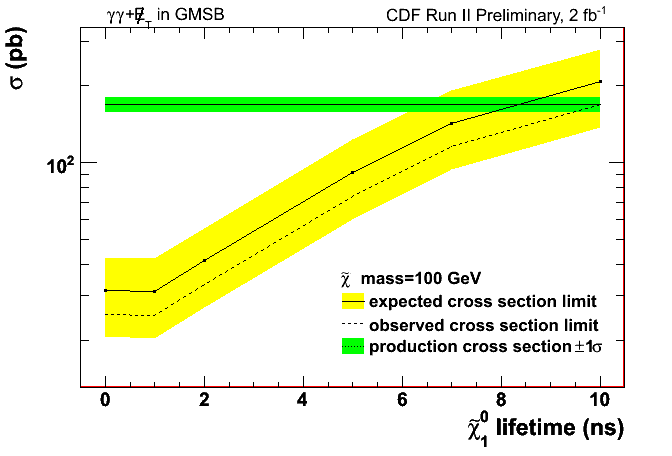

95% Confidence Level Expected Cross Section Limit( m_&chi=140 GeV, &tau_&chi=0 ns)

Default MetSig Acceptance (%) Background Estimation &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>000 GeV, MetSig>3 8.98 ± 0.90 80.54 ± 19.14 182.3 223.5 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>125 GeV, MetSig>3 8.94 ± 0.89 8.32 ± 1.87 38.24 35.67 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>175 GeV, MetSig>3 8.72 ± 0.87 2.84 ± 0.72 24.03 18.20 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>200 GeV, MetSig>3 8.49 ± 0.85 1.46 ± 0.47 21.49 18.89 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>225 GeV, MetSig>3 8.12 ± 0.81 1.45 ± 0.46 22.41 14.48 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>275 GeV, MetSig>3 6.94 ± 0.69 0.72 ± 0.39 22.33 16.93 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>200 GeV, MetSig>0 11.28 ± 1.13 121.2 ± 9.72 110.3 547.8 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>200 GeV, MetSig>2 9.60 ± 0.96 5.03 ± 1.12 28.68 35.89 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>200 GeV, MetSig>4 6.99 ± 0.70 1.04 ± 0.41 23.98 23.42 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>200 GeV, MetSig>7 5.49 ± 0.55 0.62 ± 0.29 27.42 30.89 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.00
Ht>200 GeV, MetSig>3 8.93 ± 0.89 7.54 ± 1.40 35.85 29.39 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.10
Ht>200 GeV, MetSig>3 8.64 ± 0.86 2.13 ± 0.58 23.20 23.28 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.20
Ht>200 GeV, MetSig>3 8.32 ± 0.83 1.48 ± 0.47 22.01 19.26 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.40
Ht>200 GeV, MetSig>3 7.60 ± 0.76 0.76 ± 0.38 20.61 15.49 22.97

Optimal Cuts only for 2.6 fb^-1:
MetSig > 3, Ht > 200 GeV, &Delta&phi < &pi - 0.15

01/23/09
To-do list and differences in 2 fb^-1 and 2.6 fb^-1

1) Difference between 2 fb-1 and 2.6 fb-1 analyses.
i) add p12-p17 data (high lumi) and drop p0 data (low lumi). This change has the following consequences:
a) In 2.6 fb-1 analysis, all data has EM timing---> more simple and efficient cosmics and BH rejection.
b) will increase---> larger contribution due to "wrong vertex" ("wrong vertex" depends ~linearly on Inst. lumi).
c) added Pho50,70 data to recover loss in efficiency at high Et(pho)---> due to our Ht cut, this will lead to larger number of ele-pho data events passing the analysis cut and, as a consequence, larger SFewk---> larger EWK bckg.
ii) Use signal MC based on Pythia Tune-A plus Min Bias---> smaller, but more realistic signal acceptance.
iii) at least up to now, we didn't use vx-swap and met-cleanup cuts in 2.6 fb-1 analysis. It looks like these methods were used for blessed 2 fb-1 results
a) because we don't use vx-swap and cleanup cuts, the "wrong vx" and "tri-pho" contributions are larger
b) we use MC based estimate of the total QCD background (can switch back o data based estimate if vx-swap is used again)
2) List of things "to do". I put analysis and documentation in two separate groups, but they should be pursued in parallel, if possible.
A) Analysis issues; (some things may be done in parallel, order may be changed)
i) SFewk for all sets of cuts (especially looser cuts);
ii) update acceptance/efficiency table for GMSB;
iii) apply "old" procedure of combining Pythia EWK samples to reduce stat uncertainty;
iv) systematics on QCD: due to uncl. parameterization; JES.
v) first analysis pass to check "old" optimization;
vi) test vx-swap and met cleanup with Pythia dipho samples;
vii) test vx-swap and met cleanup with GMSB sample;
viii) check other ideas to reduce background: correlation of dPhi's.
ix) make decision regarding the analysis improvements; re-run optimization if necessary.
x) address systematics due to ces_chi2 cut.
B) Documentation;
i) Finalize public note on 2 fb-1 results, update numbers and text.
ii) Public webpage for 2 fb-1 analysis should be sent to conveners.
iii) Update the analysis note for 2.6 fb-1.

iv) PRL draft

01/22/09

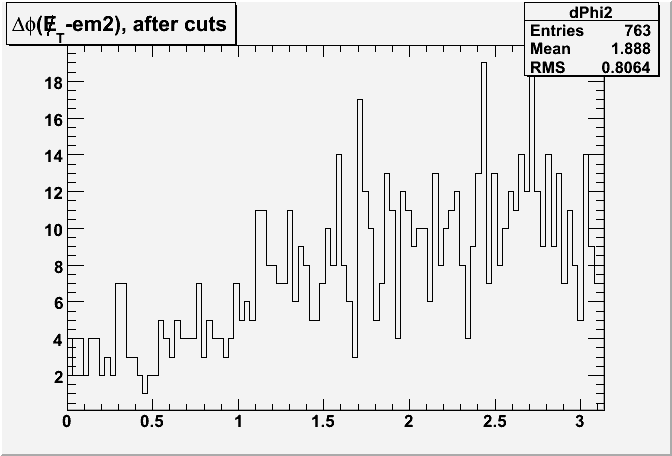

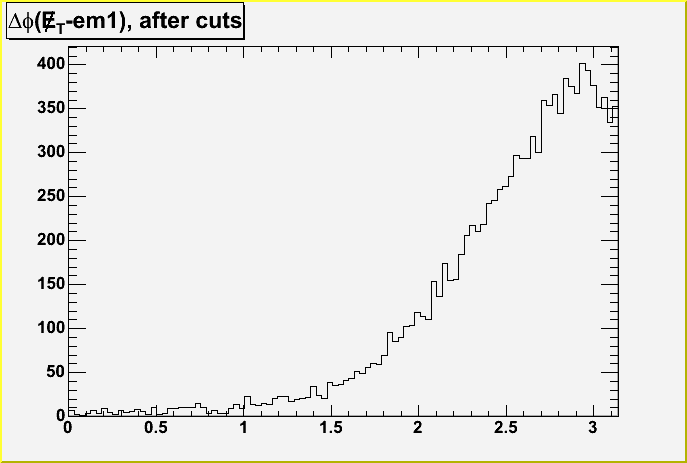

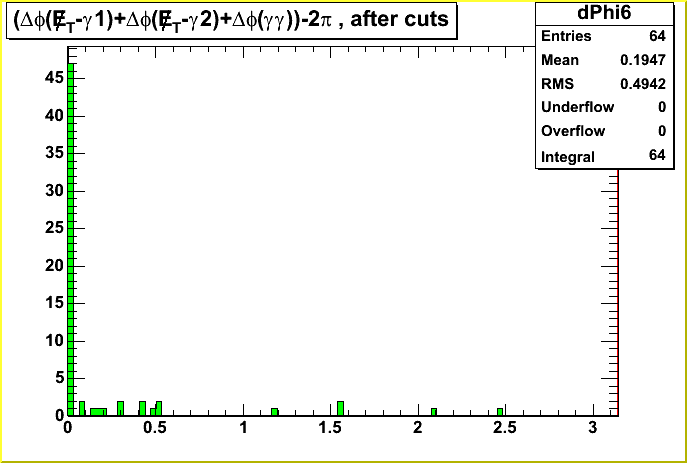

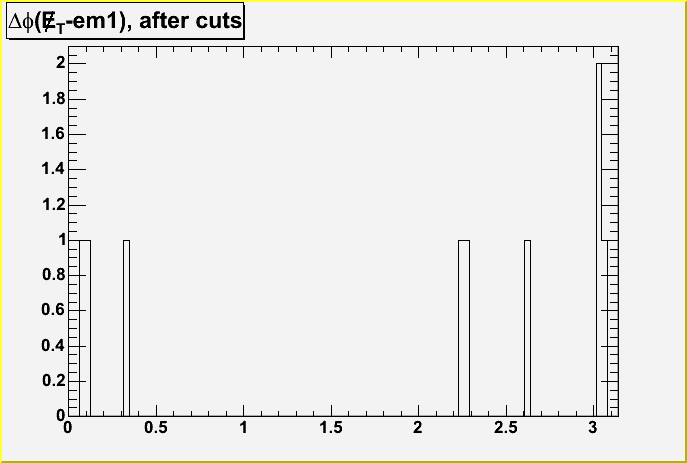

dPhi distributions with Optimal cuts (Ht > 200 GeV, MetSig > 3, &Delta &phi < &pi - 0.15)

Sample With Vertex Swap Without Vertex Swap

&Delta &phi (&gamma 1, &gamma 2) &Delta &phi (&gamma 1, Met) &Delta &phi (&gamma 2, Met) &Delta &phi (&gamma 1, &gamma 2) vs.
&Delta &phi (&gamma 2, Met) &Delta &phi (&gamma 1, &gamma 2) vs.
&Delta &phi (&gamma 1, Met) &Delta &phi (&gamma 1, &gamma 2) &Delta &phi (&gamma 1, Met) &Delta &phi (&gamma 2, Met) &Delta &phi (&gamma 1, &gamma 2) vs.
&Delta &phi (&gamma 2, Met) &Delta &phi (&gamma 1, &gamma 2) vs.
&Delta &phi (&gamma 1, Met)

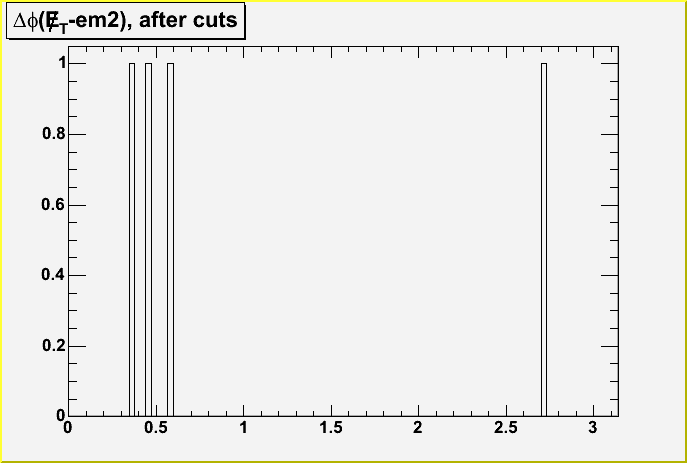

QCD Pythis dipho fig.1 fig.2 fig.3 fig.4 fig.5 fig.6 fig.7 fig.8 fig.9 fig.10

EWK Baur Z fig.11 fig.12 fig.13 fig.14 fig.15 fig.16 fig.17 fig.18 fig.19 fig.20

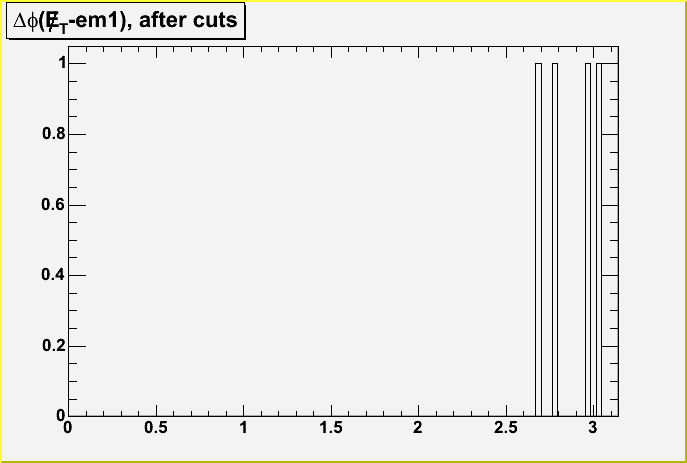

EWK Baur W fig.21 fig.22 fig.23 fig.24 fig.25 fig.26 fig.27 fig.28 fig.29 fig.30

GMSB signal fig.31 fig.32 fig.33 fig.34 fig.35 fig.36 fig.37 fig.38 fig.39 fig.40

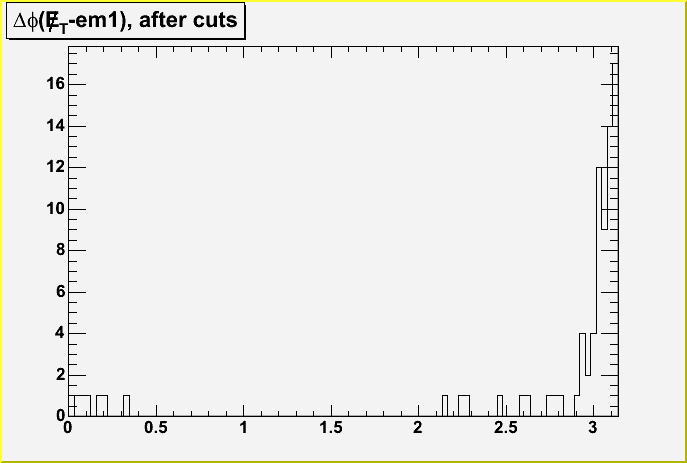

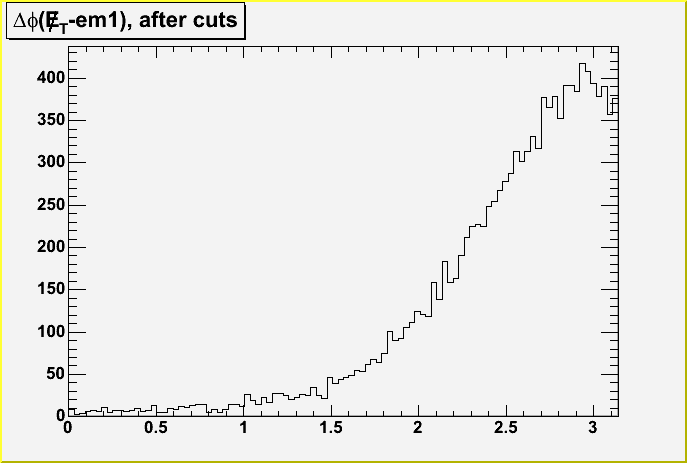

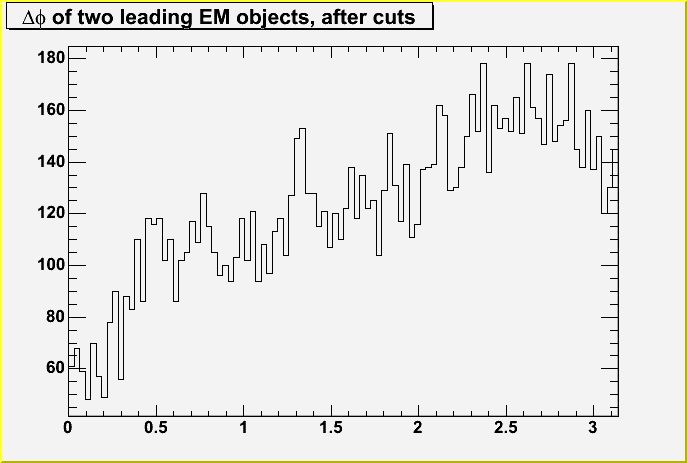

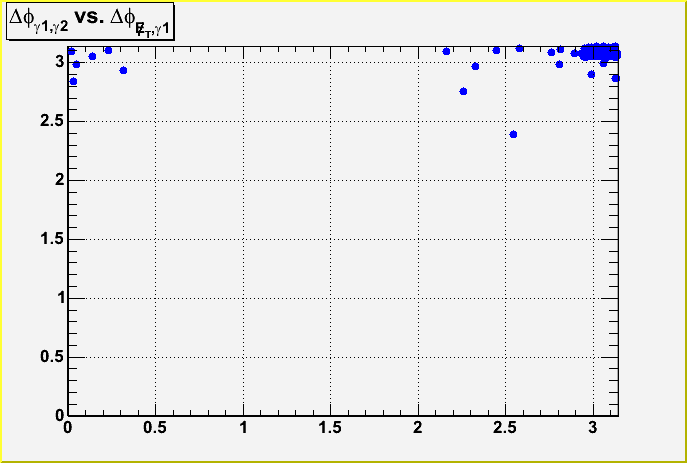

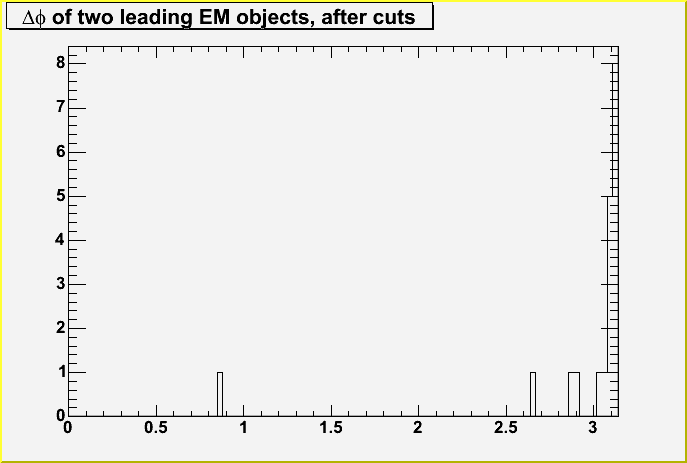

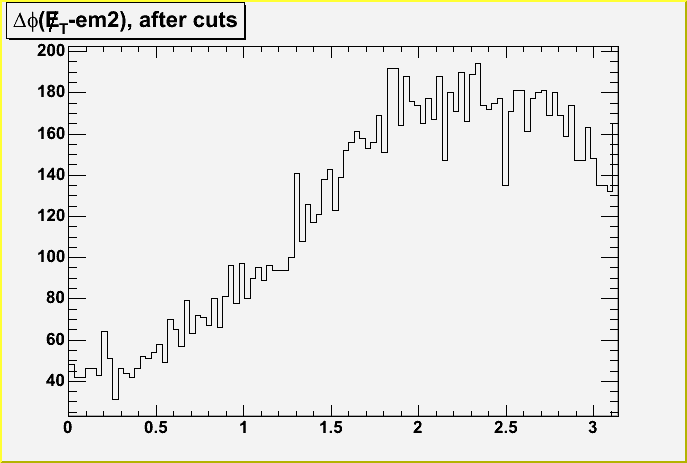

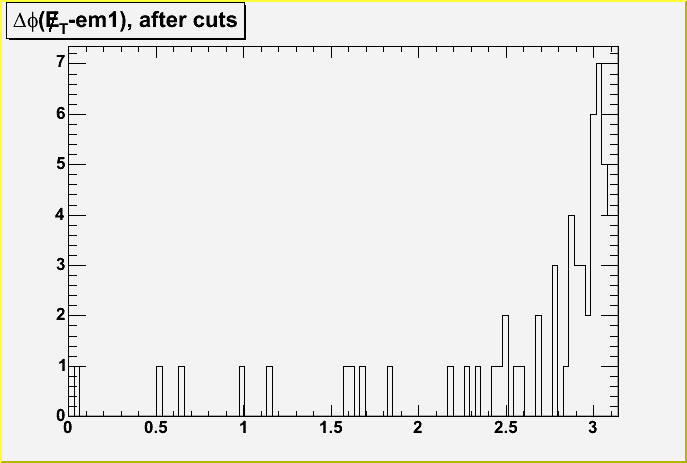

dPhi distributions with Optimal cuts (Ht > 200 GeV, MetSig > 3, No &Delta &phi cut)

Sample With Vertex Swap Without Vertex Swap

&Delta &phi (&gamma 1, &gamma 2) &Delta &phi (&gamma 1, Met) &Delta &phi (&gamma 2, Met) &Delta &phi (&gamma 1, &gamma 2) vs.
&Delta &phi (&gamma 2, Met) &Delta &phi (&gamma 1, &gamma 2) vs.
&Delta &phi (&gamma 1, Met) &Delta &phi (&gamma 1, &gamma 2) &Delta &phi (&gamma 1, Met) &Delta &phi (&gamma 2, Met) &Delta &phi (&gamma 1, &gamma 2) vs.
&Delta &phi (&gamma 2, Met) &Delta &phi (&gamma 1, &gamma 2) vs.
&Delta &phi (&gamma 1, Met)

QCD Pythis dipho fig.41 fig.42 fig.43 fig.44 fig.45 fig.46 fig.47 fig.48 fig.49 fig.50

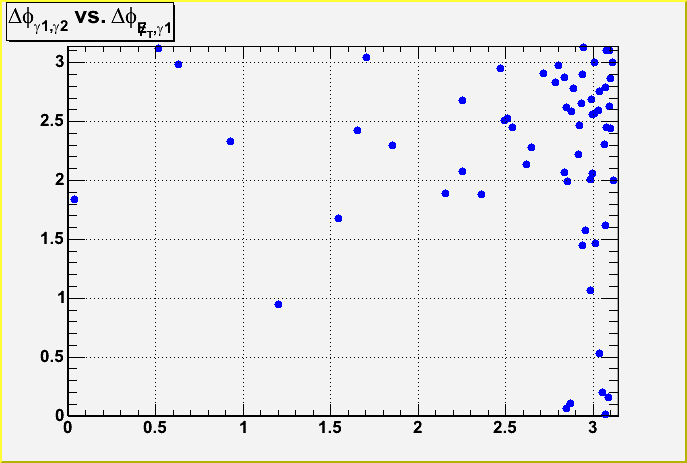

EWK Baur Z fig.51 fig.52 fig.53 fig.54 fig.55 fig.56 fig.57 fig.58 fig.59 fig.60

EWK Baur W fig.61 fig.62 fig.63 fig.64 fig.65 fig.66 fig.67 fig.68 fig.69 fig.70

GMSB signal fig.71 fig.72 fig.73 fig.74 fig.75 fig.76 fig.77 fig.78 fig.79 fig.80

01/21/09
Background Estimation comparison with Optimal Cuts(MetSig>3, Ht>200 GeV, &Delta&phi < &pi - 0.15) with 2.6 fb^-1 data

Sample With vertex swap Without vertex swap

Baur W(e)+pho 0.064 ± 0.064 0.064 ± 0.064

Baur W(mu)+pho 0.00 ± 0.060 0.00 ± 0.060

Baur W(tau)+pho 0.183 ± 0.105 0.183 ± 0.105

Baur Z(e)+pho 0.016 ± 0.008 0.020 ± 0.009

Baur Z(mu)+pho 0.162 ± 0.025 0.166 ± 0.026

Baur Z(tau)+pho 0.135 ± 0.023 0.143 ± 0.024

Pythia W(e) no ISR/FSR 0.00 ± 0.210 0.00 ± 0.210

Pythia W(mu) no ISR/FSR 0.00 ± 0.308 0.00 ± 0.308

Pythia W(tau) no ISR/FSR 0.00 ± 0.296 0.00 ± 0.296

Pythia Z(e) no ISR/FSR 0.00 ± 0.056 0.00 ± 0.056

Pythia Z(mu) no ISR/FSR 0.00 ± 0.088 0.00 ± 0.088

Pythia Z(tau) no ISR/FSR 0.039 ± 0.039 0.039 ± 0.039

Pythia ttbar(incl) 0.061 ± 0.012 0.061 ± 0.012

Beam Halo 0.00 ± 0.0082 ± 0.00 0.00 ± 0.0082 ± 0.00

Cosmic 0.001 ± 0.001 ± 0.001 0.001 ± 0.001 ± 0.001

QCD from dipho MC (default) 1.21 ± 0.40 ± 0.01 2.01 ± 0.52 ± 0.01

QCD from Met Model (mc)

QCD from Met Model (data) 0.5 ± 0.23 ± 0.1

Data 1 1

Background Estimation Combined

Sample With vertex swap Without vertex swap

EWK Combined 0.96 ± 0.72 ± 0.26
(0.68 ± 0.51) 0.96 ± 0.72 ± 0.26
(0.68 ± 0.51)

Non-Collision (CR,BH) 0.001 ± 0.008 ± 0.001 0.001 ± 0.008 ± 0.001

QCD from dipho MC (default) 1.21 ± 0.40 ± 0.01 2.01 ± 0.52 ± 0.01

Data 1 1

TOTAL 2.17 ± 0.82 ± 0.26 2.97 ± 0.89 ± 0.26

95% Confidence Level Expected Cross Section Limit( m_&chi=140 GeV, &tau_&chi=0 ns) with Optimal Cuts

MetSig Acceptance (%) Background Estimation &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

With vertex swap 8.71 ± 0.87 2.17 ± 0.86 23.34 18.42 22.97

Without vertex swap 8.79 ± 0.88 2.97 ± 0.93 23.98 18.16 22.97

01/20/09
gg+Met meeting - Task List

Check Vertex Swap Effect on Pythia diphoton sample

Check Vertex Swap Effect on GMSB signal sample

Check Met Clean-Up cut Effect

Check New Del_Phi cut

01/12/09
Background Estimation for New Data (p1:190851 - p17)

Sample MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.20
(pred ± stat ± sys) MetSig>3
H_T>225 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>3
H_T>225 GeV
&Delta&phi<&pi - 0.20
(pred ± stat ± sys) MetSig>4
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>4
H_T>200 GeV
&Delta&phi<&pi - 0.20
(pred ± stat ± sys) MetSig>4
H_T>225 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>4
H_T>225 GeV
&Delta&phi<&pi - 0.20
(pred ± stat ± sys)

Baur W(e)+pho 0.064 ± 0.064 (1) 0.064 ± 0.064 (1) 0.064 ± 0.064 (1) 0.064 ± 0.064 (1) 0.064 ± 0.064 (1) 0.064 ± 0.064 (1) 0.064 ± 0.064 (1) 0.064 ± 0.064 (1)

Baur W(mu)+pho 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0)

Baur W(tau)+pho 0.183 ± 0.105 (3) 0.183 ± 0.105 (3) 0.183 ± 0.105 (3) 0.183 ± 0.105 (3) 0.122 ± 0.086 (2) 0.122 ± 0.086 (2) 0.122 ± 0.086 (2) 0.122 ± 0.086 (2)

Baur Z(e)+pho 0.020 ± 0.009 (5) 0.020 ± 0.009 (5) 0.008 ± 0.006 (2) 0.008 ± 0.006 (2) 0.012 ± 0.007 (3) 0.012 ± 0.007 (3) 0.008 ± 0.006 (2) 0.008 ± 0.006 (2)

Baur Z(mu)+pho 0.166 ± 0.026 (42) 0.162 ± 0.025 (41) 0.107 ± 0.020 (27) 0.107 ± 0.020 (27) 0.162 ± 0.025 (41) 0.158 ± 0.025 (40) 0.103 ± 0.020 (26) 0.103 ± 0.020 (26)

Baur Z(tau)+pho 0.143 ± 0.024 (36) 0.139 ± 0.023 (35) 0.095 ± 0.019 (24) 0.091 ± 0.019 (23) 0.131 ± 0.023 (33) 0.127 ± 0.022 (32) 0.087 ± 0.018 (22) 0.083 ± 0.018 (21)

Pythia W(e) no ISR/FSR 0.00 ± 0.210 (0) 0.00 ± 0.210 (0) 0.00 ± 0.210 (0) 0.00 ± 0.210 (0) 0.00 ± 0.210 (0) 0.00 ± 0.210 (0) 0.00 ± 0.210 (0) 0.00 ± 0.210 (0)

Pythia W(mu) no ISR/FSR 0.00 ± 0.308 (0) 0.00 ± 0.308 (0) 0.00 ± 0.308 (0) 0.00 ± 0.308 (0) 0.00 ± 0.308 (0) 0.00 ± 0.308 (0) 0.00 ± 0.308 (0) 0.00 ± 0.308 (0)

Pythia W(tau) no ISR/FSR 0.00 ± 0.296 (0) 0.00 ± 0.296 (0) 0.00 ± 0.296 (0) 0.00 ± 0.296 (0) 0.00 ± 0.296 (0) 0.00 ± 0.296 (0) 0.00 ± 0.296 (0) 0.00 ± 0.296 (0)

Pythia Z(e) no ISR/FSR 0.00 ± 0.056 (0) 0.00 ± 0.056 (0) 0.00 ± 0.056 (0) 0.00 ± 0.056 (0) 0.00 ± 0.056 (0) 0.00 ± 0.056 (0) 0.00 ± 0.056 (0) 0.00 ± 0.056 (0)

Pythia Z(mu) no ISR/FSR 0.00 ± 0.088 (0) 0.00 ± 0.088 (0) 0.00 ± 0.088 (0) 0.00 ± 0.088 (0) 0.00 ± 0.088 (0) 0.00 ± 0.088 (0) 0.00 ± 0.088 (0) 0.00 ± 0.088 (0)

Pythia Z(tau) no ISR/FSR 0.039 ± 0.039 (1) 0.039 ± 0.039 (1) 0.039 ± 0.039 (1) 0.039 ± 0.039 (1) 0.00 ± 0.039 (0) 0.00 ± 0.039 (0) 0.00 ± 0.039 (0) 0.00 ± 0.039 (0)

Pythia ttbar(incl) 0.061 ± 0.012 (26) 0.061 ± 0.012 (26) 0.054 ± 0.011 (23) 0.054 ± 0.011 (23) 0.047 ± 0.010 (20) 0.047 ± 0.010 (20) 0.044 ± 0.010 (19) 0.044 ± 0.010 (19)

Beam Halo 0.0 ± 0.0082 ± 0.0 0.0 ± 0.0082 ± 0.0 0.0 ± 0.0082 ± 0.0 0.0 ± 0.0082 ± 0.0 0.0 ± 0.0082 ± 0.0 0.0 ± 0.0082 ± 0.0 0.0 ± 0.0082 ± 0.0 0.0 ± 0.0082 ± 0.0

Cosmic 0.0032 ± 0.0014 ± 0.0032 0.0032 ± 0.0014 ± 0.0032 0.0032 ± 0.0014 ± 0.0032 0.0032 ± 0.0014 ± 0.0032 0.0032 ± 0.0014 ± 0.0032 0.0032 ± 0.0014 ± 0.0032 0.0032 ± 0.0014 ± 0.0032 0.0032 ± 0.0014 ± 0.0032

QCD from dipho MC (default) 2.01 ± 0.52 ± 0.01 1.48 ± 0.44 ± 0.01 1.88 ± 0.50 ± 0.01 1.34 ± 0.42 ± 0.01 1.07 ± 0.38 ± 0.01 0.80 ± 0.33 ± 0.00 0.94 ± 0.36 ± 0.00 0.67 ± 0.30 ± 0.00

QCD from Met Model (mc)

QCD from Met Model (data) 0.5 ± 0.23 ± 0.1 0.5 ± 0.23 ± 0.1 0.1 ± 0.1 ± 0.17 0.1 ± 0.1 ± 0.17 0.2 ± 0.14 ± 0.0 0.2 ± 0.14 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0

Data 1 1 0 0 1 1 0 0

Background Estimation Combined

Sample MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.20
(pred ± stat ± sys) MetSig>3
H_T>225 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>3
H_T>225 GeV
&Delta&phi<&pi - 0.20
(pred ± stat ± sys) MetSig>4
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>4
H_T>200 GeV
&Delta&phi<&pi - 0.20
(pred ± stat ± sys) MetSig>4
H_T>225 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>4
H_T>225 GeV
&Delta&phi<&pi - 0.20
(pred ± stat ± sys)

EWK Combined 0.96 ± 0.72 ± 0.26
(0.68 ± 0.51) 0.95 ± 0.72 ± 0.25
(0.67 ± 0.51) 0.78 ± 0.72 ± 0.21
(0.55 ± 0.51) 0.78 ± 0.72 ± 0.21
(0.55 ± 0.51) 0.77 ± 0.71 ± 0.20
(0.54 ± 0.50) 0.75 ± 0.71 ± 0.20
(0.53 ± 0.50) 0.61 ± 0.71 ± 0.16
(0.43 ± 0.50) 0.60 ± 0.71 ± 0.16
(0.42 ± 0.50)

Non-Collision (CR,BH) 0.0032 ± 0.0083 ± 0.0032 0.0032 ± 0.0083 ± 0.0032 0.0032 ± 0.0083 ± 0.0032 0.0032 ± 0.0083 ± 0.0032 0.0032 ± 0.0083 ± 0.0032 0.0032 ± 0.0083 ± 0.0032 0.0032 ± 0.0083 ± 0.0032 0.0032 ± 0.0083 ± 0.0032

QCD from dipho MC (default) 2.01 ± 0.52 ± 0.01 1.48 ± 0.44 ± 0.01 1.88 ± 0.50 ± 0.01 1.34 ± 0.42 ± 0.01 1.07 ± 0.38 ± 0.01 0.80 ± 0.33 ± 0.00 0.94 ± 0.36 ± 0.00 0.67 ± 0.30 ± 0.00

Data 1 1 0 0 1 1 0 0

TOTAL 2.97 ± 0.89 ± 0.26 2.43 ± 0.84 ± 0.25 2.66 ± 0.88 ± 0.21 2.12 ± 0.83 ± 0.21 1.84 ± 0.80 ± 0.20 1.55 ± 0.78 ± 0.20 1.55 ± 0.80 ± 0.16 1.27 ± 0.77 ± 0.16

95% Confidence Level Expected Cross Section Limit( m_&chi=140 GeV, &tau_&chi=0 ns)

Default MetSig Acceptance (%) Background Estimation &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>200 GeV, MetSig>3 8.79 ± 0.88 2.97 ± 0.93 23.98 18.16 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.20
Ht>200 GeV, MetSig>3 8.60 ± 0.86 2.43 ± 0.88 24.14 18.62 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>225 GeV, MetSig>3 8.42 ± 0.84 2.66 ± 0.90 24.88 13.99 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.20
Ht>225 GeV, MetSig>3 8.23 ± 0.82 2.12 ± 0.86 24.58 14.31 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>200 GeV, MetSig>4 7.25 ± 0.72 1.84 ± 0.82 26.98 22.24 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.20
Ht>200 GeV, MetSig>4 7.09 ± 0.71 1.55 ± 0.80 26.36 22.89 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>225 GeV, MetSig>4 6.92 ± 0.69 1.55 ± 0.82 27.01 17.02 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.20
Ht>225 GeV, MetSig>4 6.76 ± 0.68 1.27 ± 0.79 26.21 17.41 22.97

Optimal Cuts only for 2.6 fb^-1:
MetSig > 3, Ht > 200 GeV, &Delta&phi < &pi - 0.15

01/11/09
Global Electroweak Scale Factors

Sample MetSig>3 H_T>200 GeV &Delta&phi<&pi - 0.15 MetSig>4 H_T>225 GeV &Delta&phi<&pi - 0.20

0.8 < E/p < 1.2 0.0 < E/p < 2.0 0.8 < E/p < 1.2 0.0 < E/p < 2.0

Baur W(e)+pho 7.048 ± 0.669 (111) 8.064 ± 0.716 (127) 3.492 ± 0.471 (55) 4.128 ± 0.512 (65)

Baur W(mu)+pho 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0) 0.00 ± 0.060 (0)

Baur W(tau)+pho 0.487 ± 0.172 (8) 0.548 ± 0.183 (9) 0.426 ± 0.161 (7) 0.426 ± 0.161 (7)

Baur Z(e)+pho 0.605 ± 0.049 (154) 0.723 ± 0.053 (184) 0.287 ± 0.034 (73) 0.322 ± 0.036 (82)

Baur Z(mu)+pho 0.043 ± 0.013 (11) 0.063 ± 0.016 (16) 0.024 ± 0.010 (6) 0.032 ± 0.011 (8)

Baur Z(tau)+pho 0.721 ± 0.053 (182) 0.938 ± 0.061 (237) 0.368 ± 0.038 (93) 0.463 ± 0.043 (117)

Pythia W(e) no ISR/FSR 1.260 ± 0.514 (6) 1.470 ± 0.556 (7) 0.420 ± 0.297 (2) 0.420 ± 0.297 (2)

Pythia W(mu) no ISR/FSR 0.00 ± 0.699 (0) 0.00 ± 0.699 (0) 0.00 ± 0.699 (0) 0.00 ± 0.699 (0)

Pythia W(tau) no ISR/FSR 0.00 ± 0.296 (0) 0.00 ± 0.296 (0) 0.00 ± 0.296 (0) 0.00 ± 0.296 (0)

Pythia Z(e) no ISR/FSR 0.112 ± 0.079 (2) 0.112 ± 0.079 (2) 0.00 ± 0.056 (0) 0.00 ± 0.056 (0)

Pythia Z(mu) no ISR/FSR 0.00 ± 0.126 (0) 0.00 ± 0.126 (0) 0.00 ± 0.126 (0) 0.00 ± 0.126 (0)

Pythia Z(tau) no ISR/FSR 0.0387 ± 0.0387 (1) 0.0387 ± 0.0387 (1) 0.0387 ± 0.0387 (1) 0.0387 ± 0.0387 (1)

Pythia ttbar(incl) 1.650 ± 0.062 (705) 1.968 ± 0.068 (841) 1.011 ± 0.049 (432) 1.231 ± 0.054 (526)

ele+pho MC (Nmc) 11.96 ± 1.16 13.92 ± 1.21 6.067 ± 0.970 7.061 ± 0.991

ele+pho Data (Ndt) 17 21 9 11

SFewk (Ndt/Nmc) 1.42 ± 0.37 1.51 ± 0.35 1.48 ± 0.55 1.56 ± 0.52

Final Global SFewk 1.42 ± 0.38 1.48 ± 0.56

01/07/08
dPhi6 distributions for EWK W and Z and GMSB

dPhi6 Distribution for W (After optimal cuts: Ht>200 GeV, MetSig>3)
dPhi6 Distribution for Z
dPhi6 Distribution for GMSB
dPhi6=dPhi(di-pho)+dPhi(pho1-met)+dPhi(pho2-met)-2&pi

12/31/08
Fixing Bad EMTiming on tower eat 26

GMSB MC (p1 - p11)
phi VS detector eta distribution for GMSB MC (p1 - p11) before fixing (431 events out of 102507 events have no emtiming)
phi VS detector eta distribution for GMSB MC (p1 - p11) after fixing tower eta 26 (170 events out of 102507 events have no emtiming: NEW issue on detector eta ± 1 arises)
phi VS detector eta distribution for GMSB MC (p1 - p11) after fixing all (90 events out of 102507 events have no emtiming only due to missing calibration table)

12/17/08
CDF Weekly Meeting Talk (Jan 2009)

Setting limits on GMSB models in the &gamma &gamma + MET final state with 2 fb^-1

12/09/08
EMTiming Distribution of photons at tower eta=26 (around Det_Eta=0) for GMSB MC

EMTiming Distribution (for photons at tower eta=26)

12/05/08
Bad EMTiming Effects on Efficiency for Data and MC

New Data (p12 - p17)
Pre-sample: Out of 14961 events, 99 events have either photon with no EMTiming (~0.7 % loss in efficiency)

Old Data (p1 - p11)
Pre-sample: Out of 26346 events, 45 events have either photon with no EMTiming (~0.2 % loss in efficiency)

GMSB MC (p1 - p11)
Pre-sample: Out of 13569 events, 415 events have either photon with no EMTiming (~3 % loss in efficiency)
After optimal cuts: Out of 9043 events, 277 events have either photon with no EMTiming (~3 % loss in efficiency)

12/02/08
The Full Task List from gg+Met meeting

Resolve the EMTiming issues: make new goodrun list excluding bad emtiming (working on)

Debug bad emtiming in MC (working on)
Finish the systematic studies on the acceptance: &chi² at high E_T photon (take ~5 % in systematic error?)

Fix the Wrong Vertex background estimate to take into account the fact that we no longer do vertex swapping and such (Sasha's working on)

Include more data and the MC statistics needed (Almost done): I'm starting on EWK MC prediction

Check that the optimization hasn't changed

Update the CDF Note
Write the public note (working on 2nd draft)

Write the Fermi News of the Week article
Write the PRL draft

12/01/08
Events where A photon with no timing

New Data (p12 - p17)
Event list for missing EMTiming info (107 events, which have one photon with no hit on EMTime tower)
phi VS detector eta distribution

Old Data (p1 - p11)
Event list for missing EMTiming info (45 events, which have one photon with no hit on EMTime tower)
phi VS detector eta distribution

GMSB MC (p1 - p11)
Event list for missing EMTiming info for GMSB MC (427 events which have one photon with no hit on EMTime tower, 4 events have both photons with no emtiminig)
phi VS detector eta distribution for GMSB MC (p1 - p11) (431 events out of 102507 events have no emtiming)

11/30/08
Calibration Table with Missing Constants

Calibration Table for missing constants (see line 1204 through 1353)

11/26/08
Number of Vertex Distribution with tune-A and tune-A with Min Bias samples

Nvx with no tune-A (Acceptance=9.51)
Nvx with tune-A (Acceptance=9.22)
Nvx with tune-A and minbias (p1-p13) ( Acceptance=8.77)
Nvx with tune-A and minbias (p1-p11) ( Acceptance=8.82)

For acceptance calculation 100,000 events are used for no tune-A and tune-A samples.
85149 events (after goodrun list) are used for min-bias sample (p1 - p13).
102507 events (after goodrun list) are used for min-bias sample (p1 - p13).

11/20/08
Validation of New Data (p12 - p13)

Requirements Old Data: p1 - p11 (Relative Efficiencies) New Data: p12 - p17 (Relative Efficiencies)

Trigger, Good Run, 2 EM Objects 41894 (100 %) 65233 (100 %)

Vertex Cuts (|Z| < 60 cm) 41885 (99.9 %) 65228 (99.9 %)

Central Photons (E_T > 13 GeV) 28968 (69.2 %) 43660 (66.9 %)

CES fiduciality 28946 (99.9 %) 43556 (99.8 %)

Had/Em 28919 (99.9 %) 43406 (99.7 %)

CES &chi² 28894 (99.9 %) 43354 (99.9 %)

N3D tracks in cluster 28834 (99.8 %) 42987 (99.2 %)

Track P_T if N3D=1 28789 (99.8 %) 34163 (79.5 %)

Corrected CalIso0.4 28761 (99.9 %) 26584 (77.8 %)

TrkIso0.4 28749 (99.9 %) 19547 (73.5 %)

E_T of 2nd CES 28743 (99.9 %) 16493 (84.4 %)

PMT Spikes 28740 (99.9 %) 16490 (99.9 %)

Pheonix 26387 (91.8 %) 14982 (90.8 %)

Beam Halo 26381 (99.9 %) 14981 (99.9 %)

Cosmic (EMTiming) 26346 (99.8 %) 14961 (99.9 %)

11/13/08
Number of Vertex Distribution with tune-A and tune-A with Min Bias samples

Nvx with no tune-A (Acceptance=9.51)
Nvx with tune-A (Acceptance=9.22)
Nvx with tune-A and minbias (p1-p13) (Acceptance=8.77)

For acceptance calculation 100,000 events are used for no tune-A and tune-A samples.
85149 events (after goodrun list) are used for min-bias sample (p1 - p13).

11/10/08
The Full Task List

Finish the systematic studies on the acceptance so we can go to the lower systematic error for the final limit (Finishing up)

Fix the Wrong Vertex background estimate to take into account the fact that we no longer do vertex swapping and such (Sasha's working on)

Include more data and the MC statistics needed (Almost done)

Drop the first 400 pb with no EMTiming

Check that the optimization hasn't changed

Update the CDF Note

Write the public note

Write the Fermi News of the Week article

Write the PRL draft

11/04/08
Blessing Talk (Nov 2008)

Setting limits on GMSB models in the &gamma &gamma + MET final state with 2 fb^-1 / ppt version

10/21/08
Preblessing Talk (Oc t 2008)

Setting limits on GMSB models in the &gamma &gamma + MET final state with 2 fb^-1

10/14/08
Collaboration Meeting Talk (Oct 2008)

Setting limits on GMSB models in the &gamma &gamma + MET final state with 2 fb^-1

10/07/08
gg+Met meeting

1. Calculator
For the limit calculator we decided to use Tom's calculator for the observed limit since it's standard at CDF.
2. tune-A MC sample
To make sure whether the difference in entry 10/06/08 comes really from systematic or statistical fluctuation we decided to generate a larger sample (over ~100k).
3. Adding 3 fb^-1 data
We plan to go with current result (2 fb^-1) for PANIC until Sasha's finishing 3 or more fb^-1 and dropping the first 400 pb^-1 data and recalculating scale factors. Meanwhile I'm finishing up sytematic studies.
4. Photon ID efficiency
I'll review the recenct studies on Photon ID efficeincy.

10/06/08
Comparison for tune-A sample

Total 100K events Default (Relative Efficiency) Tune-A (Relative Efficiency)

Global Event Quality cuts 96365 (96.4 %) 96592 (96.6 %)

Vertex Cuts 91801 (95.3 %) 92010 (95.2 %)
CES fiduciality 48455 (52.8 %) 48714 (52.9 %)

Had/Em 41275 (85.2 %) 41682 (85.6 %)

CES &chi² 35381 (85.7 %) 35682 (85.6 %)

N3D tracks in cluster 29634 (83.8 %) 29675 (83.2 %)

Track P_T if N3D=1 20005 (67.5 %) 20022 (67.5 %)

Corrected CalIso0.4 15622 (78.1 %) 15422 (77.0 %)

TrkIso0.4 14564 (93.2 %) 14261 (92.5 %)

E_T of 2nd CES 14498 (99.5 %) 14190 (99.5 %)

Pheonix 14101 (97.3 %) 13785 (97.1 %)

Beam Halo 14101 (100 %) 13784 (99.9 %)

EMTiming 14099 (99.9 %) 13781 (99.9 %)

MetSig>3 10688 (75.8 %) 10367 (75.2 %)

Ht>200 GeV 10072 (94.2 %) 9802 (94.5 %)

&Delta&phi<&pi - 0.15 9508 (94.4 %) 9217 (94.0 %)

Acceptance 9.51 % 9.22 %

&sigma^exp 21.03 fb 21.70 fb

10/03/08
Expected Cross Section Limits VS Background Uncertainties after fixing bug

Background Prediction=0.62

The limit calculator couldn't handle the case for large uncertainty. Using lognormal distribution for backgroudn prediction from pseudo experiments instead of normal Gaussian resolves this difficulty and also imporoves limits(Thanks to John Hobbs).
The reason why the limit is lower for using lognormal distribution for the background (in case sigma_bkg/bkg is large) is because the shape of the lognormal in the region near bkg=0 gives a higher bkg than does the gaussian.

09/30/08
Systematic Uncertainties for GMSB MC signal

Factor (Acceptance) Relative Systematic Unvertainty Previous gg+Met Delayed Photon

Met Model Parametrization 0.7 % N/A N/A

Pile-up Effect on MetSig in progress N/A N/A

Photon ID Efficiency in progress 13 % 5.0 %

JES +1.63 % -1.05 % N/A 3.0 %

ISR/FSR +1.93 % -3.86 % 10 % 2.5 %

PDF +0.3 % -0.4 % +0.7 % -0.5 % +5.9 % -5.3 %

Total

Factor (Cross Section) Relative Systematic Uncertainty (%) Previous gg+Met Delayed Photon

PDF +7.6 % -7.3 % N/A +5.9 % -5.3 %

Renormalization Scale (Q²) 2.6 % 3 % 2.4 %

Total

1. Met Model Parametrization is irrelavant for old analyses.
2. Pile-Up Effect on MetSig is irrelavant for old analyses since the met model is NEW.
3. PDFs for previous gg+Met uses 5 MRST sets, but 20 CTEC-5L sets were used for delayed photon analysis. We're currently using the same sets as in delayed photon analysis.
4. ISR/FSR difference : ask Ray.
5. Photon ID efficiency for gg+Met is almost twice as delayed photon analysis since it has two photons in final state.

09/24/08
Background Estimation comparison with Optimal Cuts(MetSig>3, Ht>200 GeV, &Delta&phi < &pi - 0.15)

Sample With vertex and
Met cleanup cuts Without vertex and
Met cleanup cuts

Baur W(e)+pho 0.049 ± 0.049 ± ?? 0.049 ± 0.049 ± ??

Baur W(mu)+pho 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ??

Baur W(tau)+pho 0.14 ± 0.082 ± ?? 0.14 ± 0.082 ± ??

Baur Z(e)+pho 0.006 ± 0.004 ± ?? 0.009 ± 0.005 ± ??

Baur Z(mu)+pho 0.079 ± 0.015 ± ?? 0.082 ± 0.016 ± ??

Baur Z(tau)+pho 0.052 ± 0.012 ± ?? 0.076 ± 0.015 ± ??

Pythia Z(l) no ISR/FSR 0.00 ± 0.026 ± ?? 0.00 ± 0.026 ± ??

Pythia W(l) no ISR/FSR 0.00 ± 0.086 ± ?? 0.00 ± 0.086 ± ??

Pythia ttbar(incl) 0.046 ± 0.009 ± ?? 0.048 ± 0.009 ± ??

Beam Halo 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010

Cosmic 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026

Pythia tri-pho 0.00 ± 0.180 ± 0.035 0.180 ± 0.180 ± 0.035

Wrong Vertex 0.081 ± 0.081 ± 0.008 0.081 ± 0.081 ± 0.008

QCD 0.1 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0

Data 1 1

Background Estimation Combined

Sample With vertex and
Met cleanup cuts Without vertex and
Met cleanup cuts

EWK Combined 0.39 ± 0.14 ± 0.11 0.43 ± 0.15 ± 0.12

Non-Collision (CR,BH) 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028

Pythia tri-pho 0.00 ± 0.180 ± 0.035 0.180 ± 0.180 ± 0.035

Wrong Vertex 0.081 ± 0.081 ± 0.008 0.081 ± 0.081 ± 0.008

QCD 0.1 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0

Data 1 1

TOTAL 0.62 ± 0.29
(± 0.26 ± 0.12) 0.74 ± 0.30
(± 0.27 ± 0.13)

95% Confidence Level Expected Cross Section Limit( m_&chi=140 GeV, &tau_&chi=0 ns) with Optimal Cuts

MetSig Acceptance (%) Background Estimation &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

With vertex and
Met cleanup cuts 9.21 ± 1.66 0.62 ± 0.29 22.96 25.78 22.97

Without vertex and
Met cleanup cuts 9.52 ± 1.71 0.74 ± 0.30 22.91 24.64 22.97

09/23/08
What My Limit Calculator Does

N_obs \ &Delta_bgk 0 0.29 1

0 &sigma_obs=17.71 (17.87) fb &sigma_obs=17.70 (17.92) fb &sigma_obs=17.62 (17.93) fb

1 &sigma_obs=22.88 (25.67) fb &sigma_obs=23.09 (25.88) fb &sigma_obs=24.47 (25.73) fb

2 &sigma_obs=29.01 (34.48) fb &sigma_obs=29.51 (36.62) fb &sigma_obs=31.97 (34.75) fb

Using lognormal distribution. Numbers in () before fixing.

What Tom's Limit Calculator Does

N_obs \ &Delta_bgk 0 0.29 1

0 &sigma_obs=16.96 fb &sigma_obs=16.93 fb &sigma_obs=16.96 fb

1 &sigma_obs=24.49 fb &sigma_obs=24.55 fb &sigma_obs=24.60 fb

2 &sigma_obs=32.91 fb &sigma_obs=32.95 fb &sigma_obs=32.70 fb

Acc=9.21 %, Acc_err=1.66 %, Lumi=2.034 fb^-1, Lumi_err=6 %, Background=0.62

09/19/08
Expected Cross Section Limits with 3 fb^-1

For 2 fb^-1 &sigma (exp)=22.9 fb ==> &chi mass limit=140 GeV
For 3 fb^-1 &sigma (exp)=16.8 fb ==> &chi mass limit ~147 GeV
For 2.6 fb^-1 &sigma (exp)=18.4 fb ==> &chi mass limit ~145 GeV: Removing first 400 pb^-1(no EMTiming)

09/18/08
Expected Cross Section Limits VS Background Uncertainties

Background Prediction=0.62
Background Prediction=0.31
Background Prediction=1.4
Background Prediction=10

Their patterns are depending on their prediciton values in three different regions: prediciton < 1, 1 < predition < 2, and prediction > 2.
i) For prediction < 1: They look like having minimum around Prediction value and getting worse as the uncertainty goes far away from it and worst at 0 uncertainty for background prediction < 0.
ii) For 1 < prediction < 2, They just fluctuating..I don't know.
iii) For prediction > 2, They get worse as uncertainty gose up and have munimum at 0 uncertainty.
It turns out that these are from low statistics on pseudo experiment. Please see the first and 3rd plots.

09/17/08
Exclusion Region in neutralino's mass and lifetime plane

Exclusion Region

09/16/08
95% C.L. Cross Section Limits with Optimal Cuts

(m_&chi(GeV), &tau_&chi(ns)) Acceptance(%) Background &sigma^exp(fb) &Delta&sigma^exp(fb) &sigma^obs(fb) &sigma^prod(fb)

(70,0) 2.40 ± 0.43 0.62 ± 0.29 87.71 23.38 98.62 999.9

(70,1) 2.18 ± 0.39 96.56 28.30 108.6 999.9

(70,2) 1.60 ± 0.29 132.3 38.56 148.4 999.9

(70,5) 0.70 ± 0.13 304.5 88.14 342.9

(80,0) 4.88 ± 0.88 43.36 12.64 48.65 524.6

(80,1) 4.37 ± 0.79 48.42 14.12 54.33

(80,2) 3.32 ± 0.60 63.74 18.58 71.52

(80,5) 1.35 ± 0.24 155.5 45.70 174.9

(85,5) 2.08 ± 0.38 102.2 29.66 115.1 386.0

(90,0) 6.08 ± 1.10 34.80 9.97 39.05 286.8

(90,1) 5.20 ± 0.94 40.70 11.86 45.66

(90,2) 4.10 ± 0.74 51.61 15.05 57.91

(90,5) 2.18 ± 0.39 96.56 28.30 108.6

(100,0) 7.93 ± 1.43 26.68 7.78 29.94 169.0

(100,1) 7.53 ± 1.36 28.10 8.07 31.53

(100,2) 5.80 ± 1.04 36.38 10.64 40.81

(100,5) 2.60 ± 0.47 81.39 23.73 91.32

(110,0) 8.33 ± 1.50 25.37 7.41 28.50 99.47

(110,1) 8.30 ± 1.49 25.43 7.43 28.52

(115,5) 2.92 ± 0.53 72.62 21.13 81.76 74.73

(120,0) 8.48 ± 1.53 24.95 7.28 28.00 58.38

(120,2) 6.63 ± 1.19 31.83 9.31 35.70

(120,5) 3.37 ± 0.61 62.79 18.31 70.46

(130,0) 9.25 ± 1.66 22.81 6.67 25.59 36.23

(130,1) 9.47 ± 1.70 22.28 6.52 24.99

(130,2) 7.00 ± 1.26 30.20 8.14 33.92

(130,3) 5.58 ± 1.00 37.73 11.06 42.42

(130,5) 3.78 ± 0.68 55.92 16.32 62.81

(140,0) 9.21 ± 1.66 22.96 6.62 25.78 22.97

(140,1) 9.26 ± 1.67 22.85 6.66 25.64

(140,2) 7.15 ± 1.29 29.59 8.63 33.21

(150,0) 9.35 ± 1.68 22.57 6.60 25.31 14.54

Optimal Cuts: Ht>200 GeV, &Delta&phi(&gamma₁,&gamma₂)<&pi - 0.15, MetSig>3.0.

09/15/08
N-1 Plot of Background Distributions along with GMSB Signal for Optimal Point: Ht>200 GeV, MetSig > 3.0, &Delta&phi (&gamma₁, &gamma₂)<&pi - 0.15

MetSig(no data) MetSig(with data) Cross Section Limit vs Metsig
Ht(no data) Ht(with data) Cross Section Limit vs Ht
&Delta&phi(no data) &Delta&phi(with data) Cross Section Limit vs &Delta&phi

Plot of Background Distributions along with GMSB Signal after Optimal cuts: Ht>200 GeV, MetSig > 3.0, &Delta&phi (&gamma₁, &gamma₂)<&pi - 0.15
Met
Et(pho1)
Et(pho2)
njet15
Qt
&Delta&phi(pho1,met)
&Delta&phi(pho2,met)
&Delta&phi(jet1,met)

09/14/08
Final Background Estimation for MetSig cut with Optimal Cuts(Ht>200 GeV, &Delta&phi < &pi - 0.15)

Sample MetSig>0
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>2
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>4
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>7
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>10
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys)

Baur W(e)+pho 0.099 ± 0.070 ± ?? 0.049 ± 0.049 ± ?? 0.049 ± 0.049 ± ?? 0.049 ± 0.049 ± ?? 0.00 ± 0.049 ± ?? 0.00 ± 0.049 ± ??

Baur W(mu)+pho 0.047 ± 0.047 ± ?? 0.047 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ??

Baur W(tau)+pho 0.14 ± 0.082 ± ?? 0.14 ± 0.082 ± ?? 0.14 ± 0.082 ± ?? 0.095 ± 0.067 ± ?? 0.095 ± 0.067 ± ?? 0.095 ± 0.067 ± ??

Baur Z(e)+pho 0.23 ± 0.026 ± ?? 0.015 ± 0.009 ± ?? 0.006 ± 0.004 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ??

Baur Z(mu)+pho 0.088 ± 0.016 ± ?? 0.082 ± 0.016 ± ?? 0.079 ± 0.015 ± ?? 0.076 ± 0.015 ± ?? 0.064 ± 0.014 ± ?? 0.061 ± 0.014 ± ??

Baur Z(tau)+pho 0.18 ± 0.024 ± ?? 0.079 ± 0.015 ± ?? 0.052 ± 0.012 ± ?? 0.046 ± 0.012 ± ?? 0.036 ± 0.010 ± ?? 0.033 ± 0.010 ± ??

Pythia Z(l) no ISR/FSR 0.00 ± 0.026 ± ?? 0.00 ± 0.026 ± ?? 0.00 ± 0.026 ± ?? 0.00 ± 0.026 ± ?? 0.00 ± 0.026 ± ?? 0.00 ± 0.026 ± ??

Pythia W(l) no ISR/FSR 0.00 ± 0.086 ± ?? 0.00 ± 0.086 ± ?? 0.00 ± 0.086 ± ?? 0.00 ± 0.086 ± ?? 0.00 ± 0.086 ± ?? 0.00 ± 0.086 ± ??

Pythia ttbar(incl) 0.13 ± 0.015 ± ?? 0.060 ± 0.010 ± ?? 0.046 ± 0.009 ± ?? 0.035 ± 0.008 ± ?? 0.033 ± 0.008 ± ?? 0.033 ± 0.008 ± ??

Beam Halo 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010

Cosmic 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026

Pythia tri-pho 5.40 ± 0.99 ± 1.05 0.36 ± 0.25 ± 0.070 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035

Wrong Vertex 0.65 ± 0.23 ± 0.065 0.162 ± 0.11 ± 0.016 0.081 ± 0.081 ± 0.008 0.081 ± 0.081 ± 0.008 0.081 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008

QCD 178.9 ± 4.23 ± 1.73 0.8 ± 0.28 ± 0.17 0.1 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0

Data 183 4 1 1 1 1

Background Estimation Combined

Sample MetSig>0
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>2
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>4
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>7
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) MetSig>10
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys)

EWK Combined 0.97 ± 0.16 ± 0.27 0.50 ± 0.15 ± 0.14 0.39 ± 0.14 ± 0.11 0.32 ± 0.14 ± 0.090 0.24 ± 0.14 ± 0.068 0.24 ± 0.14 ± 0.067

Non-Collision (CR,BH) 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028

Pythia tri-pho 5.40 ± 0.99 ± 1.05 0.36 ± 0.25 ± 0.070 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035

Wrong Vertex 0.65 ± 0.23 ± 0.065 0.162 ± 0.11 ± 0.016 0.081 ± 0.081 ± 0.008 0.081 ± 0.081 ± 0.008 0.081 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008

QCD 178.9 ± 4.23 ± 1.73 0.8 ± 0.28 ± 0.17 0.1 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0

Data 183 4 1 1 1 1

TOTAL 186.0 ± 4.80
(± 4.35 ± 2.04) 1.87 ± 0.48
(± 0.42 ± 0.23) 0.62 ± 0.29
(± 0.26 ± 0.12) 0.45 ± 0.28
(± 0.26 ± 0.10) 0.37 ± 0.27
(± 0.26 ± 0.082) 0.29 ± 0.27
(± 0.26 ± 0.082)

95% Confidence Level Expected Cross Section Limit( m_&chi=140 GeV, &tau_&chi=0 ns) for MetSig cuts

MetSig Acceptance (%) Background Estimation &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>200 GeV
MetSig>0 12.03 ± 2.17 186.0 ± 4.80 1127 996.2 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>200 GeV
MetSig>2 10.22 ± 1.84 1.87 ± 0.48 26.62 40.10 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>200 GeV
MetSig>3 9.21 ± 1.66 0.62 ± 0.29 22.96 25.78 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>200 GeV
MetSig>4 7.99 ± 1.44 0.45 ± 0.28 25.10 30.38 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>200 GeV
MetSig>7 6.98 ± 1.26 0.37 ± 0.27 28.01 35.41 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>200 GeV
MetSig>10 6.91 ± 1.24 0.29 ± 0.27 29.06 35.99 22.97

09/13/08
Final Background Estimation with Corrected MetSig for Ht cut (&Delta&phi < &pi - 0.15)

Sample Default MetSig
H_T>75 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) Default MetSig
H_T>125 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) Default MetSig
H_T>175 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) Default MetSig
H_T>225 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) Default MetSig
H_T>250 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) Default MetSig
H_T>325 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys)

Baur W(e)+pho 11.21 ± 0.74 ± ?? 1.04 ± 0.23 ± ?? 0.20 ± 0.099 ± ?? 0.049 ± 0.049 ± ?? 0.049 ± 0.049 ± ?? 0.00 ± 0.049 ± ?? 0.00 ± 0.049 ± ??

Baur W(mu)+pho 1.41 ± 0.26 ± ?? 0.24 ± 0.10 ± ?? 0.094 ± 0.066 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ??

Baur W(tau)+pho 3.36 ± 0.40 ± ?? 0.76 ± 0.19 ± ?? 0.19 ± 0.095 ± ?? 0.14 ± 0.082 ± ?? 0.095 ± 0.067 ± ?? 0.047 ± 0.047 ± ?? 0.00 ± 0.047 ± ??

Baur Z(e)+pho 0.18 ± 0.023 ± ?? 0.037 ± 0.010 ± ?? 0.012 ± 0.006 ± ?? 0.006 ± 0.004 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ??

Baur Z(mu)+pho 1.45 ± 0.066 ± ?? 0.26 ± 0.028 ± ?? 0.10 ± 0.018 ± ?? 0.079 ± 0.015 ± ?? 0.049 ± 0.012 ± ?? 0.030 ± 0.010 ± ?? 0.012 ± 0.006 ± ??

Baur Z(tau)+pho 1.35 ± 0.064 ± ?? 0.25 ± 0.028 ± ?? 0.085 ± 0.016 ± ?? 0.052 ± 0.012 ± ?? 0.033 ± 0.010 ± ?? 0.027 ± 0.009 ± ?? 0.006 ± 0.004 ± ??

Pythia Z(l) no ISR/FSR 0.00 ± 0.026 ± ?? 0.00 ± 0.026 ± ?? 0.00 ± 0.026 ± ?? 0.00 ± 0.026 ± ?? 0.00 ± 0.026 ± ?? 0.00 ± 0.026 ± ?? 0.00 ± 0.026 ± ??

Pythia W(l) no ISR/FSR 0.00 ± 0.086 ± ?? 0.00 ± 0.086 ± ?? 0.00 ± 0.086 ± ?? 0.00 ± 0.086 ± ?? 0.00 ± 0.086 ± ?? 0.00 ± 0.086 ± ?? 0.00 ± 0.086 ± ??

Pythia ttbar(incl) 0.048 ± 0.009 ± ?? 0.046 ± 0.009 ± ?? 0.046 ± 0.009 ± ?? 0.046 ± 0.009 ± ?? 0.040 ± 0.009 ± ?? 0.038 ± 0.008 ± ?? 0.028 ± 0.007 ± ??

Beam Halo 0.26 ± 0.077 ± 0.12 0.047 ± 0.033 ± 0.021 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010

Cosmic 0.30 ± 0.085 ± 0.16 0.074 ± 0.043 ± 0.039 0.074 ± 0.043 ± 0.039 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.025 ± 0.025 ± 0.013 0.025 ± 0.025 ± 0.013

Pythia tri-pho 1.44 ± 0.51 ± 0.28 0.72 ± 0.36 ± 0.14 0.00 ± 0.18 ± 0.035 0.00 ± 0.18 ± 0.035 0.00 ± 0.18 ± 0.035 0.00 ± 0.18 ± 0.035 0.00 ± 0.18 ± 0.035

Wrong Vertex 0.40 ± 0.18 ± 0.04 0.24 ± 0.14 ± 0.024 0.081 ± 0.081 ± 0.008 0.081 ± 0.081 ± 0.008 0.081 ± 0.081 ± 0.008 0.081 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008

QCD 6.3 ± 0.79 ± 0.52 1.2 ± 0.35 ± 0.28 0.2 ± 0.14 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.14 0.0 ± 0.1 ± 0.0

Data 25 5 1 1 1 0 0

Background Estimation Combined

Sample Default MetSig
H_T>75 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) Default MetSig
H_T>125 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) Default MetSig
H_T>175 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) Default MetSig
H_T>225 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) Default MetSig
H_T>250 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) Default MetSig
H_T>325 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys)

EWK Combined 21.82 ± 0.56 ± 6.18 3.03 ± 0.35 ± 0.86 0.77 ± 0.19 ± 0.22 0.39 ± 0.14 ± 0.11 0.28 ± 0.14 ± 0.080 0.15 ± 0.13 ± 0.043 0.049 ± 0.13 ± 0.014

Non-Collision (CR,BH) 0.56 ± 0.11 ± 0.20 0.12 ± 0.054 ± 0.044 0.074 ± 0.049 ± 0.040 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.025 ± 0.034 ± 0.016 0.025 ± 0.034 ± 0.016

Pythia tri-pho 1.44 ± 0.51 ± 0.28 0.72 ± 0.36 ± 0.14 0.00 ± 0.18 ± 0.035 0.00 ± 0.18 ± 0.035 0.00 ± 0.18 ± 0.035 0.00 ± 0.18 ± 0.035 0.00 ± 0.18 ± 0.035

Wrong Vertex 0.40 ± 0.18 ± 0.04 0.24 ± 0.14 ± 0.024 0.081 ± 0.081 ± 0.008 0.081 ± 0.081 ± 0.008 0.081 ± 0.081 ± 0.008 0.081 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008

QCD 6.3 ± 0.79 ± 0.52 1.2 ± 0.35 ± 0.28 0.2 ± 0.14 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.14 0.0 ± 0.1 ± 0.0

Data 25 5 1 1 1 0 0

TOTAL 30.52 ± 6.31
(± 1.11 ± 6.21) 5.31 ± 1.12
(± 0.63 ± 0.92) 1.12 ± 0.39
(± 0.31 ± 0.23) 0.62 ± 0.29
(± 0.26 ± 0.12) 0.51 ± 0.28
(± 0.26 ± 0.092) 0.28 ± 0.30
(± 0.26 ± 0.16) 0.074 ± 0.26
(± 0.26 ± 0.042)

95% Confidence Level Expected Cross Section Limit( m_&chi=140 GeV, &tau_&chi=0 ns) for Ht cuts

Default MetSig Acceptance (%) Background Estimation &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>0 GeV 9.77 ± 1.76 65.31 ± 11.81 154.6 176.2 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>75 GeV 9.77 ± 1.76 30.52 ± 6.31 100.6 76.57 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>125 GeV 9.73 ± 1.75 5.31 ± 1.12 39.63 36.49 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>175 GeV 9.47 ± 1.70 1.12 ± 0.39 25.30 23.94 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>200 GeV 9.21 ± 1.66 0.62 ± 0.29 22.96 25.78 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>225 GeV 8.78 ± 1.58 0.51 ± 0.28 23.34 27.55 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>250 GeV 8.18 ± 1.47 0.28 ± 0.30 23.53 20.15 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>325 GeV 5.41 ± 0.97 0.074 ± 0.26 31.79 30.59 22.97

Optimal Cuts with Default MetSig cuts( MetSig>3 ):
Ht > 200 GeV, &Delta&phi(&gamma₁,&gamma₂) < &pi - 0.15 !!

09/12/08
Final Background Estimation with Corrected MetSig for &Delta&phi cut(with Ht>200 GeV)

Sample Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.00
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.05
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.20
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.25
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.30
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys)

Baur W(e)+pho 0.25 ± 0.11 ± ?? 0.099 ± 0.070 ± ?? 0.099 ± 0.070 ± ?? 0.049 ± 0.049 ± ?? 0.049 ± 0.049 ± ?? 0.049 ± 0.049 ± ?? 0.049 ± 0.049 ± ?? 0.049 ± 0.049± ??

Baur W(mu)+pho 0.24 ± 0.10 ± ?? 0.047 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ??

Baur W(tau)+pho 0.28 ± 0.12 ± ?? 0.14 ± 0.082 ± ?? 0.14 ± 0.082 ± ?? 0.14 ± 0.082 ± ?? 0.14 ± 0.082 ± ?? 0.095 ± 0.067 ± ?? 0.047 ± 0.047 ± ?? 0.047 ± 0.047 ± ??

Baur Z(e)+pho 0.006 ± 0.004 ± ?? 0.006 ± 0.004 ± ?? 0.006 ± 0.004 ± ?? 0.006 ± 0.004 ± ?? 0.006 ± 0.004 ± ?? 0.006 ± 0.004 ± ?? 0.006 ± 0.004 ± ?? 0.006 ± 0.004 ± ??

Baur Z(mu)+pho 0.091 ± 0.017 ± ?? 0.088 ± 0.016 ± ?? 0.085 ± 0.016 ± ?? 0.079 ± 0.015 ± ?? 0.079 ± 0.015 ± ?? 0.079 ± 0.015 ± ?? 0.073 ± 0.015 ± ?? 0.070 ± 0.014 ± ??

Baur Z(tau)+pho 0.061 ± 0.014 ± ?? 0.058 ± 0.013 ± ?? 0.058 ± 0.013 ± ?? 0.052 ± 0.012 ± ?? 0.048 ± 0.012 ± ?? 0.048 ± 0.012 ± ?? 0.046 ± 0.012 ± ?? 0.046 ± 0.012 ± ??

Pythia Z(l) no ISR/FSR 0.00 ± 0.026 ± ?? 0.00 ± 0.026 ± ?? 0.00 ± 0.026 ± ?? 0.00 ± 0.026 ± ?? 0.00 ± 0.026 ± ?? 0.00 ± 0.026 ± ?? 0.00 ± 0.026 ± ?? 0.00 ± 0.026 ± ??

Pythia W(l) no ISR/FSR 0.00 ± 0.086 ± ?? 0.00 ± 0.086 ± ?? 0.00 ± 0.086 ± ?? 0.00 ± 0.086 ± ?? 0.00 ± 0.086 ± ?? 0.00 ± 0.086 ± ?? 0.00 ± 0.086 ± ?? 0.00 ± 0.086 ± ??

Pythia ttbar(incl) 0.048 ± 0.009 ± ?? 0.048 ± 0.009 ± ?? 0.046 ± 0.009 ± ?? 0.046 ± 0.009 ± ?? 0.046 ± 0.009 ± ?? 0.044 ± 0.009 ± ?? 0.044 ± 0.009 ± ?? 0.044 ± 0.009 ± ??

Beam Halo 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010

Cosmic 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026

Pythia tri-pho 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035

Wrong Vertex 1.78 ± 0.38 ± 0.18 0.32 ± 0.16 ± 0.032 0.16 ± 0.11 ± 0.016 0.081 ± 0.081 ± 0.008 0.081 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008

QCD 0.2 ± 0.14 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0

Data 3 3 2 1 1 1 0 0

Background Estimation Combined

Sample Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.00
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.05
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.20
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.25
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.30
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys)

EWK Combined 1.03 ± 0.22 ± 0.29 0.52 ± 0.16 ± 0.14 0.46 ± 0.16 ± 0.13 0.39 ± 0.14 ± 0.11 0.39 ± 0.14 ± 0.11 0.34 ± 0.14 ± 0.10 0.28 ± 0.13 ± 0.08 0.28 ± 0.13 ± 0.08

Non-Collision (CR,BH) 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028

Pythia tri-pho 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035

Wrong Vertex 1.78 ± 0.38 ± 0.18 0.32 ± 0.16 ± 0.032 0.16 ± 0.11 ± 0.016 0.081 ± 0.081 ± 0.008 0.081 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008

QCD 0.2 ± 0.14 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0

Data 3 3 2 1 1 1 0 0

TOTAL 3.06 ± 0.60
(± 0.50 ± 0.34) 0.99 ± 0.34
(± 0.31 ± 0.15) 0.77 ± 0.32
(± 0.29 ± 0.14) 0.62 ± 0.29
(± 0.26 ± 0.12) 0.62 ± 0.29
(± 0.26 ± 0.12) 0.49 ± 0.28
(± 0.26 ± 0.11) 0.43 ± 0.28
(± 0.26 ± 0.11) 0.43 ± 0.28
(± 0.26 ± 0.11)

95% Confidence Level Expected Cross Section Limit( m_&chi=140 GeV, &tau_&chi=0 ns) for &Delta&phi(&gamma₁,&gamma₂)

Default MetSig
Ht>200 GeV Acceptance (%) Background Estimation &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.00 9.78 ± 1.76 3.06 ± 0.60 32.25 31.74 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.05 9.61 ± 1.73 0.99 ± 0.34 24.18 38.99 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1 9.44 ± 1.70 0.77 ± 0.32 23.24 33.50 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15 9.21 ± 1.66 0.62 ± 0.29 22.96 25.78 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.2 9.12 ± 1.64 0.62 ± 0.29 23.18 26.03 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.25 8.92 ± 1.61 0.49 ± 0.28 23.21 26.38 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.3 8.72 ± 1.57 0.43 ± 0.28 23.24 19.73 22.97

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.35 8.48 ± 1.53 0.43 ± 0.28 23.79 20.28 22.97

09/11/08
Final Background Estimation with Corrected MetSig for various Ht and &Delta&phi cuts combination to find minimal cross section limit

Sample Default MetSig
H_T>225 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>225 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) Default MetSig
H_T>250 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>250 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys)

Baur W(e)+pho 0.099 ± 0.070 ± ?? 0.049 ± 0.049 ± ?? 0.049 ± 0.049 ± ?? 0.00 ± 0.049 ± ??

Baur W(mu)+pho 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ??

Baur W(tau)+pho 0.095 ± 0.067 ± ?? 0.095 ± 0.067 ± ?? 0.047 ± 0.047 ± ?? 0.047 ± 0.047 ± ??

Baur Z(e)+pho 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ??

Baur Z(mu)+pho 0.055 ± 0.013 ± ?? 0.049 ± 0.012 ± ?? 0.036 ± 0.010 ± ?? 0.030 ± 0.010 ± ??

Baur Z(tau)+pho 0.039 ± 0.011 ± ?? 0.033 ± 0.010 ± ?? 0.033 ± 0.010 ± ?? 0.027 ± 0.009 ± ??

Pythia Z(tau) no ISR/FSR 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ??

Pythia Z(e) no ISR/FSR 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ??

Pythia Z(mu) no ISR/FSR 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ??

Pythia W(e) no ISR/FSR 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ??

Pythia W(tau) no ISR/FSR 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ??

Pythia W(mu) no ISR/FSR 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ??

Pythia ttbar(incl) 0.040 ± 0.009 ± ?? 0.040 ± 0.009 ± ?? 0.038 ± 0.008 ± ?? 0.038 ± 0.008 ± ??

Beam Halo 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010

Cosmic 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026

Pythia tri-pho 0.00 ± 0.18 ± 0.035 0.00 ± 0.18 ± 0.035 0.00 ± 0.18 ± 0.035 0.00 ± 0.18 ± 0.035

Wrong Vertex 0.081 ± 0.081 ± 0.008 0.081 ± 0.081 ± 0.008 0.081 ± 0.081 ± 0.008 0.081 ± 0.081 ± 0.008

QCD 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.14 0.0 ± 0.1 ± 0.14

Data 1 0 1 0

Background Estimation Combined

Sample Default MetSig
H_T>225 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>225 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) Default MetSig
H_T>250 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>250 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys)

EWK Combined 0.35 ± 0.27 ± 0.098 0.28 ± 0.26 ± 0.080 0.22 ± 0.26 ± 0.061 0.15 ± 0.26 ± 0.043

Non-Collision (CR,BH) 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028

Pythia tri-pho 0.00 ± 0.18 ± 0.035 0.00 ± 0.18 ± 0.035 0.00 ± 0.18 ± 0.035 0.00 ± 0.18 ± 0.035

Wrong Vertex 0.081 ± 0.081 ± 0.008 0.081 ± 0.081 ± 0.008 0.081 ± 0.081 ± 0.008 0.081 ± 0.081 ± 0.008

QCD 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.14 0.0 ± 0.1 ± 0.14

Data 1 0 1 0

TOTAL 0.58 ± 0.37
(± 0.35 ± 0.11) 0.51 ± 0.35
(± 0.34 ± 0.092) 0.35 ± 0.38
(± 0.34 ± 0.16) 0.28 ± 0.38
(± 0.34 ± 0.16)

95% Confidence Level Expected Cross Section Limit( m_&chi=140 GeV, &tau_&chi=0 ns) for Ht and &Delta&phi cuts

Default MetSig Acceptance (%) Background Estimation &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>200 GeV 9.44 ± 1.70 0.77 ± 0.39 23.39 33.86 22.86

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>200 GeV 9.21 ± 1.66 0.62 ± 0.37 22.85 25.17 22.86

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>225 GeV 9.01 ± 1.62 0.58 ± 0.37 23.16 25.72 22.86

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>225 GeV 8.78 ± 1.58 0.51 ± 0.35 23.33 19.07 22.86

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>250 GeV 8.38 ± 1.51 0.35 ± 0.38 23.64 28.14 22.86

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15
Ht>250 GeV 8.18 ± 1.47 0.28 ± 0.38 23.62 21.39 22.86

Optimal Cuts only for Ht and &Delta&phi cuts with Default MetSig cuts( MetSig>3 ):
Ht > ??? GeV, &Delta&phi < &pi - ??

09/10/08
Final Background Estimation with Corrected MetSig for Ht cut without &Delta&phi cut

Sample Default MetSig
H_T>175 GeV
No &Delta&phi cut
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
No &Delta&phi cut
(pred ± stat ± sys) Default MetSig
H_T>225 GeV
No &Delta&phi cut
(pred ± stat ± sys) Default MetSig
H_T>250 GeV
No &Delta&phi cut
(pred ± stat ± sys)

Baur W(e)+pho 0.44 ± 0.15 ± ?? 0.25 ± 0.11 ± ?? 0.25 ± 0.11 ± ?? 0.15 ± 0.086 ± ??

Baur W(mu)+pho 0.33 ± 0.12 ± ?? 0.24 ± 0.10 ± ?? 0.19 ± 0.094 ± ?? 0.19 ± 0.094 ± ??

Baur W(tau)+pho 0.38 ± 0.13 ± ?? 0.28 ± 0.13 ± ?? 0.24 ± 0.10 ± ?? 0.19 ± 0.095 ± ??

Baur Z(e)+pho 0.012 ± 0.006 ± ?? 0.006 ± 0.004 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ??

Baur Z(mu)+pho 0.12 ± 0.019 ± ?? 0.091 ± 0.017 ± ?? 0.061 ± 0.014 ± ?? 0.040 ± 0.011 ± ??

Baur Z(tau)+pho 0.097 ± 0.017 ± ?? 0.061 ± 0.014 ± ?? 0.039 ± 0.011 ± ?? 0.033 ± 0.010 ± ??

Pythia Z(tau) no ISR/FSR 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ??

Pythia Z(e) no ISR/FSR 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ??

Pythia Z(mu) no ISR/FSR 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ??

Pythia W(e) no ISR/FSR 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ??

Pythia W(tau) no ISR/FSR 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ??

Pythia W(mu) no ISR/FSR 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ??

Pythia ttbar(incl) 0.048 ± 0.009 ± ?? 0.048 ± 0.009 ± ?? 0.042 ± 0.009 ± ?? 0.040 ± 0.009 ± ??

Beam Halo 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010

Cosmic 0.074 ± 0.043 ± 0.039 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026

Pythia tri-pho 0.18 ± 0.18 ± 0.035 0.00 ± 0.18 ± 0.035 0.00 ± 0.18 ± 0.035 0.00 ± 0.18 ± 0.035

Wrong Vertex 2.19 ± 0.42 ± 0.22 1.78 ± 0.38 ± 0.18 1.46 ± 0.34 ± 0.14 1.22 ± 0.31 ± 0.12

QCD 0.3 ± 0.17 ± 0.0 0.2 ± 0.14 ± 0.0 0.2 ± 0.14 ± 0.0 0.1 ± 0.1 ± 0.14

Data 3 3 1 1

Background Estimation Combined

Sample Default MetSig
H_T>175 GeV
No &Delta&phi
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
No &Delta&phi
(pred ± stat ± sys) Default MetSig
H_T>225 GeV
No &Delta&phi
(pred ± stat ± sys) Default MetSig
H_T>250 GeV
No &Delta&phi
(pred ± stat ± sys)

EWK Combined 1.51 ± 0.35 ± 0.43 1.03 ± 0.32 ± 0.29 0.87 ± 0.31 ± 0.25 0.68 ± 0.30 ± 0.19

Non-Collision (CR,BH) 0.074 ± 0.049 ± 0.040 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028

Pythia tri-pho 0.18 ± 0.18 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035

Wrong Vertex 2.19 ± 0.42 ± 0.22 1.78 ± 0.38 ± 0.18 1.46 ± 0.34 ± 0.14 1.22 ± 0.31 ± 0.12

QCD 0.3 ± 0.17 ± 0.0 0.2 ± 0.14 ± 0.0 0.2 ± 0.14 ± 0.0 0.1 ± 0.1 ± 0.14

Data 3 3 1 1

TOTAL 4.25 ± 0.77
(± 0.60 ± 0.48) 3.06 ± 0.65
(± 0.55 ± 0.34) 2.58 ± 0.60
(± 0.52 ± 0.29) 2.05 ± 0.46
(± 0.37 ± 0.27)

95% Confidence Level Expected Cross Section Limit( m_&chi=140 GeV, &tau_&chi=0 ns) for Ht cuts

Default MetSig Acceptance (%) Background Estimation &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.0
Ht>175 GeV 10.07 ± 1.81 4.25 ± 0.77 34.81 25.27 22.86

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.0
Ht>200 GeV 9.78 ± 1.76 3.06 ± 0.65 31.79 30.08 22.86

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.0
Ht>225 GeV 9.34 ± 1.68 2.58 ± 0.60 31.78 34.89 22.86

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.0
Ht>250 GeV 8.68 ± 1.56 2.05 ± 0.46 31.62 38.14 22.86

Optimal Cuts only for Ht cut with Default MetSig cuts( MetSig>3 ):
Ht > 250 GeV

09/06/08
Final Background Estimation for MetSig cut with Optimal Cuts(Ht>200 GeV, &Delta&phi < &pi - 0.1)

Sample MetSig>0
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig>2
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig>4
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig>5
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig>7
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig>9
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys)

Baur W(e)+pho 0.15 ± 0.086 ± ?? 0.099 ± 0.070 ± ?? 0.099 ± 0.070 ± ?? 0.099 ± 0.070 ± ?? 0.049 ± 0.049 ± ?? 0.049 ± 0.049 ± ?? 0.049 ± 0.049 ± ??

Baur W(mu)+pho 0.047 ± 0.047 ± ?? 0.047 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ??

Baur W(tau)+pho 0.19 ± 0.095 ± ?? 0.14 ± 0.082 ± ?? 0.14 ± 0.082 ± ?? 0.095 ± 0.067 ± ?? 0.095 ± 0.067 ± ?? 0.095 ± 0.067 ± ?? 0.095 ± 0.067 ± ??

Baur Z(e)+pho 0.24 ± 0.027 ± ?? 0.015 ± 0.009 ± ?? 0.006 ± 0.004 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ??

Baur Z(mu)+pho 0.094 ± 0.017 ± ?? 0.088 ± 0.016 ± ?? 0.085 ± 0.016 ± ?? 0.082 ± 0.016 ± ?? 0.076 ± 0.015 ± ?? 0.067 ± 0.014 ± ?? 0.067 ± 0.014 ± ??

Baur Z(tau)+pho 0.19 ± 0.024 ± ?? 0.085 ± 0.016 ± ?? 0.058 ± 0.013 ± ?? 0.052 ± 0.012 ± ?? 0.039 ± 0.011 ± ?? 0.039 ± 0.011 ± ?? 0.036 ± 0.010 ± ??

Pythia Z(tau) no ISR/FSR 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ??

Pythia Z(e) no ISR/FSR 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ??

Pythia Z(mu) no ISR/FSR 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ??

Pythia W(e) no ISR/FSR 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ??

Pythia W(tau) no ISR/FSR 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ??

Pythia W(mu) no ISR/FSR 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ??

Pythia ttbar(incl) 0.13 ± 0.015 ± ?? 0.060 ± 0.010 ± ?? 0.046 ± 0.009 ± ?? 0.035 ± 0.008 ± ?? 0.033 ± 0.008 ± ?? 0.033 ± 0.008 ± ?? 0.033 ± 0.008 ± ??

Beam Halo 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010

Cosmic 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026

Pythia tri-pho 6.12 ± 1.05 ± 1.19 0.36 ± 0.25 ± 0.070 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035

Wrong Vertex 0.97 ± 0.28 ± 0.096 0.32 ± 0.16 ± 0.032 0.162 ± 0.11 ± 0.016 0.162 ± 0.11 ± 0.016 0.081 ± 0.081 ± 0.008 0.081 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008

QCD 186.6 ± 4.32 ± 1.78 0.8 ± 0.28 ± 0.17 0.1 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0

Data 191 5 2 2 1 1 1

Background Estimation Combined

Sample MetSig>0
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig>2
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig>3
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig>4
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig>5
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig>7
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig>9
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys)

EWK Combined 1.10 ± 0.29 ± 0.33 0.57 ± 0.29 ± 0.16 0.46 ± 0.27 ± 0.13 0.38 ± 0.27 ± 0.11 0.31 ± 0.26 ± 0.085 0.30 ± 0.26 ± 0.085 0.30 ± 0.26 ± 0.084

Non-Collision (CR,BH) 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.049 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028

Pythia tri-pho 6.12 ± 1.05 ± 1.19 0.36 ± 0.25 ± 0.070 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035

Wrong Vertex 0.97 ± 0.28 ± 0.096 0.32 ± 0.16 ± 0.032 0.162 ± 0.11 ± 0.016 0.162 ± 0.11 ± 0.016 0.081 ± 0.081 ± 0.008 0.081 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008

QCD 186.6 ± 4.32 ± 1.78 0.8 ± 0.28 ± 0.17 0.1 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0

Data 191 5 2 2 1 1 1

TOTAL 194.8 ± 4.96
(± 4.46 ± 2.17) 2.10 ± 0.56
(± 0.50 ± 0.25) 0.77 ± 0.39
(± 0.36 ± 0.14) 0.59 ± 0.38
(± 0.36 ± 0.12) 0.44 ± 0.35
(± 0.34 ± 0.09) 0.43 ± 0.35
(± 0.34 ± 0.09) 0.35 ± 0.35
(± 0.34 ± 0.09)

95% Confidence Level Expected Cross Section Limit( m_&chi=140 GeV, &tau_&chi=0 ns) for MetSig cuts

MetSig Acceptance (%) Background Estimation &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>200 GeV
MetSig>0 12.31 ± 2.22 194.8 ± 4.96 1750 1249 22.86

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>200 GeV
MetSig>2 10.47 ± 1.89 2.10 ± 0.56 26.53 48.24 22.86

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>200 GeV
MetSig>3 9.44 ± 1.70 0.77 ± 0.39 23.39 33.86 22.86

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>200 GeV
MetSig>4 8.20 ± 1.48 0.59 ± 0.38 25.54 39.84 22.86

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>200 GeV
MetSig>5 7.27 ± 1.31 0.44 ± 0.35 27.85 32.36 22.86

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>200 GeV
MetSig>7 7.14 ± 1.29 0.43 ± 0.35 28.25 32.96 22.86

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>200 GeV
MetSig>9 7.07 ± 1.27 0.35 ± 0.35 28.02 33.36 22.86

09/05/08
Final Background Estimation with Corrected MetSig for Ht cut (&Delta&phi < &pi - 0.1)

Sample Default MetSig
H_T>0 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>75 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>125 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>175 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>225 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>275 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>325 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys)

Baur W(e)+pho 21.48 ± 1.03 ± ?? 11.36 ± 0.75 ± ?? 1.18 ± 0.24 ± ?? 0.30 ± 0.12 ± ?? 0.099 ± 0.070 ± ?? 0.099 ± 0.070 ± ?? 0.049 ± 0.049 ± ?? 0.049 ± 0.049 ± ??

Baur W(mu)+pho 2.59 ± 0.35 ± ?? 1.41 ± 0.26 ± ?? 0.24 ± 0.10 ± ?? 0.094 ± 0.066 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ??

Baur W(tau)+pho 7.39 ± 0.59 ± ?? 3.41 ± 0.40 ± ?? 0.80 ± 0.20 ± ?? 0.19 ± 0.095 ± ?? 0.14 ± 0.082 ± ?? 0.095 ± 0.067 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ??

Baur Z(e)+pho 0.22 ± 0.026 ± ?? 0.18 ± 0.023 ± ?? 0.037 ± 0.010 ± ?? 0.012 ± 0.006 ± ?? 0.006 ± 0.004 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ??

Baur Z(mu)+pho 2.46 ± 0.086 ± ?? 1.48 ± 0.067 ± ?? 0.27 ± 0.029 ± ?? 0.11 ± 0.018 ± ?? 0.085 ± 0.016 ± ?? 0.055 ± 0.013 ± ?? 0.027 ± 0.009 ± ?? 0.012 ± 0.006 ± ??

Baur Z(tau)+pho 2.50 ± 0.087 ± ?? 1.41 ± 0.065 ± ?? 0.27 ± 0.028 ± ?? 0.091 ± 0.017 ± ?? 0.058 ± 0.013 ± ?? 0.039 ± 0.011 ± ?? 0.021 ± 0.008 ± ?? 0.006 ± 0.004 ± ??

Pythia Z(tau) no ISR/FSR 0.25 ± 0.093 ± ?? 0.071 ± 0.050 ± ?? 0.035 ± 0.035 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ??

Pythia Z(e) no ISR/FSR 0.054 ± 0.054 ± ?? 0.054 ± 0.054 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ??

Pythia Z(mu) no ISR/FSR 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ??

Pythia W(e) no ISR/FSR 1.88 ± 0.60 ± ?? 1.51 ± 0.53 ± ?? 0.19 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ??

Pythia W(tau) no ISR/FSR 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ??

Pythia W(mu) no ISR/FSR 0.30 ± 0.30 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ??

Pythia ttbar(incl) 0.048 ± 0.009 ± ?? 0.048 ± 0.009 ± ?? 0.046 ± 0.009 ± ?? 0.046 ± 0.009 ± ?? 0.046 ± 0.009 ± ?? 0.040 ± 0.009 ± ?? 0.038 ± 0.008 ± ?? 0.028 ± 0.007 ± ??

Beam Halo 0.40 ± 0.096 ± 0.18 0.26 ± 0.077 ± 0.12 0.047 ± 0.033 ± 0.021 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010

Cosmic 0.49 ± 0.11 ± 0.26 0.30 ± 0.085 ± 0.16 0.074 ± 0.043 ± 0.039 0.074 ± 0.043 ± 0.039 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.025 ± 0.025 ± 0.013 0.025 ± 0.025 ± 0.013

Pythia tri-pho 3.06 ± 0.74 ± 0.60 1.62 ± 0.54 ± 0.32 0.90 ± 0.40 ± 0.18 0.18 ± 0.18 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035

Wrong Vertex 2.27 ± 0.43 ± 0.22 0.81 ± 0.26 ± 0.08 0.49 ± 0.20 ± 0.048 0.24 ± 0.14 ± 0.024 0.16 ± 0.11 ± 0.016 0.081 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008

QCD 22.9 ± 1.51 ± 0.28 6.9 ± 0.83 ± 0.6 1.2 ± 0.35 ± 0.28 0.2 ± 0.14 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0

Data 76 28 7 2 2 1 1 1

Background Estimation Combined

Sample Default MetSig
H_T>0 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>75 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>125 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>175 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>225 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>275 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>325 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys)

EWK Combined 41.20 ± 1.51 ± 11.66 22.19 ± 1.11 ± 6.28 3.25 ± 0.43 ± 0.92 0.89 ± 0.30 ± 0.25 0.46 ± 0.27 ± 0.13 0.35 ± 0.27 ± 0.098 0.14 ± 0.26 ± 0.040 0.10 ± 0.26 ± 0.028

Non-Collision (CR,BH) 0.89 ± 0.15 ± 0.32 0.56 ± 0.11 ± 0.20 0.12 ± 0.054 ± 0.044 0.074 ± 0.049 ± 0.040 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.025 ± 0.034 ± 0.016 0.025 ± 0.034 ± 0.016

Pythia tri-pho 3.06 ± 0.74 ± 0.60 1.62 ± 0.54 ± 0.32 0.90 ± 0.40 ± 0.18 0.18 ± 0.18 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035

Wrong Vertex 2.27 ± 0.43 ± 0.22 0.81 ± 0.26 ± 0.08 0.49 ± 0.20 ± 0.048 0.24 ± 0.14 ± 0.024 0.16 ± 0.11 ± 0.016 0.081 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008

QCD 22.9 ± 1.51 ± 0.28 6.9 ± 0.83 ± 0.6 1.2 ± 0.35 ± 0.28 0.2 ± 0.14 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0

Data 76 28 7 2 2 1 1 1

TOTAL 70.32 ± 11.90
(± 2.30 ± 11.68) 32.08 ± 6.50
(± 1.51 ± 6.32) 5.96 ± 1.21
(± 0.71 ± 0.98) 1.58 ± 0.48
(± 0.40 ± 0.26) 0.77 ± 0.39
(± 0.36 ± 0.14) 0.58 ± 0.36
(± 0.35 ± 0.10) 0.16 ± 0.34
(± 0.34 ± 0.06) 0.12 ± 0.34
(± 0.34 ± 0.05)

95% Confidence Level Expected Cross Section Limit( m_&chi=140 GeV, &tau_&chi=0 ns) for Ht cuts

Default MetSig Acceptance (%) Background Estimation &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>0 GeV 10.00 ± 1.80 70.32 ± 11.90 156.6 173.2 22.86

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>75 GeV 10.00 ± 1.80 32.08 ± 6.50 103.6 85.96 22.86

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>125 GeV 9.97 ± 1.79 5.96 ± 1.21 40.20 46.96 22.86

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>175 GeV 9.70 ± 1.75 1.58 ± 0.48 26.51 27.64 22.86

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>200 GeV 9.44 ± 1.70 0.77 ± 0.39 23.39 33.86 22.86

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>225 GeV 9.01 ± 1.62 0.58 ± 0.36 23.16 25.72 22.86

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>275 GeV 7.61 ± 1.37 0.16 ± 0.34 24.66 32.11 22.86

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>325 GeV 5.53 ± 1.00 0.12 ± 0.34 33.44 44.19 22.86

Optimal Cuts with Default MetSig cuts( MetSig>3 ):
Ht > 200 GeV, &Delta&phi(&gamma₁,&gamma₂) < &pi - 0.10 !!

09/04/08
Final Background Estimation with Corrected MetSig for &Delta&phi cut(with Ht>200 GeV)

Sample Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.00
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.05
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.20
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.25
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.30
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys)

Baur W(e)+pho 0.25 ± 0.11 ± ?? 0.099 ± 0.070 ± ?? 0.099 ± 0.070 ± ?? 0.049 ± 0.049 ± ?? 0.049 ± 0.049 ± ?? 0.049 ± 0.049 ± ?? 0.049 ± 0.049 ± ?? 0.049 ± 0.049± ??

Baur W(mu)+pho 0.24 ± 0.10 ± ?? 0.047 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ??

Baur W(tau)+pho 0.28 ± 0.12 ± ?? 0.14 ± 0.082 ± ?? 0.14 ± 0.082 ± ?? 0.14 ± 0.082 ± ?? 0.14 ± 0.082 ± ?? 0.095 ± 0.067 ± ?? 0.047 ± 0.047 ± ?? 0.047 ± 0.047 ± ??

Baur Z(e)+pho 0.006 ± 0.004 ± ?? 0.006 ± 0.004 ± ?? 0.006 ± 0.004 ± ?? 0.006 ± 0.004 ± ?? 0.006 ± 0.004 ± ?? 0.006 ± 0.004 ± ?? 0.006 ± 0.004 ± ?? 0.006 ± 0.004 ± ??

Baur Z(mu)+pho 0.091 ± 0.017 ± ?? 0.088 ± 0.016 ± ?? 0.085 ± 0.016 ± ?? 0.079 ± 0.015 ± ?? 0.079 ± 0.015 ± ?? 0.079 ± 0.015 ± ?? 0.073 ± 0.015 ± ?? 0.070 ± 0.014 ± ??

Baur Z(tau)+pho 0.061 ± 0.014 ± ?? 0.058 ± 0.013 ± ?? 0.058 ± 0.013 ± ?? 0.052 ± 0.012 ± ?? 0.048 ± 0.012 ± ?? 0.048 ± 0.012 ± ?? 0.046 ± 0.012 ± ?? 0.046 ± 0.012 ± ??

Pythia Z(tau) no ISR/FSR 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ??

Pythia Z(e) no ISR/FSR 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ??

Pythia Z(mu) no ISR/FSR 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ??

Pythia W(e) no ISR/FSR 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ??

Pythia W(tau) no ISR/FSR 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ??

Pythia W(mu) no ISR/FSR 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ??

Pythia ttbar(incl) 0.048 ± 0.009 ± ?? 0.048 ± 0.009 ± ?? 0.046 ± 0.009 ± ?? 0.046 ± 0.009 ± ?? 0.046 ± 0.009 ± ?? 0.044 ± 0.009 ± ?? 0.044 ± 0.009 ± ?? 0.044 ± 0.009 ± ??

Beam Halo 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010

Cosmic 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026

Pythia tri-pho 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035

Wrong Vertex 1.78 ± 0.38 ± 0.18 0.32 ± 0.16 ± 0.032 0.16 ± 0.11 ± 0.016 0.081 ± 0.081 ± 0.008 0.081 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008

QCD 0.2 ± 0.14 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0

Data 3 3 2 1 1 1 0 0

Background Estimation Combined

Sample Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.00
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.05
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.20
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.25
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.30
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys)

EWK Combined 1.03 ± 0.32 ± 0.29 0.52 ± 0.27 ± 0.14 0.46 ± 0.27 ± 0.13 0.39 ± 0.27 ± 0.11 0.39 ± 0.27 ± 0.11 0.34 ± 0.26 ± 0.10 0.28 ± 0.26 ± 0.08 0.28 ± 0.26 ± 0.08

Non-Collision (CR,BH) 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028

Pythia tri-pho 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035

Wrong Vertex 1.78 ± 0.38 ± 0.18 0.32 ± 0.16 ± 0.032 0.16 ± 0.11 ± 0.016 0.081 ± 0.081 ± 0.008 0.081 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008

QCD 0.2 ± 0.14 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0

Data 3 3 2 1 1 1 0 0

TOTAL 3.06 ± 0.65
(± 0.55 ± 0.34) 0.99 ± 0.41
(± 0.38 ± 0.15) 0.77 ± 0.39
(± 0.36 ± 0.14) 0.62 ± 0.37
(± 0.35 ± 0.12) 0.62 ± 0.37
(± 0.35 ± 0.12) 0.49 ± 0.36
(± 0.34 ± 0.11) 0.43 ± 0.36
(± 0.34 ± 0.11) 0.43 ± 0.36
(± 0.34 ± 0.11)

95% Confidence Level Expected Cross Section Limit( m_&chi=140 GeV, &tau_&chi=0 ns) for &Delta&phi(&gamma₁,&gamma₂)

Default MetSig
Ht>200 GeV Acceptance (%) Background Estimation &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.00 9.78 ± 1.76 3.06 ± 0.65 31.79 30.08 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.05 9.61 ± 1.73 0.99 ± 0.41 24.31 39.86 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1 9.44 ± 1.70 0.77 ± 0.39 23.39 33.86 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15 9.21 ± 1.66 0.62 ± 0.37 22.85 25.17 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.2 9.12 ± 1.64 0.62 ± 0.37 23.08 25.42 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.25 8.92 ± 1.61 0.49 ± 0.36 23.11 26.38 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.3 8.72 ± 1.57 0.43 ± 0.36 23.14 19.73 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.35 8.48 ± 1.53 0.43 ± 0.36 23.79 20.28 22.8

09/03/08
95% C.L. Cross Section Limits with Optimal Cuts

(m_&chi(GeV), &tau_&chi(ns)) Acceptance(%) Background &sigma^exp(fb) &Delta&sigma^exp(fb) &sigma^obs(fb) &sigma^prod(fb)

(70,0) 2.43 ± 0.24 0.55 ± 0.37 80.17 21.61 92.80 999.9

(70,1) 2.27 ± 0.23 85.82 23.14 99.34 999.9

(70,2) 1.67 ± 0.17 116.6 31.45 135.0 999.9

(70,5) 0.72 ± 0.072 270.6 72.95 313.2

(70,7) 0.517 ± 0.052 374.6 101.0 433.7

(70,8) 0.317 ± 0.032 608.8 164.1 704.7

(70,10) 0.167 ± 0.017 1146 309 1326

(70,15) 0.083 ± 0.008 2435 656.5 2819

(80,0) 4.83 ± 0.48 40.34 10.87 46.69 524.6

(80,1) 4.50 ± 0.45 43.29 11.67 50.11

(80,2) 3.47 ± 0.35 56.14 15.14 64.99

(80,5) 1.38 ± 0.14 141.2 38.06 163.4

(80,7) 0.767 ± 0.077 254.3 68.57 294.4

(80,10) 0.400 ± 0.040 487.0 131.3 563.8

(85,5) 2.15 ± 0.22 90.61 24.43 104.9 386.0

(85,7) 1.10 ± 0.11 177.1 47.75 205.0

(85,10) 0.517 ± 0.052 376.8 101.6 436.2

(90,0) 6.15 ± 0.62 31.68 8.54 36.67 286.8

(90,1) 5.33 ± 0.53 36.55 9.85 42.31

(90,2) 4.20 ± 0.42 46.38 12.50 53.69

(90,5) 2.22 ± 0.22 87.76 23.66 101.6

(90,7) 1.22 ± 0.12 159.7 43.05 184.8

(90,10) 0.950 ± 0.095 205.1 55.3 237.4

(100,0) 8.03 ± 0.80 24.26 6.54 28.08 169.0

(100,1) 7.63 ± 0.76 25.53 6.88 29.56

(100,2) 5.87 ± 0.59 33.19 8.95 38.42

(100,5) 2.60 ± 0.26 74.93 20.20 86.74

(100,7) 1.78 ± 0.18 109.4 29.51 126.7

(100,8) 1.57 ± 0.16 124.1 33.45 143.6

(100,10) 1.07 ± 0.11 182.1 49.09 210.8

(110,0) 8.50 ± 0.85 22.92 6.18 26.53 99.5

(110,1) 8.33 ± 0.83 23.39 6.30 27.07

(110,7) 2.10 ± 0.21 92.77 25.01 107.4

(115,5) 2.92 ± 0.29 66.72 17.99 77.23 74.7

(120,0) 8.58 ± 0.86 22.71 6.12 26.28 58.4

(120,2) 6.72 ± 0.67 28.99 7.82 33.56

(120,5) 3.40 ± 0.34 57.30 15.45 66.33

(120,7) 2.45 ± 0.24 79.52 21.44 92.04

(120,10) 1.45 ± 0.14 134.4 36.22 155.5
(130,0) 9.53 ± 0.95 20.44 5.51 23.66 36.1

(130,1) 9.66 ± 0.97 20.17 5.44 23.34

(130,1.5) 9.07 ± 0.91 21.48 5.79 24.86

(130,1.75) 8.37 ± 0.84 23.28 6.28 26.94

(130,2) 7.15 ± 0.72 27.25 7.34 31.54

(130,2.5) 6.52 ± 0.65 29.88 8.06 34.59

(130,3) 5.78 ± 0.58 33.70 9.09 39.02

(130,5) 3.85 ± 0.38 50.60 13.64 58.57

(140,0) 9.28 ± 0.93 20.99 5.66 24.30 22.8

(140,1) 9.43 ± 0.94 20.66 5.57 23.91

(140,2) 7.27 ± 0.73 26.80 7.22 31.02

(150,0) 9.50 ± 0.95 20.51 5.53 23.74 14.5

Optimal Cuts: Ht>200 GeV, &Delta&phi(&gamma₁,&gamma₂)<&pi - 0.1, MetSig(njet=0)>9.0, MetSig(njet>0)>3.0
09/02/08
New Background Estimation for MetSig cut for njet>1 with Optimal Cuts(Ht>200 GeV, &Delta&phi < &pi - 0.1)

Sample MetSig(njet>1)>1
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet>1)>2
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet>1)>3
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet>1)>4
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet>1)>5
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet>1)>7
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys)

Baur W(e)+pho 0.099 ± 0.070 ± ?? 0.099 ± 0.070 ± ?? 0.099 ± 0.070 ± ?? 0.099 ± 0.070 ± ?? 0.099 ± 0.070 ± ?? 0.099 ± 0.070 ± ??

Baur W(mu)+pho 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ??

Baur W(tau)+pho 0.095 ± 0.067 ± ?? 0.095 ± 0.067 ± ?? 0.095 ± 0.067 ± ?? 0.095 ± 0.067 ± ?? 0.095 ± 0.067 ± ?? 0.095 ± 0.067 ± ??

Baur Z(e)+pho 0.024 ± 0.009 ± ?? 0.003 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ??

Baur Z(mu)+pho 0.088 ± 0.016 ± ?? 0.085 ± 0.016 ± ?? 0.082 ± 0.016 ± ?? 0.079 ± 0.016 ± ?? 0.073 ± 0.015 ± ?? 0.073 ± 0.015 ± ??

Baur Z(tau)+pho 0.11 ± 0.018 ± ?? 0.070 ± 0.014 ± ?? 0.055 ± 0.013 ± ?? 0.048 ± 0.012 ± ?? 0.046 ± 0.012 ± ?? 0.046 ± 0.012 ± ??

Pythia Z(tau) no ISR/FSR 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ??

Pythia Z(e) no ISR/FSR 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ??

Pythia Z(mu) no ISR/FSR 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ??

Pythia W(e) no ISR/FSR 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ??

Pythia W(tau) no ISR/FSR 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ??

Pythia W(mu) no ISR/FSR 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ??

Pythia ttbar(incl) 0.095 ± 0.013 ± ?? 0.060 ± 0.010 ± ?? 0.046 ± 0.009 ± ?? 0.035 ± 0.008 ± ?? 0.033 ± 0.008 ± ?? 0.033 ± 0.008 ± ??

Beam Halo 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010

Cosmic 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026

Pythia tri-pho 0.54 ± 0.31 ± 0.10 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035

Wrong Vertex 0.081 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008

QCD 15.8 ± 1.26 ± 0.62 0.7 ± 0.26 ± 0.17 0.1 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0

Background Estimation Combined

Sample MetSig(njet>1)>1
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet>1)>2
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet>1)>3
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet>1)>4
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet>1)>5
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet>1)>7
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys)

EWK Combined 0.54 ± 0.27 ± 0.15 0.44 ± 0.27 ± 0.12 0.40 ± 0.27 ± 0.11 0.38 ± 0.27 ± 0.11 0.37 ± 0.27 ± 0.10 0.37 ± 0.27 ± 0.10

Non-Collision (CR,BH) 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.049 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028

Pythia tri-pho 0.54 ± 0.31 ± 0.10 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035

Wrong Vertex 0.081 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008

QCD 15.8 ± 1.26 ± 0.62 0.7 ± 0.26 ± 0.17 0.1 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0

TOTAL 17.01 ± 1.35
(± 1.33 ± 0.23) 1.19 ± 0.48
(± 0.43 ± 0.21) 0.55 ± 0.37
(± 0.35 ± 0.12) 0.43 ± 0.37
(± 0.35 ± 0.12) 0.42 ± 0.37
(± 0.35 ± 0.11) 0.42 ± 0.37
(± 0.35 ± 0.11)

95% Confidence Level Expected Cross Section Limit( m_&chi=140 GeV, &tau_&chi=0 ns) for Ht cuts

MetSig Acceptance (%) Background Estimation &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>200 GeV
MetSig(njet>1)>1 11.4 ± 1.14 17.01 ± 1.35 47.10 47.97 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>200 GeV
MetSig(njet>1)>2 10.0 ± 1.00 1.19 ± 0.48 22.23 34.28 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>200 GeV
MetSig(njet>1)>3 9.28 ± 0.93 0.55 ± 0.37 20.99 24.30 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>200 GeV
MetSig(njet>1)>4 8.12 ± 0.81 0.43 ± 0.37 23.76 27.82 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>200 GeV
MetSig(njet>1)>5 7.93 ± 0.79 0.42 ± 0.37 24.24 28.48 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>200 GeV
MetSig(njet>1)>7 7.93 ± 0.79 0.42 ± 0.37 24.24 28.48 22.8

09/01/08
New Background Estimation for MetSig cut for njet=1 with Optimal Cuts(Ht>200 GeV, &Delta&phi < &pi - 0.1)

Sample MetSig(njet=1)>2
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet=1)>3
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet=1)>4
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet=1)>5
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet=1)>7
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet=1)>9
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys)

Baur W(e)+pho 0.099 ± 0.070 ± ?? 0.099 ± 0.070 ± ?? 0.099 ± 0.070 ± ?? 0.049 ± 0.049 ± ?? 0.049 ± 0.049 ± ?? 0.049 ± 0.049 ± ??

Baur W(mu)+pho 0.047 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ??

Baur W(tau)+pho 0.14 ± 0.082 ± ?? 0.14 ± 0.082 ± ?? 0.095 ± 0.067 ± ?? 0.095 ± 0.067 ± ?? 0.095 ± 0.067 ± ?? 0.095 ± 0.067 ± ??

Baur Z(e)+pho 0.003 ± 0.003 ± ?? 0.003 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ??

Baur Z(mu)+pho 0.082 ± 0.016 ± ?? 0.082 ± 0.016 ± ?? 0.082 ± 0.016 ± ?? 0.082 ± 0.016 ± ?? 0.076 ± 0.015 ± ?? 0.076 ± 0.015 ± ??

Baur Z(tau)+pho 0.067 ± 0.014 ± ?? 0.055 ± 0.013 ± ?? 0.055 ± 0.013 ± ?? 0.046 ± 0.012 ± ?? 0.046 ± 0.012 ± ?? 0.046 ± 0.012 ± ??

Pythia Z(tau) no ISR/FSR 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ??

Pythia Z(e) no ISR/FSR 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ??

Pythia Z(mu) no ISR/FSR 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ??

Pythia W(e) no ISR/FSR 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ??

Pythia W(tau) no ISR/FSR 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ??

Pythia W(mu) no ISR/FSR 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ??

Pythia ttbar(incl) 0.046 ± 0.009 ± ?? 0.046 ± 0.009 ± ?? 0.046 ± 0.009 ± ?? 0.046 ± 0.009 ± ?? 0.046 ± 0.009 ± ?? 0.046 ± 0.009 ± ??

Beam Halo 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010

Cosmic 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026

Pythia tri-pho 0.180 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035

Wrong Vertex 0.16 ± 0.11 ± 0.016 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008

QCD 0.2 ± 0.14 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0

Background Estimation Combined

Sample MetSig(njet=1)>2
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet=1)>3
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet=1)>4
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet=1)>5
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet=1)>7
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet=1)>9
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys)

EWK Combined 0.51 ± 0.27 ± 0.14 0.45 ± 0.27 ± 0.13 0.40 ± 0.27 ± 0.11 0.34 ± 0.26 ± 0.10 0.33 ± 0.26 ± 0.09 0.33 ± 0.26 ± 0.09

Non-Collision (CR,BH) 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.049 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028

Pythia tri-pho 0.180 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035

Wrong Vertex 0.16 ± 0.11 ± 0.016 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008

QCD 0.2 ± 0.14 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0

TOTAL 1.10 ± 0.40
(± 0.37 ± 0.15) 0.60 ± 0.38
(± 0.35 ± 0.14) 0.55 ± 0.37
(± 0.35 ± 0.12) 0.49 ± 0.36
(± 0.34 ± 0.12) 0.48 ± 0.35
(± 0.34 ± 0.10) 0.48 ± 0.35
(± 0.34 ± 0.10)

95% Confidence Level Expected Cross Section Limit( m_&chi=140 GeV, &tau_&chi=0 ns) for Ht cuts

MetSig Acceptance (%) Background Estimation &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>200 GeV
MetSig(njet=1)>2 9.62 ± 0.96 1.10 ± 0.40 22.78 27.88 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>200 GeV
MetSig(njet=1)>3 9.37 ± 0.94 0.60 ± 0.38 21.15 24.07 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>200 GeV
MetSig(njet=1)>4 9.28 ± 0.93 0.55 ± 0.37 20.99 24.30 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>200 GeV
MetSig(njet=1)>5 8.53 ± 0.85 0.49 ± 0.36 23.08 26.48 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>200 GeV
MetSig(njet=1)>7 8.41 ± 0.84 0.48 ± 0.35 23.32 26.86 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>200 GeV
MetSig(njet=1)>9 8.41 ± 0.84 0.48 ± 0.35 23.32 26.86 22.8

08/31/08
New Background Estimation for MetSig cut for njet=0 with Optimal Cuts(Ht>200 GeV, &Delta&phi < &pi - 0.1)

Sample MetSig(njet=0)>3
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet=0)>5
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet=0)>7
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet=0)>8
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet=0)>9
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet=0)>10
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet=0)>12
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys)

Baur W(e)+pho 0.099 ± 0.070 ± ?? 0.099 ± 0.070 ± ?? 0.099 ± 0.070 ± ?? 0.099 ± 0.070 ± ?? 0.099 ± 0.070 ± ?? 0.099 ± 0.070 ± ?? 0.049 ± 0.049 ± ??

Baur W(mu)+pho 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ??

Baur W(tau)+pho 0.095 ± 0.067 ± ?? 0.095 ± 0.067 ± ?? 0.095 ± 0.067 ± ?? 0.095 ± 0.067 ± ?? 0.095 ± 0.067 ± ?? 0.095 ± 0.067 ± ?? 0.095 ± 0.067 ± ??

Baur Z(e)+pho 0.003 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ??

Baur Z(mu)+pho 0.085 ± 0.016 ± ?? 0.085 ± 0.016 ± ?? 0.082 ± 0.016 ± ?? 0.082 ± 0.016 ± ?? 0.082 ± 0.016 ± ?? 0.079 ± 0.015 ± ?? 0.076 ± 0.015 ± ??

Baur Z(tau)+pho 0.058 ± 0.013 ± ?? 0.058 ± 0.013 ± ?? 0.058 ± 0.013 ± ?? 0.058 ± 0.013 ± ?? 0.055 ± 0.013 ± ?? 0.055 ± 0.013 ± ?? 0.052 ± 0.012 ± ??

Pythia Z(tau) no ISR/FSR 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ??

Pythia Z(e) no ISR/FSR 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ??

Pythia Z(mu) no ISR/FSR 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ??

Pythia W(e) no ISR/FSR 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ??

Pythia W(tau) no ISR/FSR 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ??

Pythia W(mu) no ISR/FSR 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ??

Pythia ttbar(incl) 0.046 ± 0.009 ± ?? 0.046 ± 0.009 ± ?? 0.046 ± 0.009 ± ?? 0.046 ± 0.009 ± ?? 0.046 ± 0.009 ± ?? 0.046 ± 0.009 ± ?? 0.046 ± 0.009 ± ??

Beam Halo 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010

Cosmic 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026

Pythia tri-pho 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035

Wrong Vertex 0.16 ± 0.11 ± 0.016 0.081 ± 0.081 ± 0.008 0.081 ± 0.081 ± 0.008 0.081 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008

QCD 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0

Background Estimation Combined

Sample MetSig(njet=0)>3
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet=0)>5
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet=0)>7
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet=0)>8
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet=0)>9
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet=0)>10
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) MetSig(njet=0)>12
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys)

EWK Combined 0.41 ± 0.27 ± 0.12 0.40 ± 0.27 ± 0.11 0.40 ± 0.27 ± 0.11 0.40 ± 0.27 ± 0.11 0.40 ± 0.27 ± 0.11 0.40 ± 0.27 ± 0.11 0.34 ± 0.26 ± 0.10

Non-Collision (CR,BH) 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.049 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028

Pythia tri-pho 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035

Wrong Vertex 0.16 ± 0.081 ± 0.008 0.081 ± 0.081 ± 0.008 0.081 ± 0.081 ± 0.008 0.081 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008

QCD 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0

TOTAL 0.72 ± 0.37
(± 0.35 ± 0.13) 0.63 ± 0.37
(± 0.35 ± 0.12) 0.63 ± 0.37
(± 0.35 ± 0.12) 0.63 ± 0.37
(± 0.35 ± 0.12) 0.55 ± 0.37
(± 0.35 ± 0.12) 0.55 ± 0.37
(± 0.35 ± 0.12) 0.49 ± 0.35
(± 0.33 ± 0.11)

95% Confidence Level Expected Cross Section Limit( m_&chi=140 GeV, &tau_&chi=0 ns) for Ht cuts

MetSig Acceptance (%) Background Estimation &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>200 GeV
MetSig(njet=0)>3 9.36 ± 0.94 0.72 ± 0.37 21.84 31.26 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>200 GeV
MetSig(njet=0)>5 9.36 ± 0.94 0.63 ± 0.37 21.36 24.09 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>200 GeV
MetSig(njet=0)>7 9.36 ± 0.94 0.63 ± 0.37 21.36 24.09 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>200 GeV
MetSig(njet=0)>8 9.34 ± 0.93 0.63 ± 0.37 21.42 24.14 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>200 GeV
MetSig(njet=0)>9 9.28 ± 0.93 0.55 ± 0.37 20.99 24.30 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>200 GeV
MetSig(njet=0)>10 9.28 ± 0.93 0.55 ± 0.37 20.99 24.30 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>200 GeV
MetSig(njet=0)>12 9.07 ± 0.91 0.49 ± 0.35 21.70 24.90 22.8

08/30/08
New Background Estimation with Corrected MetSig for Ht cut (&Delta&phi < &pi - 0.1)

Sample Default MetSig
H_T>75 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>125 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>175 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>225 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>250 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>275 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>325 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys)

Baur W(e)+pho 8.40 ± 0.64 ± ?? 1.18 ± 0.24 ± ?? 0.30 ± 0.12 ± ?? 0.099 ± 0.070 ± ?? 0.099 ± 0.070 ± ?? 0.049 ± 0.049 ± ?? 0.049 ± 0.049 ± ?? 0.049 ± 0.049 ± ??

Baur W(mu)+pho 0.80 ± 0.19 ± ?? 0.24 ± 0.10 ± ?? 0.094 ± 0.066 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ??

Baur W(tau)+pho 1.99 ± 0.31 ± ?? 0.71 ± 0.18 ± ?? 0.14 ± 0.082 ± ?? 0.095 ± 0.067 ± ?? 0.047 ± 0.047 ± ?? 0.047 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ??

Baur Z(e)+pho 0.082 ± 0.016 ± ?? 0.015 ± 0.007 ± ?? 0.003 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ??

Baur Z(mu)+pho 0.92 ± 0.053 ± ?? 0.24 ± 0.027 ± ?? 0.10 ± 0.017 ± ?? 0.082 ± 0.016 ± ?? 0.052 ± 0.012 ± ?? 0.033 ± 0.010 ± ?? 0.027 ± 0.009 ± ?? 0.012 ± 0.006 ± ??

Baur Z(tau)+pho 0.70 ± 0.046 ± ?? 0.22 ± 0.026 ± ?? 0.085 ± 0.016 ± ?? 0.055 ± 0.013 ± ?? 0.036 ± 0.010 ± ?? 0.030 ± 0.010 ± ?? 0.018 ± 0.007 ± ?? 0.003 ± 0.003 ± ??

Pythia Z(tau) no ISR/FSR 0.035 ± 0.035 ± ?? 0.035 ± 0.035 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ??

Pythia Z(e) no ISR/FSR 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ??

Pythia Z(mu) no ISR/FSR 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ??

Pythia W(e) no ISR/FSR 1.13 ± 0.46 ± ?? 0.19 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ??

Pythia W(tau) no ISR/FSR 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ??

Pythia W(mu) no ISR/FSR 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ??

Pythia ttbar(incl) 0.048 ± 0.009 ± ?? 0.046 ± 0.009 ± ?? 0.046 ± 0.009 ± ?? 0.046 ± 0.009 ± ?? 0.040 ± 0.009 ± ?? 0.038 ± 0.008 ± ?? 0.038 ± 0.008 ± ?? 0.028 ± 0.007 ± ??

Beam Halo 0.26 ± 0.077 ± 0.12 0.047 ± 0.033 ± 0.021 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010

Cosmic 0.22 ± 0.074 ± 0.12 0.074 ± 0.043 ± 0.039 0.074 ± 0.043 ± 0.039 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.025 ± 0.025 ± 0.013 0.025 ± 0.025 ± 0.013

Pythia tri-pho 1.08 ± 0.44 ± 0.21 0.54 ± 0.31 ± 0.10 0.180 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035

Wrong Vertex 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008

QCD 0.9 ± 0.3 ± 0.0 0.5 ± 0.2 ± 0.1 0.2 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.1 0.0 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0

Background Estimation Combined

Sample Default MetSig
H_T>75 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>125 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>175 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>225 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>250 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>275 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>325 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys)

EWK Combined 14.95 ± 0.93 ± 4.23 3.05 ± 0.42 ± 0.86 0.81 ± 0.30 ± 0.23 0.40 ± 0.27 ± 0.11 0.29 ± 0.26 ± 0.08 0.21 ± 0.26 ± 0.06 0.14 ± 0.26 ± 0.04 0.10 ± 0.26 ± 0.03

Non-Collision (CR,BH) 0.48 ± 0.11 ± 0.17 0.12 ± 0.054 ± 0.044 0.074 ± 0.049 ± 0.040 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.025 ± 0.034 ± 0.016 0.025 ± 0.034 ± 0.016

Pythia tri-pho 1.08 ± 0.44 ± 0.21 0.54 ± 0.31 ± 0.10 0.180 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035

Wrong Vertex 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008

QCD 0.9 ± 0.3 ± 0.0 0.5 ± 0.2 ± 0.1 0.2 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.1 0.0 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0

TOTAL 17.41 ± 4.38
(± 1.08 ± 4.24) 4.21 ± 1.04
(± 0.57 ± 0.87) 1.26 ± 0.45
(± 0.38 ± 0.24) 0.55 ± 0.37
(± 0.35 ± 0.12) 0.44 ± 0.35
(± 0.34 ± 0.09) 0.26 ± 0.36
(± 0.34 ± 0.12) 0.16 ± 0.34
(± 0.34 ± 0.06) 0.12 ± 0.34
(± 0.34 ± 0.05)

95% Confidence Level Expected Cross Section Limit( m_&chi=140 GeV, &tau_&chi=0 ns) for Ht cuts

Default MetSig Acceptance (%) Background Estimation &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>75 GeV 9.73 ± 0.97 17.41 ± 4.38 67.20 34.01 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>125 GeV 9.71 ± 0.97 4.21 ± 1.04 33.57 25.19 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>175 GeV 9.51 ± 0.95 1.26 ± 0.45 23.58 21.63 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>200 GeV 9.28 ± 0.93 0.55 ± 0.37 20.99 24.30 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>225 GeV 8.87 ± 0.89 0.44 ± 0.35 21.83 18.59 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>250 GeV 8.28 ± 0.83 0.26 ± 0.36 22.08 19.91 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>275 GeV 7.52 ± 0.75 0.16 ± 0.34 23.41 21.956 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1
Ht>325 GeV 5.49 ± 0.55 0.12 ± 0.34 31.56 30.07 22.8

Optimal Cuts with Default MetSig cuts( MetSig(njet=0)>9, MetSig(njet=1)>4, MetSig(njet>1)>3 ):
Ht > 200 GeV, &Delta&phi(&gamma₁,&gamma₂) < &pi - 0.10 !!

08/28/08
New Background Estimation with Corrected MetSig for &Delta&phi cut(with Ht>200 GeV)

Sample Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.05
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.20
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.25
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.30
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys)

Baur W(e)+pho 0.099 ± 0.070 ± ?? 0.099 ± 0.070 ± ?? 0.049 ± 0.049 ± ?? 0.049 ± 0.049 ± ?? 0.049 ± 0.049 ± ?? 0.049 ± 0.049 ± ?? 0.049 ± 0.049± ??

Baur W(mu)+pho 0.047 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ?? 0.00 ± 0.047 ± ??

Baur W(tau)+pho 0.095 ± 0.067 ± ?? 0.095 ± 0.067 ± ?? 0.095 ± 0.067 ± ?? 0.095 ± 0.067 ± ?? 0.095 ± 0.067 ± ?? 0.047 ± 0.047 ± ?? 0.047 ± 0.047 ± ??

Baur Z(e)+pho 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ??

Baur Z(mu)+pho 0.085 ± 0.016 ± ?? 0.082 ± 0.016 ± ?? 0.079 ± 0.015 ± ?? 0.079 ± 0.015 ± ?? 0.079 ± 0.015 ± ?? 0.073 ± 0.015 ± ?? 0.070 ± 0.014 ± ??

Baur Z(tau)+pho 0.055 ± 0.013 ± ?? 0.055 ± 0.013 ± ?? 0.049 ± 0.012 ± ?? 0.046 ± 0.012 ± ?? 0.046 ± 0.012 ± ?? 0.042 ± 0.011 ± ?? 0.042 ± 0.011 ± ??

Pythia Z(tau) no ISR/FSR 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ??

Pythia Z(e) no ISR/FSR 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ??

Pythia Z(mu) no ISR/FSR 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ??

Pythia W(e) no ISR/FSR 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ??

Pythia W(tau) no ISR/FSR 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ??

Pythia W(mu) no ISR/FSR 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ??

Pythia ttbar(incl) 0.048 ± 0.009 ± ?? 0.046 ± 0.009 ± ?? 0.046 ± 0.009 ± ?? 0.046 ± 0.009 ± ?? 0.044 ± 0.009 ± ?? 0.044 ± 0.009 ± ?? 0.043 ± 0.009 ± ??

Beam Halo 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010

Cosmic 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026

Pythia tri-pho 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035

Wrong Vertex 0.081 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008

QCD 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0

Background Estimation Combined

Sample Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.05
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.10
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.15
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.20
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.25
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.30
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
&Delta&phi<&pi - 0.35
(pred ± stat ± sys)

EWK Combined 0.45 ± 0.27 ± 0.13 0.40 ± 0.27 ± 0.11 0.34 ± 0.26 ± 0.10 0.34 ± 0.26 ± 0.10 0.33 ± 0.26 ± 0.09 0.27 ± 0.26 ± 0.08 0.27 ± 0.26 ± 0.08

Non-Collision (CR,BH) 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028

Pythia tri-pho 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035

Wrong Vertex 0.081 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008 0.00 ± 0.081 ± 0.008

QCD 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0

TOTAL 0.68 ± 0.38
(± 0.35 ± 0.14) 0.55 ± 0.37
(± 0.35 ± 0.12) 0.49 ± 0.36
(± 0.34 ± 0.11) 0.49 ± 0.36
(± 0.34 ± 0.11) 0.48 ± 0.35
(± 0.34 ± 0.10) 0.42 ± 0.35
(± 0.34 ± 0.09) 0.42 ± 0.35
(± 0.34 ± 0.09)

95% Confidence Level Expected Cross Section Limit( m_&chi=140 GeV, &tau_&chi=0 ns) for MetSig, Ht cuts without Et cut

Default MetSig
Ht>200 GeV Acceptance (%) Background Estimation &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.05 9.44 ± 0.94 0.68 ± 0.38 21.37 23.46 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1 9.28 ± 0.93 0.55 ± 0.37 20.99 24.30 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15 9.07 ± 0.91 0.49 ± 0.36 21.70 24.91 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.2 8.98 ± 0.90 0.49 ± 0.36 21.92 26.16 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.25 8.79 ± 0.88 0.48 ± 0.35 22.33 25.70 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.3 8.59 ± 0.86 0.42 ± 0.35 22.38 19.19 22.8

&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.35 8.34 ± 0.83 0.42 ± 0.35 23.05 19.77 22.8

08/27/08
New Background Estimation with Corrected MetSig for Ht cut

Sample Default MetSig
H_T>75 GeV
(pred ± stat ± sys) Default MetSig
H_T>125 GeV
(pred ± stat ± sys) Default MetSig
H_T>175 GeV
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
(pred ± stat ± sys) Default MetSig
H_T>225 GeV
(pred ± stat ± sys) Default MetSig
H_T>275 GeV
(pred ± stat ± sys) Default MetSig
H_T>325 GeV
(pred ± stat ± sys)

Baur W(e)+pho 8.64 ± 0.65 ± ?? 1.38 ± 0.26 ± ?? 0.44 ± 0.15 ± ?? 0.25 ± 0.11 ± ?? 0.25 ± 0.11 ± ?? 0.15 ± 0.08 ± ?? 0.15 ± 0.08 ± ??

Baur W(mu)+pho 1.03 ± 0.22 ± ?? 0.47 ± 0.15 ± ?? 0.33 ± 0.12 ± ?? 0.24 ± 0.10 ± ?? 0.19 ± 0.09 ± ?? 0.19 ± 0.09 ± ?? 0.14 ± 0.08 ± ??

Baur W(tau)+pho 2.18 ± 0.32 ± ?? 0.90 ± 0.21 ± ?? 0.33 ± 0.12 ± ?? 0.24 ± 0.10 ± ?? 0.19 ± 0.09 ± ?? 0.047 ± 0.05 ± ?? 0.047 ± 0.05 ± ??

Baur Z(e)+pho 0.082 ± 0.016 ± ?? 0.015 ± 0.007 ± ?? 0.003 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ??

Baur Z(mu)+pho 0.945 ± 0.054 ± ?? 0.255 ± 0.028 ± ?? 0.106 ± 0.018 ± ?? 0.088 ± 0.016 ± ?? 0.058 ± 0.013 ± ?? 0.030 ± 0.010 ± ?? 0.012 ± 0.006 ± ??

Baur Z(tau)+pho 0.747 ± 0.048 ± ?? 0.246 ± 0.027 ± ?? 0.091 ± 0.017 ± ?? 0.058 ± 0.013 ± ?? 0.036 ± 0.010 ± ?? 0.018 ± 0.007 ± ?? 0.003 ± 0.003 ± ??

Pythia Z(tau) no ISR/FSR 0.071 ± 0.050 ± ?? 0.035 ± 0.035 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ??

Pythia Z(e) no ISR/FSR 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ??

Pythia Z(mu) no ISR/FSR 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ??

Pythia W(e) no ISR/FSR 1.13 ± 0.46 ± ?? 0.19 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ?? 0.00 ± 0.19 ± ??

Pythia W(tau) no ISR/FSR 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ?? 0.00 ± 0.12 ± ??

Pythia W(mu) no ISR/FSR 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ??

Pythia ttbar(incl) 0.050 ± 0.010 ± ?? 0.048 ± 0.009 ± ?? 0.048 ± 0.009 ± ?? 0.048 ± 0.009 ± ?? 0.042 ± 0.009 ± ?? 0.038 ± 0.008 ± ?? 0.028 ± 0.007 ± ??

Beam Halo 0.26 ± 0.077 ± 0.12 0.047 ± 0.033 ± 0.021 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010

Cosmic 0.22 ± 0.074 ± 0.12 0.074 ± 0.043 ± 0.039 0.074 ± 0.043 ± 0.039 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.025 ± 0.025 ± 0.013 0.025 ± 0.025 ± 0.013

Pythia tri-pho 1.08 ± 0.44 ± 0.21 0.54 ± 0.31 ± 0.10 0.180 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035

Wrong Vertex 0.49 ± 0.20 ± 0.05 0.40 ± 0.18 ± 0.04 0.40 ± 0.18 ± 0.04 0.40 ± 0.18 ± 0.04 0.32 ± 0.16 ± 0.03 0.24 ± 0.14 ± 0.02 0.16 ± 0.11 ± 0.02

QCD 0.9 ± 0.3 ± 0.0 0.5 ± 0.2 ± 0.1 0.2 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0

Background Estimation Combined

Sample Default MetSig
H_T>75 GeV
(pred ± stat ± sys) Default MetSig
H_T>125 GeV
(pred ± stat ± sys) Default MetSig
H_T>175 GeV
(pred ± stat ± sys) Default MetSig
H_T>200 GeV
(pred ± stat ± sys) Default MetSig
H_T>225 GeV
(pred ± stat ± sys) Default MetSig
H_T>275 GeV
(pred ± stat ± sys) Default MetSig
H_T>325 GeV
(pred ± stat ± sys)

EWK Combined 15.77 ± 0.95 ± 4.46 3.75 ± 0.44 ± 1.06 1.43 ± 0.32 ± 0.40 0.98 ± 0.29 ± 0.28 0.82 ± 0.28 ± 0.23 0.50 ± 0.26 ± 0.14 0.40 ± 0.26 ± 0.11

Non-Collision (CR,BH) 0.48 ± 0.11 ± 0.17 0.12 ± 0.054 ± 0.044 0.074 ± 0.049 ± 0.040 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.025 ± 0.034 ± 0.016 0.025 ± 0.034 ± 0.016

Pythia tri-pho 1.08 ± 0.44 ± 0.21 0.54 ± 0.31 ± 0.10 0.180 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035

Wrong Vertex 0.49 ± 0.20 ± 0.05 0.40 ± 0.18 ± 0.04 0.40 ± 0.18 ± 0.04 0.40 ± 0.18 ± 0.04 0.32 ± 0.16 ± 0.03 0.24 ± 0.14 ± 0.02 0.16 ± 0.11 ± 0.02

QCD 0.9 ± 0.3 ± 0.0 0.5 ± 0.2 ± 0.1 0.2 ± 0.1 ± 0.0 0.1 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0 0.0 ± 0.1 ± 0.0

TOTAL 18.72 ± 4.61
(± 1.12 ± 4.47) 5.31 ± 1.23
(± 0.60 ± 1.07) 2.28 ± 0.58
(± 0.42 ± 0.40) 1.53 ± 0.49
(± 0.40 ± 0.29) 1.19 ± 0.45
(± 0.38 ± 0.24) 0.76 ± 0.39
(± 0.36 ± 0.15) 0.59 ± 0.37(± 0.35 ± 0.12)

95% Confidence Level Expected Cross Section Limit( m_&chi=140 GeV, &tau_&chi=0 ns) for MetSig, Ht cuts without Et cut

Default MetSig Acceptance (%) Background Estimation &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

H_T>75 GeV 10.08 ± 1.01 18.72 ± 4.61 67.93 25.91 22.8

H_T>125 GeV 10.06 ± 1.00 5.31 ± 1.23 35.11 23.07 22.8

H_T>175 GeV 9.86 ± 0.98 2.28 ± 0.58 26.79 19.60 22.8

H_T>200 GeV 9.60 ± 0.96 1.53 ± 0.49 24.52 21.37 22.8

H_T>225 GeV 9.19 ± 0.92 1.19 ± 0.45 24.26 16.04 22.8

H_T>275 GeV 7.76 ± 0.78 0.76 ± 0.39 26.09 19.00 22.8

H_T>325 GeV 5.66 ± 0.56 0.59 ± 0.37 34.88 27.63 22.8

Default MetSig cuts : MetSig(njet=0)>9.0, MetSig(njet=1)>4.0, MetSig(njet>1)>3.0

08/25/08
Calibrated MetSig Plots for GMSB signal(9000 events) with m(&chi)=140 GeV, &tau(&chi)=0 ns

Default MetSig cut njet=0 njet=1 njet>1

No cut on Ht fig.1 fig.2 fig.3

Ht>200 GeV fig.4 fig.5 fig.6

No MetSig cut njet=0 njet=1 njet>1

No cut on Ht fig.7 fig.8 fig.9

Ht>200 GeV fig.10 fig.11 fig.12

Default MetSig cut: MetSig(njet=0)>9.0, MetSig(njet=1)>4.0, MetSig(njet>1)>3.0.

08/18/08
SUSY Talk 080208

Setting limits on GMSB models in the &gamma &gamma + MET fianl state with 2 fb^-1

08/17/08
New Plots for Further Optimization

Plots GMSB (130,0) GMSB (150,0) Baur W+pho Baur Z+pho Wrong Vertex Pythia Tripho

Ht/Et(pho1) Fig.1 Fig.2 Fig.3 Fig.4 Fig.5 Fig.6

Ht/Et(pho1) vs Ht Fig.7 Fig.8 Fig.9 Fig.10 Fig.11 Fig.12

Ht vs Et(pho1) Fig.13 Fig.14 Fig.15 Fig.16 Fig.17 Fig.18

&Delta &phi(Met,pho2) vs Et(pho1) Fig.19 Fig.20 Fig.21 Fig.22 Fig.23 Fig.24

&Delta &phi(Met,pho2) vs Ht Fig.25 Fig.26 Fig.27 Fig.28 Fig.29 Fig.30

&Delta &phi(pho1,pho2) vs Et(pho1) Fig.31 Fig.32 Fig.33 Fig.34 Fig.35 Fig.36

&Delta &phi(pho1,pho2) vs Ht Fig.37 Fig.38 Fig.39 Fig.40 Fig.41 Fig.42

08/15/08
Additional Individual Background Estimation with no 1st photon Et cut

Sample MetSig>5.0,
H_T>75,
(pred ± stat ± sys) MetSig>5.0,
H_T>100,
(pred ± stat ± sys) MetSig>5.0,
H_T>125,
(pred ± stat ± sys) MetSig>5.0,
H_T>150,
(pred ± stat ± sys) MetSig>5.0,
H_T>175,
(pred ± stat ± sys) MetSig>5.0,
H_T>200,
(pred ± stat ± sys) MetSig>5.0,
H_T>225,
(pred ± stat ± sys) MetSig>5.0,
H_T>250,
(pred ± stat ± sys) MetSig>5.0,
H_T>275,
(pred ± stat ± sys) MetSig>5.0,
H_T>300,
(pred ± stat ± sys)

Baur W(e)+pho 11.31 ± 0.75 ± ?? 3.21 ± 0.40 ± ?? 1.48 ± 0.27 ± ?? 0.74 ± 0.19 ± ?? 0.44 ± 0.15 ± ?? 0.25 ± 0.11 ± ?? 0.25 ± 0.11 ± ?? 0.15 ± 0.08 ± ?? 0.15 ± 0.08 ± ?? 0.15 ± 0.08 ± ??

Baur W(mu)+pho 1.55 ± 0.27 ± ?? 0.94 ± 0.21 ± ?? 0.47 ± 0.15 ± ?? 0.38 ± 0.13 ± ?? 0.33 ± 0.12 ± ?? 0.24 ± 0.10 ± ?? 0.19 ± 0.09 ± ?? 0.19 ± 0.09 ± ?? 0.19 ± 0.09 ± ?? 0.19 ± 0.09 ± ??

Baur W(tau)+pho 3.50 ± 0.41 ± ?? 1.70 ± 0.28 ± ?? 1.04 ± 0.22 ± ?? 0.57 ± 0.16 ± ?? 0.38 ± 0.13 ± ?? 0.28 ± 0.12 ± ?? 0.24 ± 0.10 ± ?? 0.19 ± 0.09 ± ?? 0.047 ± 0.05 ± ?? 0.047 ± 0.05 ± ??

Baur Z(e)+pho 0.150 ± 0.021 ± ?? 0.064 ± 0.014 ± ?? 0.030 ± 0.010 ± ?? 0.021 ± 0.008 ± ?? 0.009 ± 0.005 ± ?? 0.006 ± 0.004 ± ?? 0.003 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ?? 0.00 ± 0.003 ± ??

Baur Z(mu)+pho 1.429 ± 0.066 ± ?? 0.611 ± 0.043 ± ?? 0.286 ± 0.029 ± ?? 0.164 ± 0.022 ± ?? 0.112 ± 0.018 ± ?? 0.091 ± 0.017 ± ?? 0.061 ± 0.014 ± ?? 0.040 ± 0.011 ± ?? 0.030 ± 0.010 ± ?? 0.012 ± 0.006 ± ??

Baur Z(tau)+pho 1.505 ± 0.068 ± ?? 0.710 ± 0.046 ± ?? 0.340 ± 0.032 ± ?? 0.179 ± 0.023 ± ?? 0.100 ± 0.017 ± ?? 0.061 ± 0.014 ± ?? 0.039 ± 0.011 ± ?? 0.033 ± 0.010 ± ?? 0.021 ± 0.008 ± ?? 0.012 ± 0.006 ± ??

Pythia Z(tau) no ISR/FSR 0.141 ± 0.014 ± ?? 0.035 ± 0.007 ± ?? 0.035 ± 0.007 ± ?? 0.035 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ??

Pythia Z(e) no ISR/FSR 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ??

Pythia Z(mu) no ISR/FSR 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ??

Pythia W(e) no ISR/FSR 1.507 ± 0.533 ± ?? 0.565 ± 0.326 ± ?? 0.188 ± 0.188 ± ?? 0.00 ± 0.188 ± ?? 0.00 ± 0.188 ± ?? 0.00 ± 0.188 ± ?? 0.00 ± 0.188 ± ?? 0.00 ± 0.188 ± ?? 0.00 ± 0.188 ± ?? 0.00 ± 0.188 ± ??

Pythia W(tau) no ISR/FSR 0.00 ± 0.115 ± ?? 0.00 ± 0.115 ± ?? 0.00 ± 0.115 ± ?? 0.00 ± 0.115 ± ?? 0.00 ± 0.115 ± ?? 0.00 ± 0.115 ± ?? 0.00 ± 0.115 ± ?? 0.00 ± 0.115 ± ?? 0.00 ± 0.115 ± ?? 0.00 ± 0.115 ± ??

Pythia W(mu) no ISR/FSR 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ??

Pythia ttbar(incl) 0.050 ± 0.010 ± ?? 0.050 ± 0.010 ± ?? 0.048 ± 0.009 ± ?? 0.048 ± 0.009 ± ?? 0.048 ± 0.009 ± ?? 0.048 ± 0.009 ± ?? 0.042 ± 0.009 ± ?? 0.040 ± 0.009 ± ?? 0.038 ± 0.008 ± ?? 0.037 ± 0.008 ± ??

Beam Halo 0.257 ± 0.077 ± 0.116 0.093 ± 0.047 ± 0.042 0.047 ± 0.033 ± 0.021 0.023 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010

Cosmic 0.246 ± 0.078 ± 0.131 0.098 ± 0.049 ± 0.052 0.074 ± 0.043 ± 0.039 0.074 ± 0.043 ± 0.039 0.074 ± 0.043 ± 0.039 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.025 ± 0.025 ± 0.013 0.025 ± 0.025 ± 0.013

Pythia tri-pho 1.08 ± 0.44 ± 0.21 0.72 ± 0.36 ± 0.14 0.540 ± 0.312 ± 0.105 0.360 ± 0.254 ± 0.070 0.180 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035

Wrong Vertex 1.62 ± 0.36 ± 0.16 1.46 ± 0.34 ± 0.14 1.38 ± 0.33 ± 0.14 1.30 ± 0.32 ± 0.13 1.13 ± 0.30 ± 0.11 1.13 ± 0.30 ± 0.11 0.97 ± 0.28 ± 0.10 0.81 ± 0.26 ± 0.08 0.57 ± 0.21 ± 0.06 0.57 ± 0.21 ± 0.06

QCD 9.6 ± 0.98 ± 3.94 5.2 ± 0.72 ± 2.17 2.5 ± 0.50 ± 0.90 0.7 ± 0.26 ± 0.35 0.3 ± 0.17 ± 0.22 0.1 ± 0.10 ± 0.22 0.1 ± 0.10 ± 0.22 0.0 ± 0.10 ± 0.14 0.0 ± 0.10 ± 0.00 0.0 ± 0.10 ± 0.00

Background Estimation Combined

Sample MetSig>5.0,
H_T>75,
(pred ± stat ± sys) MetSig>5.0,
H_T>100,
(pred ± stat ± sys) MetSig>5.0,
H_T>125,
(pred ± stat ± sys) MetSig>5.0,
H_T>150,
(pred ± stat ± sys) MetSig>5.0,
H_T>175,
(pred ± stat ± sys) MetSig>5.0,
H_T>200,
(pred ± stat ± sys) MetSig>5.0,
H_T>225,
(pred ± stat ± sys) MetSig>5.0,
H_T>250,
(pred ± stat ± sys) MetSig>5.0,
H_T>275,
(pred ± stat ± sys) MetSig>5.0,
H_T>300,
(pred ± stat ± sys)

EWK Combined* 21.14 ± 1.05 ± 1.05 7.88 ± 0.64 ± 0.64 3.92 ± 0.44 ± 0.44 2.14 ± 0.36 ± 0.36 1.42 ± 0.32 ± 0.32 0.98 ± 0.30 ± 0.30 0.82 ± 0.28 ± 0.28 0.64 ± 0.27 ± 0.27 0.48 ± 0.26 ± 0.26 0.45 ± 0.26 ± 0.26

Non-Collision (CR,BH) 0.503 ± 0.110 ± 0.175 0.191 ± 0.068 ± 0.067 0.121 ± 0.054 ± 0.044 0.097 ± 0.049 ± 0.040 0.074 ± 0.049 ± 0.040 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.025 ± 0.034 ± 0.016 0.025 ± 0.034 ± 0.016

Pythia tri-pho 1.08 ± 0.44 ± 0.21 0.72 ± 0.36 ± 0.14 0.540 ± 0.312 ± 0.105 0.360 ± 0.254 ± 0.070 0.180 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035

Wrong Vertex 1.62 ± 0.36 ± 0.16 1.46 ± 0.34 ± 0.14 1.38 ± 0.33 ± 0.14 1.30 ± 0.32 ± 0.13 1.13 ± 0.30 ± 0.11 1.13 ± 0.30 ± 0.11 0.97 ± 0.28 ± 0.10 0.81 ± 0.26 ± 0.08 0.57 ± 0.21 ± 0.06 0.57 ± 0.21 ± 0.06

QCD 9.6 ± 0.98 ± 3.94 5.2 ± 0.72 ± 2.17 2.5 ± 0.50 ± 0.90 0.7 ± 0.26 ± 0.35 0.3 ± 0.17 ± 0.22 0.1 ± 0.10 ± 0.22 0.1 ± 0.10 ± 0.22 0.0 ± 0.10 ± 0.14 0.0 ± 0.10 ± 0.00 0.0 ± 0.10 ± 0.00

TOTAL 33.94 ± 4.37
(± 1.55 ± 4.09) 15.45 ± 2.51
(± 1.08 ± 2.27) 8.46 ± 1.30
(± 0.81 ± 1.02) 4.60 ± 0.79
(± 0.60 ± 0.52) 3.10 ± 0.65
(± 0.51 ± 0.41) 2.26 ± 0.61
(± 0.47 ± 0.39) 1.94 ± 0.58
(± 0.45 ± 0.37) 1.50 ± 0.54
(± 0.43 ± 0.32) 1.08 ± 0.47
(± 0.39 ± 0.27) 1.04 ± 0.47(± 0.39 ± 0.27)

* : Assume sys. errors are the same as stat. for now. Will come up with exact numbers soon.

95% Confidence Level Expected Cross Section Limit( m_&chi=130 GeV, &tau_&chi=0 ns) for MetSig, Ht cuts without Et cut

MetSig Cut > 5 Acceptance (%) Background Estimation &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

H_T>75 GeV 11.07 ± 1.11 33.94 ± 4.37 70.32 30.32 36.08

H_T>100 GeV 11.06 ± 1.10 15.45 ± 2.51 49.12 35.59 36.08

H_T>125 GeV 11.02 ± 1.10 8.46 ± 1.30 37.56 30.27 36.08

H_T>150 GeV 10.93 ± 1.09 4.60 ± 0.79 30.32 21.60 36.08

H_T>175 GeV 10.68 ± 1.07 3.10 ± 0.65 27.12 21.26 36.08

H_T>200 GeV 10.23 ± 1.02 2.26 ± 0.61 25.87 23.12 36.08

H_T>225 GeV 9.61 ± 0.96 1.94 ± 0.58 26.46 14.77 36.08

H_T>250 GeV 8.79 ± 0.88 1.50 ± 0.54 26.67 16.15 36.08

H_T>275 GeV 7.78 ± 0.78 1.08 ± 0.47 28.01 18.95 36.08

H_T>300 GeV 6.87 ± 0.69 1.04 ± 0.47 31.41 21.46 36.08

Optimal Cuts: H_T > 200 GeV, with MetSig > 5.0
This is even better than with Et(pho1)>20 GeV in entry 08/05/08. This means that Ht cut is optimizing better without Et(pho1) cut. Et(pho1) is correlated with Ht. How? See here. This plot shows the ratio, Ht/Et(pho1) with ONLY MetSig>5. The ratio is greater than 2. For example, given Ht>200 GeV cut, Et(pho1)>30, 40, 50, ...GeV make no differences.

Background Distributions along with GMSB signal for 2-dimensional new optimal cut(Ht>200 GeV, metsig>5) without Et(pho1) cut

Met
Et(pho1)
Et(pho2)
Njet>15
Qt
&Delta &phi (pho1, pho2) -> Killer cut! : < 3.0 kills most backgrounds(wrong vertex, EWK) without losing signal( ~ 5.0 %)
&Delta &phi (pho1, Met)
&Delta &phi (pho2, Met) -> Killer cut! :> 0.5 kills most backgrounds(wrong vertex, EWK) without losing signal( ~ 5.0 %).

08/14/08
N-1 Plot of Background Distributions along with GMSB Signal for Optimal Point: Et(pho1)>40 GeV, Ht>200 GeV, MetSig > 5.0

MetSig
MetSig(no cuts)
Et(pho1)
Ht

08/13/08
Additional Individual Background Estimation with loosing cuts

Sample MetSig>5.0,
E_T(pho1)>40,
H_T>100,
(pred ± stat ± sys) MetSig>5.0,
E_T(pho1)>40,
H_T>275,
(pred ± stat ± sys) MetSig>5.0,
E_T(pho1)>20,
H_T>200,
(pred ± stat ± sys) MetSig>5.0,
E_T(pho1)>70,
H_T>200,
(pred ± stat ± sys)

Baur W(e)+pho 0.79 ± 0.20 ± ?? 0.15 ± 0.08 ± ?? 0.25 ± 0.11 ± ?? 0.25 ± 0.11 ± ??

Baur W(mu)+pho 0.56 ± 0.16 ± ?? 0.19 ± 0.09 ± ?? 0.24 ± 0.10 ± ?? 0.24 ± 0.10 ± ??

Baur W(tau)+pho 1.28 ± 0.25 ± ?? 0.047 ± 0.047 ± ?? 0.28 ± 0.12 ± ?? 0.28 ± 0.12 ± ??

Baur Z(e)+pho 0.0122 ± 0.0061 ± ?? 0.00 ± 0.0030 ± ?? 0.0061 ± 0.0043 ± ?? 0.0030 ± 0.0030 ± ??

Baur Z(mu)+pho 0.392 ± 0.034 ± ?? 0.030 ± 0.010 ± ?? 0.088 ± 0.016 ± ?? 0.076 ± 0.015 ± ??

Baur Z(tau)+pho 0.273 ± 0.029 ± ?? 0.021 ± 0.008 ± ?? 0.061 ± 0.014 ± ?? 0.046 ± 0.012 ± ??

Pythia Z(tau) no ISR/FSR 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ??

Pythia Z(e) no ISR/FSR 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ??

Pythia Z(mu) no ISR/FSR 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ??

Pythia W(e) no ISR/FSR 0.377 ± 0.266 ± ?? 0.00 ± 0.188 ± ?? 0.00 ± 0.188 ± ?? 0.00 ± 0.188 ± ??

Pythia W(tau) no ISR/FSR 0.00 ± 0.115 ± ?? 0.00 ± 0.115 ± ?? 0.00 ± 0.115 ± ?? 0.00 ± 0.115 ± ??

Pythia W(mu) no ISR/FSR 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ??

Pythia ttbar(incl) 0.0165 ± 0.0055 ± ?? 0.0147 ± 0.0052 ± ?? 0.0422 ± 0.0088 ± ?? 0.0037 ± 0.0026 ± ??

Beam Halo 0.047 ± 0.033 ± 0.021 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010

Cosmic 0.098 ± 0.049 ± 0.052 0.025 ± 0.025 ± 0.013 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026

Pythia tri-pho 0.540 ± 0.312 ± 0.105 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035

Wrong Vertex 1.45 ± 0.34 ± 0.14 0.57 ± 0.21 ± 0.06 1.13 ± 0.30 ± 0.11 1.13 ± 0.30 ± 0.11

QCD 1.2 ± 0.35 ± 0.24 0.00 ± 0.10 ± 0.00 0.1 ± 0.1 ± 0.22 0.00 ± 0.10 ± 0.00

Background Estimation Combined

Sample MetSig>5.0,
E_T(pho1)>40,
H_T>100,
(pred ± stat ± sys) MetSig>5.0,
E_T(pho1)>40,
H_T>275,
(pred ± stat ± sys) MetSig>5.0,
E_T(pho1)>20,
H_T>200,
(pred ± stat ± sys) MetSig>5.0,
E_T(pho1)>70,
H_T>200,
(pred ± stat ± sys)

EWK Combined* 3.70 ± 0.46 ± 0.46 0.45 ± 0.26 ± 0.26 0.97 ± 0.30 ± 0.30 0.90 ± 0.30 ± 0.30

Non-Collision (CR,BH) 0.145 ± 0.059 ± 0.056 0.025 ± 0.034 ± 0.016 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028

Pythia tri-pho 0.540 ± 0.312 ± 0.105 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035

Wrong Vertex 1.45 ± 0.34 ± 0.14 0.57 ± 0.21 ± 0.06 1.13 ± 0.30 ± 0.11 1.13 ± 0.30 ± 0.11

QCD 1.2 ± 0.35 ± 0.24 0.00 ± 0.10 ± 0.00 0.10 ± 0.10 ± 0.22 0.00 ± 0.10 ± 0.00

TOTAL 7.04 ± 0.92
(± 0.74 ± 0.55) 1.04 ± 0.47
(± 0.39 ± 0.27) 2.25 ± 0.61
(± 0.47 ± 0.39) 2.08 ± 0.57
(± 0.47 ± 0.32)

* : Assume sys. errors are the same as stat. for now. Will come up with exact numbers soon.

08/12/08
Background Distributions along with GMSB signal for metsig > 5.0

Met
Et(pho1) -> Best separation
Et(pho2)
Et(jet)
Ht -> Best separation
M
Njet>15
Qt
&Delta &phi (pho1, pho2)
&Delta &phi (pho1, Met)
&Delta &phi (pho2, Met)
&Delta R (pho1, pho2)

Background Distributions along with GMSB signal for 2-dimensional optimal cuts(Et>40 GeV, Ht>200 GeV) with metsig > 5.0

Met -> Good separation
Et(pho1)
Et(pho2)
Ht
M
Njet>15 -> Good separation
Qt
&Delta &phi (pho1, pho2) -> Killer cut! : < 3.0 kills most backgrounds(wrong vertex, EWK) without losing signal( ~ 5.0 %)
&Delta &phi (pho1, Met)
&Delta &phi (pho2, Met) -> Killer cut! :> 0.5 kills most backgrounds(wrong vertex, EWK) without losing signal( ~ 5.0 %).

08/08/08
Plots for Wrong Vertex

&Delta R(pho1, pho2) for njet=0 for wrong vertex
&Delta &phi(pho1, pho2) for njet=0 for wrong vertex

11 events have no jet out of 14 events with the cuts MetSig>5.0, H_T>200 GeV, E_T(pho1)>40 GeV.

08/07/08
Expected Cross Section Limit plots VS Ht, Et(pho1) for m_&chi=130 GeV, &tau_&chi=0 ns

&sigma_exp VS E_T(pho1)
&sigma_exp VS H_T

08/05/08
95% Confidence Level Expected Cross Section Limit( m_&chi=130 GeV, &tau_&chi=0 ns) for MetSig, Ph1_Et, Ht cuts with new code

MetSig Cut > 5 Acceptance (%) Background Estimation &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

E_T(pho1)>20 GeV
H_T>200 GeV 10.2 ± 1.02 2.25 ± 0.61 25.90 23.12 36.08

E_T(pho1)>30 GeV
H_T>200 GeV 9.92 ± 0.99 2.23 ± 0.62 26.50 23.78 36.08

E_T(pho1)>40 GeV
H_T>100 GeV 10.9 ± 1.09 7.04 ± 0.92 35.08 20.31 36.08

E_T(pho1)>40 GeV
H_T>125 GeV 10.9 ± 1.09 5.65 ± 0.82 32.58 21.28 36.08

E_T(pho1)>40 GeV
H_T>175 GeV 10.3 ± 1.03 2.71 ± 0.59 27.03 22.51 36.08

E_T(pho1)>40 GeV
H_T>200 GeV 9.87 ± 0.99 2.12 ± 0.57 26.15 23.90 36.08

E_T(pho1)>40 GeV
H_T>225 GeV 9.22 ± 0.92 1.81 ± 0.54 27.11 15.39 36.08

E_T(pho1)>40 GeV
H_T>250 GeV 8.52 ± 0.85 1.47 ± 0.51 27.30 16.66 36.08

E_T(pho1)>40 GeV
H_T>275 GeV 7.76 ± 0.78 1.04 ± 0.47 27.67 18.90 36.08

E_T(pho1)>50 GeV
H_T>175 GeV 9.87 ± 0.99 2.63 ± 0.59 27.93 23.49 36.08

E_T(pho1)>50 GeV
H_T>200 GeV 9.52 ± 0.95 2.05 ± 0.57 27.13 25.67 36.08

E_T(pho1)>70 GeV
H_T>200 GeV 8.34 ± 0.83 2.08 ± 0.57 31.08 29.44 36.08

New Optimal Cuts: E_T(pho1) > 20 GeV, H_T > 200 GeV, with MetSig > 5.0 : 1st Photon Et doesn't help at all since it is correlated with Ht -> under investigations (See entry 08/15/08)

07/29/08
Expected Cross Section differences

&Delta&sigma_exp VS mass for various lifetimes
&Delta&sigma_exp VS mass for lifetime=1 and 0 ns
&Delta&sigma_exp VS mass for lifetime=2 and 0 ns (log scale)
&Delta&sigma_exp VS mass for lifetime=5 and 0 ns (log scale)

07/22/08
Plots for Wrong Vertex

MetSig for njet=0 for wrong vertex
H_T for njet=0 for wrong vertex
Met for njet=0 for wrong vertex

MetSig>5.0, H_T>175 GeV, E_T(pho1)>40 GeV.

07/21/08
Individual Background Estimation with new code for &gamma&gamma + Met with raw MetSig(before calibration)

Sample MetSig>5.0,
E_T(pho1)>40,
H_T>125,
(pred ± stat ± sys) MetSig>5.0,
E_T(pho1)>40,
H_T>175,
(pred ± stat ± sys) MetSig>5.0,
E_T(pho1)>50,
H_T>175,
(pred ± stat ± sys) MetSig>5.0,
E_T(pho1)>30,
H_T>200,
(pred ± stat ± sys) MetSig>5.0,
E_T(pho1)>40,
H_T>200,
(pred ± stat ± sys) MetSig>5.0,
E_T(pho1)>40,
H_T>225,
(pred ± stat ± sys) MetSig>5.0,
E_T(pho1)>40,
H_T>250,
(pred ± stat ± sys) MetSig>5.0,
E_T(pho1)>50,
H_T>200,
(pred ± stat ± sys)

Baur W(e)+pho 0.74 ± 0.19 ± ?? 0.34 ± 0.13 ± ?? 0.34 ± 0.13 ± ?? 0.25 ± 0.11 ± ?? 0.25 ± 0.11 ± ?? 0.25 ± 0.11 ± ?? 0.15 ± 0.08 ± ?? 0.25 ± 0.11 ± ??

Baur W(mu)+pho 0.38 ± 0.13 ± ?? 0.33 ± 0.12 ± ?? 0.28 ± 0.12 ± ?? 0.24 ± 0.10 ± ?? 0.24 ± 0.10 ± ?? 0.19 ± 0.09 ± ?? 0.19 ± 0.09 ± ?? 0.24 ± 0.10 ± ??

Baur W(tau)+pho 0.95 ± 0.21 ± ?? 0.33 ± 0.12 ± ?? 0.33 ± 0.12 ± ?? 0.28 ± 0.12 ± ?? 0.28 ± 0.12 ± ?? 0.24 ± 0.10 ± ?? 0.19 ± 0.09 ± ?? 0.28 ± 0.12 ± ??

Baur Z(e)+pho 0.0092 ± 0.0053 ± ?? 0.0061 ± 0.0043 ± ?? 0.0061 ± 0.0043 ± ?? 0.0061 ± 0.0043 ± ?? 0.0061 ± 0.0043 ± ?? 0.0030 ± 0.0030 ± ?? 0.00 ± 0.0030 ± ?? 0.0061 ± 0.0043 ± ??

Baur Z(mu)+pho 0.22 ± 0.026 ± ?? 0.11 ± 0.018 ± ?? 0.10 ± 0.017 ± ?? 0.088 ± 0.016 ± ?? 0.088 ± 0.016 ± ?? 0.058 ± 0.013 ± ?? 0.040 ± 0.011 ± ?? 0.082 ± 0.016 ± ??

Baur Z(tau)+pho 0.212 ± 0.025 ± ?? 0.094 ± 0.017 ± ?? 0.085 ± 0.016 ± ?? 0.058 ± 0.013 ± ?? 0.058 ± 0.013 ± ?? 0.036 ± 0.010 ± ?? 0.030 ± 0.010 ± ?? 0.052 ± 0.012 ± ??

Pythia Z(tau) no ISR/FSR 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ?? 0.00 ± 0.007 ± ??

Pythia Z(e) no ISR/FSR 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ?? 0.00 ± 0.001 ± ??

Pythia Z(mu) no ISR/FSR 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ?? 0.00 ± 0.020 ± ??

Pythia W(e) no ISR/FSR 0.188 ± 0.188 ± ?? 0.00 ± 0.188 ± ?? 0.00 ± 0.188 ± ?? 0.00 ± 0.188 ± ?? 0.00 ± 0.188 ± ?? 0.00 ± 0.188 ± ?? 0.00 ± 0.188 ± ?? 0.00 ± 0.188 ± ??

Pythia W(tau) no ISR/FSR 0.00 ± 0.115 ± ?? 0.00 ± 0.115 ± ?? 0.00 ± 0.115 ± ?? 0.00 ± 0.115 ± ?? 0.00 ± 0.115 ± ?? 0.00 ± 0.115 ± ?? 0.00 ± 0.115 ± ?? 0.00 ± 0.115 ± ??

Pythia W(mu) no ISR/FSR 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ?? 0.00 ± 0.042 ± ??

Pythia ttbar(incl) 0.0165 ± 0.0055 ± ?? 0.0165 ± 0.0055 ± ?? 0.0092 ± 0.0041 ± ?? 0.0293 ± 0.0073 ± ?? 0.0165 ± 0.0055 ± ?? 0.0147 ± 0.0052 ± ?? 0.0147 ± 0.0052 ± ?? 0.0092 ± 0.0041 ± ??

Beam Halo 0.047 ± 0.033 ± 0.021 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010 0.00 ± 0.023 ± 0.010

Cosmic 0.074 ± 0.043 ± 0.039 0.074 ± 0.043 ± 0.039 0.074 ± 0.043 ± 0.039 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.049 ± 0.035 ± 0.026 0.00 ± 0.025 ± 0.013

Pythia tri-pho 0.540 ± 0.312 ± 0.105 0.180 ± 0.180 ± 0.035 0.180 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035

Wrong Vertex 1.37 ± 0.33 ± 0.14 1.13 ± 0.30 ± 0.11 1.13 ± 0.30 ± 0.11 1.13 ± 0.30 ± 0.11 1.13 ± 0.30 ± 0.11 0.97 ± 0.28 ± 0.10 0.81 ± 0.26 ± 0.08 1.13 ± 0.30 ± 0.11

QCD 0.9 ± 0.3 ± 0.22 0.10 ± 0.10 ± 0.17 0.10 ± 0.10 ± 0.17 0.10 ± 0.10 ± 0.35 0.00 ± 0.10 ± 0.00 0.00 ± 0.10 ± 0.00 0.00 ± 0.10 ± 0.00 0.00 ± 0.10 ± 0.00

Background Estimation Combined

Sample MetSig>5.0,
E_T(pho1)>40,
H_T>125,
(pred ± stat ± sys) MetSig>5.0,
E_T(pho1)>40,
H_T>175,
(pred ± stat ± sys) MetSig>5.0,
E_T(pho1)>50,
H_T>175,
(pred ± stat ± sys) MetSig>5.0,
E_T(pho1)>30,
H_T>200,
(pred ± stat ± sys) MetSig>5.0,
E_T(pho1)>40,
H_T>200,
(pred ± stat ± sys) MetSig>5.0,
E_T(pho1)>40,
H_T>225,
(pred ± stat ± sys) MetSig>5.0,
E_T(pho1)>40,
H_T>250,
(pred ± stat ± sys) MetSig>5.0,
E_T(pho1)>50,
H_T>200,
(pred ± stat ± sys)

EWK Combined* 2.72 ± 0.39 ± 0.39 1.23 ± 0.31 ± 0.31 1.15 ± 0.31 ± 0.31 0.95 ± 0.30 ± 0.30 0.94 ± 0.30 ± 0.30 0.79 ± 0.28 ± 0.28 0.61 ± 0.27 ± 0.27 0.92 ± 0.30 ± 0.30

Non-Collision (CR,BH) 0.121 ± 0.054 ± 0.044 0.074 ± 0.049 ± 0.040 0.074 ± 0.049 ± 0.040 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.049 ± 0.042 ± 0.028 0.00 ± 0.034 ± 0.016

Pythia tri-pho 0.540 ± 0.312 ± 0.105 0.180 ± 0.180 ± 0.035 0.180 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035 0.00 ± 0.180 ± 0.035

Wrong Vertex 1.37 ± 0.33 ± 0.14 1.13 ± 0.30 ± 0.11 1.13 ± 0.30 ± 0.11 1.13 ± 0.30 ± 0.11 1.13 ± 0.30 ± 0.11 0.97 ± 0.28 ± 0.10 0.81 ± 0.26 ± 0.08 1.13 ± 0.30 ± 0.11

QCD 0.9 ± 0.3 ± 0.22 0.10 ± 0.10 ± 0.17 0.10 ± 0.10 ± 0.17 0.10 ± 0.10 ± 0.35 0.00 ± 0.10 ± 0.00 0.00 ± 0.10 ± 0.00 0.00 ± 0.10 ± 0.00 0.00 ± 0.10 ± 0.00

TOTAL 5.65 ± 0.82
(± 0.67 ± 0.48) 2.71 ± 0.61
(± 0.48 ± 0.37) 2.63 ± 0.61
(± 0.48 ± 0.37) 2.23 ± 0.67
(± 0.47 ± 0.48) 2.12 ± 0.57
(± 0.47 ± 0.32) 1.81 ± 0.54
(± 0.45 ± 0.30) 1.47 ± 0.51
(± 0.43 ± 0.28) 2.05 ± 0.57
(± 0.47 ± 0.32)

* : Assume sys. errors are the same as stat. for now. Will come up with exact numbers soon.

07/17/08
95% C.L. Cross Section Limit vs mass for various lifetimes Comparison

x_sec VS mass for various lifetimes
x_sec VS mass for various lifetimes(zoom-in in linear scale)

07/15/08
95% C.L. Cross Section Limit vs mass, lifetime and Exclusion Region Plots

x_sec VS lifetime (mass=130 GeV)
x_sec VS lifetime (mass=100 GeV)
x_sec VS lifetime (mass=70 GeV)
x_sec VS mass (lifetime=0 ns)
x_sec VS mass (lifetime=1 ns)
x_sec VS mass (lifetime=5 ns)
x_sec VS mass (lifetime=7 ns)
Exclusion Region in mass and lifetime parameter space
Exclusion Region in mass and lifetime parameter space with the cosmology prediction
Exclusion Region in mass and lifetime parameter space with the cosmology prediction_with small scale in lifetime
Exclusion Region in mass and lifetime parameter space with the cosmology prediction_with small scale in lifetime (no delay 2 fb^-1)
Exclusion Region in mass and lifetime parameter space with the cosmology prediction (my favorite version)_

07/09/08
95% C.L. Cross Section Limits with Optimal Cuts

(m_&chi(GeV), &tau_&chi(ns)) Acceptance Background &sigma^exp(fb) &sigma^obs(fb) &sigma^prod(fb)

(70,0) 0.042 ± 0.004 3.75 ± 1.15 76 61.6 999.9

(70,1) 0.038 ± 0.004 3.75 ± 1.15 83.4 67.6 999.9

(70,2) 0.027 ± 0.003 3.75 ± 1.15 118.3 95.1 999.9

(70,5) 0.011 ± 0.001 285.8 231.5

(70,7) 0.0085 ± 0.0008 370.7 299.6

(70,8) 0.0043 ± 0.0004 731.2 592.2

(70,10) 0.0027 ± 0.0003 1183 951.5

(70,15) 0.002 ± 0.0002 1579 1273

(80,0) 0.066 ± 0.007 48.1 39.1 524.6

(80,1) 0.0655 ± 0.0066 48.36 39.22

(80,2) 0.050 ± 0.005 63.15 50.93

(80,5) 0.020 ± 0.002 157.9 127.3

(80,7) 0.013 ± 0.001 241.2 195.9

(80,10) 0.0077 ± 0.0008 411.6 333.6

(85,5) 0.030 ± 0.003 105.2 84.9 386.0

(85,7) 0.017 ± 0.002 188.6 151.1

(85,10) 0.0095 ± 0.001 333.7 270.4

(90,0) 0.084 ± 0.008 37.4 30.2 286.8

(90,1) 0.076 ± 0.008 41.71 33.80

(90,2) 0.062 ± 0.006 50.92 41.07

(90,5) 0.030 ± 0.003 105.2 84.88

(90,7) 0.018 ± 0.002 177.5 142.7

(90,10) 0.014 ± 0.001 223.3 181.9

(100,0) 0.100 ± 0.010 31.6 25.4 169.0

(100,1) 0.101 ± 0.010 31.26 25.21

(100,2) 0.077 ± 0.008 41.16 33.36

(100,5) 0.035 ± 0.004 91.5 73.4

(100,7) 0.022 ± 0.002 142.9 115.7

(100,8) 0.0215 ± 0.002 146.2 118.4

(100,10) 0.015 ± 0.001 207.5 169.8

(110,0) 0.104 ± 0.010 30.4 24.5 99.5

(110,1) 0.105 ± 0.010 30.07 24.25

(110,7) 0.028 ± 0.003 113.8 91.75

(115,5) 0.036 ± 0.004 88.7 71.4 74.7

(120,0) 0.104 ± 0.010 30.4 24.5 58.4

(120,2) 0.084 ± 0.008 37.59 30.32

(120,5) 0.041 ± 0.004 77.01 62.11

(120,7) 0.031 ± 0.003 101.8 82.14

(120,10) 0.018 ± 0.002 181.1 146.8
(130,0) 0.114 ± 0.011 27.7 22.3 36.1

(130,1) 0.113 ± 0.011 27.9 22.5

(130,1.5) 0.109 ± 0.011 29.1 23.6

(130,1.75) 0.099 ± 0.010 31.99 25.95

(130,2) 0.088 ± 0.009 36.0 29.2

(130,2.5) 0.080 ± 0.008 39.47 31.83

(130,3) 0.068 ± 0.007 46.6 37.8

(130,5) 0.046 ± 0.005 69.3 55.8

(140,0) 0.106 ± 0.011 29.9 24.2 22.8

(140,1) 0.106 ± 0.010 29.79 24.02

(140,2) 0.085 ± 0.008 37.07 29.96

(150,0) 0.110 ± 0.011 28.7 23.1 14.5

Optimal Cuts: MetSig>5.0, E_T>40 GeV, H_T>175 GeV.
07/04/08
New MetSig Code(after calibration) test on GMSB signal

(m_&chi, &tau_&chi) MetSig all
MetSig>5 MetSig with njet=0
MetSig>5 MetSig with njet=1
MetSig>4 MetSig with njet>1
MetSig>3

(130,0) with bad Met cut fig.1
fig.2 fig.3
fig.4 fig.5
fig.6 fig.7
fig.8

(130,0) no bad Met cut fig.9
fig.10 fig.11
fig.12 fig.13
fig.14 fig.15
fig.16

(150,0) with bad Met cut fig.17
fig.18 fig.19
fig.20 fig.21
fig.22 fig.23
fig.24

(150,0) no bad Met cut fig.25
fig.26 fig.27
fig.28 fig.29
fig.30 fig.31
fig.32

07/01/08
95% Confidence Level Expected Cross Section Limit( m_&chi=70 GeV, &tau_&chi=15 ns) for MetSig, Ph1_Et, Ht cuts

MetSig Cut > 5 Acceptance Background Estimation
(With Wrong Vx) &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

E_T(pho1)>40 GeV
H_T>150 GeV 0.003 ± 0.0003 5.50 ± 1.37 1197 773.7 999.9

E_T(pho1)>30 GeV
H_T>150 GeV 0.004 ± 0.0004 5.66 ± 1.38 905.6 580.3 999.9

E_T(pho1)>40 GeV
H_T>125 GeV 0.004 ± 0.0004 7.16 ± 1.60 988.0 580.6 999.9

E_T(pho1)>40 GeV
H_T>175 GeV 0.002 ± 0.0002 3.75 ± 1.15 1579 1273 999.9

E_T(pho1)>50 GeV
H_T>150 GeV 0.002 ± 0.0002 5.39 ± 1.36 1791 1161 999.9

E_T(pho1)>50 GeV
H_T>175 GeV 0.002 ± 0.0002 3.58 ± 1.12 235.9 197.6 169.0

07/01/08
SUSY Talk 070208

Setting limits on GMSB models in the &gamma &gamma + MET fianl state with 2 fb^-1

06/29/08
Exclusion Region

06/28/08
95% Confidence Level Expected Cross Section Limit( m_&chi=100 GeV, &tau_&chi=10 ns) for MetSig, Ph1_Et, Ht cuts

MetSig Cut > 5 Acceptance Background Estimation
(With Wrong Vx) &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

E_T(pho1)>40 GeV
H_T>150 GeV 0.017 ± 0.002 5.50 ± 1.37 214.8 136.5 169.0

E_T(pho1)>30 GeV
H_T>150 GeV 0.017 ± 0.002 5.66 ± 1.38 217.2 136.6 169.0

E_T(pho1)>40 GeV
H_T>125 GeV 0.018 ± 0.002 7.16 ± 1.60 222.8 129.0 169.0

_T(pho1)>40 GeV
H_T>175 GeV 0.015 ± 0.001 3.75 ± 1.15 207.5 169.8 169.0

E_T(pho1)>50 GeV
H_T>150 GeV 0.015 ± 0.002 5.39 ± 1.36 245.4 154.8 169.0

E_T(pho1)>50 GeV
H_T>175 GeV 0.013 ± 0.001 3.58 ± 1.12 235.9 197.6 169.0

06/26/08
Sigma VS mass plot for lifetime=5 ns

95% Confidence Level Expected Cross Section Limit( m_&chi=70 GeV, &tau_&chi=5 ns) for MetSig, Ph1_Et, Ht cuts

MetSig Cut > 5 Acceptance Background Estimation
(With Wrong Vx) &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

E_T(pho1)>40 GeV
H_T>150 GeV 0.015 ± 0.002 5.50 ± 1.37 246.1 154.8 999.9

E_T(pho1)>30 GeV
H_T>150 GeV 0.017 ± 0.002 5.66 ± 1.38 217.2 136.6 999.9

E_T(pho1)>40 GeV
H_T>125 GeV 0.021 ± 0.002 7.16 ± 1.60 187.2 110.6 999.9

E_T(pho1)>40 GeV
H_T>175 GeV 0.011 ± 0.001 3.75 ± 1.15 285.8 231.5 999.9

E_T(pho1)>50 GeV
H_T>150 GeV 0.013 ± 0.001 5.39 ± 1.36 271.2 178.5 999.9

E_T(pho1)>50 GeV
H_T>175 GeV 0.010 ± 0.001 3.58 ± 1.12 310.6 256.9 999.9

06/25/08
Sigma VS lifetime plot updated

95% Confidence Level Expected Cross Section Limit( m_&chi=130 GeV, &tau_&chi=2 ns) for MetSig, Ph1_Et, Ht cuts

MetSig Cut > 5 Acceptance Background Estimation
(With Wrong Vx) &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

E_T(pho1)>40 GeV
H_T>150 GeV 0.090 ± 0.009 5.50 ± 1.37 39.92 25.79 36.08

E_T(pho1)>30 GeV
H_T>150 GeV 0.091 ± 0.009 5.66 ± 1.38 39.81 25.51 36.08

E_T(pho1)>40 GeV
H_T>125 GeV 0.091 ± 0.009 7.16 ± 1.60 43.40 25.52 36.08

E_T(pho1)>40 GeV
H_T>175 GeV 0.088 ± 0.009 3.75 ± 1.15 36.02 29.19 36.08

E_T(pho1)>50 GeV
H_T>150 GeV 0.088 ± 0.009 5.39 ± 1.36 40.71 26.38 36.08

E_T(pho1)>50 GeV
H_T>175 GeV 0.086 ± 0.009 3.58 ± 1.12 36.18 29.87 36.08

95% Confidence Level Expected Cross Section Limit( m_&chi=130 GeV, &tau_&chi=3 ns) for MetSig, Ph1_Et, Ht cuts

MetSig Cut > 5 Acceptance Background Estimation
(With Wrong Vx) &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

E_T(pho1)>40 GeV
H_T>150 GeV 0.070 ± 0.007 5.50 ± 1.37 51.33 33.16 36.08

E_T(pho1)>30 GeV
H_T>150 GeV 0.071 ± 0.009 5.66 ± 1.38 51.01 32.69 36.08

E_T(pho1)>40 GeV
H_T>125 GeV 0.091 ± 0.009 7.16 ± 1.60 43.40 25.52 36.08

E_T(pho1)>40 GeV
H_T>175 GeV 0.068 ± 0.007 3.75 ± 1.15 46.61 37.78 36.08

E_T(pho1)>50 GeV
H_T>150 GeV 0.068 ± 0.007 5.39 ± 1.36 52.68 34.14 36.08

E_T(pho1)>50 GeV
H_T>175 GeV 0.067 ± 0.007 3.58 ± 1.12 46.43 38.34 36.08

95% Confidence Level Expected Cross Section Limit( m_&chi=100 GeV, &tau_&chi=5 ns) for MetSig, Ph1_Et, Ht cuts

MetSig Cut > 5 Acceptance Background Estimation
(With Wrong Vx) &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

E_T(pho1)>40 GeV
H_T>150 GeV 0.039 ± 0.004 5.50 ± 1.37 92.47 59.52 169.0

E_T(pho1)>30 GeV
H_T>150 GeV 0.040 ± 0.004 5.66 ± 1.38 90.56 58.03 169.0

E_T(pho1)>40 GeV
H_T>125 GeV 0.041 ± 0.004 7.16 ± 1.60 95.89 56.65 169.0

E_T(pho1)>40 GeV
H_T>175 GeV 0.035 ± 0.004 3.75 ± 1.15 91.51 73.40 169.0

E_T(pho1)>50 GeV
H_T>150 GeV 0.036 ± 0.004 5.39 ± 1.36 100.1 64.48 169.0

E_T(pho1)>50 GeV
H_T>175 GeV 0.033 ± 0.003 3.58 ± 1.12 93.73 77.84 169.0

06/24/08
95% Confidence Level Expected Cross Section Limit for MetSig, Ph1_Et, Ht cuts, NJet25>0

MetSig Cut > 5, E_T(pho1)>50 GeV
H_T>175 GeV, Njet25>0 Acceptance Background Estimation
(With Wrong Vx) &sigma ^exp (fb) &sigma ^prod (fb)

m_&chi=130 GeV, &tau_&chi=0 ns 0.092 ± 0.009 1.03 ± 0.58 23.3 36.1

m_&chi=140 GeV, &tau_&chi=0 ns 0.090 ± 0.009 1.03 ± 0.58 23.8 22.8

m_&chi=150 GeV, &tau_&chi=0 ns 0.097 ± 0.010 1.03 ± 0.58 22.1 14.5

06/23/08
Background Estimations and GMSB Signal Acceptances(m_&chi=130 GeV) for &gamma&gamma + Met

Sample MetSig>5.0,
E_T(pho1)>50,
H_T>200,
N_event(prediction) MetSig>5.0,
E_T(pho1)>50,
H_T>225,
N_event(prediction) MetSig>5.0,
E_T(pho1)>50,
H_T>250,
N_event(prediction) MetSig>5.0,
E_T(pho1)>50,
H_T>175, NJet25>0
N_event(prediction)

Bauer W(e)+pho 8 (0.40 ± 0.14) 7 (0.35 ± 0.13) 5 (0.25 ± 0.11) 2 (0.10 ± 0.07)

Bauer W(mu)+pho 4 (0.19 ± 0.09) 3 (0.14 ± 0.08) 3 (0.14 ± 0.08) 1 (0.047 ± 0.047)

Bauer W(tau)+pho 7 (0.33 ± 0.12) 7 (0.33 ± 0.12) 4 (0.19 ± 0.09) 0

Bauer Z(e)+pho 1 (0.0030 ± 0.0030) 1 (0.0030 ± 0.0030) 0 1 (0.0030 ± 0.0030)

Bauer Z(mu)+pho 29 (0.088 ± 0.016) 18 (0.055 ± 0.013) 15 (0.046 ± 0.012) 8 (0.024 ± 0.008)

Bauer Z(tau)+pho 29 (0.088 ± 0.016) 21 (0.064 ± 0.014) 17 (0.052 ± 0.012) 16 (0.048 ± 0.012)

Pyhia Z(tau) no ISR/FSR 0 0 0 0

Pyhia Z(e) no ISR/FSR 0 0 0 0

Pyhia Z(mu) no ISR/FSR 0 0 0 0

Pyhia W(e) no ISR/FSR 0 0 0 0

Pyhia W(tau) no ISR/FSR 0 0 0 0

Pyhia W(mu) no ISR/FSR 0 0 0 0

Pyhia ttbar(incl) 3 (0.012 ± 0.007) 3 (0.012 ± 0.007) 3 (0.012 ± 0.007) 3 (0.012 ± 0.007)

EWK Combined 1.11 ± 0.21 0.95 ± 0.20 0.69 ± 0.16 0.23 ± 0.08

QCD 0.3 ± 0.29

Non-Collision 0.030 ± 0.092 0.030 ± 0.092 0.030 ± 0.092 0

Wrong Vertex 1.6 ± 0.9 1.6 ± 0.9 1.6 ± 0.9 < 0.5 ± 0.5

TOTAL 1.03 ± 0.58

GMSB signal Acceptance
(m_&chi=130 GeV, &tau_&chi=5 ns)
N_exp 341 (0.057 ± 0.006)
4.18 318 (0.053 ± 0.005)
3.89 287 (0.048 ± 0.005)
3.52 241 (0.040 ± 0.004)
2.94

GMSB signal Acceptance
(m_&chi=130 GeV, &tau_&chi=0 ns)
N_exp 762 (0.127 ± 0.013)
9.32 720 (0.120 ± 0.012)
8.81 665 (0.111 ± 0.011)
8.15 549 (0.092 ± 0.009)
6.76

GMSB signal Acceptance
(m_&chi=140 GeV, &tau_&chi=0 ns)
N_exp 761 (0.127 ± 0.013)
5.89 723 (0.120 ± 0.012)
5.56 670 (0.112 ± 0.011)
5.19 541 (0.090 ± 0.009)
4.17

GMSB signal Acceptance
(m_&chi=150 GeV, &tau_&chi=0 ns)
N_exp 802 (0.134 ± 0.013)
3.95 777 (0.130 ± 0.013)
3.83 742 (0.124 ± 0.012)
3.66 581 (0.097 ± 0.010)
2.86

EMTiming Distributions of photons for GMSB signal(m_&chi=130 GeV, &tau_&chi=5 ns)
Ph1_EmTime
Ph2_EmTime
&Delta t (&gamma₁,&gamma₂)
- These plots show EmTiming distribution after EMTiming cut(before vertex swapping).

06/17/08
Sigma VS Lifetime plot

- MetSig>5, E_T(pho1)>40 GeV, H_T>175 GeV, Mass=130 GeV

06/16/08
Event Reduction Table for &gamma&gamma + Met GMSB MC signal(m_&chi=130 GeV, &tau_&chi=5 ns)

Cuts GMSB MC signal (6000 events) Efficiency (Cumulative) Efficiency (Relative)

trigger(N/A), good run, 2 EM objects 5272 87.9 % 87.9 %

phoID, E_T>7 GeV 522 8.7 % 9.9 %

PMT spikes N/A N/A N/A

Vertex 497 8.3 % 95.2 %

Vertex swap & E_T>13 481 8.0 % 96.8 %

Phoenix 467 7.8 % 97.1 %

Beam Halo 467 7.8 % 100 %

EMTiming 388 6.5 % 83.1 %

Trackless muon stub 386* 6.4 %* 99.5 %*

MetSig>5.0 292 4.9 % 75.6 %

- * : estimated from data.

95% Confidence Level Expected Cross Section Limit( m_&chi=130 GeV, &tau_&chi=5 ns) for MetSig cut

MetSig Cut (Njet15>0) Acceptance Background Estimation Observed &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

3.0 0.049 ± 0.005 106.6 ± 14.5 120 353 463 36

4.0 0.049 ± 0.005 63.6 ± 8.9 52 246 157 36

5.0 0.049 ± 0.005 48.6 ± 7.5 34 211 108 36

6.0 0.048 ± 0.005 38.0 ± 8.0 25 208 104 36

8.0 0.042 ± 0.004 23.5 ± 5.5 13 188 80 36

9.0 0.035 ± 0.004 18.0 ± 4.5 12 194 117 36

10 0.031 ± 0.003 16.0 ± 4.0 11 198 132 36

12 0.024 ± 0.002 8.1 ± 2.8 6 187 148 36

95% Confidence Level Expected Cross Section Limit( m_&chi=130 GeV, &tau_&chi=5 ns) for MetSig, Ph1_Et, Ht cuts

MetSig Cut > 5 Acceptance Background Estimation
(With Wrong Vx) &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

E_T(pho1)>40 GeV
H_T>150 GeV 0.048± 0.005 5.50 ± 1.37 75.35 48.36 36.08

E_T(pho1)>30 GeV
H_T>150 GeV 0.048 ± 0.005 5.66 ± 1.38 76.02 48.36 36.08

E_T(pho1)>40 GeV
H_T>125 GeV 0.048 ± 0.005 7.16 ± 1.60 82.73 48.39 36.08

E_T(pho1)>40 GeV
H_T>175 GeV 0.046 ± 0.005 3.75 ± 1.15 69.34 55.85 36.08

E_T(pho1)>50 GeV
H_T>150 GeV 0.047 ± 0.005 5.39 ± 1.36 76.47 49.39 36.08

E_T(pho1)>50 GeV
H_T>175 GeV 0.046 ± 0.004 3.58 ± 1.12 67.12 55.84 36.08

06/11/08
Event Reduction Table for &gamma&gamma + Met GMSB MC signal(m_&chi=130 GeV, &tau_&chi=1 ns)

Cuts GMSB MC signal (6000 events) Efficiency (Cumulative) Efficiency (Relative)

trigger(N/A), good run, 2 EM objects 5804 96.7 % 96.7 %

phoID, E_T>7 GeV 997 16.6 % 17.2 %

PMT spikes N/A N/A N/A

Vertex 953 15.9 % 95.6 %

Vertex swap & E_T>13 936 15.6 % 98.2 %

Phoenix 908 15.1 % 97.0 %

Beam Halo 908 15.1 % 100 %

EMTiming 893 14.9 % 98.3 %

Trackless muon stub 888* 14.8 %* 99.5 %*

MetSig>5.0 709 11.8 % 79.8 %

- * : estimated from data.

95% Confidence Level Expected Cross Section Limit( m_&chi=130 GeV, &tau_&chi=1 ns) for MetSig cut

MetSig Cut (Njet15>0) Acceptance Background Estimation Observed &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

3.0 0.119 ± 0.012 106.6 ± 14.5 120 145 191 36

4.0 0.119 ± 0.012 63.6 ± 8.9 52 101 65 36

5.0 0.118 ± 0.012 48.6 ± 7.5 34 87 45 36

6.0 0.117 ± 0.012 38.0 ± 8.0 25 85 43 36

8.0 0.101 ± 0.010 23.5 ± 5.5 13 79 33 36

9.0 0.082 ± 0.008 18.0 ± 4.5 12 81 50 36

10 0.072 ± 0.007 16.0 ± 4.0 11 86 57 36

12 0.056 ± 0.006 8.1 ± 2.8 6 82 64 36

95% Confidence Level Expected Cross Section Limit( m_&chi=130 GeV, &tau_&chi=1 ns) for MetSig, Ph1_Et, Ht cuts

MetSig Cut > 5 Acceptance Background Estimation
(With Wrong Vx) &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

E_T(pho1)>40 GeV
H_T>150 GeV 0.115± 0.012 5.50 ± 1.37 31.48 10.76 36.08

E_T(pho1)>30 GeV
H_T>150 GeV 0.116 ± 0.012 5.66 ± 1.38 31.45 20.01 36.08

E_T(pho1)>40 GeV
H_T>125 GeV 0.116 ± 0.012 7.16 ± 1.60 34.20 20.02 36.08

E_T(pho1)>40 GeV
H_T>175 GeV 0.113 ± 0.011 3.75 ± 1.15 27.94 22.53 36.08

E_T(pho1)>50 GeV
H_T>150 GeV 0.112 ± 0.011 5.39 ± 1.36 31.84 20.72 36.08

E_T(pho1)>50 GeV
H_T>175 GeV 0.111 ± 0.011 3.58 ± 1.12 27.98 23.14 36.08

06/10/08
Production Cross Section with k-factor

m_&chi (GeV/c²) k-factor NLP &sigma_prod (fb)

70 1.23 999.9

80 1.22 524.6

85 1.21 386.0

90 1.20 286.8

100 1.19 169.0

110 1.18 99.47

115 1.175 74.73
120 1.17 58.38

130 1.165 36.23

140 1.16 22.97

150 1.145 14.54

06/09/08
Sigma VS Mass plot

- MetSig>5, E_T(pho1)>40 GeV, H_T>175 GeV, Lifetime=0 ns

06/06/08
95% Confidence Level Expected Cross Section Limit( m_&chi=130 GeV, &tau_&chi=0 ns) for MetSig, Ph1_Et, Ht cuts

MetSig Cut > 5 Acceptance Background Estimation
(No Wrong Vx) &sigma ^exp (fb) Background Estimation
(With Wrong Vx) &sigma ^exp (fb) &sigma ^prod (fb)

E_T(pho1)>40 GeV
H_T>150 GeV 0.117 ± 0.012 2.30 ± 0.44 22.50 5.50 ± 1.37 30.82 36.08

E_T(pho1)>30 GeV
H_T>150 GeV 0.118 ± 0.012 2.46 ± 0.45 22.90 5.66 ± 1.38 30.89 36.08

E_T(pho1)>40 GeV
H_T>125 GeV 0.118 ± 0.012 3.96 ± 0.95 27.08 7.16 ± 1.60 33.58 36.08

E_T(pho1)>40 GeV
H_T>175 GeV 0.114 ± 0.011 1.60 ± 0.37 21.21 3.75 ± 1.15 27.70 36.08

E_T(pho1)>50 GeV
H_T>150 GeV 0.112 ± 0.011 2.19 ± 0.41 23.30 5.39 ± 1.36 31.84 36.08

E_T(pho1)>50 GeV
H_T>175 GeV 0.110 ± 0.011 1.43 ± 0.27 21.41 3.58 ± 1.12 28.24 36.08

05/30/08
Photon ID Efficiency comparison table updated

Event Reduction Table for &gamma&gamma + Met GMSB MC signal(m_&chi=110 GeV, &tau_&chi=0 ns) - 120,000 events

Cuts GMSB MC signal (120000 events) Efficiency (Cumulative) Efficiency (Relative)

trigger(N/A), good run, 2 EM objects 116034 96.7 % 96.7 %

phoID, E_T>7 GeV 19526 16.3 % 16.8 %

PMT spikes N/A N/A N/A

Vertex 18591 15.5 % 95.2 %

Vertex swap & E_T>13 18081 15.1 % 97.2 %

Phoenix 17660 14.7 % 97.7 %

Beam Halo 17660 14.7 % 100 %

EMTiming 17658 14.7 % 99.9 %

Trackless muon stub 17570* 14.6 %* 99.5 %*

MetSig>5.0 14302 11.9 % 81.4 %

- * : estimated from data.
- Overall identical to 6000 events.

05/29/08
Efficiency comparison table updated

Photon Et and Eta distribution plots for different neutralino masses updated

Efficiency VS neutralino mass (140 GeV added) updated

05/27/08
Various Comparison Plots of low and high MetSig for GMSB MC signal(m_&chi=100 GeV, &tau_&chi=0 ns)

Ph1_Et Ph2_Et Ph3_Et Jet1_Et H_t M_{&gamma &gamma}

M_{&gamma - jet} Met MetAll MetSig M_ph1-ph3 if N_&gamma>2 M_2Jets

&Delta&phi (&gamma₁,&gamma₂) &Delta&phi (Met,&gamma₁) &Delta&phi (Met,&gamma₂) &Delta&phi (Met,jet1)
if E_T^jet>15 GeV &Delta&phi (Met,jet1)
if E_T^jet>20 GeV &Delta&phi (Met,jet1)
if E_T^jet>25 GeV

# of Photons # of Jets
if E_T^jet>15 GeV # of Jets
if E_T^jet>20 GeV # of Jets
if E_T^jet>25 GeV Q_T of 2 Photons

MetSig VS &Delta &phi plots for GMSB MC signal(m_&chi=100 GeV, &tau_&chi=0 ns)

MetSig VS min(&Delta &phi(met,obj)) MetSig VS min(&Delta &phi(met,pho)) MetSig VS min(&Delta &phi(met,jet)) MetSig VS &Delta &phi(met, 1st pho) MetSig VS &Delta &phi(met, 1st jet)

05/26/08
Efficiency VS neutralino mass for GMSB MC signal(m_&chi= 70 - 140 GeV, &tau_&chi=0 ns) after MetSig cut>5.0

2 EM Obj PhID(Et>7) MetSig>5

05/20/08
Various Background Estimation Plots with GMSB MC signal(m_&chi= 130 GeV, &tau_&chi=0 ns) after MetSig cut>5.0

MetAll Met MetSig NJet25

Ph1_Et Ph1_Et(zoomin) H_t M_{&gamma &gamma}

05/19/08
Various Comparison Plots for GMSB MC signal(m_&chi=100 GeV and 130 GeV, &tau_&chi=0 ns) after MetSig cut>5.0

Ph1_Et Ph2_Et Ph3_Et Jet1_Et H_t M_{&gamma &gamma}

M_{&gamma - jet} Met MetAll MetSig M_ph1-ph3 if N_&gamma>2 M_2Jets

&Delta&phi (&gamma₁,&gamma₂) &Delta&phi (Met,&gamma₁) &Delta&phi (Met,&gamma₂) &Delta&phi (Met,jet1)
if E_T^jet>15 GeV &Delta&phi (Met,jet1)
if E_T^jet>20 GeV &Delta&phi (Met,jet1)
if E_T^jet>25 GeV

# of Photons # of Jets
if E_T^jet>15 GeV # of Jets
if E_T^jet>20 GeV # of Jets
if E_T^jet>25 GeV Q_T of 2 Photons

05/18/08
Photon E_T and &eta_Det distributions of GMSB signal for different neutralino masse

1st Photon Et 1st Pho_Det_Eta 2nd Photon Et 2nd Pho_Det_Eta

05/16/08
Comparison of Efficiencies for &gamma&gamma + Met GMSB MC signal(m_&chi=100 - 140 GeV, &tau_&chi=0 ns)

Cuts Events passed
(m_&chi=70 GeV) Efficiency
(Cumulative) Events passed
(m_&chi=80 GeV) Efficiency
(Cumulative) Events passed
(m_&chi=90 GeV) Efficiency
(Cumulative) Events passed
(m_&chi=100 GeV) Efficiency
(Cumulative) Events passed
(m_&chi=110 GeV) Efficiency
(Cumulative) Events passed
(m_&chi=120 GeV) Efficiency
(Cumulative) Events passed
(m_&chi=130 GeV) Efficiency
(Cumulative) Events passed
(m_&chi=140 GeV) Efficiency
(Cumulative)

2 EM objects 5751 95.8 % 5775 96.2 % 5803 96.7 % 5815 96.9 % 5788 96.3 % 5796 96.6 % 5794 96.6 % 5804 96.7 %

PhoID
E_T>7 GeV 856 14.3 % 935 15.6 % 971 16.2 % 1017 17.0 % 989 16.5 % 934 15.6 % 950 15.8 % 920 15.3 %

PMT spikes N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

Vertex 825 13.8 % 881 14.7 % 916 15.3 % 969 16.2 % 944 15.7 % 886 14.8 % 910 15.2 % 877 14.6 %

Vertex swap
E_T>13 767 12.8 % 837 14.0 % 873 14.6 % 945 15.8 % 926 15.4 % 868 14.5 % 896 14.9 % 861 14.4 %

Phoenix 742 12.4 % 815 13.6 % 857 14.3 % 921 15.4 % 912 15.2 % 839 14.0 % 875 14.6 % 838 14.0 %

Beam Halo 742 12.4 % 815 13.6 % 857 14.3 % 921 15.4 % 912 15.2 % 839 14.0 % 875 14.6 % 838 14.0 %

EMTiming 742 12.4 % 815 13.6 % 857 14.3 % 921 15.4 % 912 15.2 % 839 14.0 % 875 14.6 % 838 14.0 %

*Trackless
muon stub 783 13.0 % 811 13.5 % 853 14.2 % 916 15.3 % 907 15.1 % 835 13.9 % 871 14.5 % 834 13.9 %

MetSig>5.0 557 9.3 % 616 10.3 % 711 11.8 % 763 12.7 % 716 11.9 % 674 11.2 % 713 11.9 % 661 11.0 %

- * : estimated from data.

05/15/08
Event Reduction Table for &gamma&gamma + Met GMSB MC signal(m_&chi=130 GeV, &tau_&chi=0 ns)

Cuts GMSB MC signal (6000 events) Efficiency (Cumulative) Efficiency (Relative)

trigger(N/A), good run, 2 EM objects 5794 96.6 % 96.6 %

phoID, E_T>7 GeV 950 15.8 % 16.4 %

PMT spikes N/A N/A N/A

Vertex 910 15.2 % 95.8 %

Vertex swap & E_T>13 896 14.9 % 98.5 %

Phoenix 875 14.6 % 97.6 %

Beam Halo 875 14.6 % 100 %

EMTiming 875 14.6 % 100 %

Trackless muon stub 871* 13.9 %* 99.5 %*

MetSig>5.0 713 11.9 % 81.8 %

- * : estimated from data.

95% Confidence Level Expected Cross Section Limit( m_&chi=130 GeV, &tau_&chi=0 ns) for MetSig cut

MetSig Cut (Njet15>0) Acceptance Background Estimation Observed &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

3.0 0.120 ± 0.012 106.6 ± 14.5 120 144 189 36

4.0 0.120 ± 0.012 63.6 ± 8.9 52 100 64 36

5.0 0.119 ± 0.012 48.6 ± 7.5 34 87 45 36

6.0 0.118 ± 0.012 38.0 ± 8.0 25 84 43 36

8.0 0.112 ± 0.011 23.5 ± 5.5 13 70 30 36

9.0 0.094 ± 0.009 18.0 ± 4.5 12 71 44 36

10 0.081 ± 0.008 16.0 ± 4.0 11 76 50 36

12 0.066 ± 0.007 8.1 ± 2.8 6 70 55 36

05/14/08
Event Reduction Table for &gamma&gamma + Met GMSB MC signal(m_&chi=120 GeV, &tau_&chi=0 ns)

Cuts GMSB MC signal (6000 events) Efficiency (Cumulative) Efficiency (Relative)

trigger(N/A), good run, 2 EM objects 5796 96.6 % 96.6 %

phoID, E_T>7 GeV 934 15.6 % 16.1 %

PMT spikes N/A N/A N/A

Vertex 886 14.8 % 94.9 %

Vertex swap & E_T>13 868 14.5 % 98.0 %

Phoenix 839 14.0 % 96.7 %

Beam Halo 839 14.0 % 100 %

EMTiming 839 14.0 % 100 %

Trackless muon stub 835* 13.9 %* 99.5 %*

MetSig>5.0 674 11.2 % 80.7 %

- * : estimated from data.

95% Confidence Level Expected Cross Section Limit( m_&chi=120 GeV, &tau_&chi=0 ns) for MetSig cut

MetSig Cut (Njet15>0) Acceptance Background Estimation Observed &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

3.0 0.114 ± 0.011 106.6 ± 14.5 120 150 199 58

4.0 0.112 ± 0.011 63.6 ± 8.9 52 107 69 58

5.0 0.112 ± 0.011 48.6 ± 7.5 34 92 47 58

6.0 0.111 ± 0.011 38.0 ± 8.0 25 89 44 58

8.0 0.103 ± 0.010 23.5 ± 5.5 13 76 32 58

9.0 0.097 ± 0.010 18.0 ± 4.5 12 74 46 58

10 0.075 ± 0.008 16.0 ± 4.0 11 83 55 58

12 0.061 ± 0.006 8.1 ± 2.8 6 75 59 58

05/13/08
Event Reduction Table for &gamma&gamma + Met GMSB MC signal(m_&chi=110 GeV, &tau_&chi=0 ns)

Cuts GMSB MC signal (6000 events) Efficiency (Cumulative) Efficiency (Relative)

trigger(N/A), good run, 2 EM objects 5788 96.3 % 96.3 %

phoID, E_T>7 GeV 989 16.5 % 17.1 %

PMT spikes N/A N/A N/A

Vertex 944 15.7 % 95.4 %

Vertex swap & E_T>13 926 15.4 % 98.1 %

Phoenix 912 15.2 % 98.5 %

Beam Halo 912 15.2 % 100 %

EMTiming 912 15.2 % 100 %

Trackless muon stub 907* 15.1 %* 99.5 %*

MetSig>5.0 716 11.9 % 78.9 %

- * : estimated from data.

95% Confidence Level Expected Cross Section Limit( m_&chi=110 GeV, &tau_&chi=0 ns) for MetSig cut

MetSig Cut (Njet15>0) Acceptance Background Estimation Observed &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

3.0 0.122 ± 0.012 106.6 ± 14.5 120 141 186 99

4.0 0.121 ± 0.012 63.6 ± 8.9 52 99 64 99

5.0 0.119 ± 0.012 48.6 ± 7.5 34 87 45 99

6.0 0.118 ± 0.012 38.0 ± 8.0 25 84 43 99

8.0 0.111 ± 0.011 23.5 ± 5.5 13 71 30 99

9.0 0.097 ± 0.010 18.0 ± 4.5 12 69 42 99

10 0.081 ± 0.008 16.0 ± 4.0 11 76 50 99

12 0.064 ± 0.006 8.1 ± 2.8 6 71 55 99

05/08/08
MetSig distribution and &sigma^exp plots for GMSB signal(m_&chi=100 GeV, &tau_&chi=0 ns)

MetSig x_sec_limit

05/08/08
SUSY Talk 050708

First look at limit setting on GMSB models in the &gamma &gamma + MET fianl state with 2 fb^-1

05/01/08
EMTiming Distributions of photons for GMSB signal(m_&chi=100 GeV, &tau_&chi=0 ns)

Ph1_EmTime Ph2_EmTime &Delta t (&gamma₁,&gamma₂)

- These plots show EmTiming distribution after EMTiming cut(before vertex swapping).

04/27/08
95% Confidence Level Expected Cross Section Limit( m_&chi=100 GeV, &tau_&chi=0 ns) for MetSig cut

MetSig Cut (Njet15>0) Acceptance Background Estimation Observed &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

3.0 0.131 ± 0.013 106.6 ± 14.5 120 131 173 169

4.0 0.129 ± 0.013 63.6 ± 8.9 52 93 60 169

5.0 0.127 ± 0.013 48.6 ± 7.5 34 81 42 169

6.0 0.125 ± 0.012 38.0 ± 8.0 25 79 39 169

8.0 0.119 ± 0.012 23.5 ± 5.5 13 66 28 169

9.0 0.106 ± 0.011 18.0 ± 4.5 12 63 39 169

10 0.090 ± 0.009 16.0 ± 4.0 11 68 46 169

12 0.067 ± 0.007 8.1 ± 2.8 6 69 54 169

MetSig Cut (Njet25>0) Acceptance Background Estimation Observed &sigma ^exp (fb) &sigma ^obs (fb) &sigma ^prod (fb)

5.0 0.059 ± 0.006 3.2 ± 1.7 2 53 39 169

- Acceptance = # of events passed the cuts/total # of events(6000)
- Acceptance Error = 10 %
- Luminosity = 2 fb^-1
- Luminosity Error = 6 %
- 95 % Confidence Level

"Sasha's Met Resolution Model" to calculate MET-Significance and evaluate fake MET(Plots and Table from Sasha's Slide at Fermilab Group Meeting)

MetSig>3.0 MetSig>4.0 MetSig>5.0

Non-Collision 0.90 ± 0.32 0.85 ± 0.30 0.80 ± 0.27

QCD(fake MET) 52.1 ± 11.5 15.4 ± 3.8 6.2 ± 2.7

EWK(real MET) 53.6 ± 8.9 47.3 ± 8.0 41.6 ± 7.0

Total 106.6 ± 14.5 63.6 ± 8.9 48.6 ± 7.5

Observed 120 52 34

MetSig Plot

04/23/08
Various Plots for GMSB MC signal( m_&chi=100 GeV, &tau_&chi=0 ns) after MetSig cut>5.0

Ph1_Et Ph2_Et Ph3_Et Jet1_Et H_t M_{&gamma &gamma}

M_{&gamma - jet} Met MetAll MetSig M_ph1-ph3 if N_&gamma>2 M_2Jets

&Delta&phi (&gamma₁,&gamma₂) &Delta&phi (Met,&gamma₁) &Delta&phi (Met,&gamma₂) &Delta&phi (Met,jet1)
if E_T^jet>15 GeV &Delta&phi (Met,jet1)
if E_T^jet>20 GeV &Delta&phi (Met,jet1)
if E_T^jet>25 GeV

# of Photons # of Jets
if E_T^jet>15 GeV # of Jets
if E_T^jet>20 GeV # of Jets
if E_T^jet>25 GeV Q_T of 2 Photons

04/22/08
Event Reduction Table for &gamma&gamma + Met data and GMSB MC signal(m_&chi=100 GeV, &tau_&chi=0 ns)

Cuts &gamma &gamma data Cuts GMSB MC signal (6000 events) Efficiency (Cumulative) Efficiency (Relative)

Pre-selection trigger(N/A), good run, 2 EM objects 5815 96.9 % 96.9 %

(trigger, good run, phoID, E_T>7 GeV) 54,802 phoID, E_T>7 GeV 1017 17.0 % 17.5 %

PMT spikes 54,796 PMT spikes N/A N/A N/A

Vertex 51,440 Vertex 969 16.2 % 95.3 %

Vertex swap & E_T>13 35,673 Vertex swap(N/A) & E_T>13 945 15.8 % 97.5 %

Phoenix 32,899 Phoenix 921 15.4 % 97.5 %

Beam Halo 32,890 Beam Halo 921 15.4 % 100 %

EMTiming 32,865 EMTiming 921 15.4 % 100 %

Trackless muon stub 32,720 Trackless muon stub 916* 15.3 %* 99.5 %*

MetSig>5.0 34 MetSig>5.0 763 12.7 % 83.3 %

- * : estimated from data.

Photon ID efficiencies

Cuts Events passed
(m_&chi=70 GeV) Efficiency
(Cumulative) Events passed
(m_&chi=80 GeV) Efficiency
(Cumulative) Events passed
(m_&chi=90 GeV) Efficiency
(Cumulative) Events passed
(m_&chi=100 GeV) Efficiency
(Cumulative) Events passed
(m_&chi=110 GeV) Efficiency
(Cumulative) Events passed
(m_&chi=120 GeV) Efficiency
(Cumulative) Events passed
(m_&chi=130 GeV) Efficiency
(Cumulative) Events passed
(m_&chi=140 GeV) Efficiency
(Cumulative)

Pre-selection
(2 EM obj) 5751 5775 5803 5815 5788 5796 5794 5804

Central, E_T > 7 GeV 3183 55.3 % 3356 58.1 % 3436 59.2 % 3597 61.9 % 3666 63.3 % 3778 65.2 % 3832 66.1 % 3868 66.6 %

CES fiduciality 2766 48.1 % 2979 51.6 % 3053 52.6 % 3214 55.3 % 3304 57.1 % 3376 58.2 % 3416 59.0 % 3451 59.4 %

Had/Em 2404 41.8 % 2637 45.7 % 2679 46.2 % 2839 48.8 % 2830 48.9 % 2915 50.3 % 2968 51.2 % 2876 49.6 %

CES &chi² 2126 37.0 % 2313 40.0 % 2357 40.6 % 2498 43.0 % 2464 42.6 % 2526 43.6 % 2583 44.6 % 2463 42.4 %

N3D tracks in cluster 1820 31.6 % 1973 34.2 % 2035 35.1 % 2201 37.8 % 2131 36.8 % 2128 36.7 % 2219 38.3 % 2098 36.1 %

track P_T if N3D=1 1191 20.7 % 1312 22.7 % 1355 23.3 % 1410 24.2 % 1390 24.0 % 1378 23.8 % 1411 24.4 % 1358 23.4 %

Corrected CalIso0.4 919 16.0 % 1008 17.4 % 1043 18.0 % 1087 18.7 % 1059 18.3 % 1020 17.6 % 1045 18.0 % 984 17.0 %

TrkIso0.4 861 15.0 % 945 16.4 % 978 16.8 % 1027 17.7 % 992 17.1 % 938 16.2 % 956 16.5 % 931 16.0 %

E_T of 2nd CES 856 14.9 % 935 16.2 % 971 16.7 % 1017 17.5 % 989 17.1 % 934 16.1 % 950 16.4 % 920 15.8 %

For comments or questions, please e-mail to Eunsin Lee
Last update:05/08/08

Backgrounds	scaled prediction ± stat. ± sys. Global SFewk=1.41 ± 0.47
Baur W(l)+pho	0.176 ± 0.149 ± 0.059
Baur Z(l)+pho	0.351 ± 0.044 ± 0.117
Pythia W(l) no ISR/FSR	0.00 ± 0.111 ± 0.00
Pythia Z(l) no ISR/FSR	0.055 ± 0.096 ± 0.018
Pythia ttbar(incl)	0.082 ± 0.017 ± 0.027
Combined EWK	0.66 ± 0.21 ± 0.22

Backgrounds	prediction ± stat. ± sys.
Electroweak	0.66 ± 0.21 ± 0.22
Non-Collision (CR,BH)	0.001 ± 0.008 ± 0.001
QCD from Met Model	0.4 ± 0.20 ± 0.1
Pythia tri-pho and Wrong Vertex	0.00 ± 0.13 ± 0.00
Data	0
TOTAL	1.06 ± 0.32 ± 0.24

Default MetSig	Acceptance (%)	Background Estimation	&sigma ^exp (fb)	&sigma ^obs (fb)	&sigma ^prod (fb)
&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.35 Ht>200 GeV, MetSig>3	7.80 ± 0.83	1.06 ± 0.40	21.64	15.11	22.97

Sample	MetSig>3 H_T>000 GeV &Delta&phi<&pi - 0.35 (pred ± stat ± sys)	MetSig>3 H_T>125 GeV &Delta&phi<&pi - 0.35 (pred ± stat ± sys)	MetSig>3 H_T>175 GeV &Delta&phi<&pi - 0.35 (pred ± stat ± sys)	MetSig>3 H_T>200 GeV &Delta&phi<&pi - 0.35 (pred ± stat ± sys)	MetSig>3 H_T>225 GeV &Delta&phi<&pi - 0.35 (pred ± stat ± sys)	MetSig>3 H_T>275 GeV &Delta&phi<&pi - 0.35 (pred ± stat ± sys)
EWK Combined	66.20 ± 2.24 ± 2.08 (50.67 ± 1.72)	3.87 ± 0.44 ± 1.27 (3.52 ± 0.40)	0.96 ± 0.22 ± 0.31 (0.87 ± 0.20)	0.66 ± 0.21 ± 0.22 (0.47 ± 0.15)	0.62 ± 0.24 ± 0.25 (0.38 ± 0.15)	0.21 ± 0.24 ± 0.08 (0.13 ± 0.15)
Non-Collision (CR,BH)	0.092 ± 0.027 ± 0.090	0.009 ± 0.008 ± 0.008	0.001 ± 0.008 ± 0.001	0.001 ± 0.008 ± 0.001	0.001 ± 0.008 ± 0.001	0.001 ± 0.008 ± 0.001
QCD from dipho MC (for x-check)	36.77 ± 2.22 ± 14.36 (274)	0.94 ± 0.36 ± 0.14 (7)	0.13 ± 0.13 ± 0.13 (1)	0.13 ± 0.13 ± 0.19 (1)	0.13 ± 0.13 ± 0.19 (1)	0.13 ± 0.13 ± 0.13 (1)
QCD from Met Model (data)	13.8 ± 1.17 ± 0.0	2.0 ± 0.45 ± 0.24	0.7 ± 0.26 ± 0.0	0.4 ± 0.20 ± 0.0	0.2 ± 0.14 ± 0.0	0.1 ± 0.1 ± 0.0
Pythia tri-pho	2.36 ± 0.57 ± 0.48	0.39 ± 0.23 ± 0.13	0.00 ± 0.13 ± 0.00	0.00 ± 0.13 ± 0.00	0.00 ± 0.13 ± 0.00	0.00 ± 0.13 ± 0.00
Wrong Vertex	1.92 ± 0.56 ± 0.95	0.00 ± 0.13 ± 0.00	0.00 ± 0.13 ± 0.00	0.00 ± 0.13 ± 0.00	0.00 ± 0.13 ± 0.00	0.00 ± 0.13 ± 0.00
Data	85	6	0	0	0	0
TOTAL	84.37 ± 2.65 ± 2.34	6.27 ± 0.68 ± 1.30	1.66 ± 0.37 ± 0.31	1.06 ± 0.31 ± 0.22	0.82 ± 0.30 ± 0.25	0.31 ± 0.29 ± 0.08

Sample	MetSig>0 H_T>200 GeV &Delta&phi<&pi - 0.35 (pred ± stat ± sys)	MetSig>2 H_T>200 GeV &Delta&phi<&pi - 0.35 (pred ± stat ± sys)	MetSig>4 H_T>200 GeV &Delta&phi<&pi - 0.35 (pred ± stat ± sys)	MetSig>7 H_T>200 GeV &Delta&phi<&pi - 0.35 (pred ± stat ± sys)
EWK Combined	2.92 ± 0.32 ± 0.36 (1.64 ± 0.18)	1.15 ± 0.28 ± 0.30 (0.62 ± 0.15)	0.66 ± 0.22 ± 0.25 (0.44 ± 0.15)	0.54 ± 0.22 ± 0.20 (0.36 ± 0.15)
Non-Collision (CR,BH)	0.001 ± 0.008 ± 0.001	0.001 ± 0.008 ± 0.001	0.001 ± 0.008 ± 0.001	0.001 ± 0.008 ± 0.001
QCD from dipho MC (for x-check)	70.72 ± 3.08 ± 5.63 (527)	0.94 ± 0.36 ± 0.00 (7)	0.00 ± 0.13 ± 0.00 (0)	0.00 ± 0.13 ± 0.00 (0)
QCD from Met Model (data)	198.4 ± 4.45 ± 1.90	1.8 ± 0.42 ± 0.0	0.2 ± 0.14 ± 0.0	0.0 ± 0.13 ± 0.0
Pythia tri-pho	4.96 ± 0.82 ± 0.27	0.13 ± 0.13 ± 0.13	0.00 ± 0.13 ± 0.00	0.00 ± 0.13 ± 0.00
Wrong Vertex	0.27 ± 0.19 ± 0.13	0.00 ± 0.13 ± 0.00	0.00 ± 0.13 ± 0.00	0.00 ± 0.13 ± 0.00
Data	203	5	0	0
TOTAL	206.5 ± 4.54 ± 1.96	3.08 ± 0.54 ± 0.33	0.86 ± 0.29 ± 0.25	0.54 ± 0.28 ± 0.20

Cuts	Default	Unclustered Met Parameterization	- Level 6 Jet Energy Scale	+ Level 6 Jet Energy Scale	Final QCD Estimation
MetSig>3, H_T>000 GeV, &Delta&phi<&pi - 0.15	336	202	367	299	45.09 ± 2.46 ± 18.91
MetSig>3, H_T>125 GeV, &Delta&phi<&pi - 0.15	20	17	20	19	2.68 ± 0.60 ± 0.44
MetSig>3, H_T>175 GeV, &Delta&phi<&pi - 0.15	10	8	10	10	1.34 ± 0.42 ± 0.28
MetSig>3, H_T>200 GeV, &Delta&phi<&pi - 0.15	7	7	7	8	0.94 ± 0.36 ± 0.14
MetSig>3, H_T>225 GeV, &Delta&phi<&pi - 0.15	7	7	6	8	0.94 ± 0.36 ± 0.14
MetSig>3, H_T>275 GeV, &Delta&phi<&pi - 0.15	4	3	3	3	0.54 ± 0.27 ± 0.19
MetSig>0, H_T>200 GeV, &Delta&phi<&pi - 0.15	882	882	850	943	118.4 ± 3.98 ± 8.85
MetSig>2, H_T>200 GeV, &Delta&phi<&pi - 0.15	27	22	30	30	3.62 ± 0.70 ± 0.80
MetSig>4, H_T>200 GeV, &Delta&phi<&pi - 0.15	3	2	2	3	0.40 ± 0.23 ± 0.19
MetSig>7, H_T>200 GeV, &Delta&phi<&pi - 0.15	1	1	1	1	0.13 ± 0.13 ± 0.00
MetSig>3, H_T>200 GeV, &Delta&phi<&pi - 0.00	45	39	43	44	6.04 ± 0.90 ± 0.88
MetSig>3, H_T>200 GeV, &Delta&phi<&pi - 0.10	9	8	9	10	1.21 ± 0.40 ± 0.20
MetSig>3, H_T>200 GeV, &Delta&phi<&pi - 0.20	5	5	4	6	0.67 ± 0.30 ± 0.14
MetSig>3, H_T>200 GeV, &Delta&phi<&pi - 0.40	1	2	1	0	0.13 ± 0.13 ± 0.19
MetSig>3, H_T>175 GeV, &Delta&phi<&pi - 0.40	1	2	1	0	0.13 ± 0.13 ± 0.19
MetSig>3, H_T>225 GeV, &Delta&phi<&pi - 0.40	1	2	1	0	0.13 ± 0.13 ± 0.19
MetSig>2, H_T>200 GeV, &Delta&phi<&pi - 0.40	6	6	6	5	0.80 ± 0.33 ± 0.14
MetSig>4, H_T>200 GeV, &Delta&phi<&pi - 0.40	0	0	0	0	0.00 ± 0.13 ± 0.00
MetSig>3, H_T>200 GeV, &Delta&phi<&pi - 0.30	2	3	1	2	0.27 ± 0.19 ± 0.19
MetSig>3, H_T>200 GeV, &Delta&phi<&pi - 0.35	1	2	1	0	0.13 ± 0.13 ± 0.19
MetSig>3, H_T>200 GeV, &Delta&phi<&pi - 0.45	1	2	1	0	0.13 ± 0.13 ± 0.19
MetSig>3, H_T>000 GeV, &Delta&phi<&pi - 0.35	274	172	300	247	36.77 ± 2.22 ± 14.36
MetSig>3, H_T>125 GeV, &Delta&phi<&pi - 0.35	7	7	7	8	0.94 ± 0.36 ± 0.14
MetSig>3, H_T>175 GeV, &Delta&phi<&pi - 0.35	1	2	1	1	0.13 ± 0.13 ± 0.13
MetSig>3, H_T>225 GeV, &Delta&phi<&pi - 0.35	1	2	1	0	0.13 ± 0.13 ± 0.19
MetSig>3, H_T>275 GeV, &Delta&phi<&pi - 0.35	1	1	1	0	0.13 ± 0.13 ± 0.13
MetSig>0, H_T>200 GeV, &Delta&phi<&pi - 0.35	527	527	504	566	70.72 ± 3.08 ± 5.63
MetSig>2, H_T>200 GeV, &Delta&phi<&pi - 0.35	7	7	7	7	0.94 ± 0.36 ± 0.00
MetSig>4, H_T>200 GeV, &Delta&phi<&pi - 0.35	0	0	0	0	0.00 ± 0.13 ± 0.00
MetSig>7, H_T>200 GeV, &Delta&phi<&pi - 0.35	0	0	0	0	0.00 ± 0.13 ± 0.00

Sample	MetSig>3 H_T>200 GeV &Delta&phi<&pi - 0.15		MetSig>3 H_T>000 GeV &Delta&phi<&pi - 0.15		MetSig>0 H_T>200 GeV &Delta&phi<&pi - 0.15		MetSig>3 H_T>200 GeV &Delta&phi<&pi - 0.00		MetSig>3 H_T>200 GeV &Delta&phi<&pi - 0.30		MetSig>3 H_T>200 GeV &Delta&phi<&pi - 0.40
Sample	0.8 < E/p < 1.2	0.0 < E/p < 2.0	0.8 < E/p < 1.2	0.0 < E/p < 2.0	0.8 < E/p < 1.2	0.0 < E/p < 2.0	0.8 < E/p < 1.2	0.0 < E/p < 2.0	0.8 < E/p < 1.2	0.0 < E/p < 2.0	0.8 < E/p < 1.2	0.0 < E/p < 2.0
Baur W(e)+pho	6.668 ± 0.651 (105)	7.684 ± 0.698 (121)	1169.0 ± 8.616 (18410)	1377.0 ± 9.351 (21685)	10.86 ± 0.830 (171)	12.45 ± 0.889 (196)	7.493 ± 0.690 (118)	8.509 ± 0.735 (134)	5.715 ± 0.602 (90)	6.731 ± 0.654 (106)	4.890 ± 0.557 (77)	5.842 ± 0.609 (92)
Baur W(mu)+pho	0.00 ± 0.060 (0)	0.00 ± 0.060 (0)	0.00 ± 0.060 (0)	0.00 ± 0.060 (0)	0.00 ± 0.060 (0)	0.00 ± 0.060 (0)	0.00 ± 0.060 (0)	0.00 ± 0.060 (0)	0.00 ± 0.060 (0)	0.00 ± 0.060 (0)	0.00 ± 0.060 (0)	0.00 ± 0.060 (0)
Baur W(tau)+pho	0.487 ± 0.172 (8)	0.548 ± 0.183 (9)	42.93 ± 1.617 (705)	52.62 ± 1.790 (864)	0.609 ± 0.192 (10)	0.792 ± 0.220 (13)	0.670 ± 0.202 (11)	0.731 ± 0.211 (12)	0.183 ± 0.105 (3)	0.244 ± 0.122 (4)	0.183 ± 0.105 (3)	0.183 ± 0.105 (3)
Baur Z(e)+pho	0.318 ± 0.035 (81)	0.365 ± 0.038 (93)	14.15 ± 0.236 (3601)	17.88 ± 0.265 (4549)	16.64 ± 0.256 (4234)	18.66 ± 0.271 (4748)	0.362 ± 0.038 (92)	0.413 ± 0.040 (105)	0.259 ± 0.032 (66)	0.306 ± 0.035 (78)	0.224 ± 0.030 (57)	0.271 ± 0.033 (69)
Baur Z(mu)+pho	0.036 ± 0.012 (9)	0.051 ± 0.014 (13)	0.241 ± 0.031 (61)	0.561 ± 0.047 (142)	0.051 ± 0.014 (13)	0.071 ± 0.017 (18)	0.043 ± 0.013 (11)	0.059 ± 0.015 (15)	0.020 ± 0.009 (5)	0.032 ± 0.011 (8)	0.020 ± 0.009 (5)	0.032 ± 0.011 (8)
Baur Z(tau)+pho	0.578 ± 0.048 (146)	0.756 ± 0.055 (191)	13.27 ± 0.229 (3351)	16.16 ± 0.253 (4081)	1.208 ± 0.069 (305)	1.477 ± 0.076 (373)	0.744 ± 0.054 (188)	0.986 ± 0.062 (249)	0.408 ± 0.040 (103)	0.562 ± 0.047 (142)	0.329 ± 0.036 (83)	0.451 ± 0.042 (114)
Pythia W(e) no ISR/FSR	1.050 ± 0.470 (5)	1.260 ± 0.514 (6)	131.25 ± 5.250 (625)	162.54 ± 5.842 (774)	3.150 ± 0.813 (15)	3.570 ± 0.866 (17)	1.470 ± 0.556 (7)	1.680 ± 0.594 (8)	0.840 ± 0.420 (4)	1.050 ± 0.470 (5)	0.840 ± 0.420 (4)	1.050 ± 0.470 (5)
Pythia W(mu) no ISR/FSR	0.00 ± 0.699 (0)	0.00 ± 0.699 (0)	0.00 ± 0.699 (0)	0.00 ± 0.699 (0)	0.00 ± 0.699 (0)	0.00 ± 0.699 (0)	0.00 ± 0.699 (0)	0.00 ± 0.699 (0)	0.00 ± 0.699 (0)	0.00 ± 0.699 (0)	0.00 ± 0.699 (0)	0.00 ± 0.699 (0)
Pythia W(tau) no ISR/FSR	0.00 ± 0.296 (0)	0.00 ± 0.296 (0)	7.696 ± 1.509 (26)	10.66 ± 1.776 (36)	0.00 ± 0.296 (0)	0.00 ± 0.296 (0)	0.00 ± 0.296 (0)	0.00 ± 0.296 (0)	0.00 ± 0.296 (0)	0.00 ± 0.296 (0)	0.00 ± 0.296 (0)	0.00 ± 0.296 (0)
Pythia Z(e) no ISR/FSR	0.056 ± 0.056 (1)	0.056 ± 0.056 (1)	1.064 ± 0.244 (19)	1.344 ± 0.274 (24)	6.720 ± 0.613 (120)	7.056 ± 0.628 (126)	0.056 ± 0.056 (1)	0.056 ± 0.056 (1)	0.056 ± 0.056 (1)	0.056 ± 0.056 (1)	0.056 ± 0.056 (1)	0.056 ± 0.056 (1)
Pythia Z(mu) no ISR/FSR	0.00 ± 0.126 (0)	0.00 ± 0.126 (0)	0.00 ± 0.126 (0)	0.00 ± 0.126 (0)	0.00 ± 0.126 (0)	0.00 ± 0.126 (0)	0.00 ± 0.126 (0)	0.00 ± 0.126 (0)	0.00 ± 0.126 (0)	0.00 ± 0.126 (0)	0.00 ± 0.126 (0)	0.00 ± 0.126 (0)
Pythia Z(tau) no ISR/FSR	0.039 ± 0.039 (1)	0.039 ± 0.039 (1)	3.019 ± 0.342 (78)	3.715 ± 0.379 (96)	0.310 ± 0.109 (8)	0.348 ± 0.116 (9)	0.039 ± 0.039 (1)	0.039 ± 0.039 (1)	0.039 ± 0.039 (1)	0.039 ± 0.039 (1)	0.039 ± 0.039 (1)	0.039 ± 0.039 (1)
Pythia ttbar(incl)	1.563 ± 0.060 (668)	1.863 ± 0.066 (796)	1.710 ± 0.063 (731)	2.045 ± 0.069 (874)	4.652 ± 0.104 (1988)	5.492 ± 0.113 (2347)	1.654 ± 0.062 (707)	1.975 ± 0.068 (844)	1.479 ± 0.059 (632)	1.764 ± 0.064 (754)	1.418 ± 0.058 (606)	1.689 ± 0.063 (722)
ele+pho MC (Nmc)	10.79 ± 1.13	12.62 ± 1.18	1384.33 ± 10.37	1644.52 ± 11.35	44.20 ± 1.56	49.92 ± 1.64	12.53 ± 1.20	14.45 ± 1.24	9.00 ± 1.08	10.78 ± 1.13	8.00 ± 1.05	9.61 ± 1.10
ele+pho Data (Ndt)	14	18	913	1093	79	93	14	20	13	17	11	15
SFewk (Ndt/Nmc)	1.30 ± 0.37	1.43 ± 0.36	0.66 ± 0.02	0.66 ± 0.02	1.78 ± 0.21	1.86 ± 0.20	1.12 ± 0.32	1.38 ± 0.33	1.44 ± 0.44	1.58 ± 0.42	1.38 ± 0.45	1.56 ± 0.44
Final Global SFewk	1.30 ± 0.39		0.66 ± 0.02		1.78 ± 0.22		1.12 ± 0.41		1.44 ± 0.46		1.38 ± 0.48

Sample	With Vertex Swap					Without Vertex Swap
Sample	&Delta &phi (&gamma 1, &gamma 2)	&Delta &phi (&gamma 1, Met)	&Delta &phi (&gamma 2, Met)	&Delta &phi (&gamma 1, &gamma 2) vs. &Delta &phi (&gamma 2, Met)	&Delta &phi (&gamma 1, &gamma 2) vs. &Delta &phi (&gamma 1, Met)	&Delta &phi (&gamma 1, &gamma 2)	&Delta &phi (&gamma 1, Met)	&Delta &phi (&gamma 2, Met)	&Delta &phi (&gamma 1, &gamma 2) vs. &Delta &phi (&gamma 2, Met)	&Delta &phi (&gamma 1, &gamma 2) vs. &Delta &phi (&gamma 1, Met)
QCD Pythis dipho	fig.1	fig.2	fig.3	fig.4	fig.5	fig.6	fig.7	fig.8	fig.9	fig.10
EWK Baur Z	fig.11	fig.12	fig.13	fig.14	fig.15	fig.16	fig.17	fig.18	fig.19	fig.20
EWK Baur W	fig.21	fig.22	fig.23	fig.24	fig.25	fig.26	fig.27	fig.28	fig.29	fig.30
GMSB signal	fig.31	fig.32	fig.33	fig.34	fig.35	fig.36	fig.37	fig.38	fig.39	fig.40

Sample	With vertex swap	Without vertex swap
Baur W(e)+pho	0.064 ± 0.064	0.064 ± 0.064
Baur W(mu)+pho	0.00 ± 0.060	0.00 ± 0.060
Baur W(tau)+pho	0.183 ± 0.105	0.183 ± 0.105
Baur Z(e)+pho	0.016 ± 0.008	0.020 ± 0.009
Baur Z(mu)+pho	0.162 ± 0.025	0.166 ± 0.026
Baur Z(tau)+pho	0.135 ± 0.023	0.143 ± 0.024
Pythia W(e) no ISR/FSR	0.00 ± 0.210	0.00 ± 0.210
Pythia W(mu) no ISR/FSR	0.00 ± 0.308	0.00 ± 0.308
Pythia W(tau) no ISR/FSR	0.00 ± 0.296	0.00 ± 0.296
Pythia Z(e) no ISR/FSR	0.00 ± 0.056	0.00 ± 0.056
Pythia Z(mu) no ISR/FSR	0.00 ± 0.088	0.00 ± 0.088
Pythia Z(tau) no ISR/FSR	0.039 ± 0.039	0.039 ± 0.039
Pythia ttbar(incl)	0.061 ± 0.012	0.061 ± 0.012
Beam Halo	0.00 ± 0.0082 ± 0.00	0.00 ± 0.0082 ± 0.00
Cosmic	0.001 ± 0.001 ± 0.001	0.001 ± 0.001 ± 0.001
QCD from dipho MC (default)	1.21 ± 0.40 ± 0.01	2.01 ± 0.52 ± 0.01
QCD from Met Model (mc)
QCD from Met Model (data)		0.5 ± 0.23 ± 0.1
Data	1	1

MetSig	Acceptance (%)	Background Estimation	&sigma ^exp (fb)	&sigma ^obs (fb)	&sigma ^prod (fb)
With vertex swap	8.71 ± 0.87	2.17 ± 0.86	23.34	18.42	22.97
Without vertex swap	8.79 ± 0.88	2.97 ± 0.93	23.98	18.16	22.97

Requirements	Old Data: p1 - p11 (Relative Efficiencies)	New Data: p12 - p17 (Relative Efficiencies)
Trigger, Good Run, 2 EM Objects	41894 (100 %)	65233 (100 %)
Vertex Cuts (\|Z\| < 60 cm)	41885 (99.9 %)	65228 (99.9 %)
Central Photons (E_T > 13 GeV)	28968 (69.2 %)	43660 (66.9 %)
CES fiduciality	28946 (99.9 %)	43556 (99.8 %)
Had/Em	28919 (99.9 %)	43406 (99.7 %)
CES &chi²	28894 (99.9 %)	43354 (99.9 %)
N3D tracks in cluster	28834 (99.8 %)	42987 (99.2 %)
Track P_T if N3D=1	28789 (99.8 %)	34163 (79.5 %)
Corrected CalIso0.4	28761 (99.9 %)	26584 (77.8 %)
TrkIso0.4	28749 (99.9 %)	19547 (73.5 %)
E_T of 2nd CES	28743 (99.9 %)	16493 (84.4 %)
PMT Spikes	28740 (99.9 %)	16490 (99.9 %)
Pheonix	26387 (91.8 %)	14982 (90.8 %)
Beam Halo	26381 (99.9 %)	14981 (99.9 %)
Cosmic (EMTiming)	26346 (99.8 %)	14961 (99.9 %)

Total 100K events	Default (Relative Efficiency)	Tune-A (Relative Efficiency)
Global Event Quality cuts	96365 (96.4 %)	96592 (96.6 %)
Vertex Cuts	91801 (95.3 %)	92010 (95.2 %)
CES fiduciality	48455 (52.8 %)	48714 (52.9 %)
Had/Em	41275 (85.2 %)	41682 (85.6 %)
CES &chi²	35381 (85.7 %)	35682 (85.6 %)
N3D tracks in cluster	29634 (83.8 %)	29675 (83.2 %)
Track P_T if N3D=1	20005 (67.5 %)	20022 (67.5 %)
Corrected CalIso0.4	15622 (78.1 %)	15422 (77.0 %)
TrkIso0.4	14564 (93.2 %)	14261 (92.5 %)
E_T of 2nd CES	14498 (99.5 %)	14190 (99.5 %)
Pheonix	14101 (97.3 %)	13785 (97.1 %)
Beam Halo	14101 (100 %)	13784 (99.9 %)
EMTiming	14099 (99.9 %)	13781 (99.9 %)
MetSig>3	10688 (75.8 %)	10367 (75.2 %)
Ht>200 GeV	10072 (94.2 %)	9802 (94.5 %)
&Delta&phi<&pi - 0.15	9508 (94.4 %)	9217 (94.0 %)
Acceptance	9.51 %	9.22 %
&sigma^exp	21.03 fb	21.70 fb

Factor (Acceptance)	Relative Systematic Unvertainty	Previous gg+Met	Delayed Photon
Met Model Parametrization	0.7 %	N/A	N/A
Pile-up Effect on MetSig	in progress	N/A	N/A
Photon ID Efficiency	in progress	13 %	5.0 %
JES	+1.63 % -1.05 %	N/A	3.0 %
ISR/FSR	+1.93 % -3.86 %	10 %	2.5 %
PDF	+0.3 % -0.4 %	+0.7 % -0.5 %	+5.9 % -5.3 %
Total
Factor (Cross Section)	Relative Systematic Uncertainty (%)	Previous gg+Met	Delayed Photon
PDF	+7.6 % -7.3 %	N/A	+5.9 % -5.3 %
Renormalization Scale (Q²)	2.6 %	3 %	2.4 %
Total

Sample	With vertex and Met cleanup cuts	Without vertex and Met cleanup cuts
Baur W(e)+pho	0.049 ± 0.049 ± ??	0.049 ± 0.049 ± ??
Baur W(mu)+pho	0.00 ± 0.047 ± ??	0.00 ± 0.047 ± ??
Baur W(tau)+pho	0.14 ± 0.082 ± ??	0.14 ± 0.082 ± ??
Baur Z(e)+pho	0.006 ± 0.004 ± ??	0.009 ± 0.005 ± ??
Baur Z(mu)+pho	0.079 ± 0.015 ± ??	0.082 ± 0.016 ± ??
Baur Z(tau)+pho	0.052 ± 0.012 ± ??	0.076 ± 0.015 ± ??
Pythia Z(l) no ISR/FSR	0.00 ± 0.026 ± ??	0.00 ± 0.026 ± ??
Pythia W(l) no ISR/FSR	0.00 ± 0.086 ± ??	0.00 ± 0.086 ± ??
Pythia ttbar(incl)	0.046 ± 0.009 ± ??	0.048 ± 0.009 ± ??
Beam Halo	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010
Cosmic	0.049 ± 0.035 ± 0.026	0.049 ± 0.035 ± 0.026
Pythia tri-pho	0.00 ± 0.180 ± 0.035	0.180 ± 0.180 ± 0.035
Wrong Vertex	0.081 ± 0.081 ± 0.008	0.081 ± 0.081 ± 0.008
QCD	0.1 ± 0.1 ± 0.0	0.0 ± 0.1 ± 0.0
Data	1	1

N_obs \ &Delta_bgk	0	0.29	1
0	&sigma_obs=17.71 (17.87) fb	&sigma_obs=17.70 (17.92) fb	&sigma_obs=17.62 (17.93) fb
1	&sigma_obs=22.88 (25.67) fb	&sigma_obs=23.09 (25.88) fb	&sigma_obs=24.47 (25.73) fb
2	&sigma_obs=29.01 (34.48) fb	&sigma_obs=29.51 (36.62) fb	&sigma_obs=31.97 (34.75) fb

N_obs \ &Delta_bgk	0	0.29	1
0	&sigma_obs=16.96 fb	&sigma_obs=16.93 fb	&sigma_obs=16.96 fb
1	&sigma_obs=24.49 fb	&sigma_obs=24.55 fb	&sigma_obs=24.60 fb
2	&sigma_obs=32.91 fb	&sigma_obs=32.95 fb	&sigma_obs=32.70 fb

(m_&chi(GeV), &tau_&chi(ns))	Acceptance(%)	Background	&sigma^exp(fb)	&Delta&sigma^exp(fb)	&sigma^obs(fb)	&sigma^prod(fb)
(70,0)	2.40 ± 0.43	0.62 ± 0.29	87.71	23.38	98.62	999.9
(70,1)	2.18 ± 0.39		96.56	28.30	108.6	999.9
(70,2)	1.60 ± 0.29		132.3	38.56	148.4	999.9
(70,5)	0.70 ± 0.13		304.5	88.14	342.9
(80,0)	4.88 ± 0.88		43.36	12.64	48.65	524.6
(80,1)	4.37 ± 0.79		48.42	14.12	54.33
(80,2)	3.32 ± 0.60		63.74	18.58	71.52
(80,5)	1.35 ± 0.24		155.5	45.70	174.9
(85,5)	2.08 ± 0.38		102.2	29.66	115.1	386.0
(90,0)	6.08 ± 1.10		34.80	9.97	39.05	286.8
(90,1)	5.20 ± 0.94		40.70	11.86	45.66
(90,2)	4.10 ± 0.74		51.61	15.05	57.91
(90,5)	2.18 ± 0.39		96.56	28.30	108.6
(100,0)	7.93 ± 1.43		26.68	7.78	29.94	169.0
(100,1)	7.53 ± 1.36		28.10	8.07	31.53
(100,2)	5.80 ± 1.04		36.38	10.64	40.81
(100,5)	2.60 ± 0.47		81.39	23.73	91.32
(110,0)	8.33 ± 1.50		25.37	7.41	28.50	99.47
(110,1)	8.30 ± 1.49		25.43	7.43	28.52
(115,5)	2.92 ± 0.53		72.62	21.13	81.76	74.73
(120,0)	8.48 ± 1.53		24.95	7.28	28.00	58.38
(120,2)	6.63 ± 1.19		31.83	9.31	35.70
(120,5)	3.37 ± 0.61		62.79	18.31	70.46
(130,0)	9.25 ± 1.66		22.81	6.67	25.59	36.23
(130,1)	9.47 ± 1.70		22.28	6.52	24.99
(130,2)	7.00 ± 1.26		30.20	8.14	33.92
(130,3)	5.58 ± 1.00		37.73	11.06	42.42
(130,5)	3.78 ± 0.68		55.92	16.32	62.81
(140,0)	9.21 ± 1.66		22.96	6.62	25.78	22.97
(140,1)	9.26 ± 1.67		22.85	6.66	25.64
(140,2)	7.15 ± 1.29		29.59	8.63	33.21
(150,0)	9.35 ± 1.68		22.57	6.60	25.31	14.54

Sample	Default MetSig H_T>75 GeV &Delta&phi<&pi - 0.15 (pred ± stat ± sys)	Default MetSig H_T>125 GeV &Delta&phi<&pi - 0.15 (pred ± stat ± sys)	Default MetSig H_T>175 GeV &Delta&phi<&pi - 0.15 (pred ± stat ± sys)	Default MetSig H_T>200 GeV &Delta&phi<&pi - 0.15 (pred ± stat ± sys)	Default MetSig H_T>225 GeV &Delta&phi<&pi - 0.15 (pred ± stat ± sys)	Default MetSig H_T>250 GeV &Delta&phi<&pi - 0.15 (pred ± stat ± sys)	Default MetSig H_T>325 GeV &Delta&phi<&pi - 0.15 (pred ± stat ± sys)
Baur W(e)+pho	11.21 ± 0.74 ± ??	1.04 ± 0.23 ± ??	0.20 ± 0.099 ± ??	0.049 ± 0.049 ± ??	0.049 ± 0.049 ± ??	0.00 ± 0.049 ± ??	0.00 ± 0.049 ± ??
Baur W(mu)+pho	1.41 ± 0.26 ± ??	0.24 ± 0.10 ± ??	0.094 ± 0.066 ± ??	0.00 ± 0.047 ± ??	0.00 ± 0.047 ± ??	0.00 ± 0.047 ± ??	0.00 ± 0.047 ± ??
Baur W(tau)+pho	3.36 ± 0.40 ± ??	0.76 ± 0.19 ± ??	0.19 ± 0.095 ± ??	0.14 ± 0.082 ± ??	0.095 ± 0.067 ± ??	0.047 ± 0.047 ± ??	0.00 ± 0.047 ± ??
Baur Z(e)+pho	0.18 ± 0.023 ± ??	0.037 ± 0.010 ± ??	0.012 ± 0.006 ± ??	0.006 ± 0.004 ± ??	0.00 ± 0.003 ± ??	0.00 ± 0.003 ± ??	0.00 ± 0.003 ± ??
Baur Z(mu)+pho	1.45 ± 0.066 ± ??	0.26 ± 0.028 ± ??	0.10 ± 0.018 ± ??	0.079 ± 0.015 ± ??	0.049 ± 0.012 ± ??	0.030 ± 0.010 ± ??	0.012 ± 0.006 ± ??
Baur Z(tau)+pho	1.35 ± 0.064 ± ??	0.25 ± 0.028 ± ??	0.085 ± 0.016 ± ??	0.052 ± 0.012 ± ??	0.033 ± 0.010 ± ??	0.027 ± 0.009 ± ??	0.006 ± 0.004 ± ??
Pythia Z(l) no ISR/FSR	0.00 ± 0.026 ± ??	0.00 ± 0.026 ± ??	0.00 ± 0.026 ± ??	0.00 ± 0.026 ± ??	0.00 ± 0.026 ± ??	0.00 ± 0.026 ± ??	0.00 ± 0.026 ± ??
Pythia W(l) no ISR/FSR	0.00 ± 0.086 ± ??	0.00 ± 0.086 ± ??	0.00 ± 0.086 ± ??	0.00 ± 0.086 ± ??	0.00 ± 0.086 ± ??	0.00 ± 0.086 ± ??	0.00 ± 0.086 ± ??
Pythia ttbar(incl)	0.048 ± 0.009 ± ??	0.046 ± 0.009 ± ??	0.046 ± 0.009 ± ??	0.046 ± 0.009 ± ??	0.040 ± 0.009 ± ??	0.038 ± 0.008 ± ??	0.028 ± 0.007 ± ??
Beam Halo	0.26 ± 0.077 ± 0.12	0.047 ± 0.033 ± 0.021	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010
Cosmic	0.30 ± 0.085 ± 0.16	0.074 ± 0.043 ± 0.039	0.074 ± 0.043 ± 0.039	0.049 ± 0.035 ± 0.026	0.049 ± 0.035 ± 0.026	0.025 ± 0.025 ± 0.013	0.025 ± 0.025 ± 0.013
Pythia tri-pho	1.44 ± 0.51 ± 0.28	0.72 ± 0.36 ± 0.14	0.00 ± 0.18 ± 0.035	0.00 ± 0.18 ± 0.035	0.00 ± 0.18 ± 0.035	0.00 ± 0.18 ± 0.035	0.00 ± 0.18 ± 0.035
Wrong Vertex	0.40 ± 0.18 ± 0.04	0.24 ± 0.14 ± 0.024	0.081 ± 0.081 ± 0.008	0.081 ± 0.081 ± 0.008	0.081 ± 0.081 ± 0.008	0.081 ± 0.081 ± 0.008	0.00 ± 0.081 ± 0.008
QCD	6.3 ± 0.79 ± 0.52	1.2 ± 0.35 ± 0.28	0.2 ± 0.14 ± 0.0	0.1 ± 0.1 ± 0.0	0.1 ± 0.1 ± 0.0	0.0 ± 0.1 ± 0.14	0.0 ± 0.1 ± 0.0
Data	25	5	1	1	1	0	0

Default MetSig Ht>200 GeV	Acceptance (%)	Background Estimation	&sigma ^exp (fb)	&sigma ^obs (fb)	&sigma ^prod (fb)
&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.00	9.78 ± 1.76	3.06 ± 0.60	32.25	31.74	22.97
&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.05	9.61 ± 1.73	0.99 ± 0.34	24.18	38.99	22.97
&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.1	9.44 ± 1.70	0.77 ± 0.32	23.24	33.50	22.97
&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.15	9.21 ± 1.66	0.62 ± 0.29	22.96	25.78	22.97
&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.2	9.12 ± 1.64	0.62 ± 0.29	23.18	26.03	22.97
&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.25	8.92 ± 1.61	0.49 ± 0.28	23.21	26.38	22.97
&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.3	8.72 ± 1.57	0.43 ± 0.28	23.24	19.73	22.97
&Delta&phi (&gamma₁,&gamma₂)<&pi - 0.35	8.48 ± 1.53	0.43 ± 0.28	23.79	20.28	22.97

Sample	Default MetSig H_T>175 GeV No &Delta&phi cut (pred ± stat ± sys)	Default MetSig H_T>200 GeV No &Delta&phi cut (pred ± stat ± sys)	Default MetSig H_T>225 GeV No &Delta&phi cut (pred ± stat ± sys)	Default MetSig H_T>250 GeV No &Delta&phi cut (pred ± stat ± sys)
Baur W(e)+pho	0.44 ± 0.15 ± ??	0.25 ± 0.11 ± ??	0.25 ± 0.11 ± ??	0.15 ± 0.086 ± ??
Baur W(mu)+pho	0.33 ± 0.12 ± ??	0.24 ± 0.10 ± ??	0.19 ± 0.094 ± ??	0.19 ± 0.094 ± ??
Baur W(tau)+pho	0.38 ± 0.13 ± ??	0.28 ± 0.13 ± ??	0.24 ± 0.10 ± ??	0.19 ± 0.095 ± ??
Baur Z(e)+pho	0.012 ± 0.006 ± ??	0.006 ± 0.004 ± ??	0.00 ± 0.003 ± ??	0.00 ± 0.003 ± ??
Baur Z(mu)+pho	0.12 ± 0.019 ± ??	0.091 ± 0.017 ± ??	0.061 ± 0.014 ± ??	0.040 ± 0.011 ± ??
Baur Z(tau)+pho	0.097 ± 0.017 ± ??	0.061 ± 0.014 ± ??	0.039 ± 0.011 ± ??	0.033 ± 0.010 ± ??
Pythia Z(tau) no ISR/FSR	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??
Pythia Z(e) no ISR/FSR	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??
Pythia Z(mu) no ISR/FSR	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??
Pythia W(e) no ISR/FSR	0.00 ± 0.19 ± ??	0.00 ± 0.19 ± ??	0.00 ± 0.19 ± ??	0.00 ± 0.19 ± ??
Pythia W(tau) no ISR/FSR	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??
Pythia W(mu) no ISR/FSR	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??
Pythia ttbar(incl)	0.048 ± 0.009 ± ??	0.048 ± 0.009 ± ??	0.042 ± 0.009 ± ??	0.040 ± 0.009 ± ??
Beam Halo	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010
Cosmic	0.074 ± 0.043 ± 0.039	0.049 ± 0.035 ± 0.026	0.049 ± 0.035 ± 0.026	0.049 ± 0.035 ± 0.026
Pythia tri-pho	0.18 ± 0.18 ± 0.035	0.00 ± 0.18 ± 0.035	0.00 ± 0.18 ± 0.035	0.00 ± 0.18 ± 0.035
Wrong Vertex	2.19 ± 0.42 ± 0.22	1.78 ± 0.38 ± 0.18	1.46 ± 0.34 ± 0.14	1.22 ± 0.31 ± 0.12
QCD	0.3 ± 0.17 ± 0.0	0.2 ± 0.14 ± 0.0	0.2 ± 0.14 ± 0.0	0.1 ± 0.1 ± 0.14
Data	3	3	1	1

Setting Limits on GMSB Models : Search for Heavy Long-Lived Neutralinos in gg+Met final state with 2 fb-1

Setting Limits on GMSB Models
: Search for Heavy Long-Lived Neutralinos in gg+Met final state with 2 fb^-1

Sample	Default MetSig H_T>0 GeV &Delta&phi<&pi - 0.10 (pred ± stat ± sys)	Default MetSig H_T>75 GeV &Delta&phi<&pi - 0.10 (pred ± stat ± sys)	Default MetSig H_T>125 GeV &Delta&phi<&pi - 0.10 (pred ± stat ± sys)	Default MetSig H_T>175 GeV &Delta&phi<&pi - 0.10 (pred ± stat ± sys)	Default MetSig H_T>200 GeV &Delta&phi<&pi - 0.10 (pred ± stat ± sys)	Default MetSig H_T>225 GeV &Delta&phi<&pi - 0.10 (pred ± stat ± sys)	Default MetSig H_T>275 GeV &Delta&phi<&pi - 0.10 (pred ± stat ± sys)	Default MetSig H_T>325 GeV &Delta&phi<&pi - 0.10 (pred ± stat ± sys)
Baur W(e)+pho	21.48 ± 1.03 ± ??	11.36 ± 0.75 ± ??	1.18 ± 0.24 ± ??	0.30 ± 0.12 ± ??	0.099 ± 0.070 ± ??	0.099 ± 0.070 ± ??	0.049 ± 0.049 ± ??	0.049 ± 0.049 ± ??
Baur W(mu)+pho	2.59 ± 0.35 ± ??	1.41 ± 0.26 ± ??	0.24 ± 0.10 ± ??	0.094 ± 0.066 ± ??	0.00 ± 0.047 ± ??	0.00 ± 0.047 ± ??	0.00 ± 0.047 ± ??	0.00 ± 0.047 ± ??
Baur W(tau)+pho	7.39 ± 0.59 ± ??	3.41 ± 0.40 ± ??	0.80 ± 0.20 ± ??	0.19 ± 0.095 ± ??	0.14 ± 0.082 ± ??	0.095 ± 0.067 ± ??	0.00 ± 0.047 ± ??	0.00 ± 0.047 ± ??
Baur Z(e)+pho	0.22 ± 0.026 ± ??	0.18 ± 0.023 ± ??	0.037 ± 0.010 ± ??	0.012 ± 0.006 ± ??	0.006 ± 0.004 ± ??	0.00 ± 0.003 ± ??	0.00 ± 0.003 ± ??	0.00 ± 0.003 ± ??
Baur Z(mu)+pho	2.46 ± 0.086 ± ??	1.48 ± 0.067 ± ??	0.27 ± 0.029 ± ??	0.11 ± 0.018 ± ??	0.085 ± 0.016 ± ??	0.055 ± 0.013 ± ??	0.027 ± 0.009 ± ??	0.012 ± 0.006 ± ??
Baur Z(tau)+pho	2.50 ± 0.087 ± ??	1.41 ± 0.065 ± ??	0.27 ± 0.028 ± ??	0.091 ± 0.017 ± ??	0.058 ± 0.013 ± ??	0.039 ± 0.011 ± ??	0.021 ± 0.008 ± ??	0.006 ± 0.004 ± ??
Pythia Z(tau) no ISR/FSR	0.25 ± 0.093 ± ??	0.071 ± 0.050 ± ??	0.035 ± 0.035 ± ??	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??
Pythia Z(e) no ISR/FSR	0.054 ± 0.054 ± ??	0.054 ± 0.054 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??
Pythia Z(mu) no ISR/FSR	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??
Pythia W(e) no ISR/FSR	1.88 ± 0.60 ± ??	1.51 ± 0.53 ± ??	0.19 ± 0.19 ± ??	0.00 ± 0.19 ± ??	0.00 ± 0.19 ± ??	0.00 ± 0.19 ± ??	0.00 ± 0.19 ± ??	0.00 ± 0.19 ± ??
Pythia W(tau) no ISR/FSR	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??
Pythia W(mu) no ISR/FSR	0.30 ± 0.30 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??
Pythia ttbar(incl)	0.048 ± 0.009 ± ??	0.048 ± 0.009 ± ??	0.046 ± 0.009 ± ??	0.046 ± 0.009 ± ??	0.046 ± 0.009 ± ??	0.040 ± 0.009 ± ??	0.038 ± 0.008 ± ??	0.028 ± 0.007 ± ??
Beam Halo	0.40 ± 0.096 ± 0.18	0.26 ± 0.077 ± 0.12	0.047 ± 0.033 ± 0.021	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010
Cosmic	0.49 ± 0.11 ± 0.26	0.30 ± 0.085 ± 0.16	0.074 ± 0.043 ± 0.039	0.074 ± 0.043 ± 0.039	0.049 ± 0.035 ± 0.026	0.049 ± 0.035 ± 0.026	0.025 ± 0.025 ± 0.013	0.025 ± 0.025 ± 0.013
Pythia tri-pho	3.06 ± 0.74 ± 0.60	1.62 ± 0.54 ± 0.32	0.90 ± 0.40 ± 0.18	0.18 ± 0.18 ± 0.035	0.00 ± 0.180 ± 0.035	0.00 ± 0.180 ± 0.035	0.00 ± 0.180 ± 0.035	0.00 ± 0.180 ± 0.035
Wrong Vertex	2.27 ± 0.43 ± 0.22	0.81 ± 0.26 ± 0.08	0.49 ± 0.20 ± 0.048	0.24 ± 0.14 ± 0.024	0.16 ± 0.11 ± 0.016	0.081 ± 0.081 ± 0.008	0.00 ± 0.081 ± 0.008	0.00 ± 0.081 ± 0.008
QCD	22.9 ± 1.51 ± 0.28	6.9 ± 0.83 ± 0.6	1.2 ± 0.35 ± 0.28	0.2 ± 0.14 ± 0.0	0.1 ± 0.1 ± 0.0	0.1 ± 0.1 ± 0.0	0.0 ± 0.1 ± 0.0	0.0 ± 0.1 ± 0.0
Data	76	28	7	2	2	1	1	1

Sample	MetSig(njet>1)>1 H_T>200 GeV &Delta&phi<&pi - 0.10 (pred ± stat ± sys)	MetSig(njet>1)>2 H_T>200 GeV &Delta&phi<&pi - 0.10 (pred ± stat ± sys)	MetSig(njet>1)>3 H_T>200 GeV &Delta&phi<&pi - 0.10 (pred ± stat ± sys)	MetSig(njet>1)>4 H_T>200 GeV &Delta&phi<&pi - 0.10 (pred ± stat ± sys)	MetSig(njet>1)>5 H_T>200 GeV &Delta&phi<&pi - 0.10 (pred ± stat ± sys)	MetSig(njet>1)>7 H_T>200 GeV &Delta&phi<&pi - 0.10 (pred ± stat ± sys)
Baur W(e)+pho	0.099 ± 0.070 ± ??	0.099 ± 0.070 ± ??	0.099 ± 0.070 ± ??	0.099 ± 0.070 ± ??	0.099 ± 0.070 ± ??	0.099 ± 0.070 ± ??
Baur W(mu)+pho	0.00 ± 0.047 ± ??	0.00 ± 0.047 ± ??	0.00 ± 0.047 ± ??	0.00 ± 0.047 ± ??	0.00 ± 0.047 ± ??	0.00 ± 0.047 ± ??
Baur W(tau)+pho	0.095 ± 0.067 ± ??	0.095 ± 0.067 ± ??	0.095 ± 0.067 ± ??	0.095 ± 0.067 ± ??	0.095 ± 0.067 ± ??	0.095 ± 0.067 ± ??
Baur Z(e)+pho	0.024 ± 0.009 ± ??	0.003 ± 0.003 ± ??	0.00 ± 0.003 ± ??	0.00 ± 0.003 ± ??	0.00 ± 0.003 ± ??	0.00 ± 0.003 ± ??
Baur Z(mu)+pho	0.088 ± 0.016 ± ??	0.085 ± 0.016 ± ??	0.082 ± 0.016 ± ??	0.079 ± 0.016 ± ??	0.073 ± 0.015 ± ??	0.073 ± 0.015 ± ??
Baur Z(tau)+pho	0.11 ± 0.018 ± ??	0.070 ± 0.014 ± ??	0.055 ± 0.013 ± ??	0.048 ± 0.012 ± ??	0.046 ± 0.012 ± ??	0.046 ± 0.012 ± ??
Pythia Z(tau) no ISR/FSR	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??
Pythia Z(e) no ISR/FSR	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??
Pythia Z(mu) no ISR/FSR	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??
Pythia W(e) no ISR/FSR	0.00 ± 0.19 ± ??	0.00 ± 0.19 ± ??	0.00 ± 0.19 ± ??	0.00 ± 0.19 ± ??	0.00 ± 0.19 ± ??	0.00 ± 0.19 ± ??
Pythia W(tau) no ISR/FSR	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??
Pythia W(mu) no ISR/FSR	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??
Pythia ttbar(incl)	0.095 ± 0.013 ± ??	0.060 ± 0.010 ± ??	0.046 ± 0.009 ± ??	0.035 ± 0.008 ± ??	0.033 ± 0.008 ± ??	0.033 ± 0.008 ± ??
Beam Halo	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010
Cosmic	0.049 ± 0.035 ± 0.026	0.049 ± 0.035 ± 0.026	0.049 ± 0.035 ± 0.026	0.049 ± 0.035 ± 0.026	0.049 ± 0.035 ± 0.026	0.049 ± 0.035 ± 0.026
Pythia tri-pho	0.54 ± 0.31 ± 0.10	0.00 ± 0.180 ± 0.035	0.00 ± 0.180 ± 0.035	0.00 ± 0.180 ± 0.035	0.00 ± 0.180 ± 0.035	0.00 ± 0.180 ± 0.035
Wrong Vertex	0.081 ± 0.081 ± 0.008	0.00 ± 0.081 ± 0.008	0.00 ± 0.081 ± 0.008	0.00 ± 0.081 ± 0.008	0.00 ± 0.081 ± 0.008	0.00 ± 0.081 ± 0.008
QCD	15.8 ± 1.26 ± 0.62	0.7 ± 0.26 ± 0.17	0.1 ± 0.1 ± 0.0	0.0 ± 0.1 ± 0.0	0.0 ± 0.1 ± 0.0	0.0 ± 0.1 ± 0.0

Sample	MetSig(njet=1)>2 H_T>200 GeV &Delta&phi<&pi - 0.10 (pred ± stat ± sys)	MetSig(njet=1)>3 H_T>200 GeV &Delta&phi<&pi - 0.10 (pred ± stat ± sys)	MetSig(njet=1)>4 H_T>200 GeV &Delta&phi<&pi - 0.10 (pred ± stat ± sys)	MetSig(njet=1)>5 H_T>200 GeV &Delta&phi<&pi - 0.10 (pred ± stat ± sys)	MetSig(njet=1)>7 H_T>200 GeV &Delta&phi<&pi - 0.10 (pred ± stat ± sys)	MetSig(njet=1)>9 H_T>200 GeV &Delta&phi<&pi - 0.10 (pred ± stat ± sys)
Baur W(e)+pho	0.099 ± 0.070 ± ??	0.099 ± 0.070 ± ??	0.099 ± 0.070 ± ??	0.049 ± 0.049 ± ??	0.049 ± 0.049 ± ??	0.049 ± 0.049 ± ??
Baur W(mu)+pho	0.047 ± 0.047 ± ??	0.00 ± 0.047 ± ??	0.00 ± 0.047 ± ??	0.00 ± 0.047 ± ??	0.00 ± 0.047 ± ??	0.00 ± 0.047 ± ??
Baur W(tau)+pho	0.14 ± 0.082 ± ??	0.14 ± 0.082 ± ??	0.095 ± 0.067 ± ??	0.095 ± 0.067 ± ??	0.095 ± 0.067 ± ??	0.095 ± 0.067 ± ??
Baur Z(e)+pho	0.003 ± 0.003 ± ??	0.003 ± 0.003 ± ??	0.00 ± 0.003 ± ??	0.00 ± 0.003 ± ??	0.00 ± 0.003 ± ??	0.00 ± 0.003 ± ??
Baur Z(mu)+pho	0.082 ± 0.016 ± ??	0.082 ± 0.016 ± ??	0.082 ± 0.016 ± ??	0.082 ± 0.016 ± ??	0.076 ± 0.015 ± ??	0.076 ± 0.015 ± ??
Baur Z(tau)+pho	0.067 ± 0.014 ± ??	0.055 ± 0.013 ± ??	0.055 ± 0.013 ± ??	0.046 ± 0.012 ± ??	0.046 ± 0.012 ± ??	0.046 ± 0.012 ± ??
Pythia Z(tau) no ISR/FSR	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??
Pythia Z(e) no ISR/FSR	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??
Pythia Z(mu) no ISR/FSR	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??
Pythia W(e) no ISR/FSR	0.00 ± 0.19 ± ??	0.00 ± 0.19 ± ??	0.00 ± 0.19 ± ??	0.00 ± 0.19 ± ??	0.00 ± 0.19 ± ??	0.00 ± 0.19 ± ??
Pythia W(tau) no ISR/FSR	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??
Pythia W(mu) no ISR/FSR	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??
Pythia ttbar(incl)	0.046 ± 0.009 ± ??	0.046 ± 0.009 ± ??	0.046 ± 0.009 ± ??	0.046 ± 0.009 ± ??	0.046 ± 0.009 ± ??	0.046 ± 0.009 ± ??
Beam Halo	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010
Cosmic	0.049 ± 0.035 ± 0.026	0.049 ± 0.035 ± 0.026	0.049 ± 0.035 ± 0.026	0.049 ± 0.035 ± 0.026	0.049 ± 0.035 ± 0.026	0.049 ± 0.035 ± 0.026
Pythia tri-pho	0.180 ± 0.180 ± 0.035	0.00 ± 0.180 ± 0.035	0.00 ± 0.180 ± 0.035	0.00 ± 0.180 ± 0.035	0.00 ± 0.180 ± 0.035	0.00 ± 0.180 ± 0.035
Wrong Vertex	0.16 ± 0.11 ± 0.016	0.00 ± 0.081 ± 0.008	0.00 ± 0.081 ± 0.008	0.00 ± 0.081 ± 0.008	0.00 ± 0.081 ± 0.008	0.00 ± 0.081 ± 0.008
QCD	0.2 ± 0.14 ± 0.0	0.1 ± 0.1 ± 0.0	0.1 ± 0.1 ± 0.0	0.1 ± 0.1 ± 0.0	0.1 ± 0.1 ± 0.0	0.1 ± 0.1 ± 0.0

Sample	MetSig(njet=0)>3 H_T>200 GeV &Delta&phi<&pi - 0.10 (pred ± stat ± sys)	MetSig(njet=0)>5 H_T>200 GeV &Delta&phi<&pi - 0.10 (pred ± stat ± sys)	MetSig(njet=0)>7 H_T>200 GeV &Delta&phi<&pi - 0.10 (pred ± stat ± sys)	MetSig(njet=0)>8 H_T>200 GeV &Delta&phi<&pi - 0.10 (pred ± stat ± sys)	MetSig(njet=0)>9 H_T>200 GeV &Delta&phi<&pi - 0.10 (pred ± stat ± sys)	MetSig(njet=0)>10 H_T>200 GeV &Delta&phi<&pi - 0.10 (pred ± stat ± sys)	MetSig(njet=0)>12 H_T>200 GeV &Delta&phi<&pi - 0.10 (pred ± stat ± sys)
Baur W(e)+pho	0.099 ± 0.070 ± ??	0.099 ± 0.070 ± ??	0.099 ± 0.070 ± ??	0.099 ± 0.070 ± ??	0.099 ± 0.070 ± ??	0.099 ± 0.070 ± ??	0.049 ± 0.049 ± ??
Baur W(mu)+pho	0.00 ± 0.047 ± ??	0.00 ± 0.047 ± ??	0.00 ± 0.047 ± ??	0.00 ± 0.047 ± ??	0.00 ± 0.047 ± ??	0.00 ± 0.047 ± ??	0.00 ± 0.047 ± ??
Baur W(tau)+pho	0.095 ± 0.067 ± ??	0.095 ± 0.067 ± ??	0.095 ± 0.067 ± ??	0.095 ± 0.067 ± ??	0.095 ± 0.067 ± ??	0.095 ± 0.067 ± ??	0.095 ± 0.067 ± ??
Baur Z(e)+pho	0.003 ± 0.003 ± ??	0.00 ± 0.003 ± ??	0.00 ± 0.003 ± ??	0.00 ± 0.003 ± ??	0.00 ± 0.003 ± ??	0.00 ± 0.003 ± ??	0.00 ± 0.003 ± ??
Baur Z(mu)+pho	0.085 ± 0.016 ± ??	0.085 ± 0.016 ± ??	0.082 ± 0.016 ± ??	0.082 ± 0.016 ± ??	0.082 ± 0.016 ± ??	0.079 ± 0.015 ± ??	0.076 ± 0.015 ± ??
Baur Z(tau)+pho	0.058 ± 0.013 ± ??	0.058 ± 0.013 ± ??	0.058 ± 0.013 ± ??	0.058 ± 0.013 ± ??	0.055 ± 0.013 ± ??	0.055 ± 0.013 ± ??	0.052 ± 0.012 ± ??
Pythia Z(tau) no ISR/FSR	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??
Pythia Z(e) no ISR/FSR	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??
Pythia Z(mu) no ISR/FSR	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??
Pythia W(e) no ISR/FSR	0.00 ± 0.19 ± ??	0.00 ± 0.19 ± ??	0.00 ± 0.19 ± ??	0.00 ± 0.19 ± ??	0.00 ± 0.19 ± ??	0.00 ± 0.19 ± ??	0.00 ± 0.19 ± ??
Pythia W(tau) no ISR/FSR	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??
Pythia W(mu) no ISR/FSR	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??
Pythia ttbar(incl)	0.046 ± 0.009 ± ??	0.046 ± 0.009 ± ??	0.046 ± 0.009 ± ??	0.046 ± 0.009 ± ??	0.046 ± 0.009 ± ??	0.046 ± 0.009 ± ??	0.046 ± 0.009 ± ??
Beam Halo	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010
Cosmic	0.049 ± 0.035 ± 0.026	0.049 ± 0.035 ± 0.026	0.049 ± 0.035 ± 0.026	0.049 ± 0.035 ± 0.026	0.049 ± 0.035 ± 0.026	0.049 ± 0.035 ± 0.026	0.049 ± 0.035 ± 0.026
Pythia tri-pho	0.00 ± 0.180 ± 0.035	0.00 ± 0.180 ± 0.035	0.00 ± 0.180 ± 0.035	0.00 ± 0.180 ± 0.035	0.00 ± 0.180 ± 0.035	0.00 ± 0.180 ± 0.035	0.00 ± 0.180 ± 0.035
Wrong Vertex	0.16 ± 0.11 ± 0.016	0.081 ± 0.081 ± 0.008	0.081 ± 0.081 ± 0.008	0.081 ± 0.081 ± 0.008	0.00 ± 0.081 ± 0.008	0.00 ± 0.081 ± 0.008	0.00 ± 0.081 ± 0.008
QCD	0.1 ± 0.1 ± 0.0	0.1 ± 0.1 ± 0.0	0.1 ± 0.1 ± 0.0	0.1 ± 0.1 ± 0.0	0.1 ± 0.1 ± 0.0	0.1 ± 0.1 ± 0.0	0.1 ± 0.1 ± 0.0

Sample	Default MetSig H_T>75 GeV (pred ± stat ± sys)	Default MetSig H_T>125 GeV (pred ± stat ± sys)	Default MetSig H_T>175 GeV (pred ± stat ± sys)	Default MetSig H_T>200 GeV (pred ± stat ± sys)	Default MetSig H_T>225 GeV (pred ± stat ± sys)	Default MetSig H_T>275 GeV (pred ± stat ± sys)	Default MetSig H_T>325 GeV (pred ± stat ± sys)
Baur W(e)+pho	8.64 ± 0.65 ± ??	1.38 ± 0.26 ± ??	0.44 ± 0.15 ± ??	0.25 ± 0.11 ± ??	0.25 ± 0.11 ± ??	0.15 ± 0.08 ± ??	0.15 ± 0.08 ± ??
Baur W(mu)+pho	1.03 ± 0.22 ± ??	0.47 ± 0.15 ± ??	0.33 ± 0.12 ± ??	0.24 ± 0.10 ± ??	0.19 ± 0.09 ± ??	0.19 ± 0.09 ± ??	0.14 ± 0.08 ± ??
Baur W(tau)+pho	2.18 ± 0.32 ± ??	0.90 ± 0.21 ± ??	0.33 ± 0.12 ± ??	0.24 ± 0.10 ± ??	0.19 ± 0.09 ± ??	0.047 ± 0.05 ± ??	0.047 ± 0.05 ± ??
Baur Z(e)+pho	0.082 ± 0.016 ± ??	0.015 ± 0.007 ± ??	0.003 ± 0.003 ± ??	0.00 ± 0.003 ± ??	0.00 ± 0.003 ± ??	0.00 ± 0.003 ± ??	0.00 ± 0.003 ± ??
Baur Z(mu)+pho	0.945 ± 0.054 ± ??	0.255 ± 0.028 ± ??	0.106 ± 0.018 ± ??	0.088 ± 0.016 ± ??	0.058 ± 0.013 ± ??	0.030 ± 0.010 ± ??	0.012 ± 0.006 ± ??
Baur Z(tau)+pho	0.747 ± 0.048 ± ??	0.246 ± 0.027 ± ??	0.091 ± 0.017 ± ??	0.058 ± 0.013 ± ??	0.036 ± 0.010 ± ??	0.018 ± 0.007 ± ??	0.003 ± 0.003 ± ??
Pythia Z(tau) no ISR/FSR	0.071 ± 0.050 ± ??	0.035 ± 0.035 ± ??	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??
Pythia Z(e) no ISR/FSR	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??
Pythia Z(mu) no ISR/FSR	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??
Pythia W(e) no ISR/FSR	1.13 ± 0.46 ± ??	0.19 ± 0.19 ± ??	0.00 ± 0.19 ± ??	0.00 ± 0.19 ± ??	0.00 ± 0.19 ± ??	0.00 ± 0.19 ± ??	0.00 ± 0.19 ± ??
Pythia W(tau) no ISR/FSR	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??	0.00 ± 0.12 ± ??
Pythia W(mu) no ISR/FSR	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??
Pythia ttbar(incl)	0.050 ± 0.010 ± ??	0.048 ± 0.009 ± ??	0.048 ± 0.009 ± ??	0.048 ± 0.009 ± ??	0.042 ± 0.009 ± ??	0.038 ± 0.008 ± ??	0.028 ± 0.007 ± ??
Beam Halo	0.26 ± 0.077 ± 0.12	0.047 ± 0.033 ± 0.021	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010
Cosmic	0.22 ± 0.074 ± 0.12	0.074 ± 0.043 ± 0.039	0.074 ± 0.043 ± 0.039	0.049 ± 0.035 ± 0.026	0.049 ± 0.035 ± 0.026	0.025 ± 0.025 ± 0.013	0.025 ± 0.025 ± 0.013
Pythia tri-pho	1.08 ± 0.44 ± 0.21	0.54 ± 0.31 ± 0.10	0.180 ± 0.180 ± 0.035	0.00 ± 0.180 ± 0.035	0.00 ± 0.180 ± 0.035	0.00 ± 0.180 ± 0.035	0.00 ± 0.180 ± 0.035
Wrong Vertex	0.49 ± 0.20 ± 0.05	0.40 ± 0.18 ± 0.04	0.40 ± 0.18 ± 0.04	0.40 ± 0.18 ± 0.04	0.32 ± 0.16 ± 0.03	0.24 ± 0.14 ± 0.02	0.16 ± 0.11 ± 0.02
QCD	0.9 ± 0.3 ± 0.0	0.5 ± 0.2 ± 0.1	0.2 ± 0.1 ± 0.0	0.1 ± 0.1 ± 0.0	0.0 ± 0.1 ± 0.0	0.0 ± 0.1 ± 0.0	0.0 ± 0.1 ± 0.0

Default MetSig cut	njet=0	njet=1	njet>1
No cut on Ht	fig.1	fig.2	fig.3
Ht>200 GeV	fig.4	fig.5	fig.6
No MetSig cut	njet=0	njet=1	njet>1
No cut on Ht	fig.7	fig.8	fig.9
Ht>200 GeV	fig.10	fig.11	fig.12

Plots	GMSB (130,0)	GMSB (150,0)	Baur W+pho	Baur Z+pho	Wrong Vertex	Pythia Tripho
Ht/Et(pho1)	Fig.1	Fig.2	Fig.3	Fig.4	Fig.5	Fig.6
Ht/Et(pho1) vs Ht	Fig.7	Fig.8	Fig.9	Fig.10	Fig.11	Fig.12
Ht vs Et(pho1)	Fig.13	Fig.14	Fig.15	Fig.16	Fig.17	Fig.18
&Delta &phi(Met,pho2) vs Et(pho1)	Fig.19	Fig.20	Fig.21	Fig.22	Fig.23	Fig.24
&Delta &phi(Met,pho2) vs Ht	Fig.25	Fig.26	Fig.27	Fig.28	Fig.29	Fig.30
&Delta &phi(pho1,pho2) vs Et(pho1)	Fig.31	Fig.32	Fig.33	Fig.34	Fig.35	Fig.36
&Delta &phi(pho1,pho2) vs Ht	Fig.37	Fig.38	Fig.39	Fig.40	Fig.41	Fig.42

Sample	MetSig>5.0, H_T>75, (pred ± stat ± sys)	MetSig>5.0, H_T>100, (pred ± stat ± sys)	MetSig>5.0, H_T>125, (pred ± stat ± sys)	MetSig>5.0, H_T>150, (pred ± stat ± sys)	MetSig>5.0, H_T>175, (pred ± stat ± sys)	MetSig>5.0, H_T>200, (pred ± stat ± sys)	MetSig>5.0, H_T>225, (pred ± stat ± sys)	MetSig>5.0, H_T>250, (pred ± stat ± sys)	MetSig>5.0, H_T>275, (pred ± stat ± sys)	MetSig>5.0, H_T>300, (pred ± stat ± sys)
Baur W(e)+pho	11.31 ± 0.75 ± ??	3.21 ± 0.40 ± ??	1.48 ± 0.27 ± ??	0.74 ± 0.19 ± ??	0.44 ± 0.15 ± ??	0.25 ± 0.11 ± ??	0.25 ± 0.11 ± ??	0.15 ± 0.08 ± ??	0.15 ± 0.08 ± ??	0.15 ± 0.08 ± ??
Baur W(mu)+pho	1.55 ± 0.27 ± ??	0.94 ± 0.21 ± ??	0.47 ± 0.15 ± ??	0.38 ± 0.13 ± ??	0.33 ± 0.12 ± ??	0.24 ± 0.10 ± ??	0.19 ± 0.09 ± ??	0.19 ± 0.09 ± ??	0.19 ± 0.09 ± ??	0.19 ± 0.09 ± ??
Baur W(tau)+pho	3.50 ± 0.41 ± ??	1.70 ± 0.28 ± ??	1.04 ± 0.22 ± ??	0.57 ± 0.16 ± ??	0.38 ± 0.13 ± ??	0.28 ± 0.12 ± ??	0.24 ± 0.10 ± ??	0.19 ± 0.09 ± ??	0.047 ± 0.05 ± ??	0.047 ± 0.05 ± ??
Baur Z(e)+pho	0.150 ± 0.021 ± ??	0.064 ± 0.014 ± ??	0.030 ± 0.010 ± ??	0.021 ± 0.008 ± ??	0.009 ± 0.005 ± ??	0.006 ± 0.004 ± ??	0.003 ± 0.003 ± ??	0.00 ± 0.003 ± ??	0.00 ± 0.003 ± ??	0.00 ± 0.003 ± ??
Baur Z(mu)+pho	1.429 ± 0.066 ± ??	0.611 ± 0.043 ± ??	0.286 ± 0.029 ± ??	0.164 ± 0.022 ± ??	0.112 ± 0.018 ± ??	0.091 ± 0.017 ± ??	0.061 ± 0.014 ± ??	0.040 ± 0.011 ± ??	0.030 ± 0.010 ± ??	0.012 ± 0.006 ± ??
Baur Z(tau)+pho	1.505 ± 0.068 ± ??	0.710 ± 0.046 ± ??	0.340 ± 0.032 ± ??	0.179 ± 0.023 ± ??	0.100 ± 0.017 ± ??	0.061 ± 0.014 ± ??	0.039 ± 0.011 ± ??	0.033 ± 0.010 ± ??	0.021 ± 0.008 ± ??	0.012 ± 0.006 ± ??
Pythia Z(tau) no ISR/FSR	0.141 ± 0.014 ± ??	0.035 ± 0.007 ± ??	0.035 ± 0.007 ± ??	0.035 ± 0.007 ± ??	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??
Pythia Z(e) no ISR/FSR	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??
Pythia Z(mu) no ISR/FSR	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??
Pythia W(e) no ISR/FSR	1.507 ± 0.533 ± ??	0.565 ± 0.326 ± ??	0.188 ± 0.188 ± ??	0.00 ± 0.188 ± ??	0.00 ± 0.188 ± ??	0.00 ± 0.188 ± ??	0.00 ± 0.188 ± ??	0.00 ± 0.188 ± ??	0.00 ± 0.188 ± ??	0.00 ± 0.188 ± ??
Pythia W(tau) no ISR/FSR	0.00 ± 0.115 ± ??	0.00 ± 0.115 ± ??	0.00 ± 0.115 ± ??	0.00 ± 0.115 ± ??	0.00 ± 0.115 ± ??	0.00 ± 0.115 ± ??	0.00 ± 0.115 ± ??	0.00 ± 0.115 ± ??	0.00 ± 0.115 ± ??	0.00 ± 0.115 ± ??
Pythia W(mu) no ISR/FSR	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??
Pythia ttbar(incl)	0.050 ± 0.010 ± ??	0.050 ± 0.010 ± ??	0.048 ± 0.009 ± ??	0.048 ± 0.009 ± ??	0.048 ± 0.009 ± ??	0.048 ± 0.009 ± ??	0.042 ± 0.009 ± ??	0.040 ± 0.009 ± ??	0.038 ± 0.008 ± ??	0.037 ± 0.008 ± ??
Beam Halo	0.257 ± 0.077 ± 0.116	0.093 ± 0.047 ± 0.042	0.047 ± 0.033 ± 0.021	0.023 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010
Cosmic	0.246 ± 0.078 ± 0.131	0.098 ± 0.049 ± 0.052	0.074 ± 0.043 ± 0.039	0.074 ± 0.043 ± 0.039	0.074 ± 0.043 ± 0.039	0.049 ± 0.035 ± 0.026	0.049 ± 0.035 ± 0.026	0.049 ± 0.035 ± 0.026	0.025 ± 0.025 ± 0.013	0.025 ± 0.025 ± 0.013
Pythia tri-pho	1.08 ± 0.44 ± 0.21	0.72 ± 0.36 ± 0.14	0.540 ± 0.312 ± 0.105	0.360 ± 0.254 ± 0.070	0.180 ± 0.180 ± 0.035	0.00 ± 0.180 ± 0.035	0.00 ± 0.180 ± 0.035	0.00 ± 0.180 ± 0.035	0.00 ± 0.180 ± 0.035	0.00 ± 0.180 ± 0.035
Wrong Vertex	1.62 ± 0.36 ± 0.16	1.46 ± 0.34 ± 0.14	1.38 ± 0.33 ± 0.14	1.30 ± 0.32 ± 0.13	1.13 ± 0.30 ± 0.11	1.13 ± 0.30 ± 0.11	0.97 ± 0.28 ± 0.10	0.81 ± 0.26 ± 0.08	0.57 ± 0.21 ± 0.06	0.57 ± 0.21 ± 0.06
QCD	9.6 ± 0.98 ± 3.94	5.2 ± 0.72 ± 2.17	2.5 ± 0.50 ± 0.90	0.7 ± 0.26 ± 0.35	0.3 ± 0.17 ± 0.22	0.1 ± 0.10 ± 0.22	0.1 ± 0.10 ± 0.22	0.0 ± 0.10 ± 0.14	0.0 ± 0.10 ± 0.00	0.0 ± 0.10 ± 0.00

MetSig Cut > 5	Acceptance (%)	Background Estimation	&sigma ^exp (fb)	&sigma ^obs (fb)	&sigma ^prod (fb)
H_T>75 GeV	11.07 ± 1.11	33.94 ± 4.37	70.32	30.32	36.08
H_T>100 GeV	11.06 ± 1.10	15.45 ± 2.51	49.12	35.59	36.08
H_T>125 GeV	11.02 ± 1.10	8.46 ± 1.30	37.56	30.27	36.08
H_T>150 GeV	10.93 ± 1.09	4.60 ± 0.79	30.32	21.60	36.08
H_T>175 GeV	10.68 ± 1.07	3.10 ± 0.65	27.12	21.26	36.08
H_T>200 GeV	10.23 ± 1.02	2.26 ± 0.61	25.87	23.12	36.08
H_T>225 GeV	9.61 ± 0.96	1.94 ± 0.58	26.46	14.77	36.08
H_T>250 GeV	8.79 ± 0.88	1.50 ± 0.54	26.67	16.15	36.08
H_T>275 GeV	7.78 ± 0.78	1.08 ± 0.47	28.01	18.95	36.08
H_T>300 GeV	6.87 ± 0.69	1.04 ± 0.47	31.41	21.46	36.08

Sample	MetSig>5.0, E_T(pho1)>40, H_T>100, (pred ± stat ± sys)	MetSig>5.0, E_T(pho1)>40, H_T>275, (pred ± stat ± sys)	MetSig>5.0, E_T(pho1)>20, H_T>200, (pred ± stat ± sys)	MetSig>5.0, E_T(pho1)>70, H_T>200, (pred ± stat ± sys)
Baur W(e)+pho	0.79 ± 0.20 ± ??	0.15 ± 0.08 ± ??	0.25 ± 0.11 ± ??	0.25 ± 0.11 ± ??
Baur W(mu)+pho	0.56 ± 0.16 ± ??	0.19 ± 0.09 ± ??	0.24 ± 0.10 ± ??	0.24 ± 0.10 ± ??
Baur W(tau)+pho	1.28 ± 0.25 ± ??	0.047 ± 0.047 ± ??	0.28 ± 0.12 ± ??	0.28 ± 0.12 ± ??
Baur Z(e)+pho	0.0122 ± 0.0061 ± ??	0.00 ± 0.0030 ± ??	0.0061 ± 0.0043 ± ??	0.0030 ± 0.0030 ± ??
Baur Z(mu)+pho	0.392 ± 0.034 ± ??	0.030 ± 0.010 ± ??	0.088 ± 0.016 ± ??	0.076 ± 0.015 ± ??
Baur Z(tau)+pho	0.273 ± 0.029 ± ??	0.021 ± 0.008 ± ??	0.061 ± 0.014 ± ??	0.046 ± 0.012 ± ??
Pythia Z(tau) no ISR/FSR	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??	0.00 ± 0.007 ± ??
Pythia Z(e) no ISR/FSR	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??	0.00 ± 0.001 ± ??
Pythia Z(mu) no ISR/FSR	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??	0.00 ± 0.020 ± ??
Pythia W(e) no ISR/FSR	0.377 ± 0.266 ± ??	0.00 ± 0.188 ± ??	0.00 ± 0.188 ± ??	0.00 ± 0.188 ± ??
Pythia W(tau) no ISR/FSR	0.00 ± 0.115 ± ??	0.00 ± 0.115 ± ??	0.00 ± 0.115 ± ??	0.00 ± 0.115 ± ??
Pythia W(mu) no ISR/FSR	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??	0.00 ± 0.042 ± ??
Pythia ttbar(incl)	0.0165 ± 0.0055 ± ??	0.0147 ± 0.0052 ± ??	0.0422 ± 0.0088 ± ??	0.0037 ± 0.0026 ± ??
Beam Halo	0.047 ± 0.033 ± 0.021	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010	0.00 ± 0.023 ± 0.010
Cosmic	0.098 ± 0.049 ± 0.052	0.025 ± 0.025 ± 0.013	0.049 ± 0.035 ± 0.026	0.049 ± 0.035 ± 0.026
Pythia tri-pho	0.540 ± 0.312 ± 0.105	0.00 ± 0.180 ± 0.035	0.00 ± 0.180 ± 0.035	0.00 ± 0.180 ± 0.035
Wrong Vertex	1.45 ± 0.34 ± 0.14	0.57 ± 0.21 ± 0.06	1.13 ± 0.30 ± 0.11	1.13 ± 0.30 ± 0.11
QCD	1.2 ± 0.35 ± 0.24	0.00 ± 0.10 ± 0.00	0.1 ± 0.1 ± 0.22	0.00 ± 0.10 ± 0.00
